Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

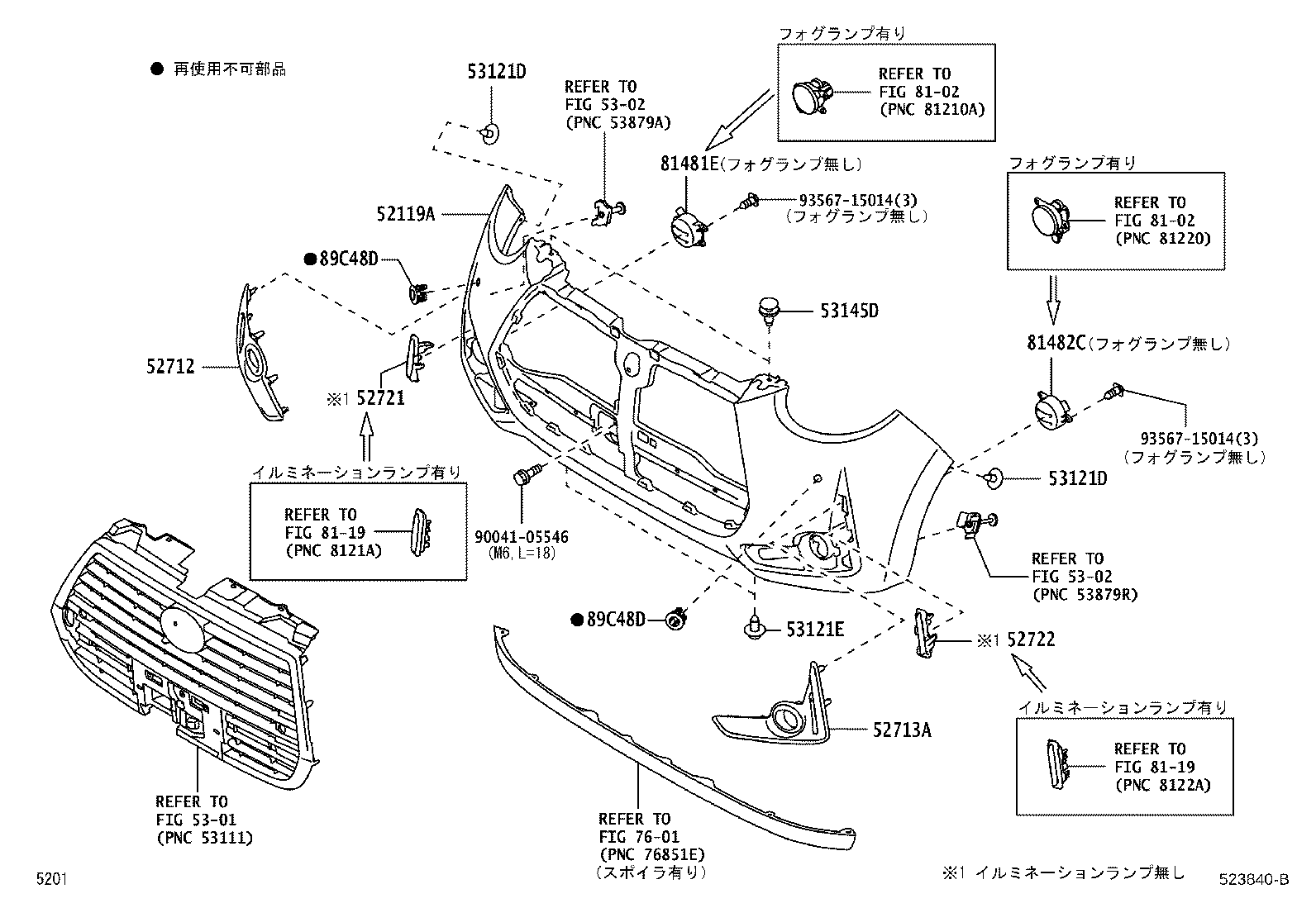

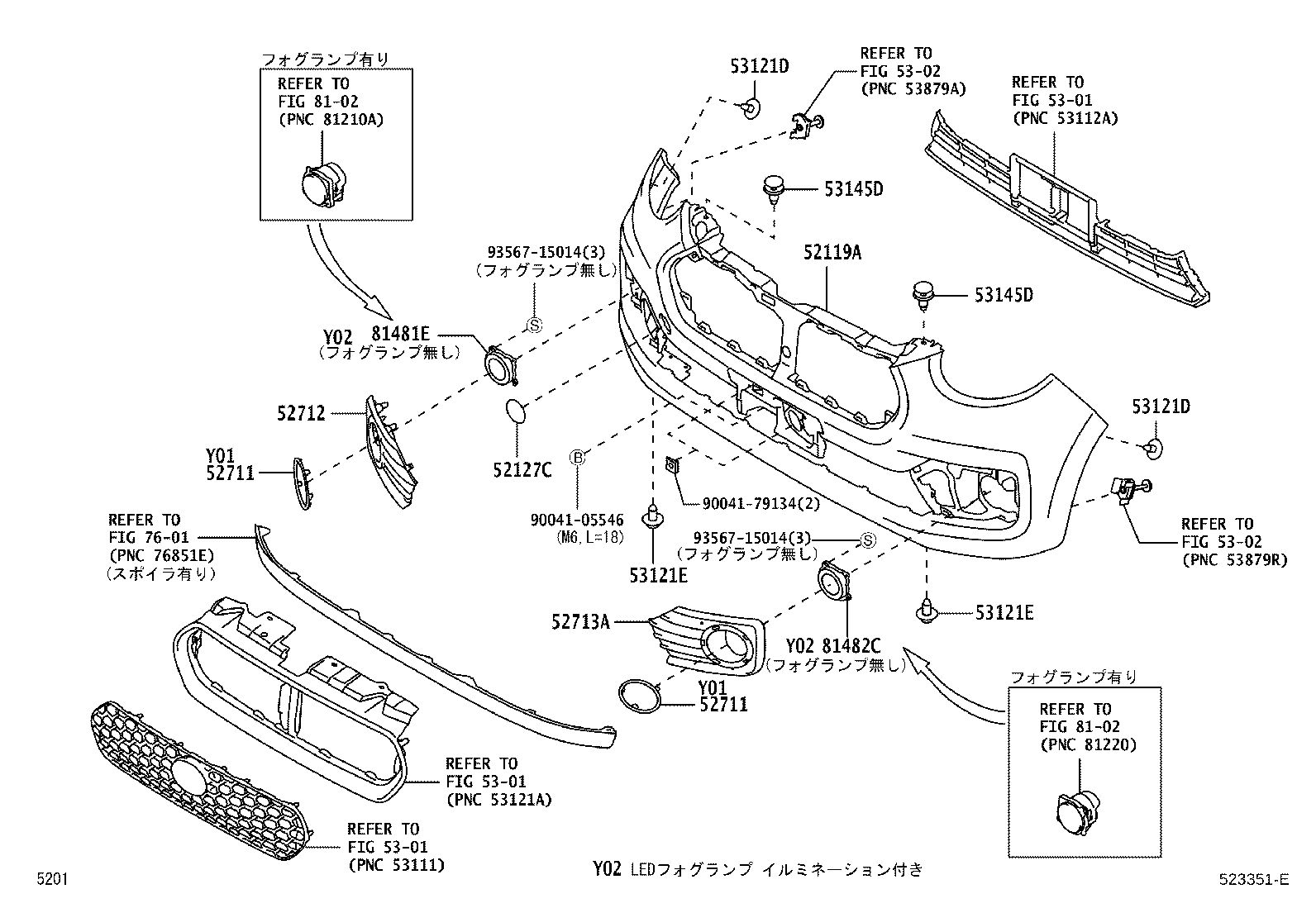

Figure 523350D 523350D 2016-04 → — Figure 523351E 523351E 2016-04 → 2018-10 Figure 523840B 523840B 2018-10 → —

Part groups

PNCDescription
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
53121D Clip(FOR FRONT BUMPER), NO.2
53121E Clip(FOR FRONT BUMPER), NO.1
53145D Clip, Radiator Grille
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
