Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

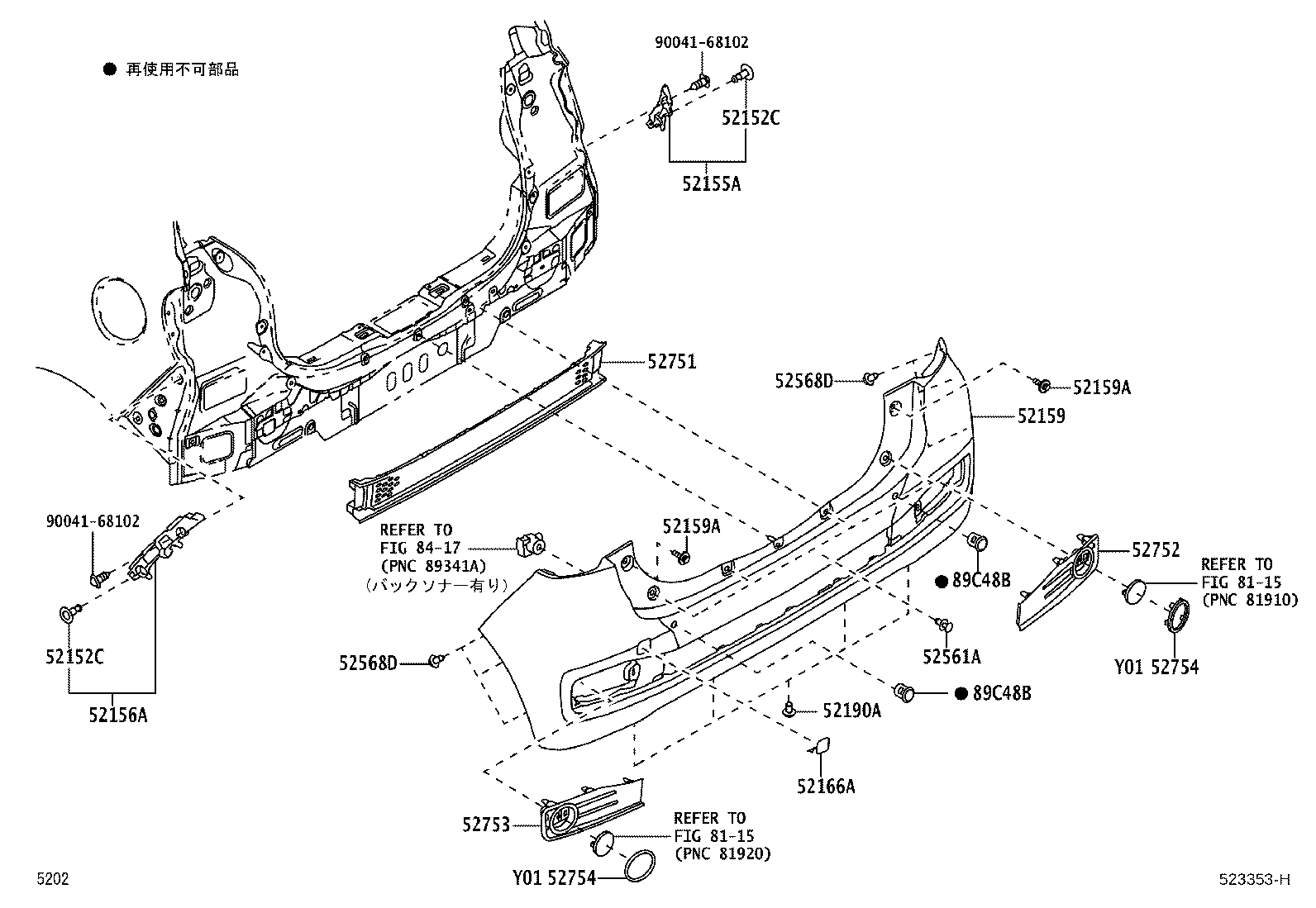

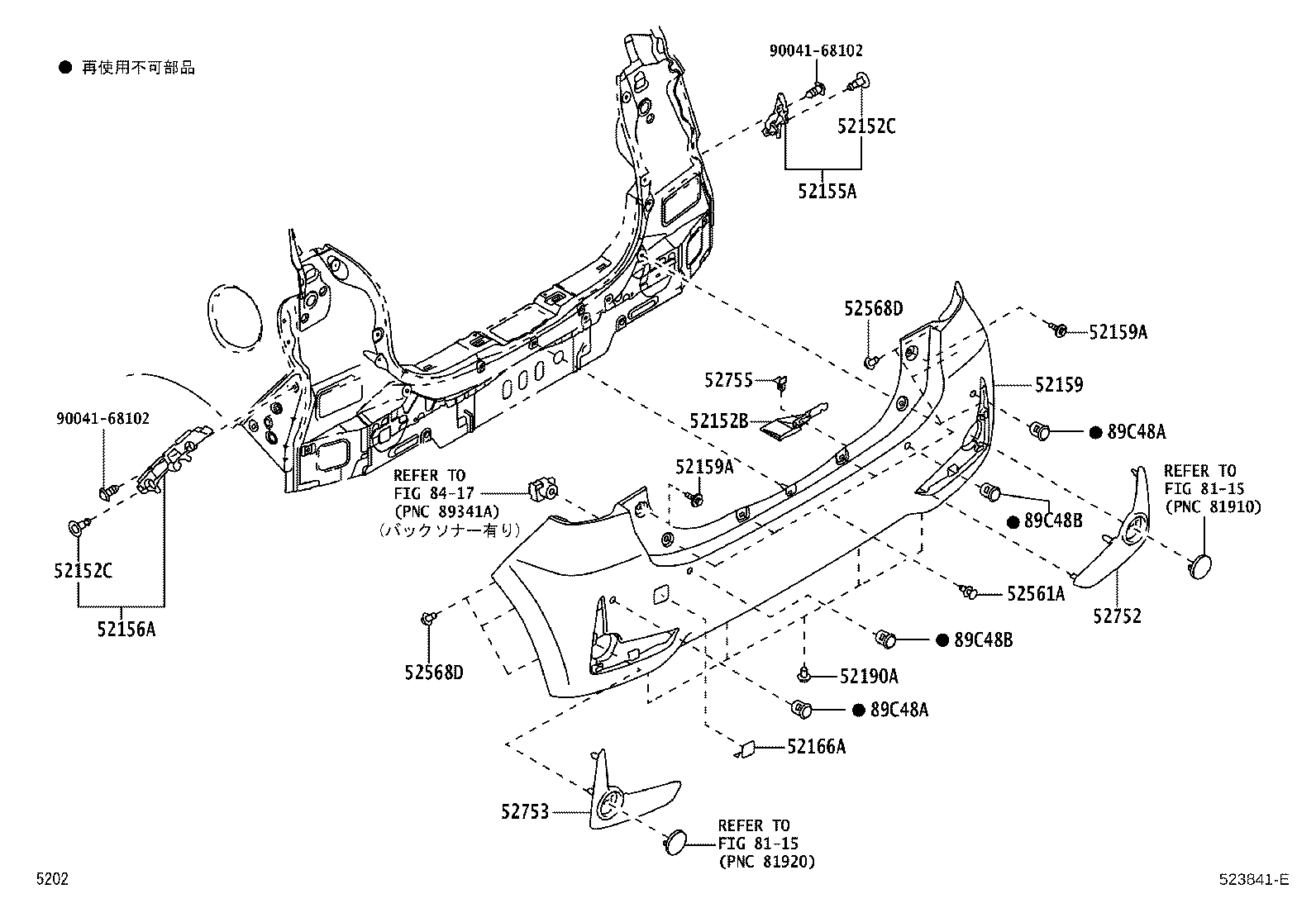

Figure 523352I 523352I 2016-04 → — Figure 523353H 523353H 2016-04 → 2018-10 Figure 523841E 523841E 2018-10 → —

Part groups

PNCDescription
52152B Extension, Rear Bumper, RH
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52159A Bolt(FOR REAR BUMPER COVER)
52166A Cover, Rear Bumper, Upr LH
52190A Clip
52561A Clip(FOR REAR BUMPER RETAINER)
52568D Retainer, Rear Bumper, Upper NO.2
52751 Moulding, Rear Bumper
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
52754 Moulding, Rear Bumper, NO.2
52755 Retainer, Rear Bumper Moulding, RH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
