Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

21 part groups · 2 illustrations

Illustrations

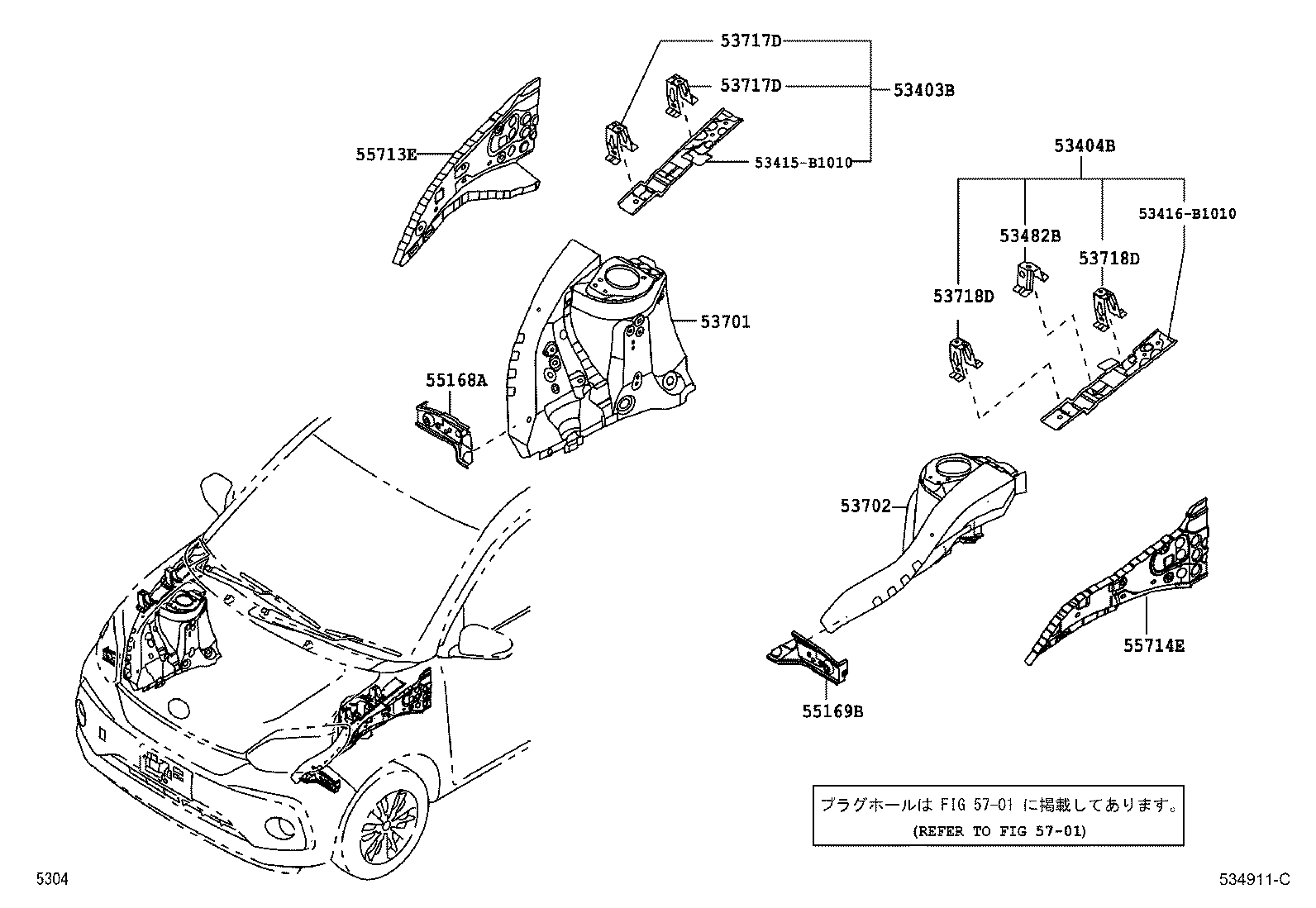

Figure 534953E 534953E 2016-04 → — Figure 534911C 534911C 2016-04 → —

Part groups

PNCDescription
52021B Reinforcement Sub-assy, Front Bumper
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53215B Support, Hood Lock
53216A Support, Radiator, Upper
53218A Support, Radiator, Lower
53403B Bracket Sub-assy, Hood Hinge, RH
53404B Bracket Sub-assy, Hood Hinge, LH
53482B Bracket, Hood Support LH
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53717D Gusset, Fender Apron, RH
53718D Gusset, Fender Apron, LH
55101 Panel Sub-assy, Dash
55168A Bracket, Front Fender Mounting, RH
55169B Bracket, Front Fender Mounting, LH
55210 Insulator Assy, Dash Panel
55210A Clip
55223A Insulator, Dash Panel, Outer
55713E Panel, Cowl Top Side, RH
55714E Panel, Cowl Top Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
