Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

49 part groups · 7 illustrations

Illustrations

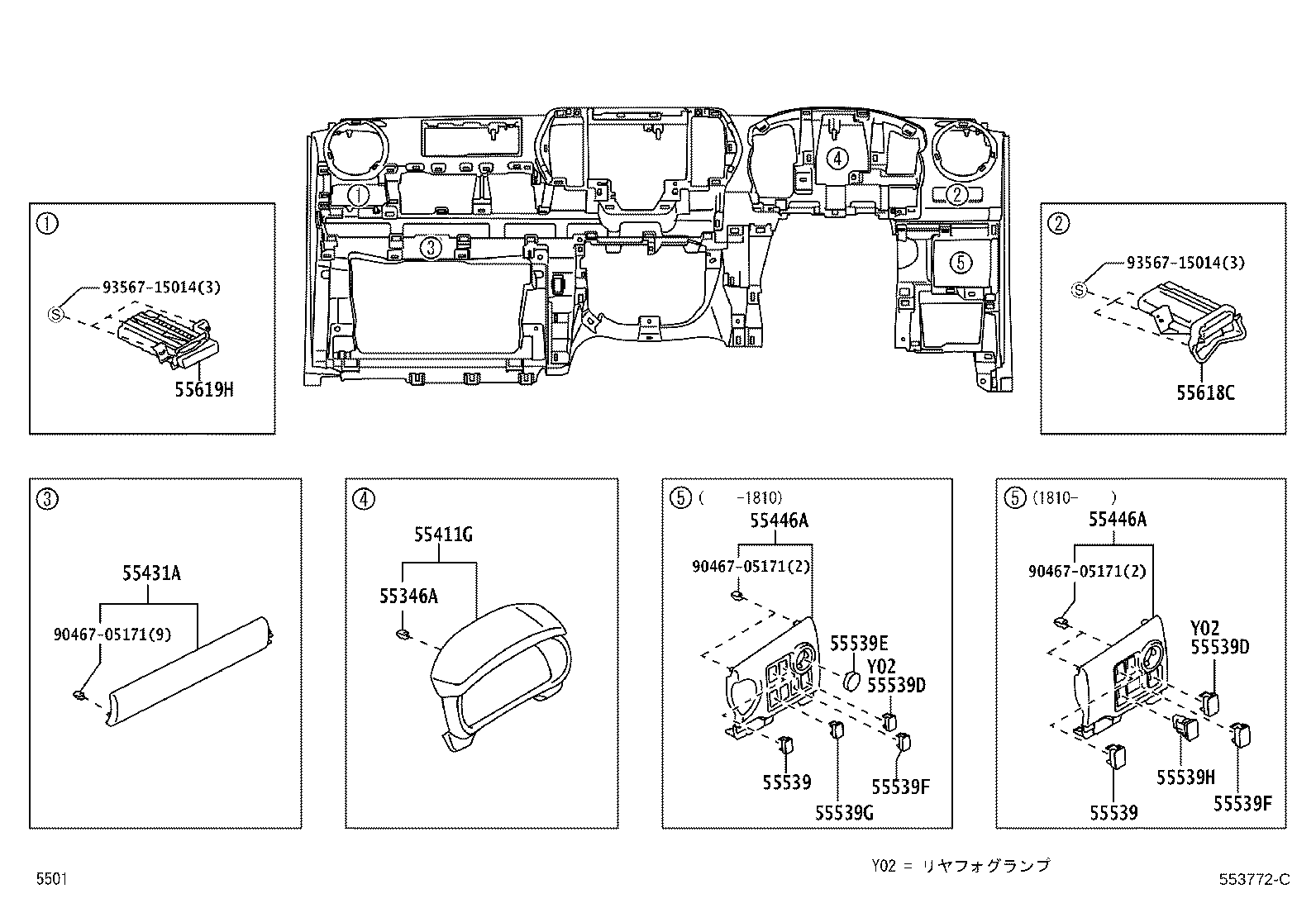

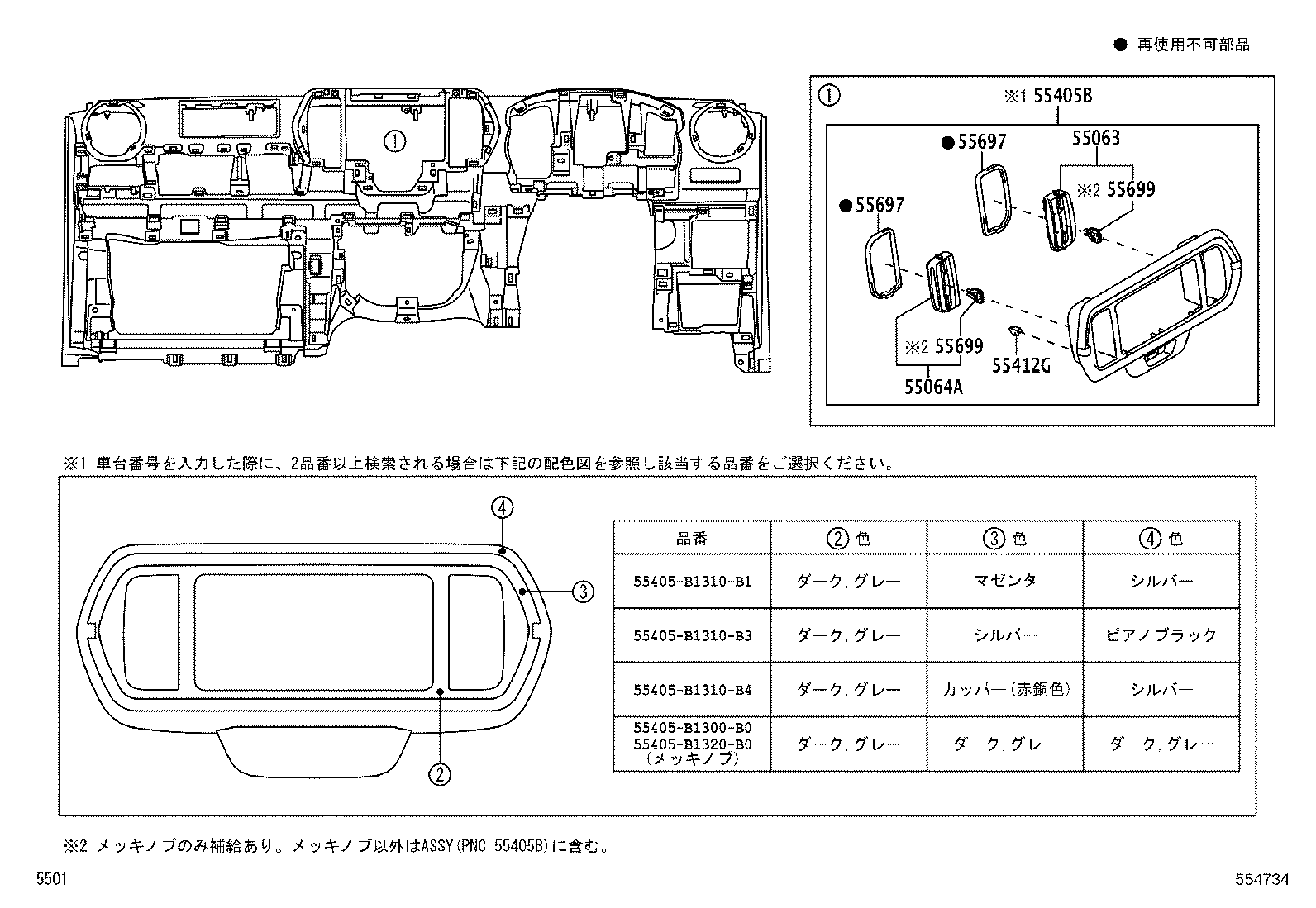

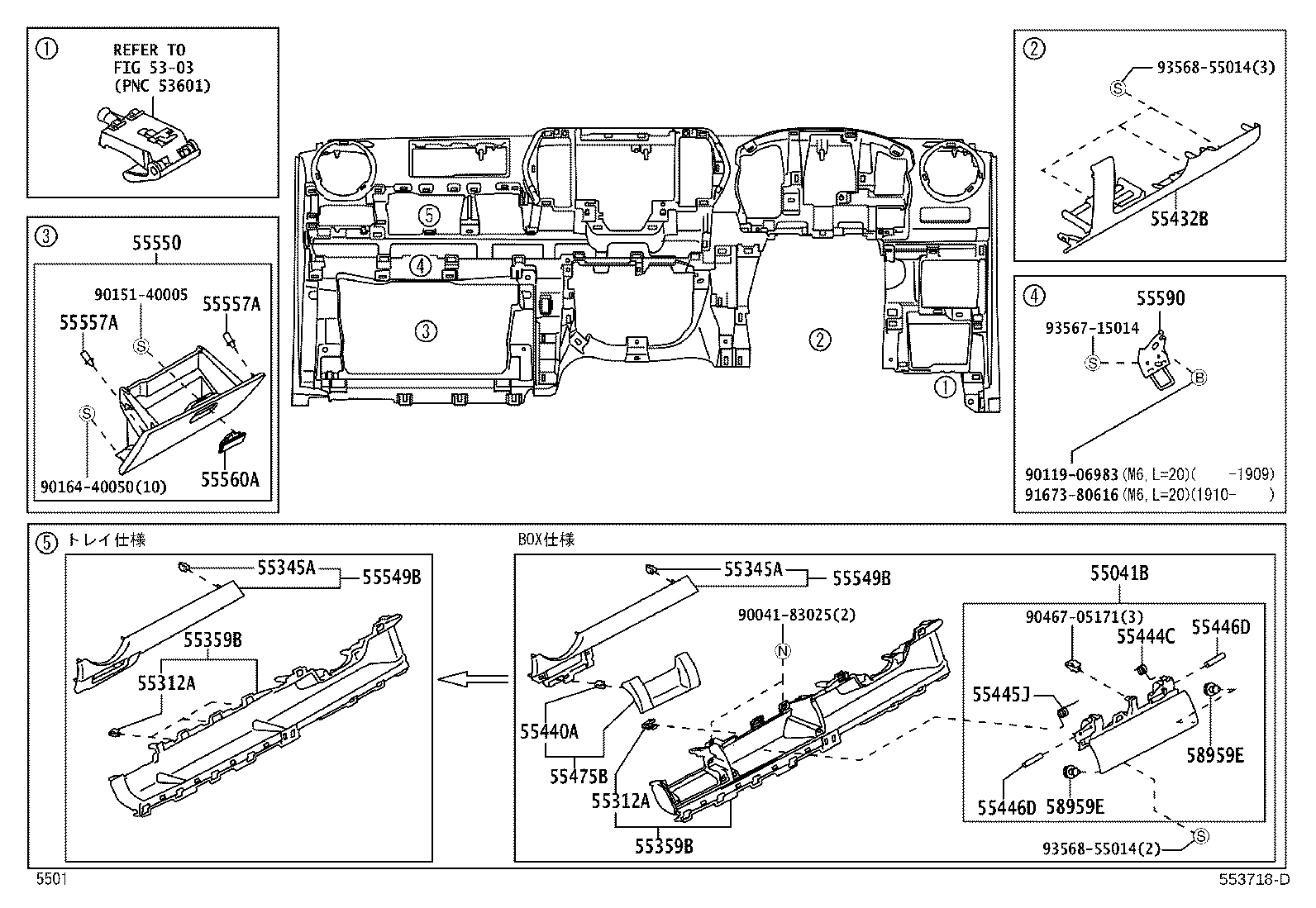

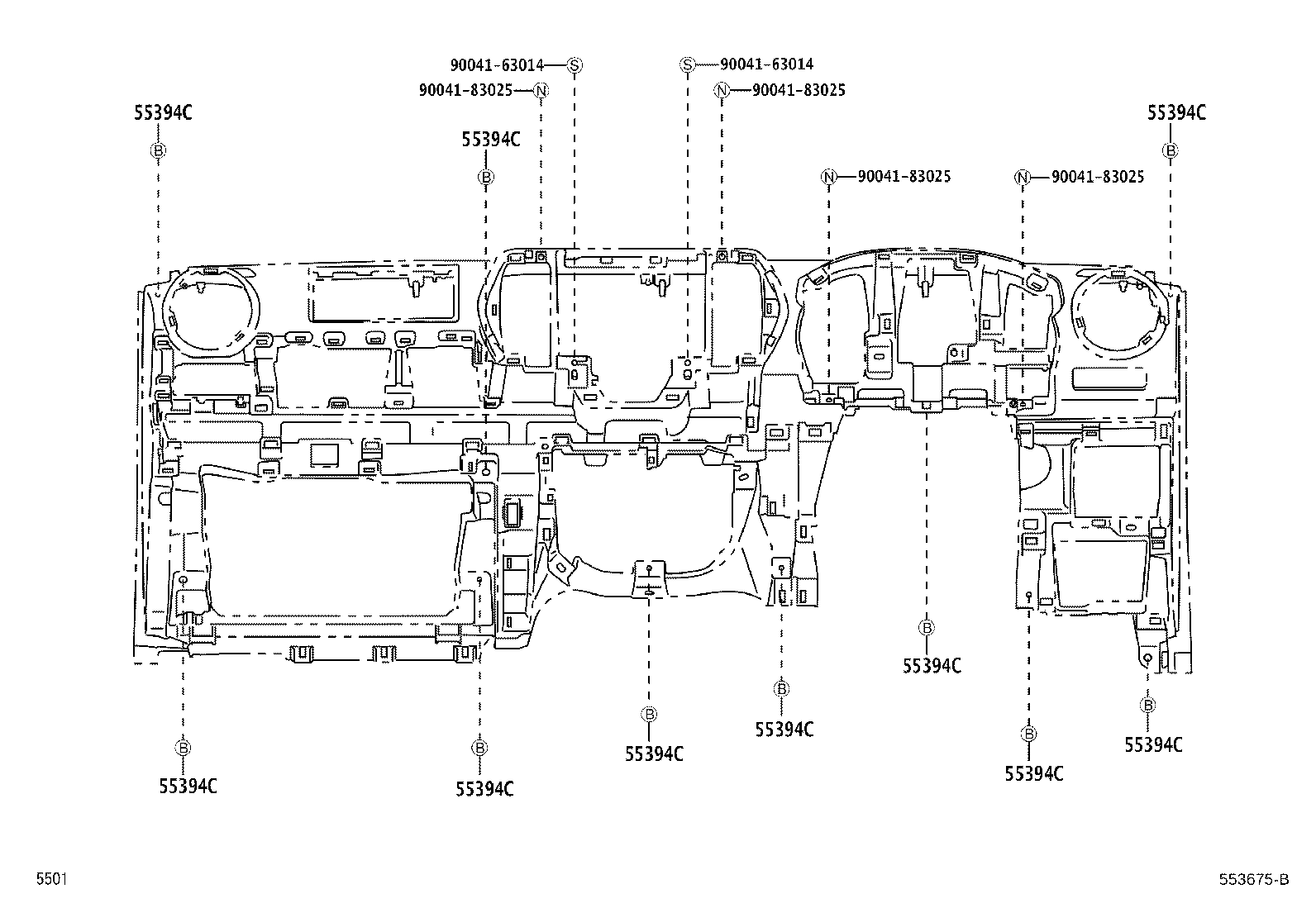

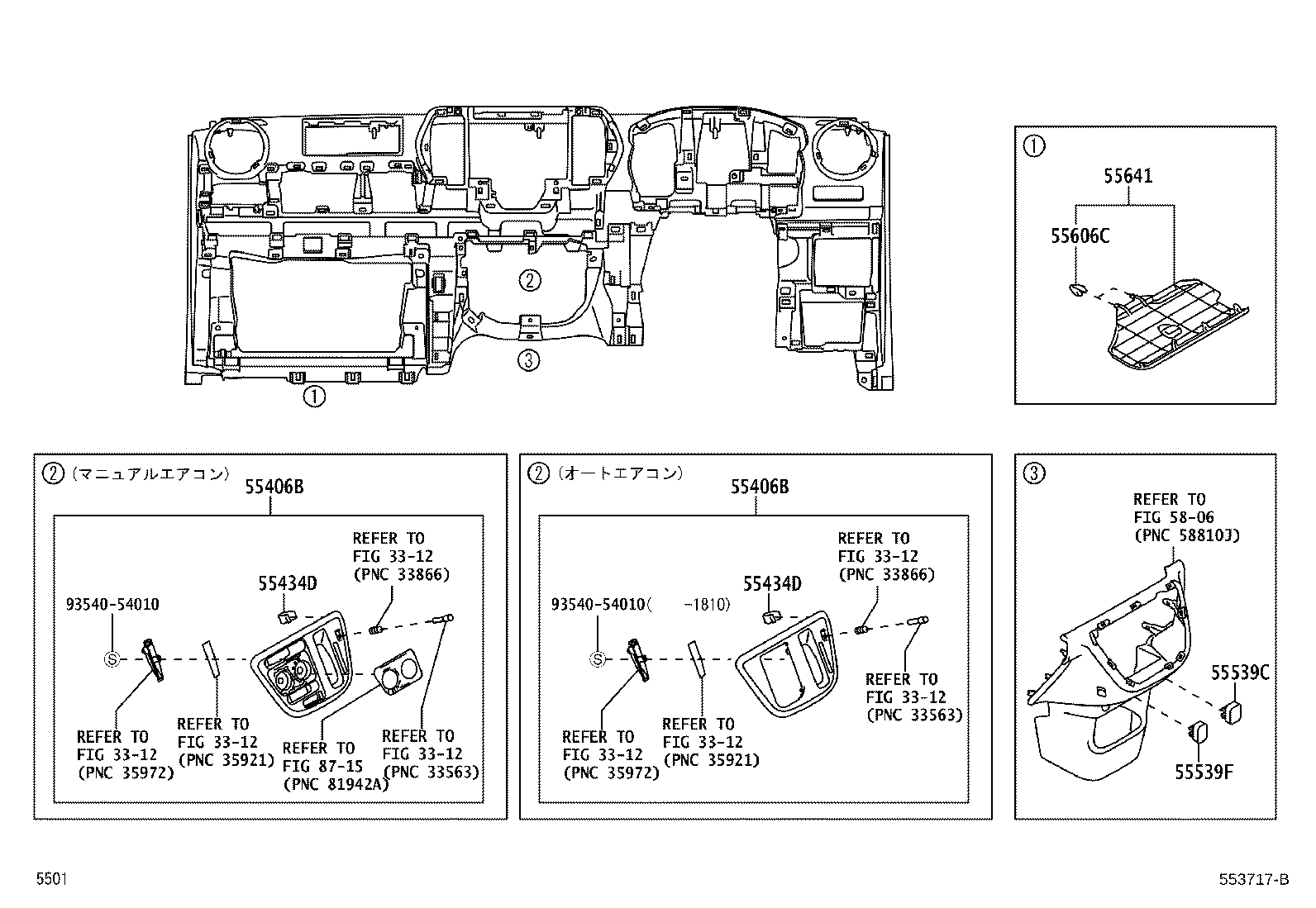

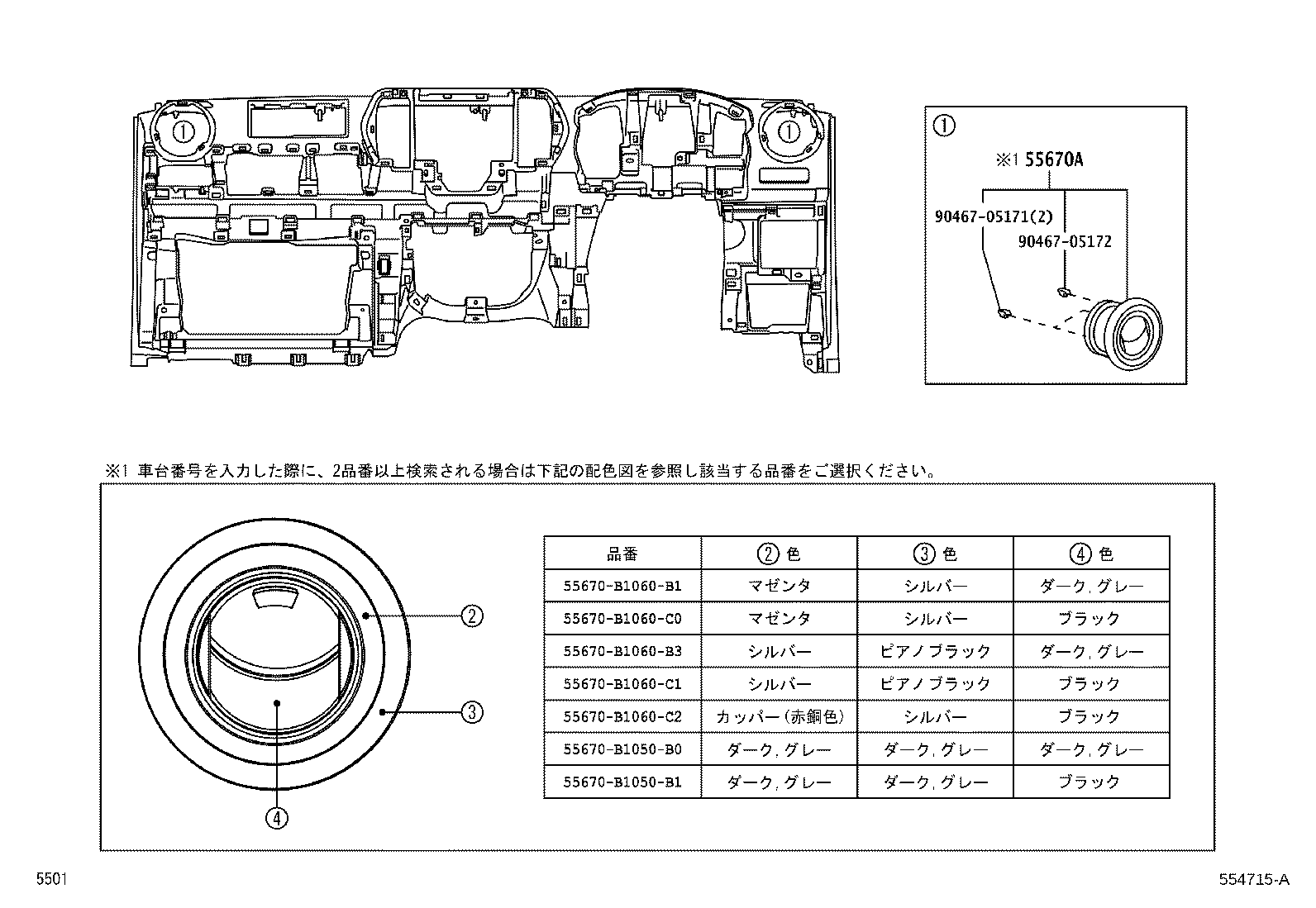

Figure 554242B 554242B 2016-04 → — Figure 553675B 553675B 2016-04 → — Figure 553772C 553772C 2016-04 → — Figure 553718D 553718D 2016-04 → — Figure 553717B 553717B 2016-04 → — Figure 554715A 554715A 2016-04 → — Figure 554734 554734 2016-04 → —

Part groups

PNCDescription
55041B Door Sub-assy, Instrument Panel Box, NO.1
55063 Register Sub-assy, Instrument, NO.3
55064A Register Sub-assy, Instrument, NO.4
55301 Panel Sub-assy, Instrument
55312A Clip, Instrument Panel
55331 Reinforcement, Instrument Panel
55345A Clip, Instrument Panel, NO.1
55346A Clip, Instrument Panel, NO.2
55349A Cushion, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55359B Box, Instrument Panel, Center
55394B Bolt, Instrument Panel
55394C Bolt, Instrument Panel
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55406B Panel Sub-assy, Instrument Cluster Finish, Lower Center
55411G Panel, Instrument Cluster Finish, NO.1
55412G Clip(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)
55431A Panel, Instrument Panel Finish
55432B Panel, Instrument Panel Finish, Lower
55434D Clip, Instrument Panel Finish, Lower Center
55440A Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
55444C Spring, Instrument Panel Box
55445J Spring, Instrument Panel Box
55446A Base, Switch Hole, NO.1
55446D Shaft, Instrument Panel Box
55453D Pad, Instrument Panel Safety, NO.1
55454B Pad, Instrument Panel Safety, NO.2
55475B Garnish, Instrument Cluster Finish Panel, Center
55539 Cover, Spare Switch Hole
55539C Cover, Spare Switch Hole
55539D Cover, Spare Switch Hole
55539E Cover, Spare Switch Hole
55539F Cover, Spare Switch Hole
55539G Cover, Spare Switch Hole
55539H Cover, Spare Switch Hole
55549B Cover, Instrument Panel Hole, NO.2
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55590 Plate Assy, Grove Compartment Door Lock Striker
55606C Clip(FOR INSTRUMENT PANEL UNDER COVER)
55618C Holder, Instrument Panel Cup
55619H Holder, Instrument Panel Cup, NO.2
55641 Cover, Instrument Panel Under, NO.1
55670A Register Assy, Instrument Panel, Center
55697 Seal, Instrument Panel Register, NO.1
55699 Knob, Instrument Panel Register Control
58959E Cushion, Console Compartment Door
73970A Airbag Assy, Instrument Panel Passenger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
