Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 3 illustrations

Illustrations

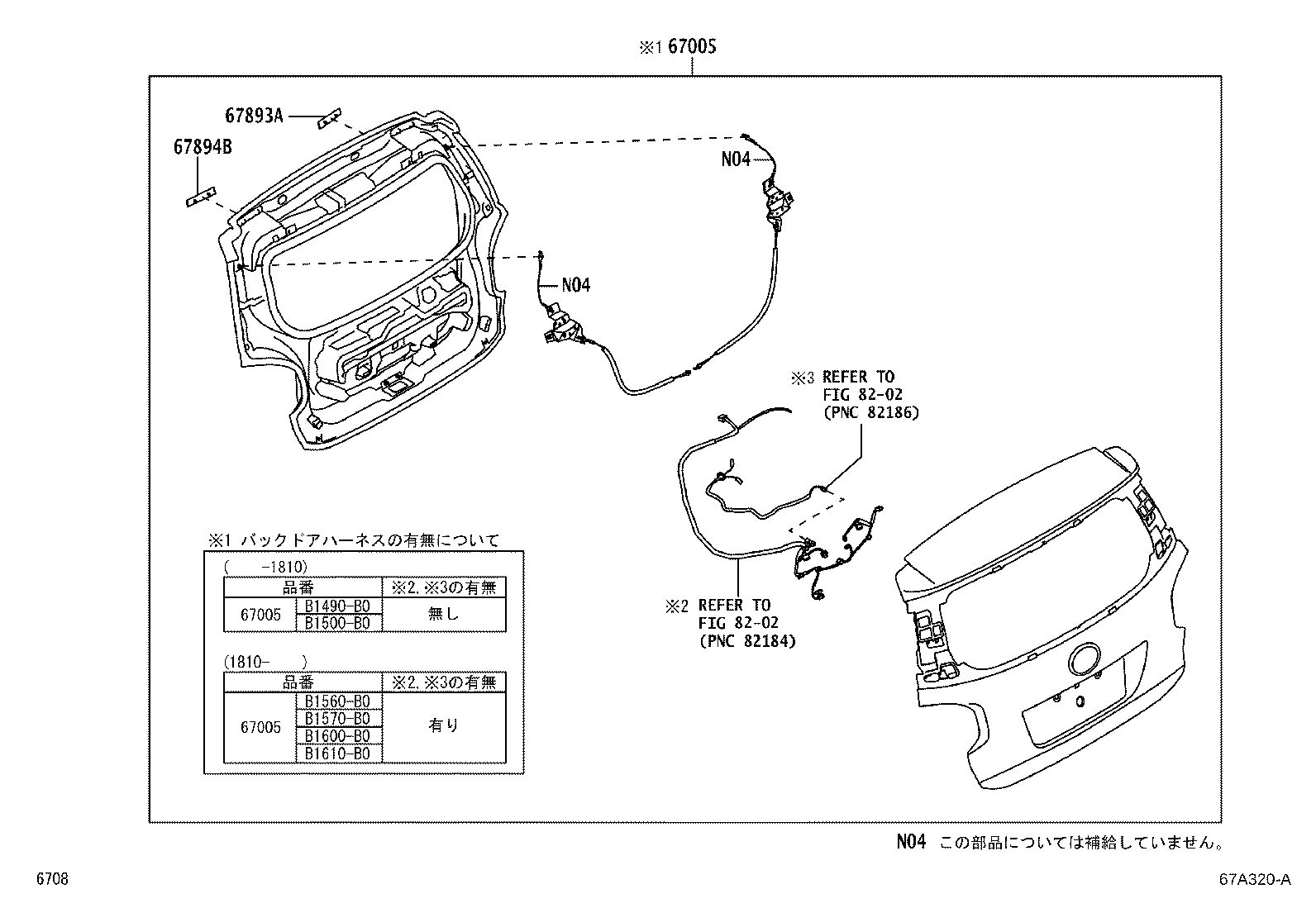

Figure 67A319A 67A319A 2016-04 → — Figure 67A320A 67A320A 2016-04 → — Figure 679115A 679115A 2016-04 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64787 Pad, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67005B Cushion(FOR BACK DOOR PANEL)
67372A Weight, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67818B Spacer, Back Window Glass
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67893A Protector, Back Door Panel, NO.1
67894B Protector, Back Door Panel, NO.2
68131 Glass, Back Door
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
