Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

13 part groups · 2 illustrations

Illustrations

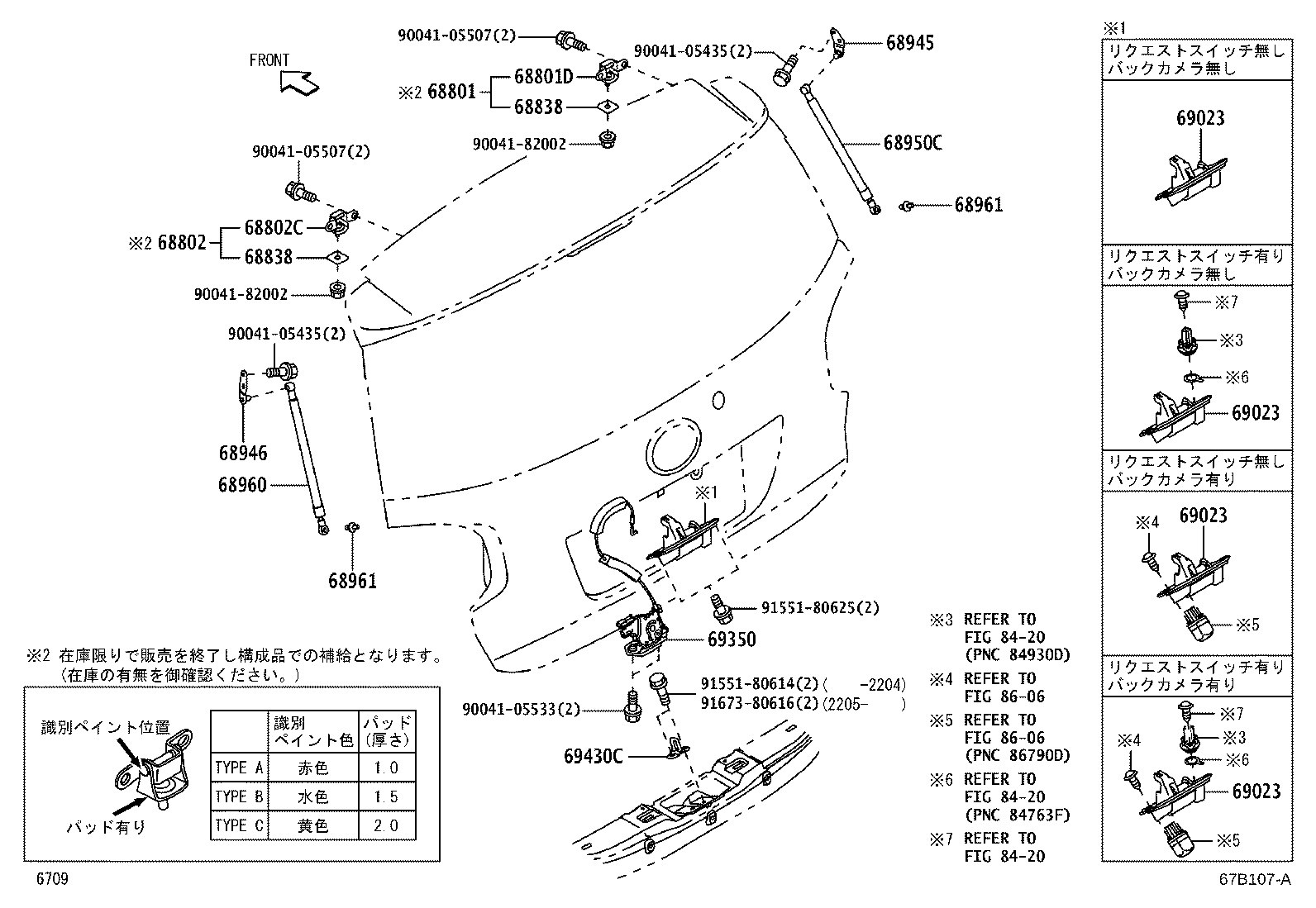

Figure 679116A 679116A 2016-04 → 2020-05 Figure 67B107A 67B107A 2020-05 → —

Part groups

PNCDescription
68801 Hinge Sub-assy, Back Door, Upper RH
68801D Hinge Sub-assy, Back Door, RH
68802 Hinge Sub-assy, Back Door, Upper LH
68802C Hinge Sub-assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69023 Handle Sub-assy, Back Door Outside
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
