Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

15 part groups · 2 illustrations

Illustrations

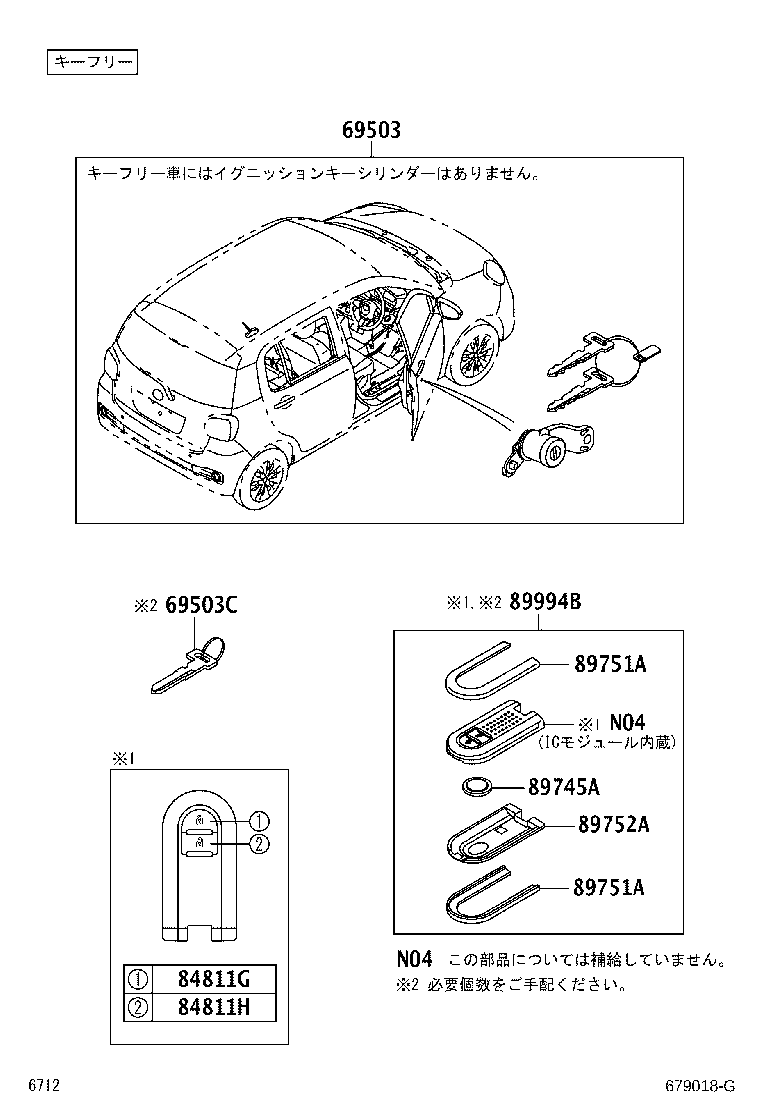

Figure 679017E 679017E 2016-04 → 2018-10 Figure 679018G 679018G 2016-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69503 Cylinder Set, Lock
69503A Key, Blank
69503C Key, Sub
69510 Cylinder Assy, Front Door Lock, RH
69570 Cylinder Assy, Ignition Switch Lock
84811G Knob, Switch, NO.1
84811H Knob, Switch, NO.2
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89708E Cylinder Set, Lock W/Transmitter
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
89752A Case, Transmitter Housing
89994B Transmitter, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
