Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

14 part groups · 2 illustrations

Illustrations

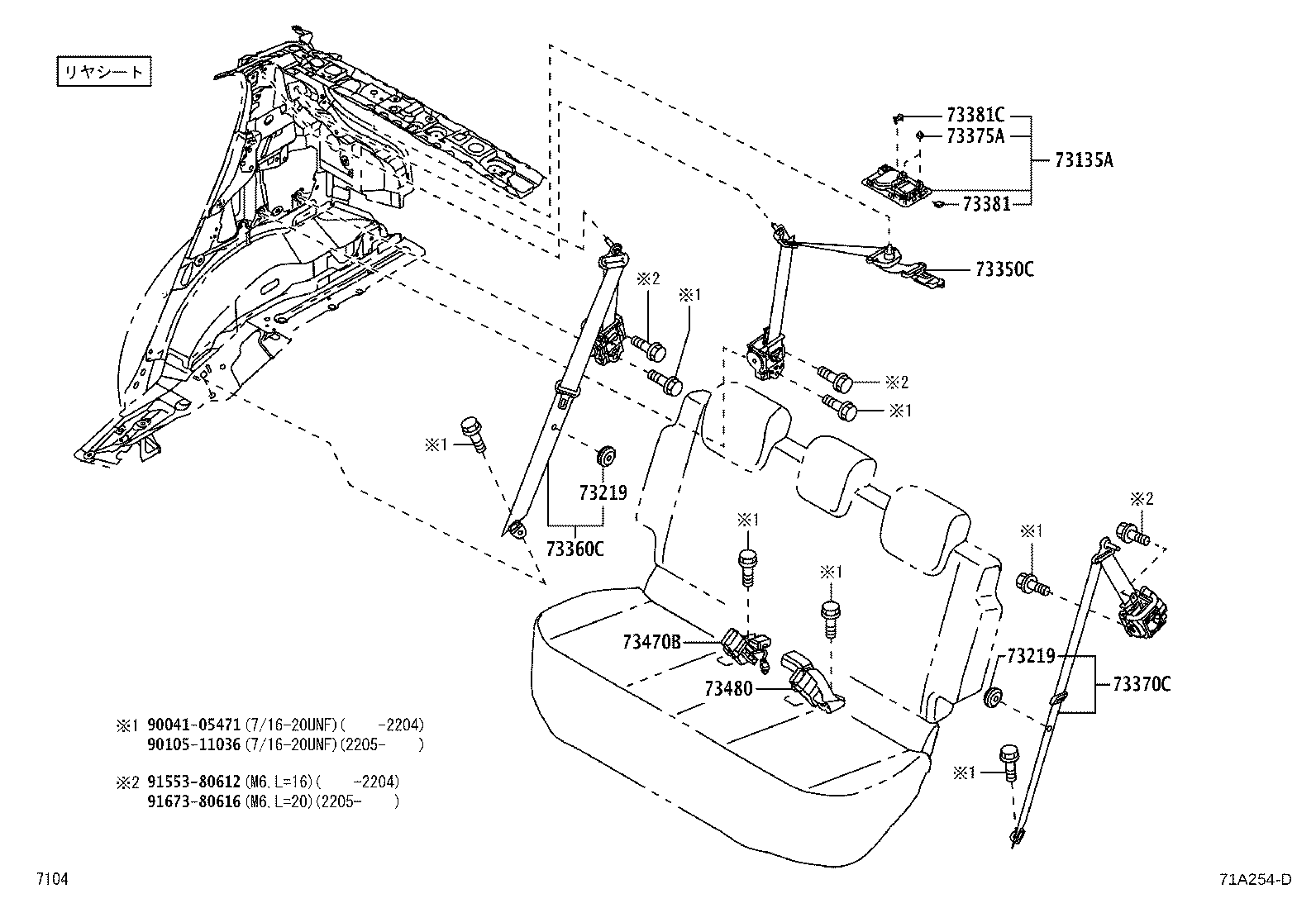

Figure 71A289G 71A289G 2016-04 → — Figure 71A254D 71A254D 2016-04 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350C Belt Assy, Rear Seat, Outer Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73375A Clip, Rear Seat Belt Cover
73381 Holder, Rear Seat Belt
73381C Holder, Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
