Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

15 part groups · 4 illustrations

Illustrations

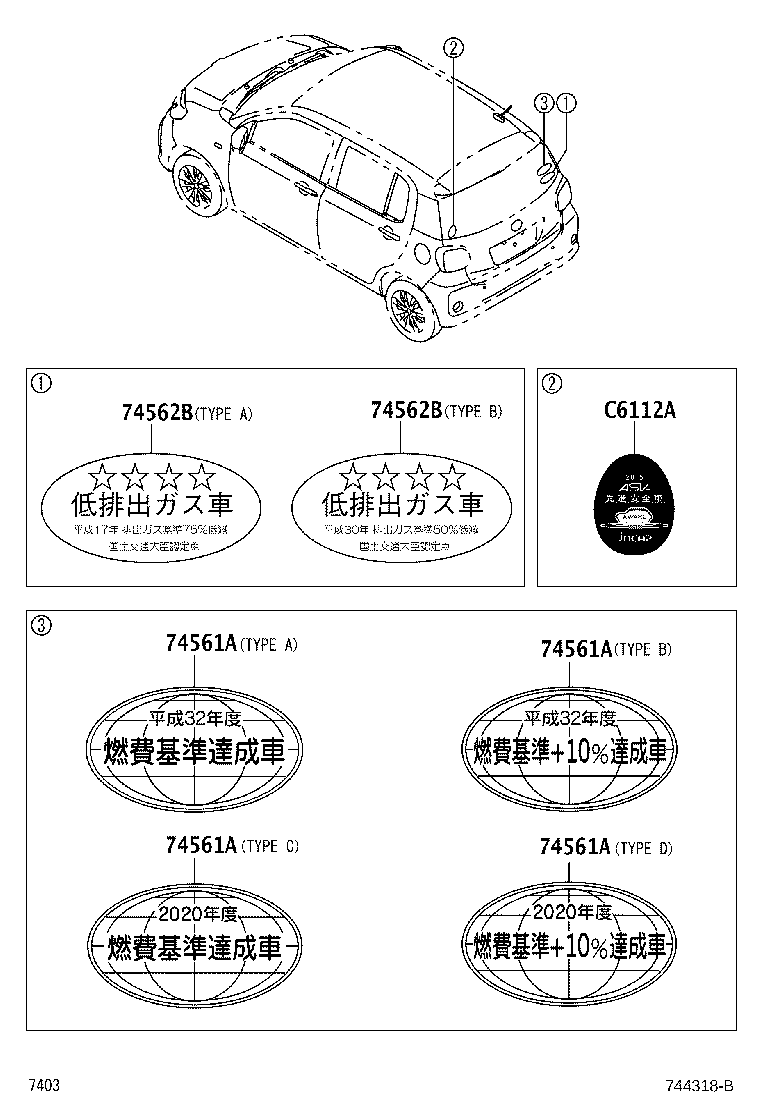

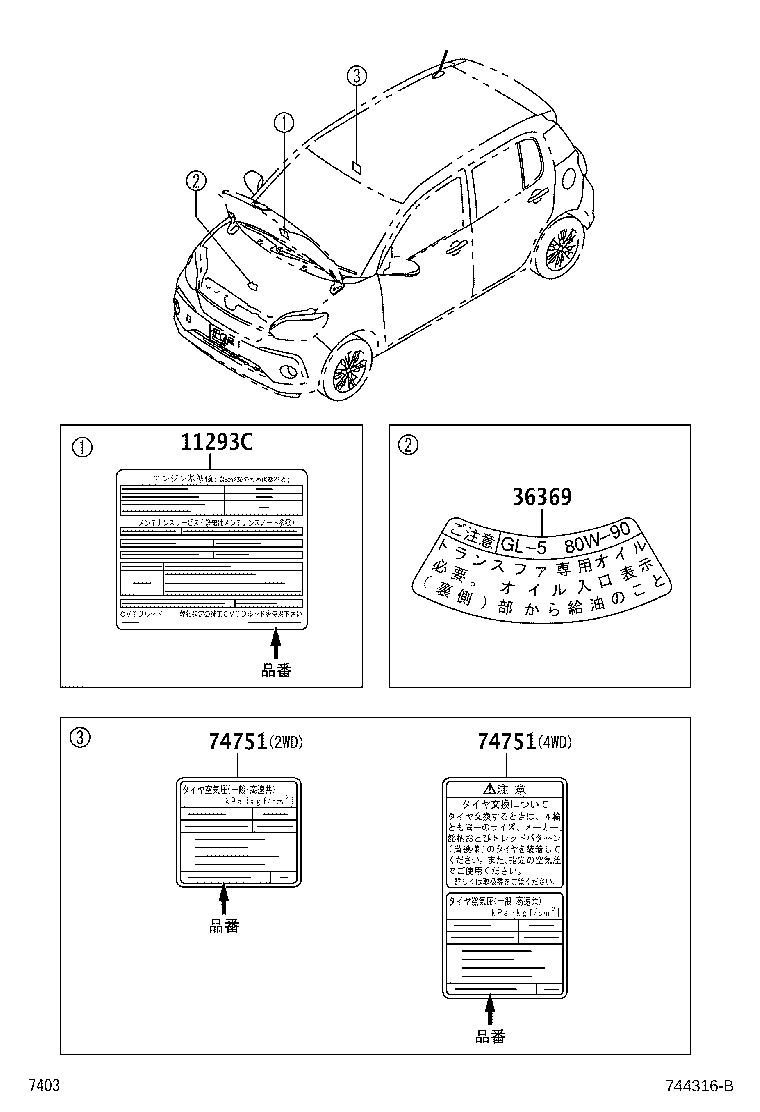

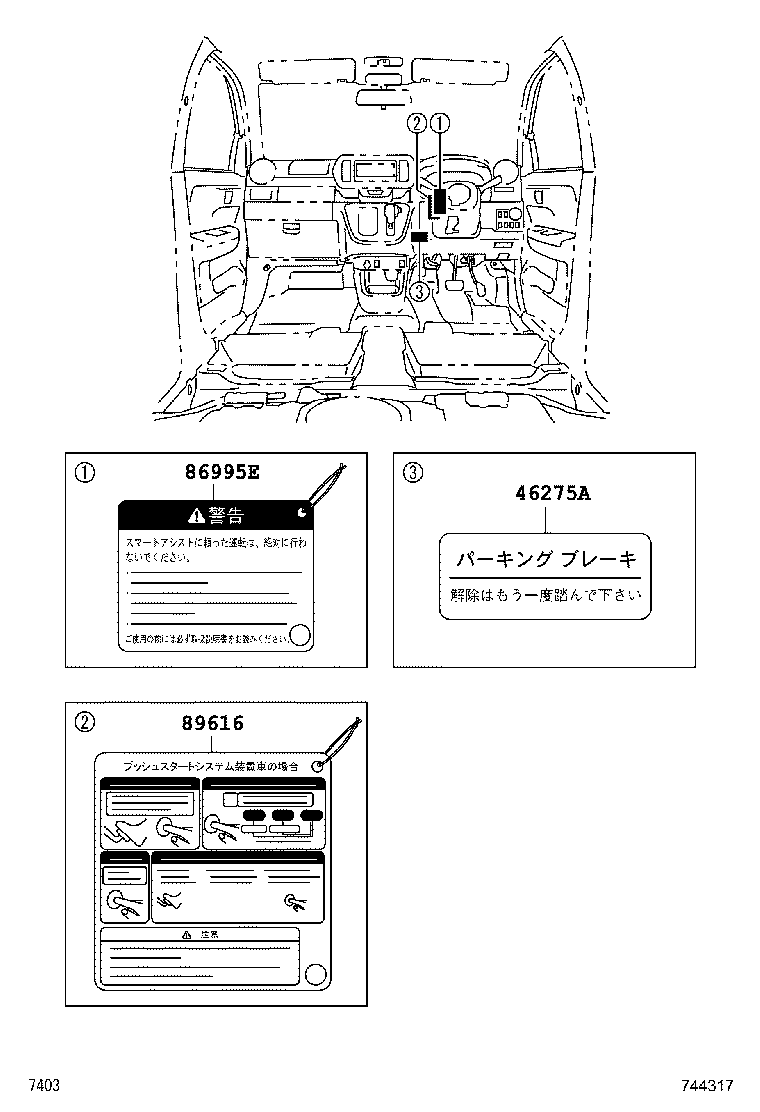

Figure 744315B 744315B 2016-04 → — Figure 744316B 744316B 2016-04 → — Figure 744317 744317 2016-04 → — Figure 744318B 744318B 2016-04 → —

Part groups

PNCDescription
11293C Label, Tune-up Specification Information
16793E Label, Cooling Fan Caution
36369 Label, Transfer Information
45197A Label, Airbag Caution
46275A Label, Parking Brake Release Information, NO.1
74538 Plate, Jack Carrier Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74751 Label, Tire Pressure Information
86995E Label, Caution
88723E Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6112A Label, Safety Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
