Toyota Passo
2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan
Supported model
Data version 2018-10

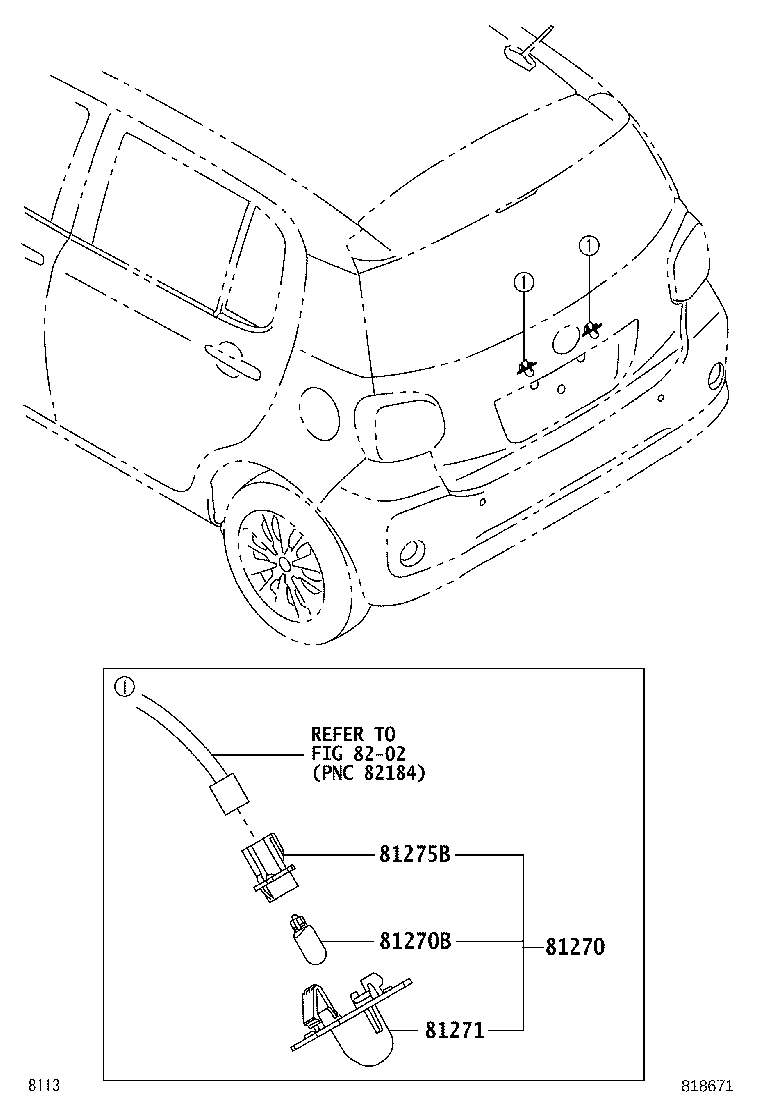

Rear License Plate Lamp
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81274 | Gasket, License Plate Lamp Body |
| 81275B | Socket Plug, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
