Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 10 illustrations

Illustrations

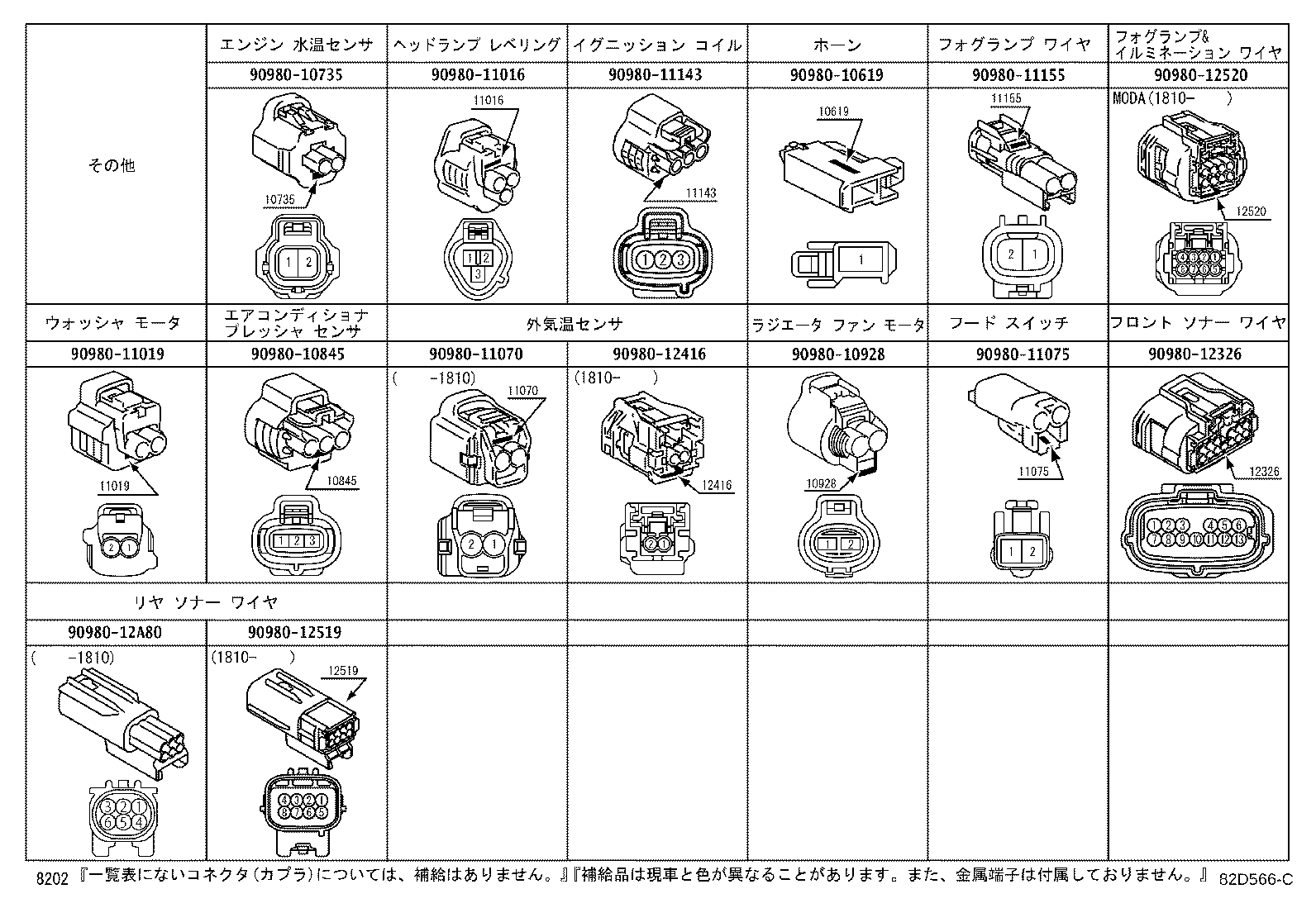

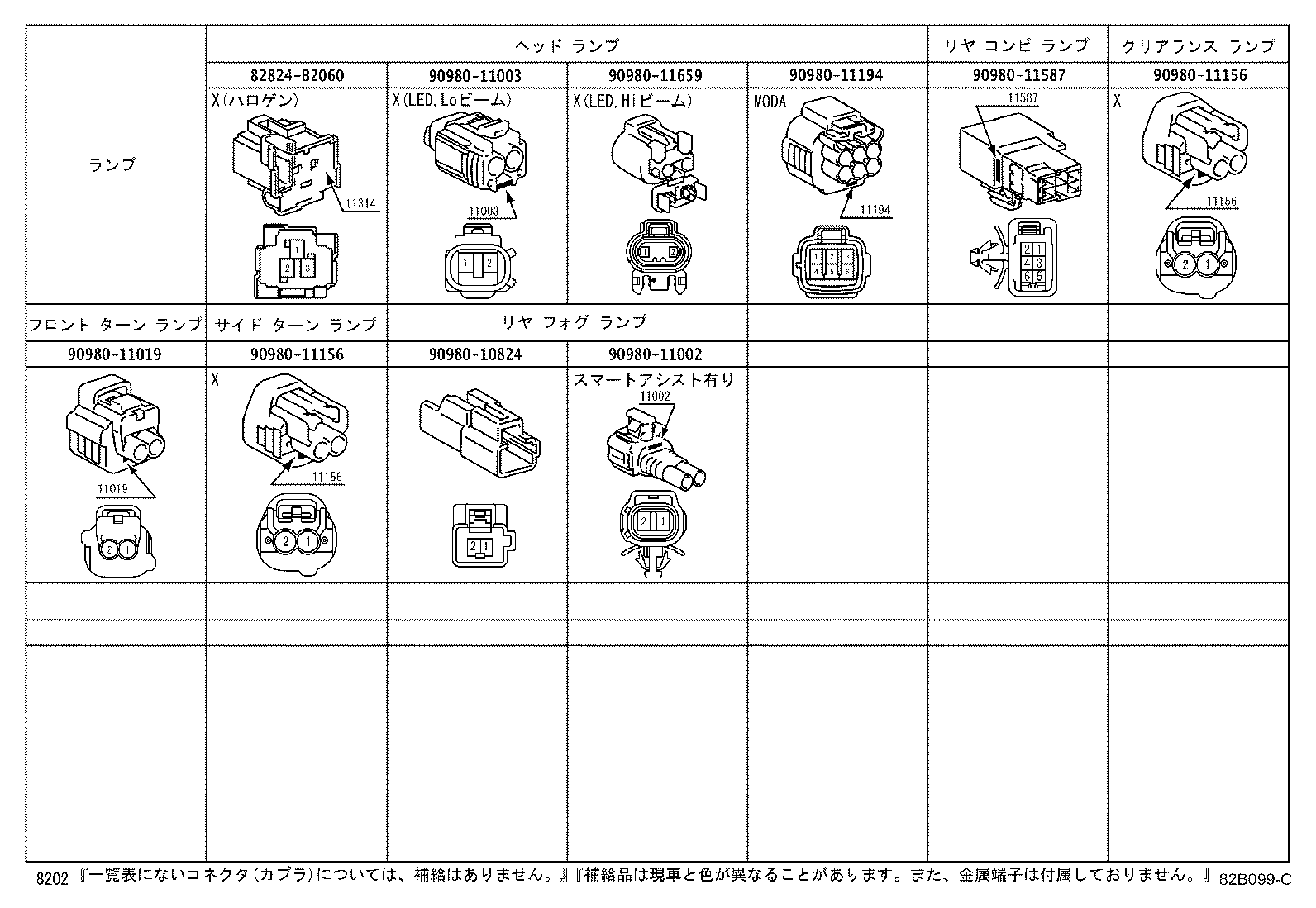

Figure 82A643 82A643 2016-04 → — Figure 82C027A 82C027A 2016-04 → 2018-10 Figure 82C305E 82C305E 2018-10 → — Figure 82C028F 82C028F 2016-04 → — Figure 82A646B 82A646B 2016-04 → — Figure 82A647C 82A647C 2016-04 → — Figure 82A906G 82A906G 2016-04 → — Figure 82D565 82D565 2016-04 → — Figure 82B099C 82B099C 2016-04 → — Figure 82D566C 82D566C 2016-04 → —

Part groups

PNCDescription

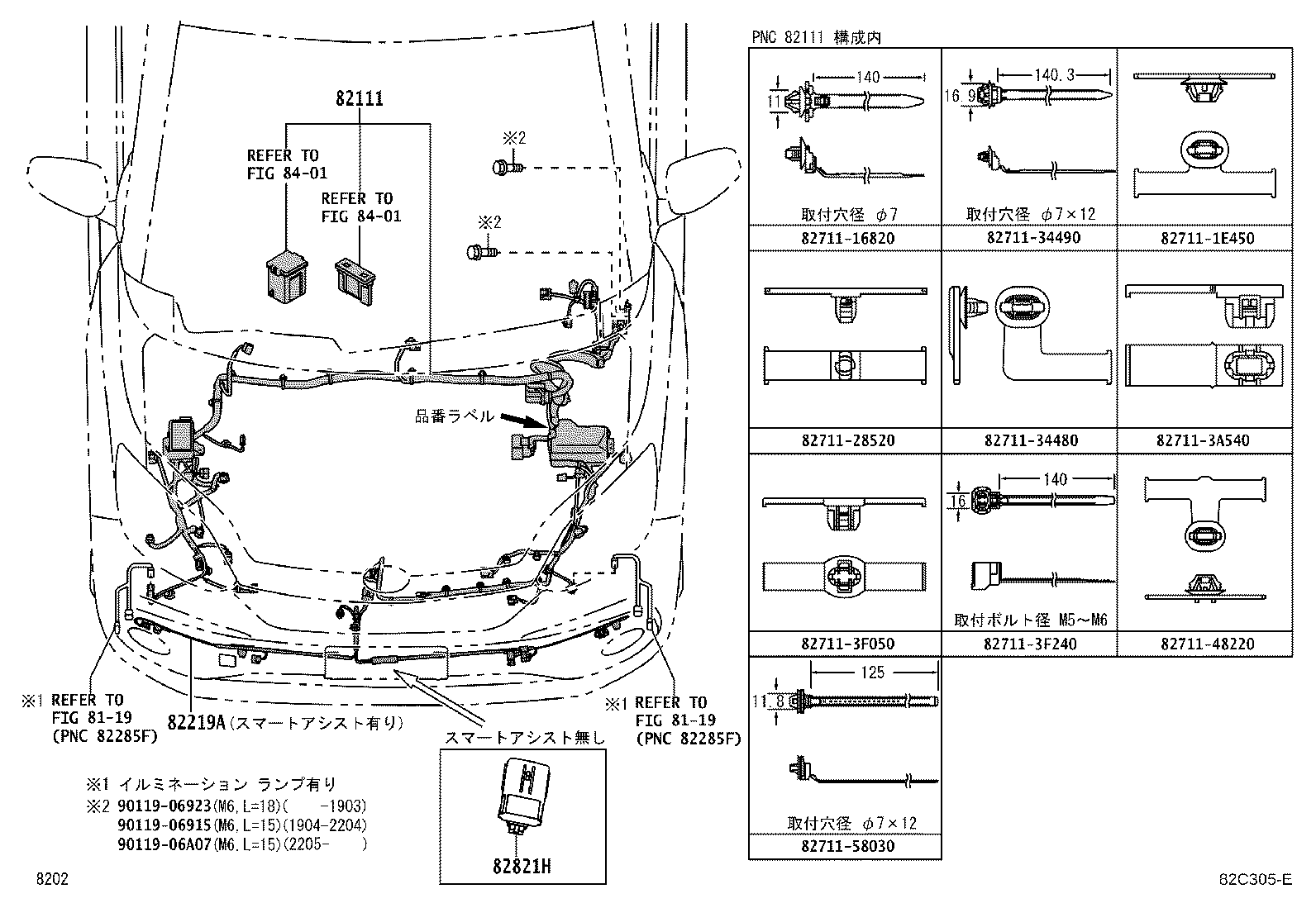

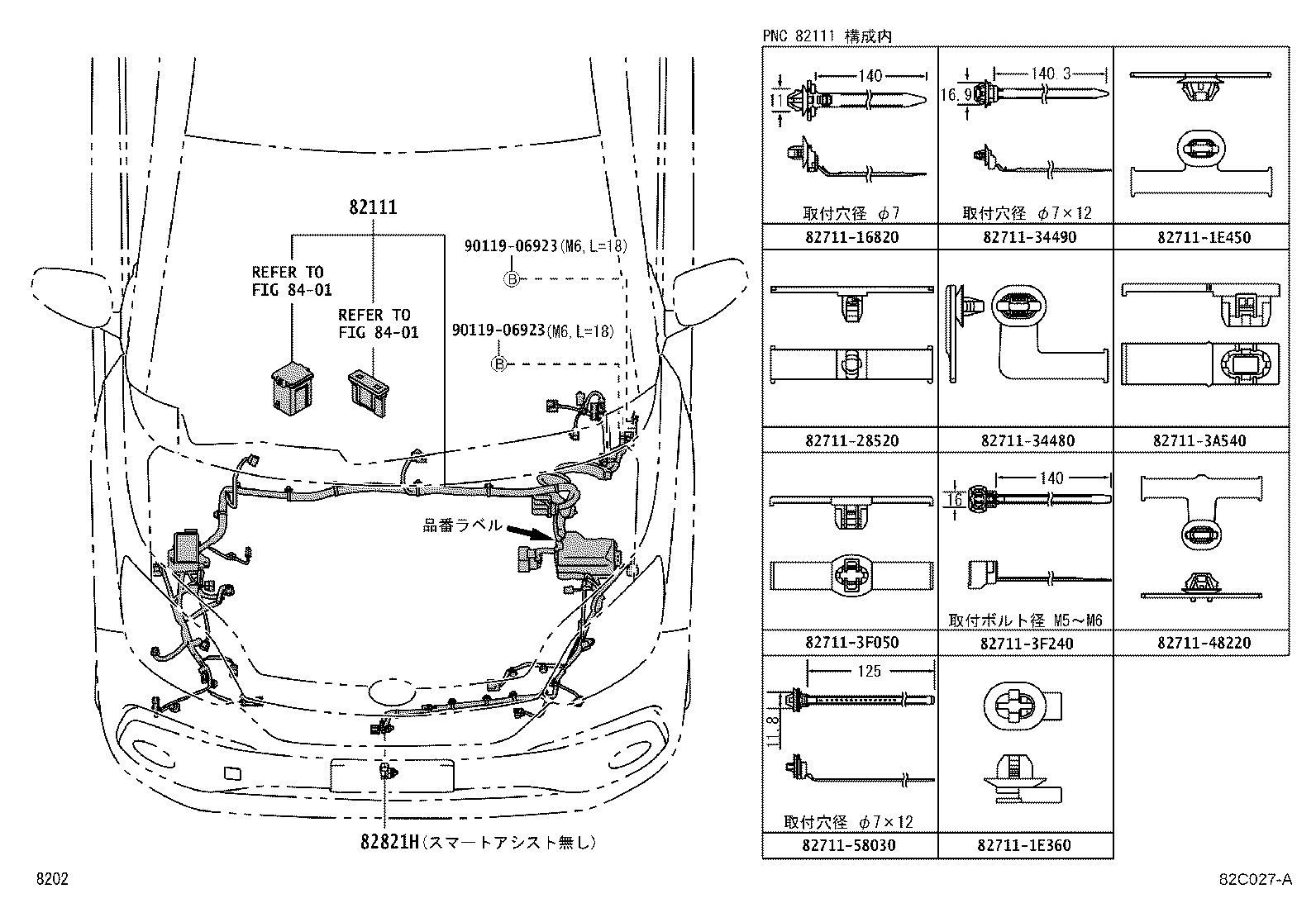

82111 Wire, Engine Room Main

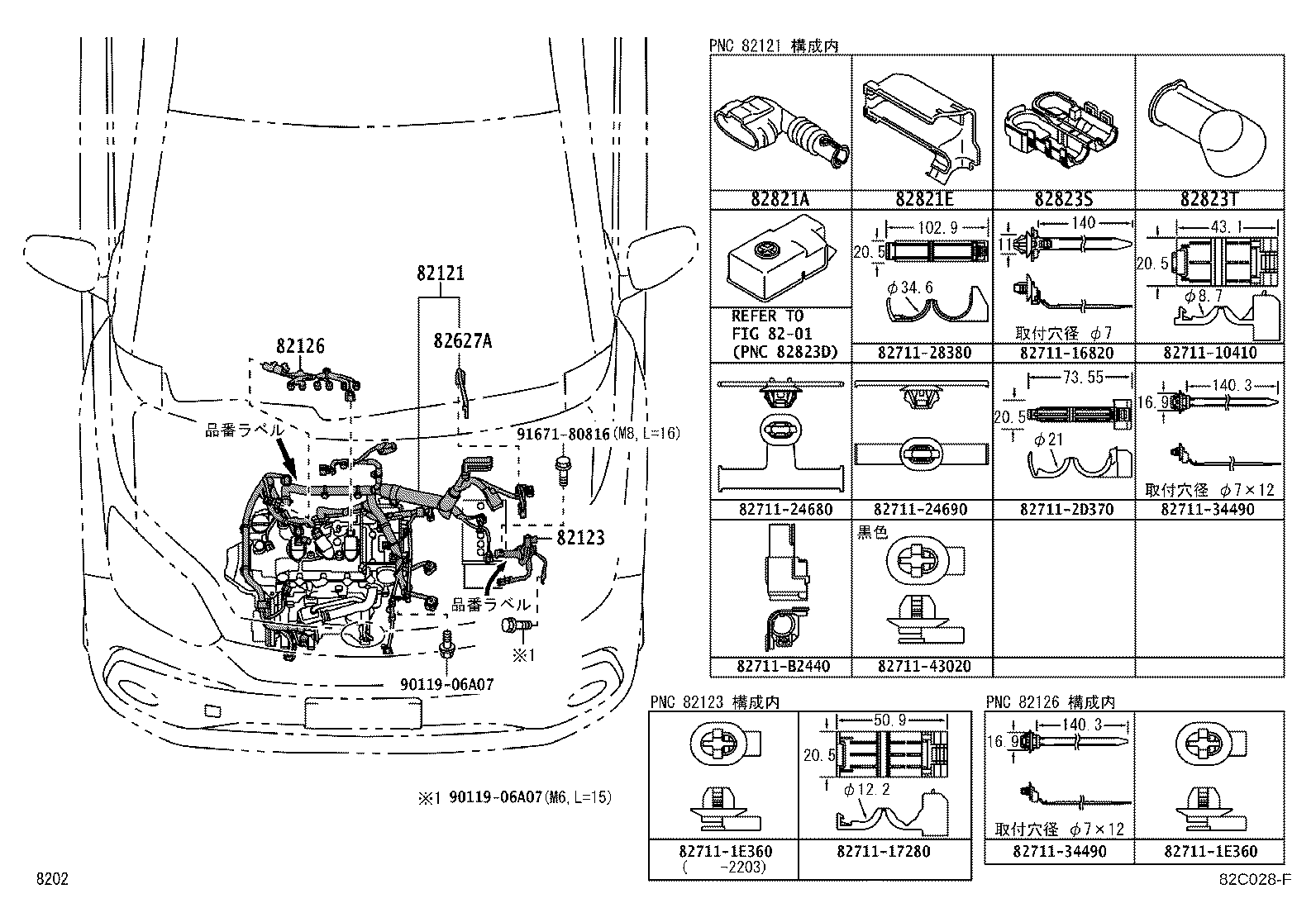

82121 Wire, Engine
82123 Wire, Engine, NO.3
82126 Wire, Engine

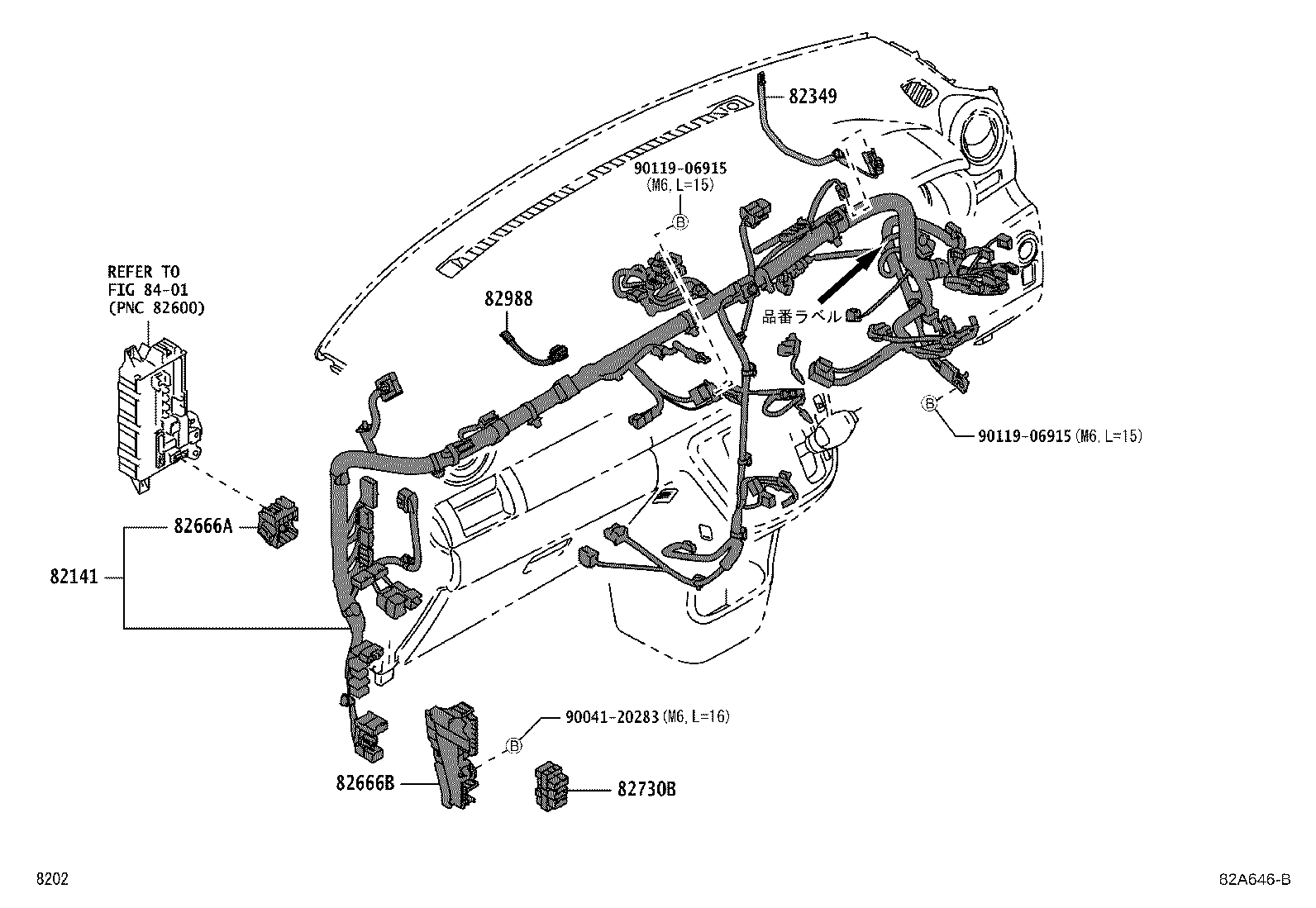

82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH

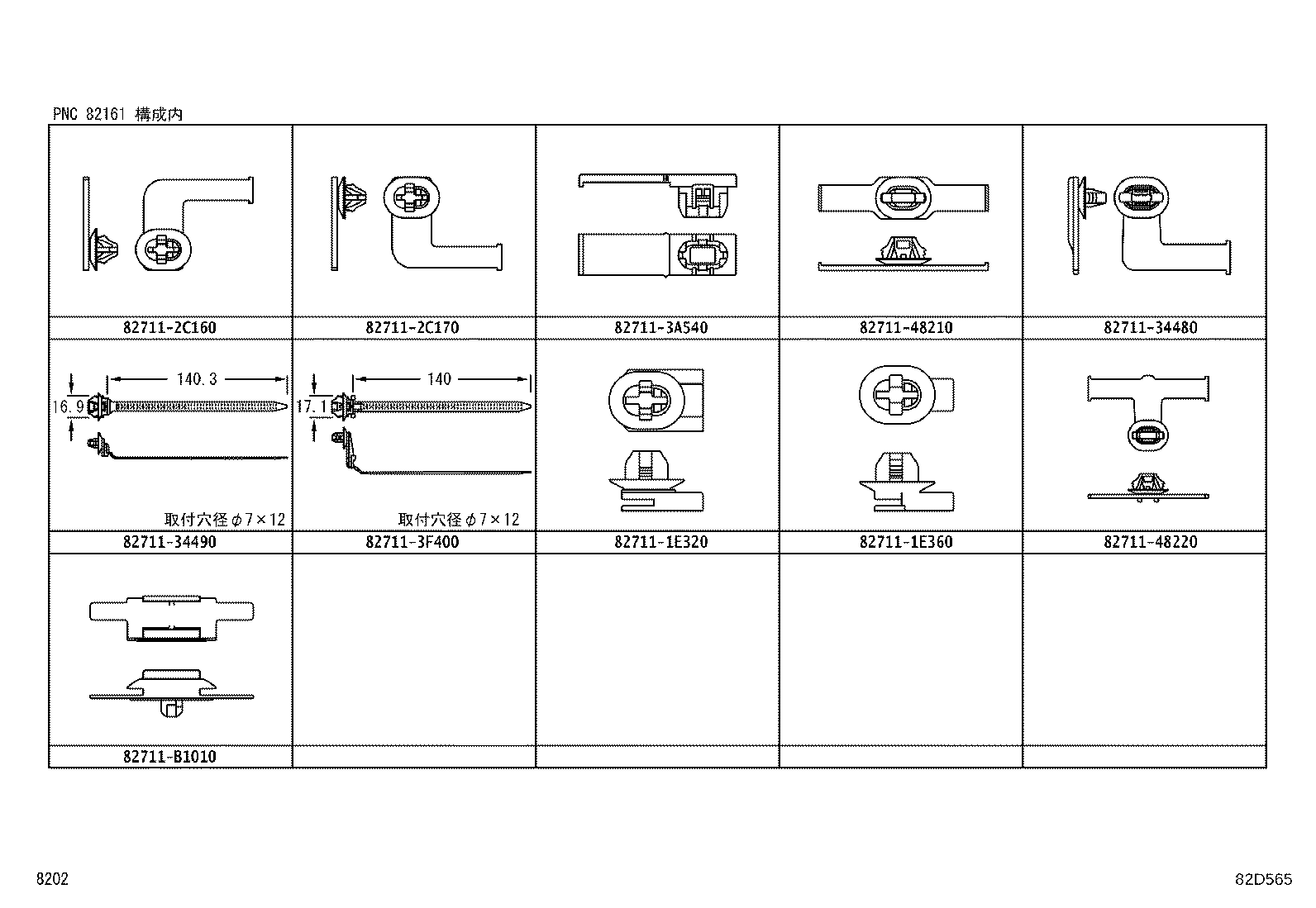

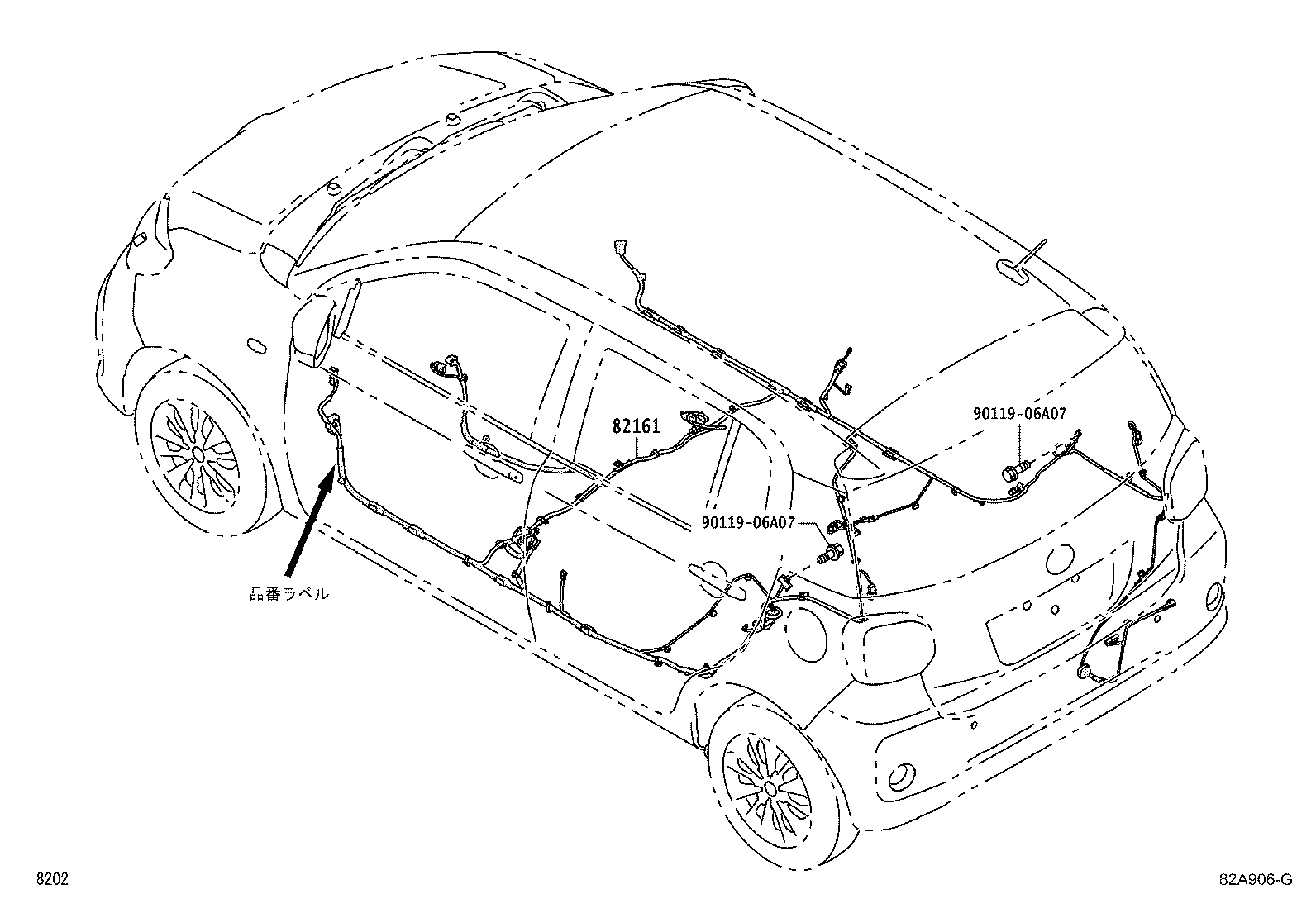

82161 Wire, Floor
82171 Wire, Roof, NO.1

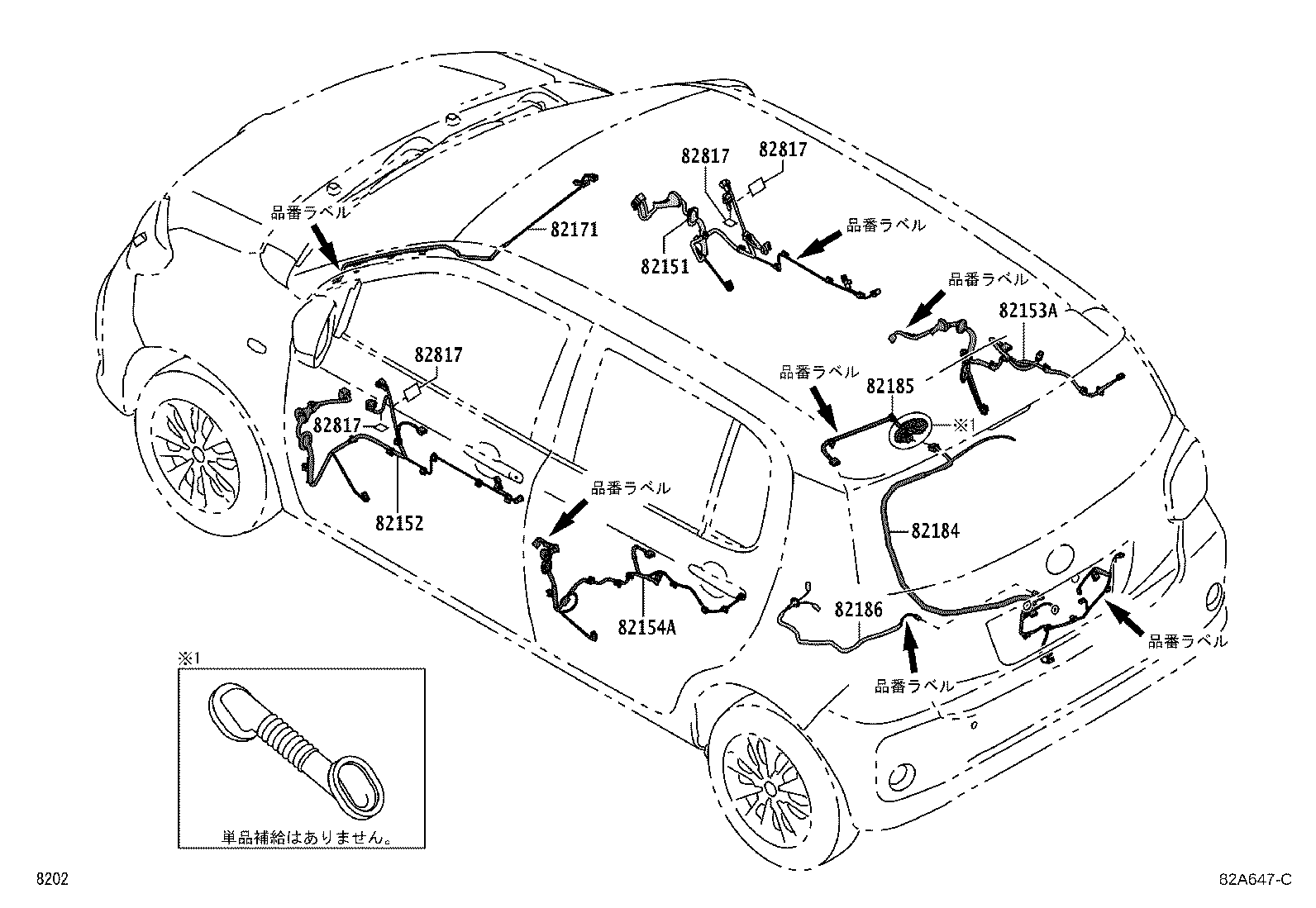

82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82349 Wire, Light Control Rheostat
82627A Wire, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82730B Block Assy, Passenger Side Junction
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
