Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

58 part groups · 8 illustrations

Illustrations

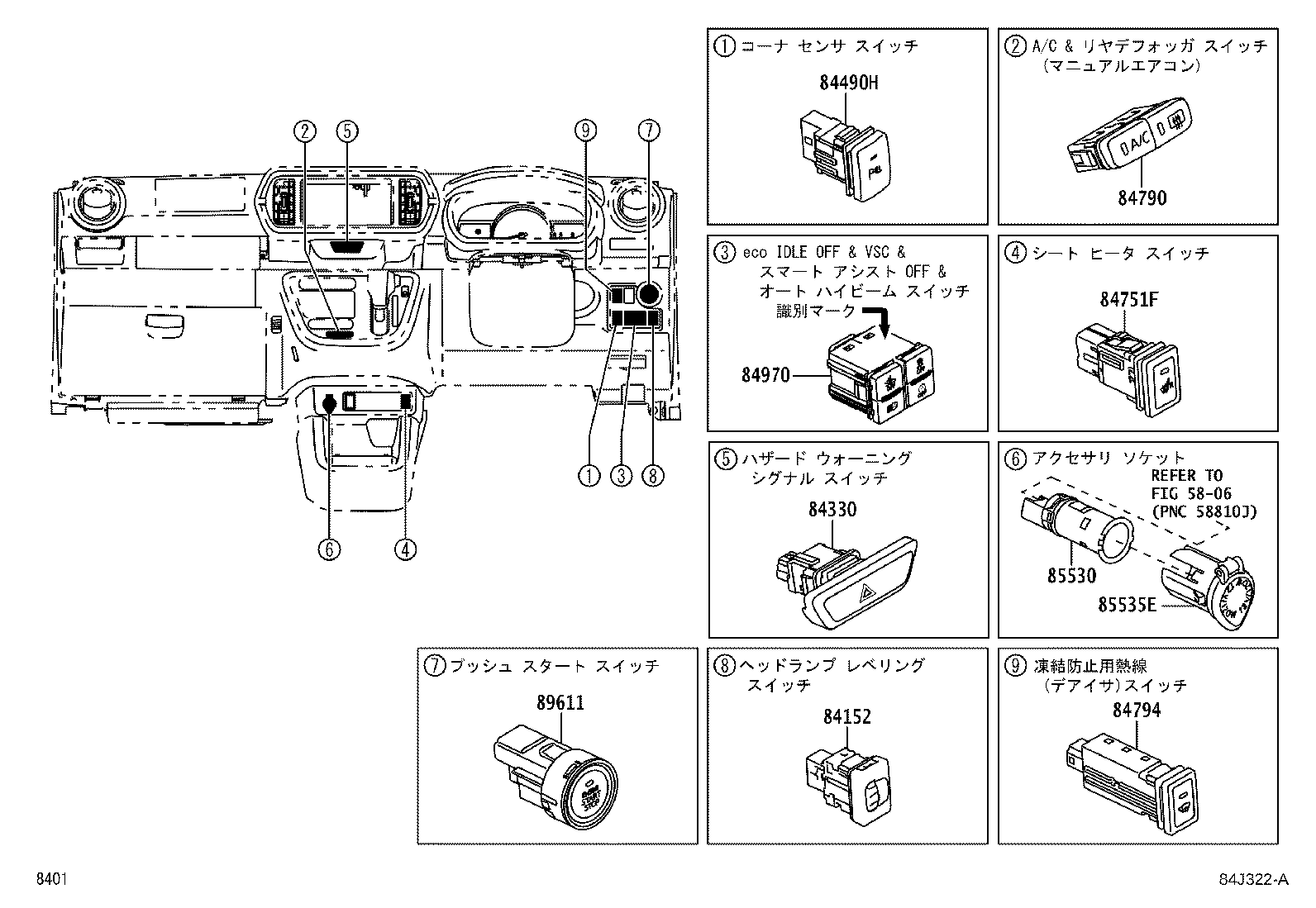

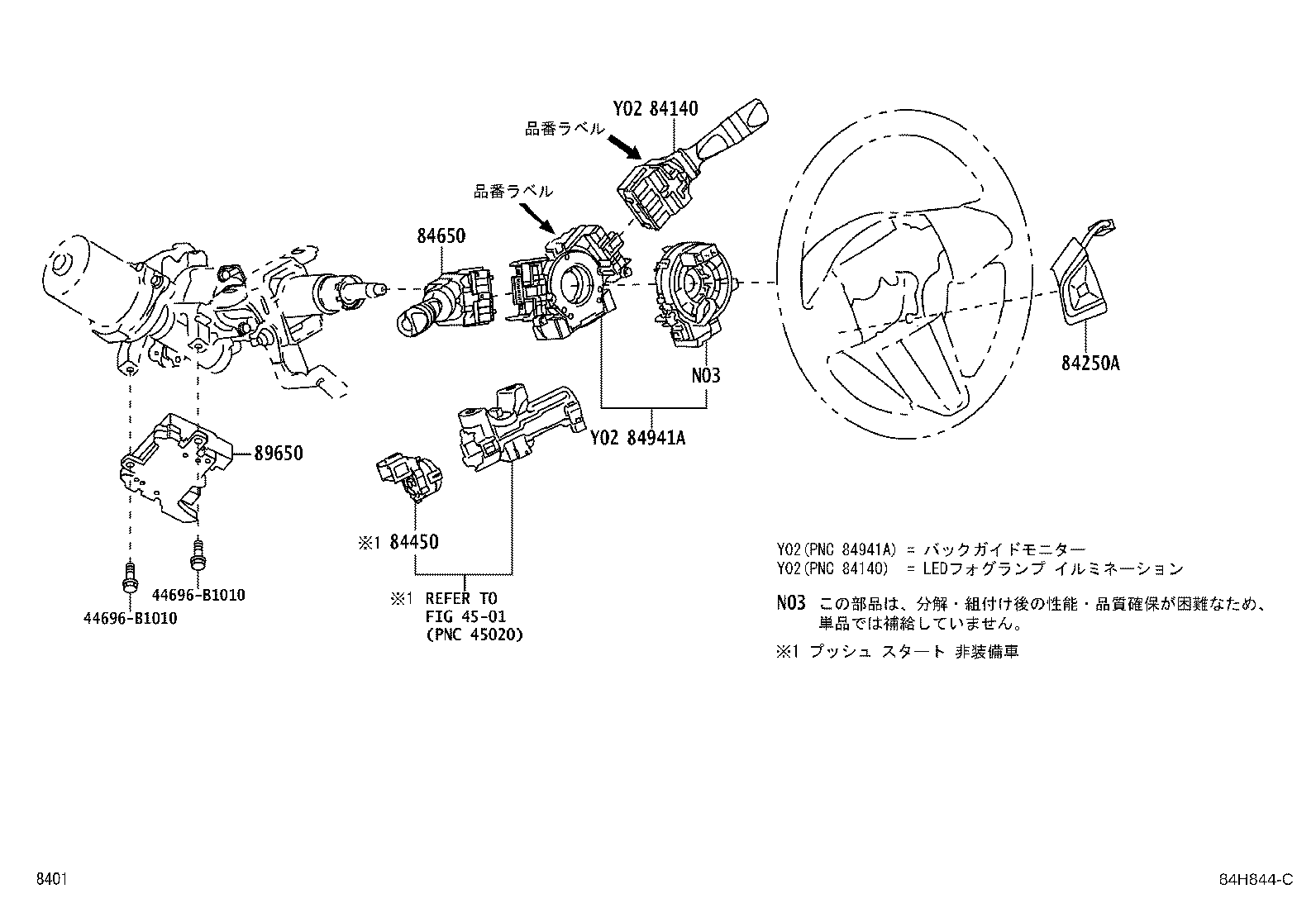

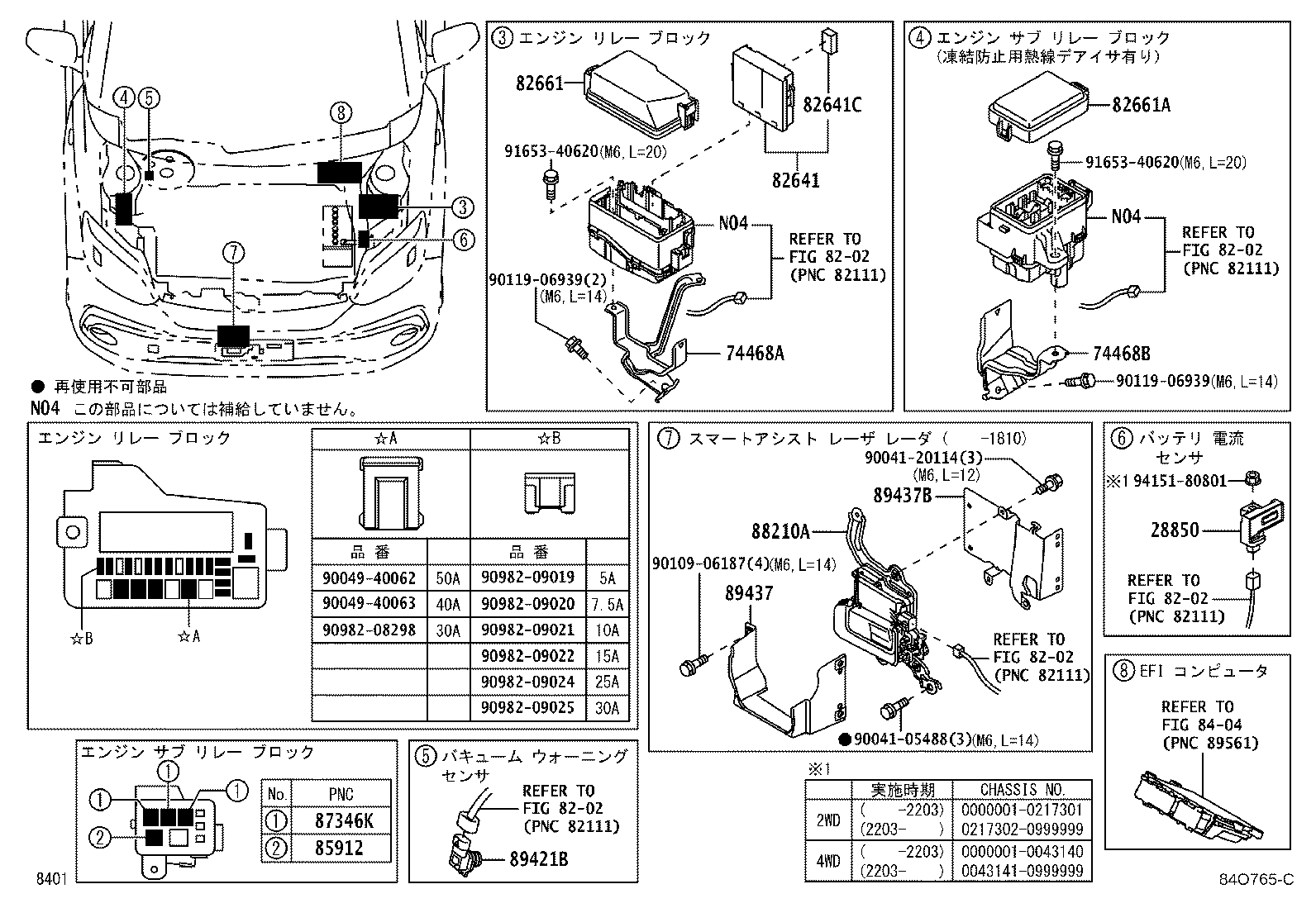

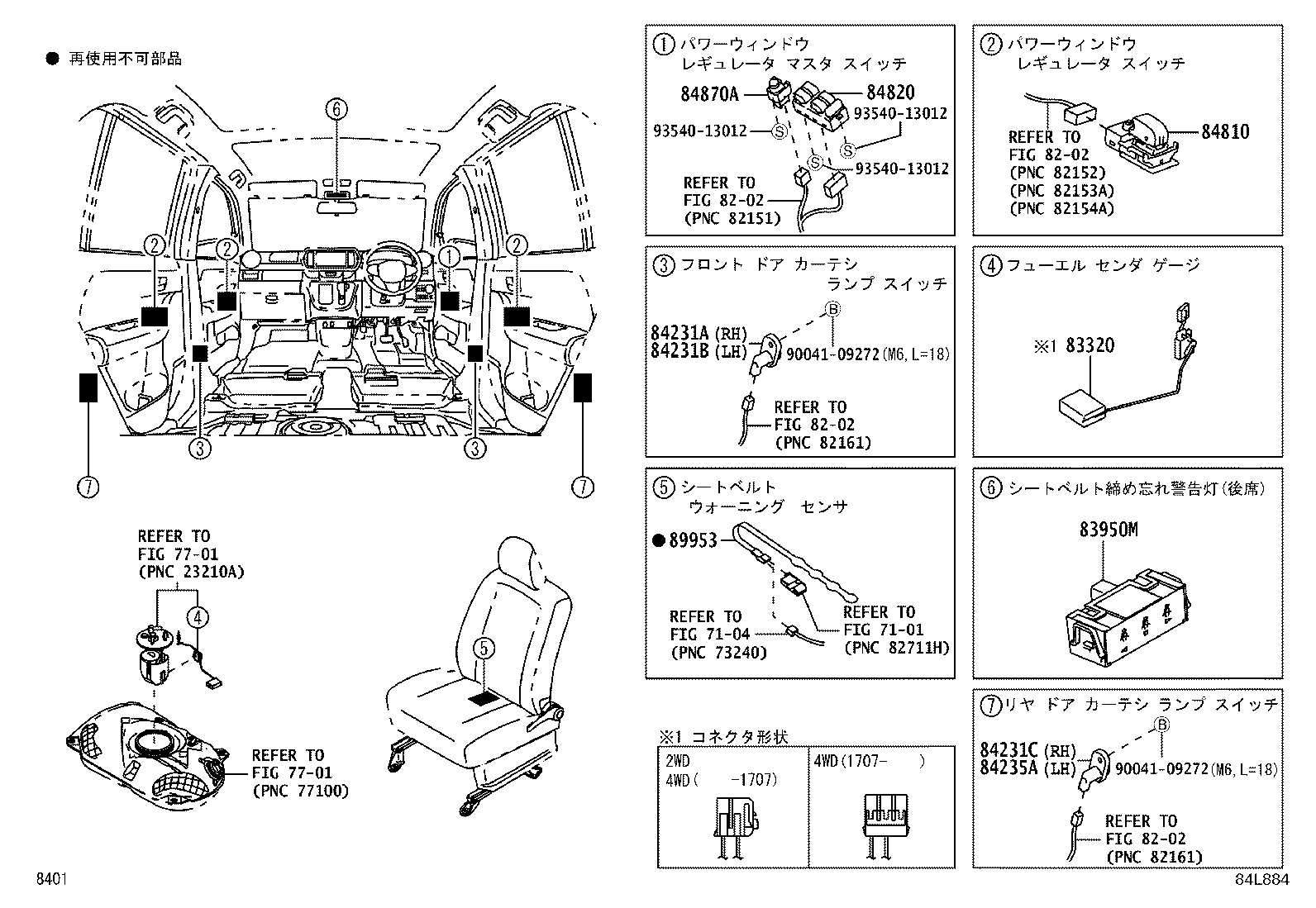

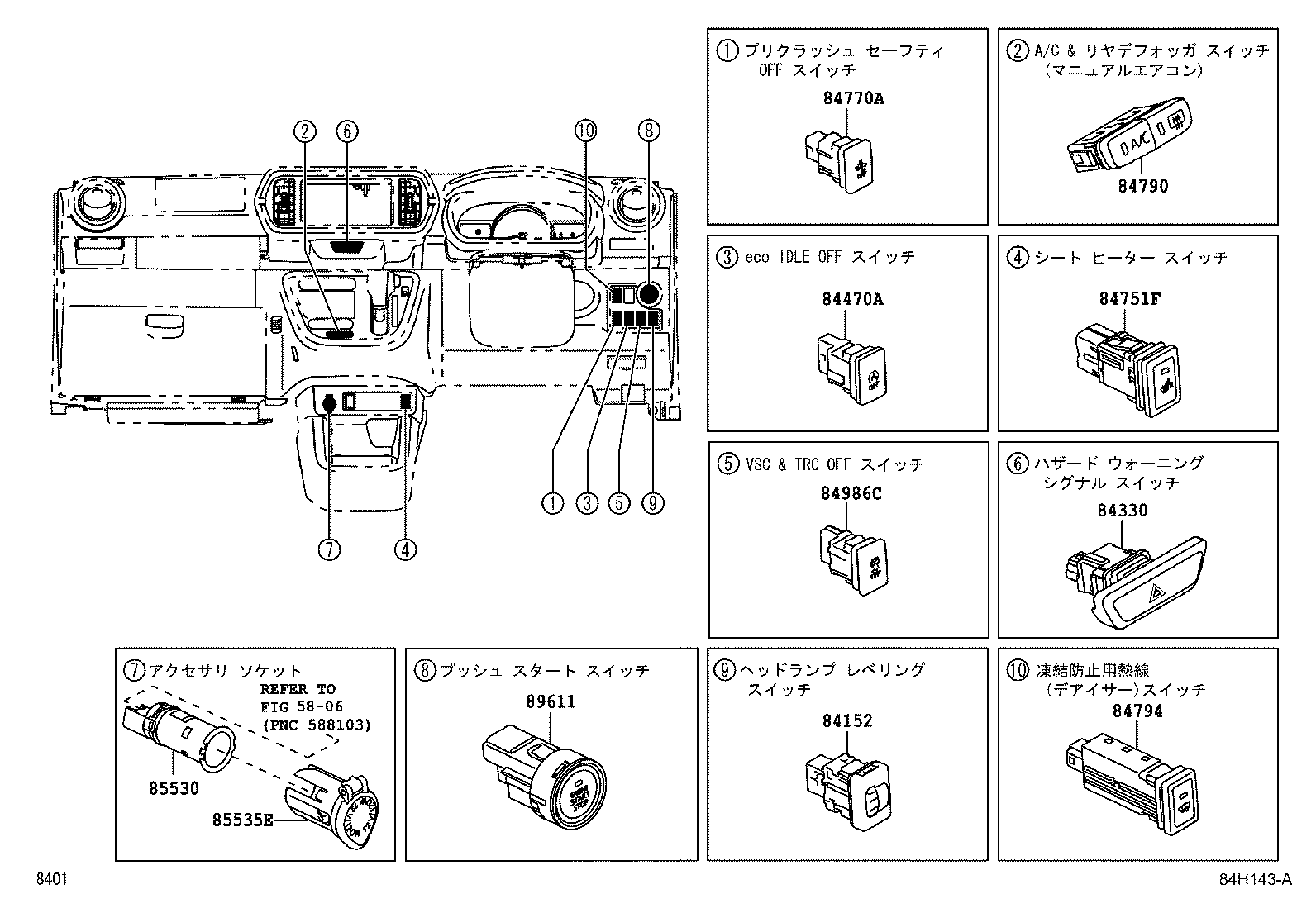

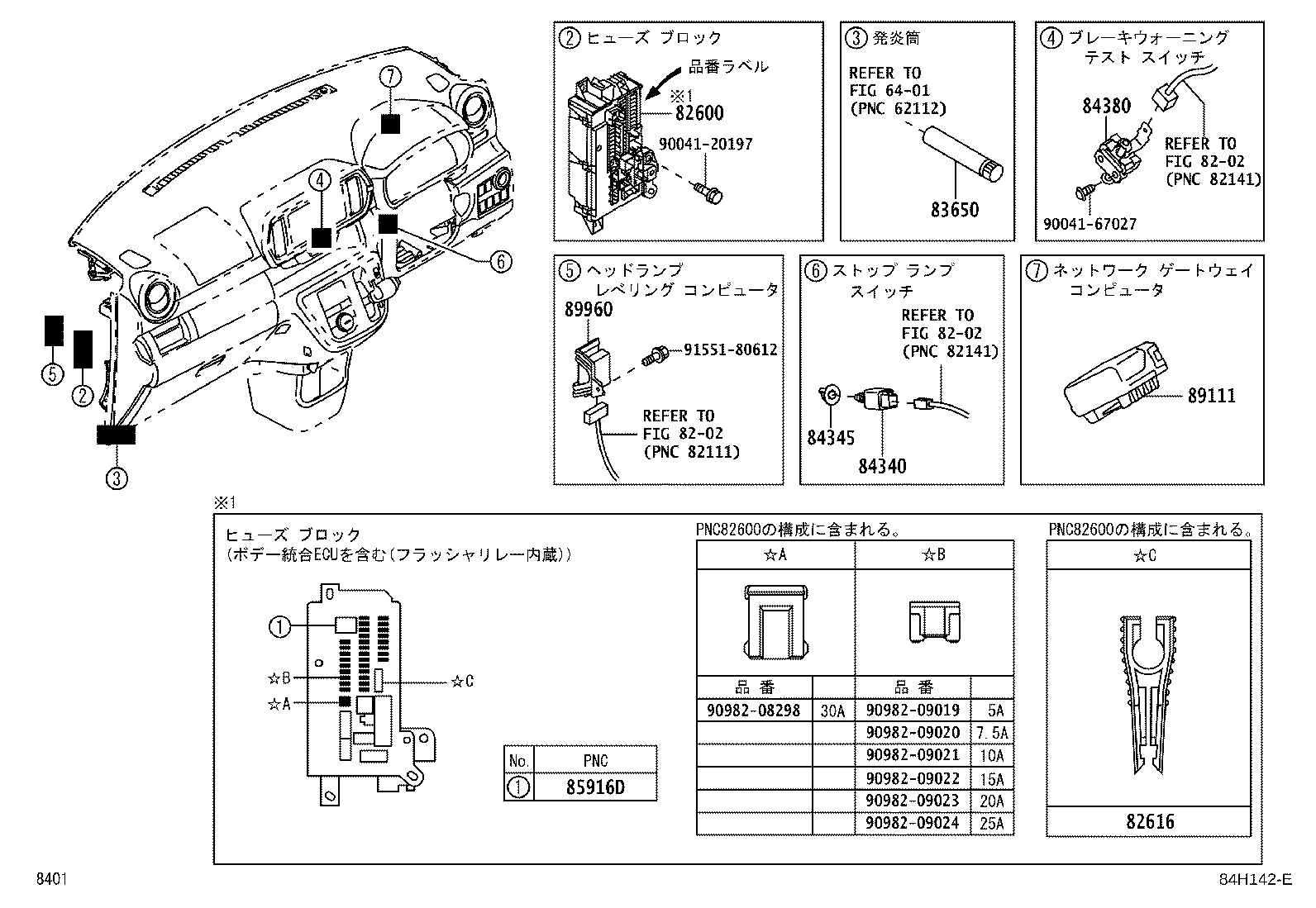

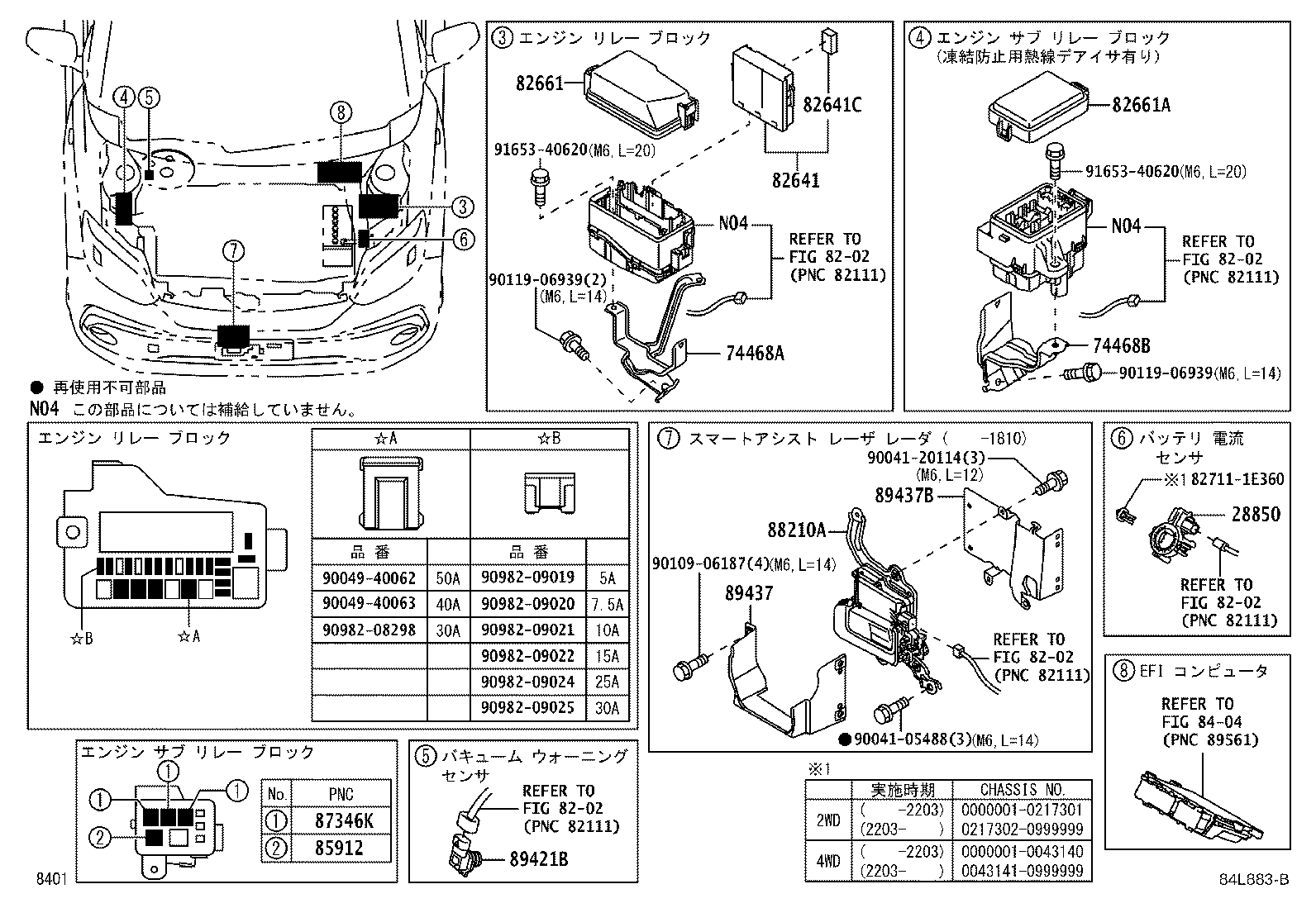

Figure 84L882 84L882 2016-04 → — Figure 84L883B 84L883B 2016-04 → 2022-03 Figure 84O765C 84O765C 2022-03 → — Figure 84H142E 84H142E 2016-04 → — Figure 84H143A 84H143A 2016-04 → 2018-10 Figure 84J322A 84J322A 2018-10 → — Figure 84H844C 84H844C 2016-04 → — Figure 84L884 84L884 2016-04 → —

Part groups

PNCDescription
28850 Sensor Assy, Battery Current
74468A Bracket, Relay Block
74468B Bracket, Relay Block, NO.2
82600 Block Assy, Fuse
82616 Puller, Fuse
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83650 Fusee
83950M Lamp Assy, Telltale
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84231A Switch, Courtesy Lamp
84231B Switch, Courtesy Lamp
84231C Switch, Courtesy Lamp
84235A Switch, Courtesy Lamp
84250A Switch Assy, Steering Pad
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84380 Switch Assy, Brake Warning Test
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84490H Switch Assy, Corner Pole Sensor
84540 Switch Assy, Neutral Start
84650 Switch Assy, Windshield Wiper
84751F Switch, Seat Heater
84770A Switch Assy, Pre-collision System Cancel
84790 Switch Assy, Rear Window Defogger
84794 Switch, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84941A Base, Switch
84970 Switch Assy, Combination
84986C Switch, Vsc Off
85530 Socket Assy, Power Outlet, NO.1
85535E Cover, Power Outlet Socket, NO.2
85912 Relay, Defogger
85916D Relay, Fog Lamp
87346K Relay, Ptc Heater
88210A Sensor Assy, Laser Radar
89111 Computer, Network Gateway
89421B Sensor, Vacuum
89422A Sensor, Water Temperature
89437 Cover, Sensor
89437B Cover, Sensor
89439 Bracket, Sensor
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89953 Sensor, Belt Warning Occupant Detection
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
