Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

Figure 84H256A

84H256A 2016-04 → —

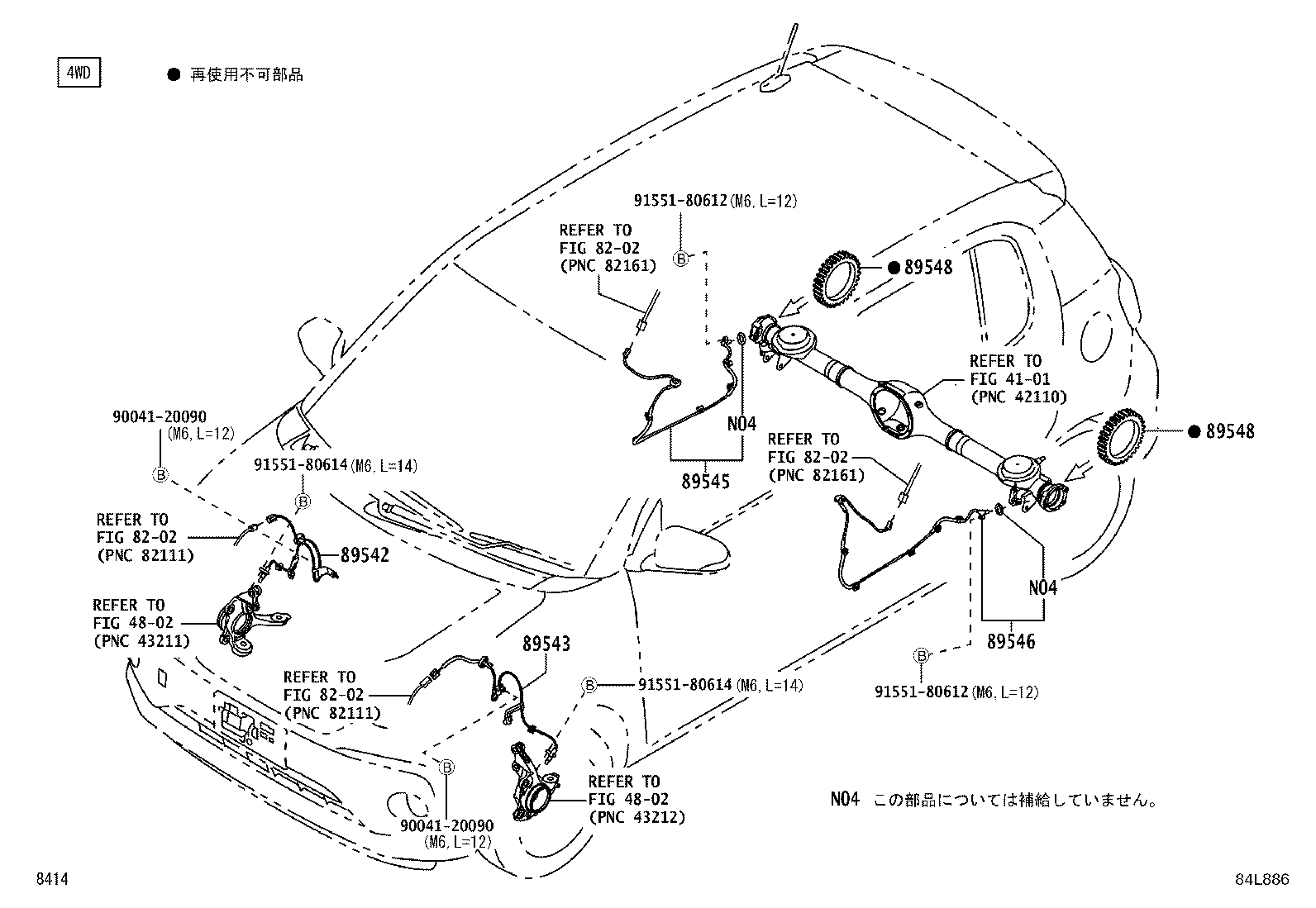

Figure 84L886

84L886 2016-04 → —

Part groups

PNC	Description
82251D	Wire, Speed Sensor, RH
82251E	Wire, Speed Sensor, LH
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH
89548	Rotor, Skid Control Sensor

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
