Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

6 part groups · 2 illustrations

Illustrations

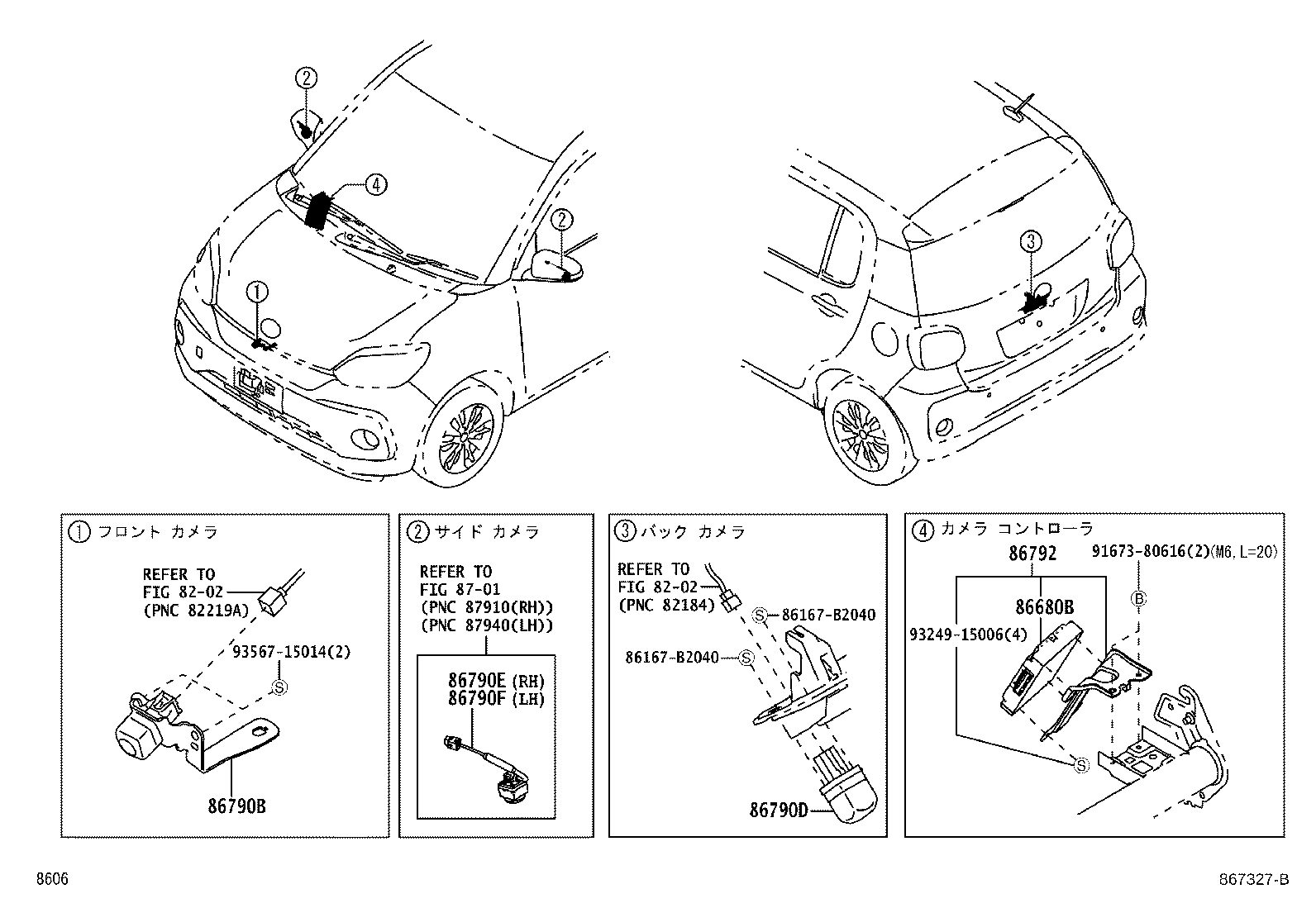

Figure 866502 866502 2016-04 → — Figure 867327B 867327B 2018-10 → —

Part groups

PNCDescription
86680B Controlle, Television
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792 Controller, Television Camera
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
