Toyota Passo

2016-04 → present · chassis M700A,M710A · catalogue 113140 · Japan

Supported model Data version 2018-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

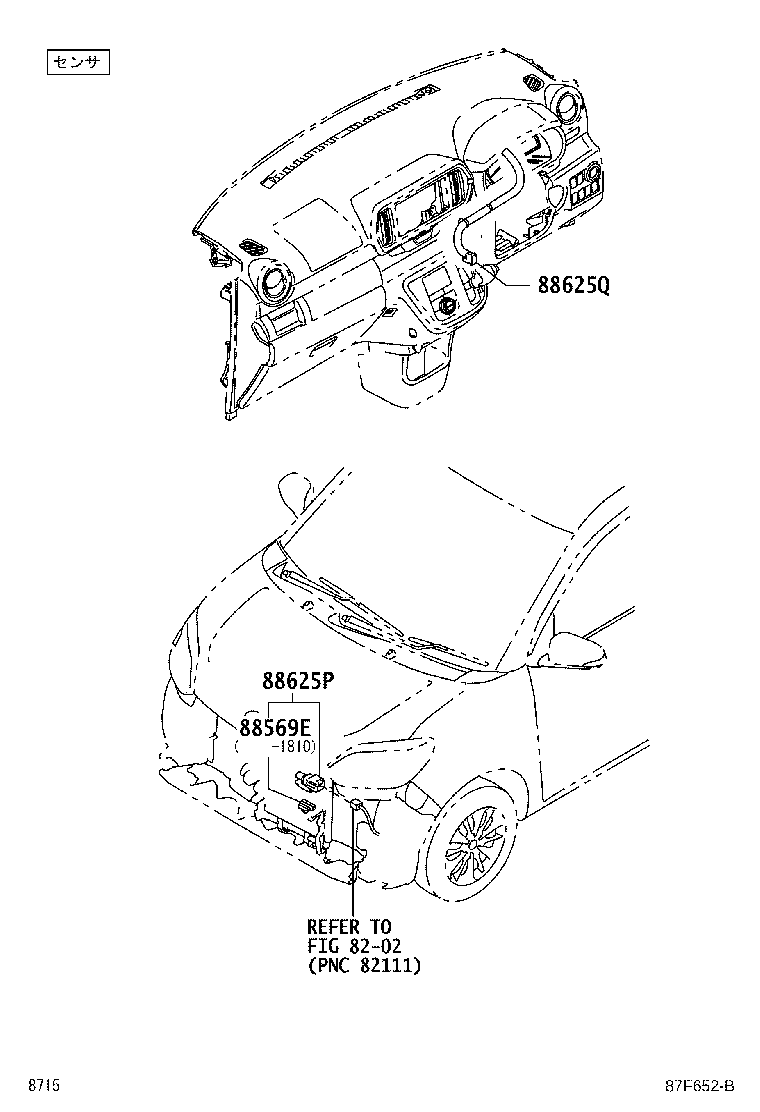

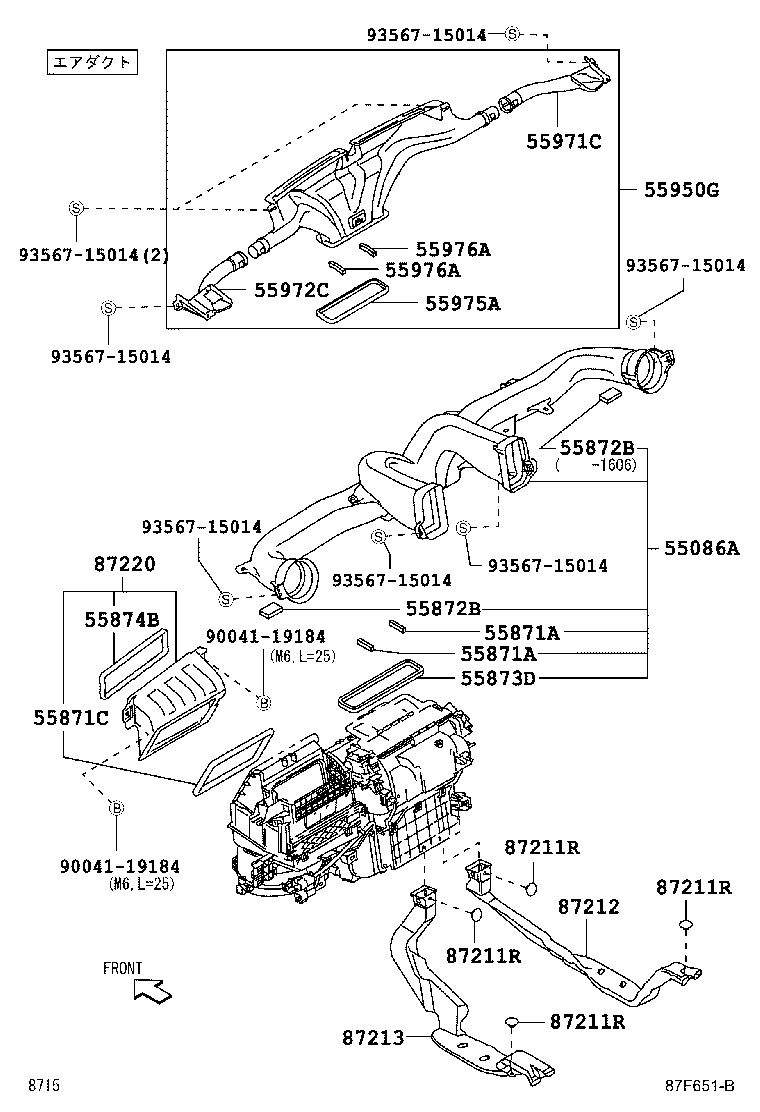

Figure 87F756A 87F756A 2016-04 → — Figure 87F651B 87F651B 2016-04 → — Figure 87F652B 87F652B 2016-04 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55871A Seal, Air Duct, NO.1
55871C Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55874B Seal, Air Duct, NO.4
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55975A Seal, Defroster Nozzle, NO.1
55976A Seal, Defroster Nozzle, NO.2
81942A Sheet, Heater Control Name, NO.1
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87220 Duct Assy, Air
88569E Clamp (FOR COOLER THERMISTOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
