Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

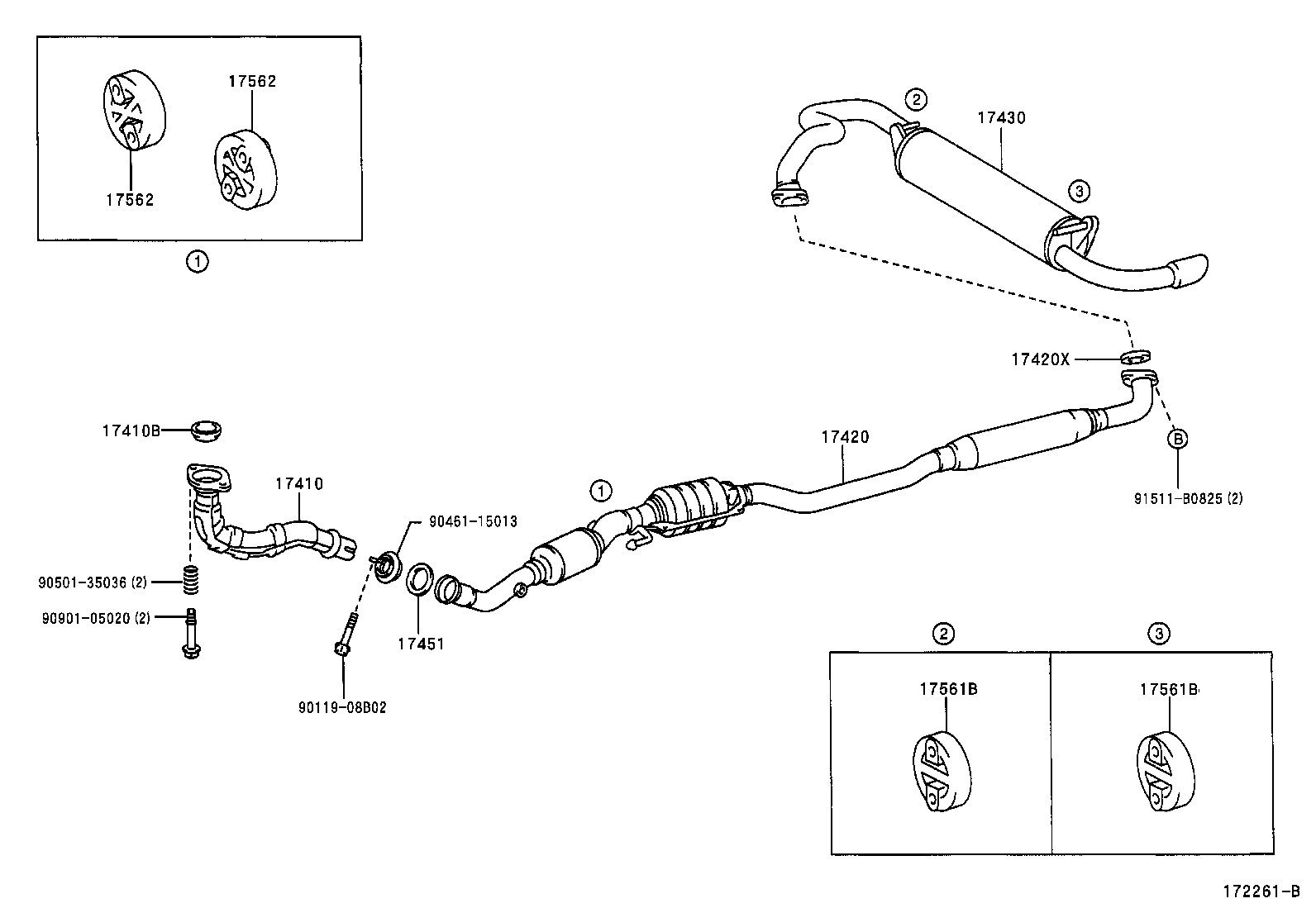

Figure 172281A 172281A 1999-08 → 2005-09 Figure 172261B 172261B 1999-08 → 2005-09

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
