Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

11 part groups · 3 illustrations

Illustrations

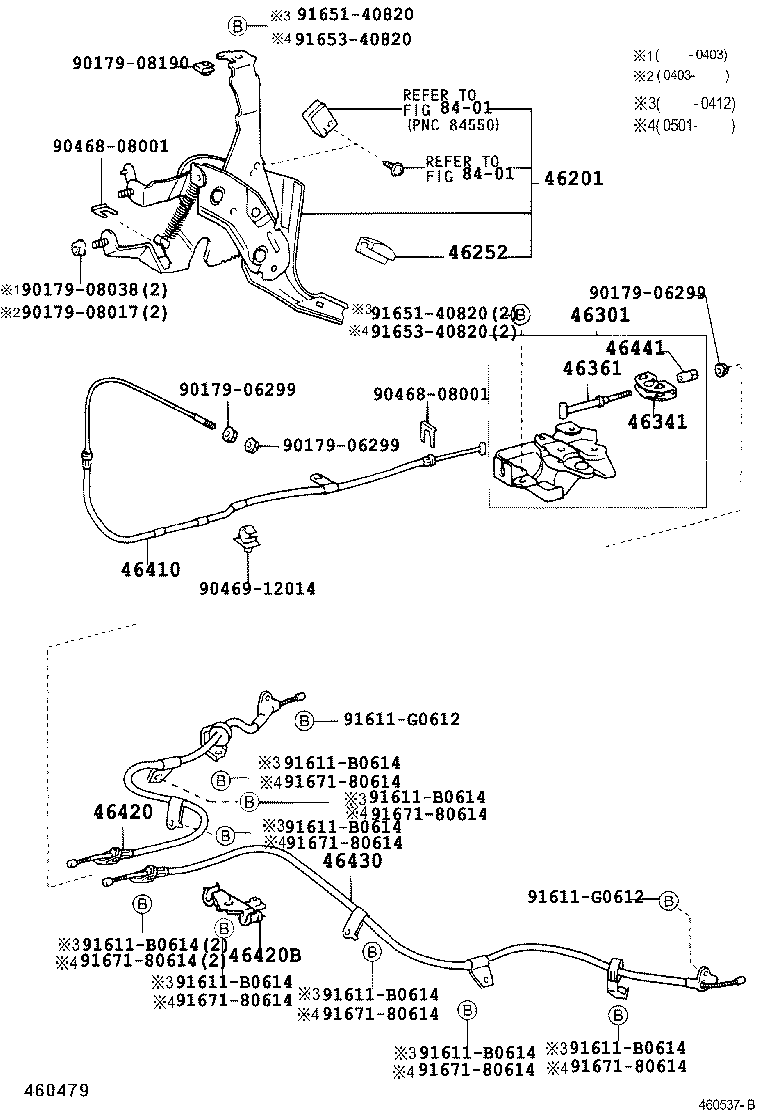

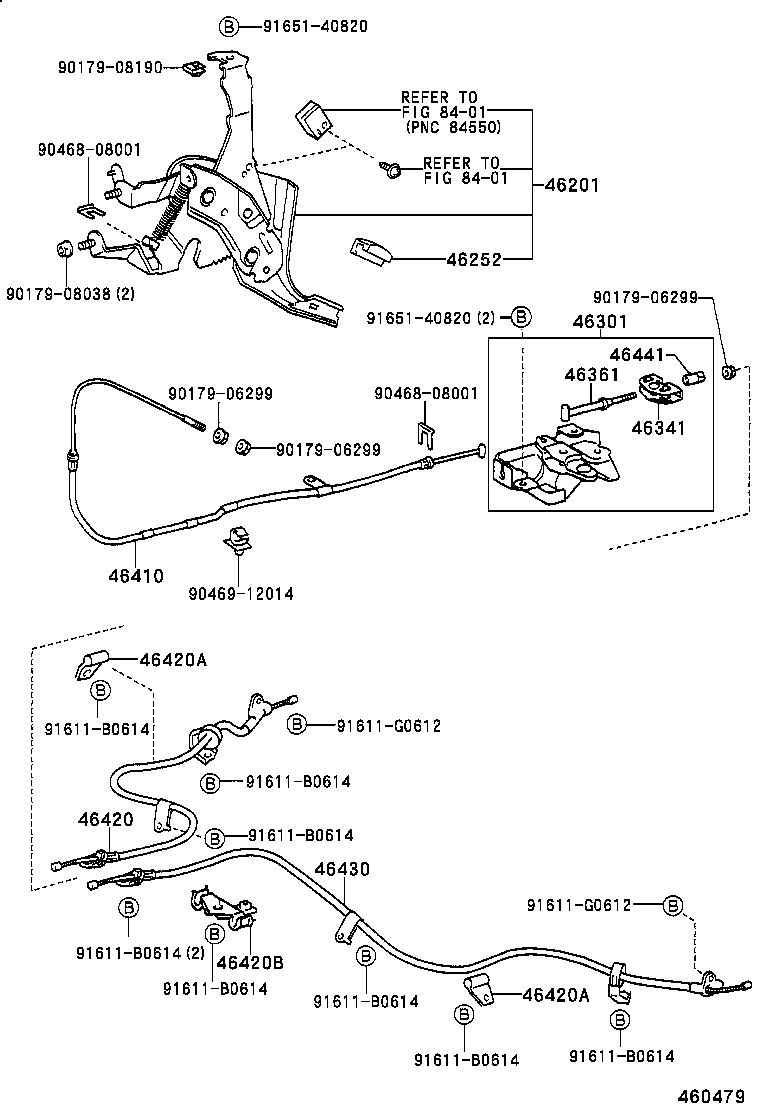

Figure 460477B 460477B 1999-08 → 2005-09 Figure 460479 460479 1999-08 → 2003-02 Figure 460537B 460537B 2003-02 → 2005-09

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46361 Rod, Parking Brake Pull
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
