Toyota Fun Cargo
1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan
Discontinued model
Data version 2006-04
Instrument Panel & Glove Compartment

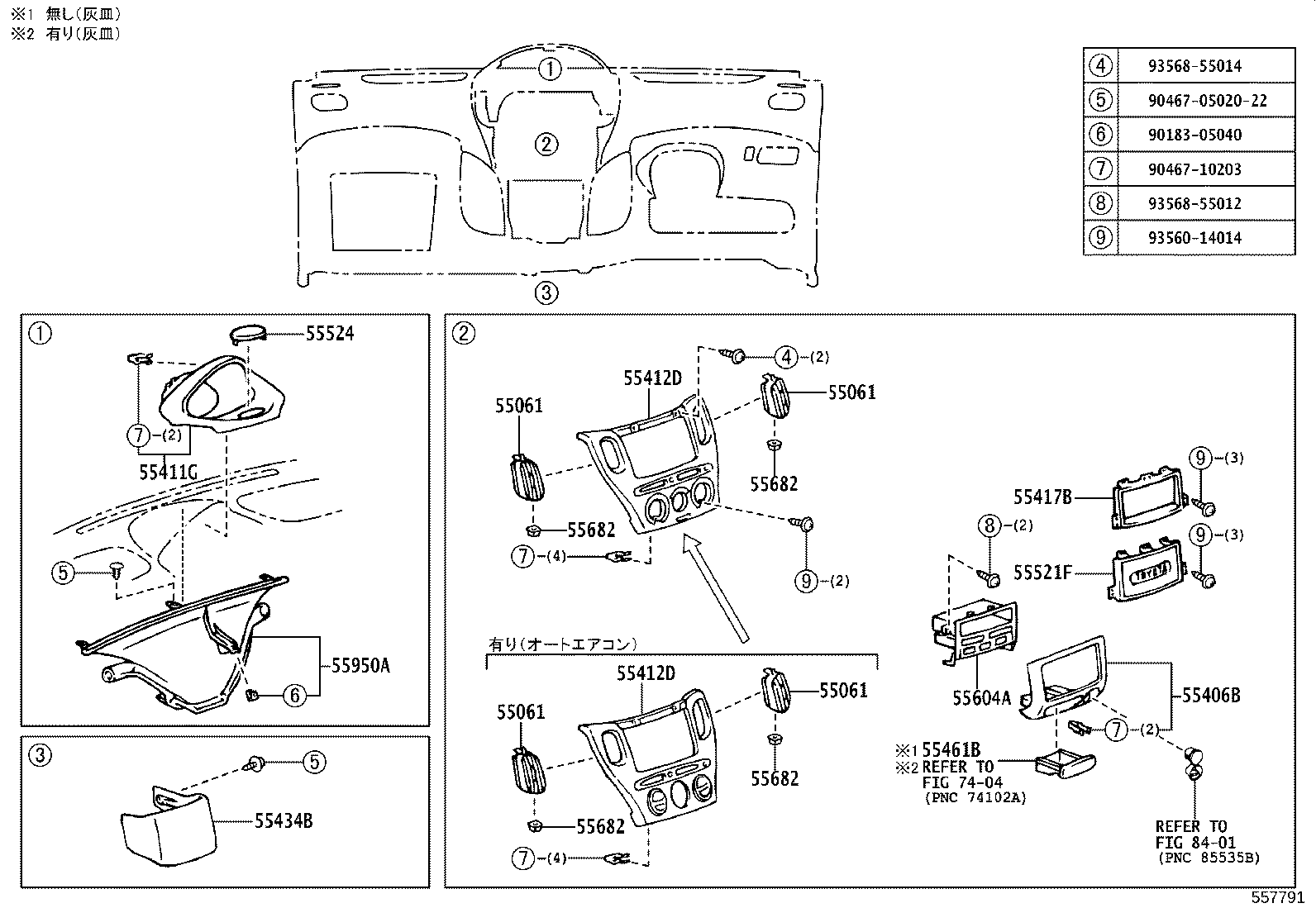

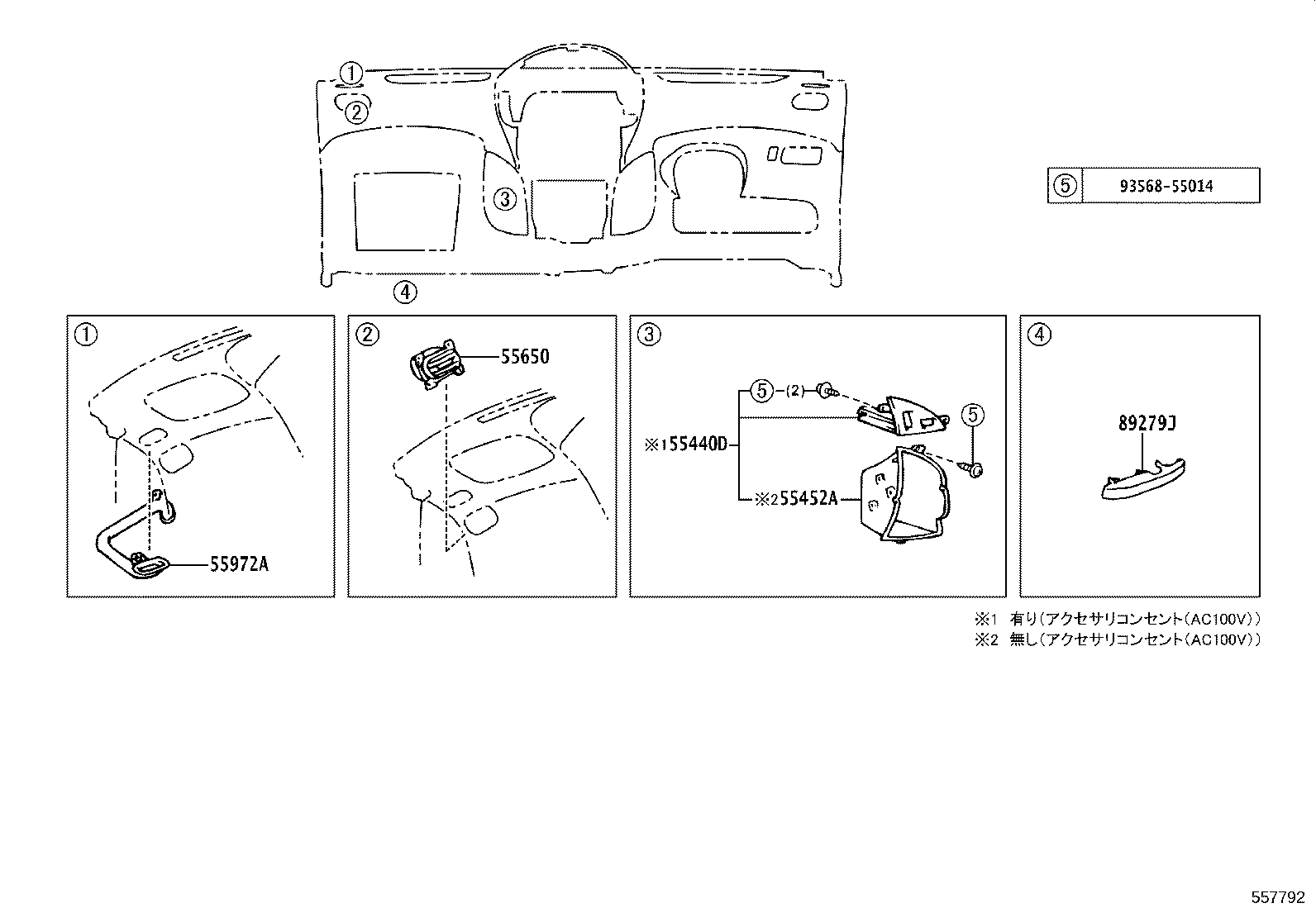

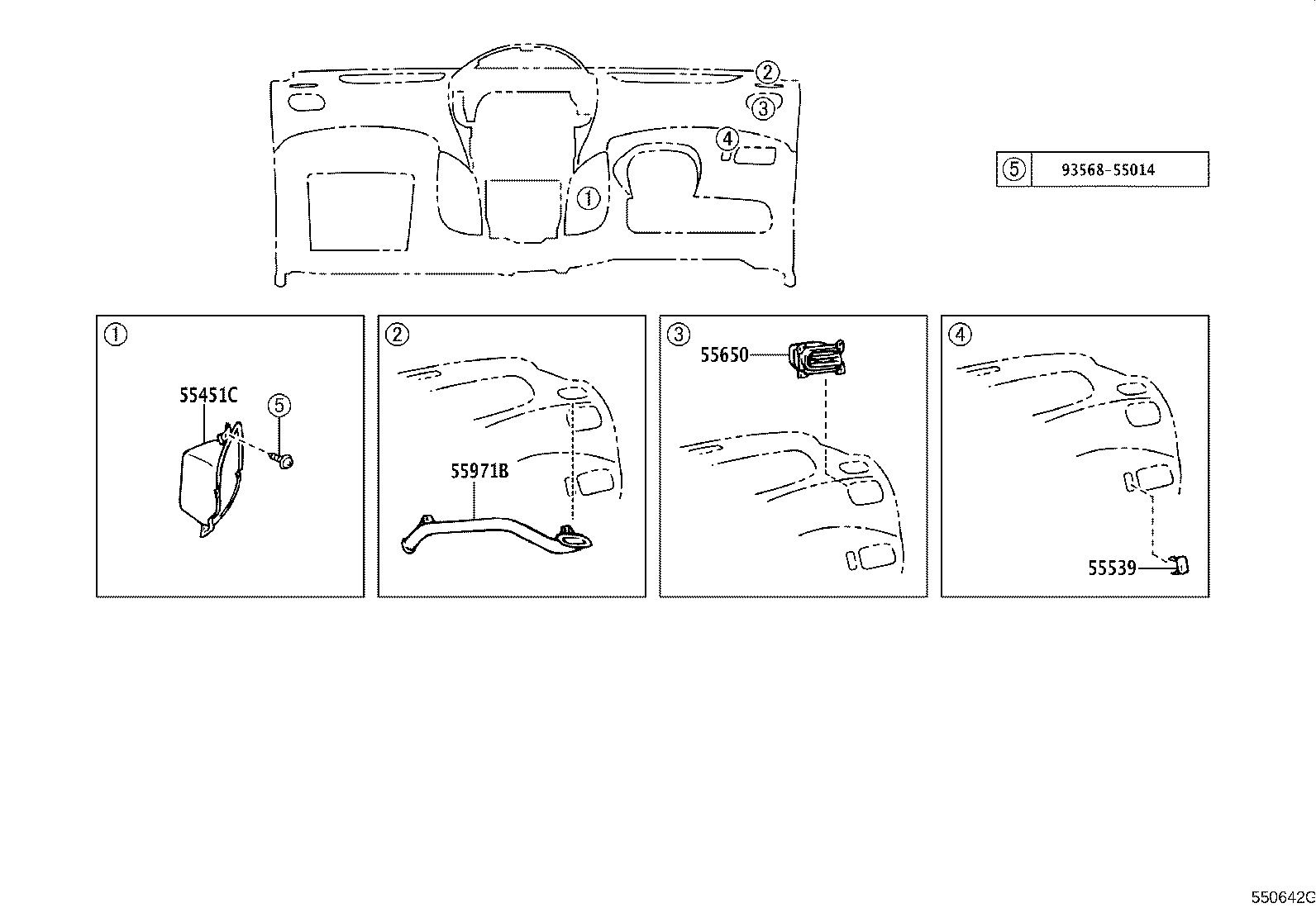

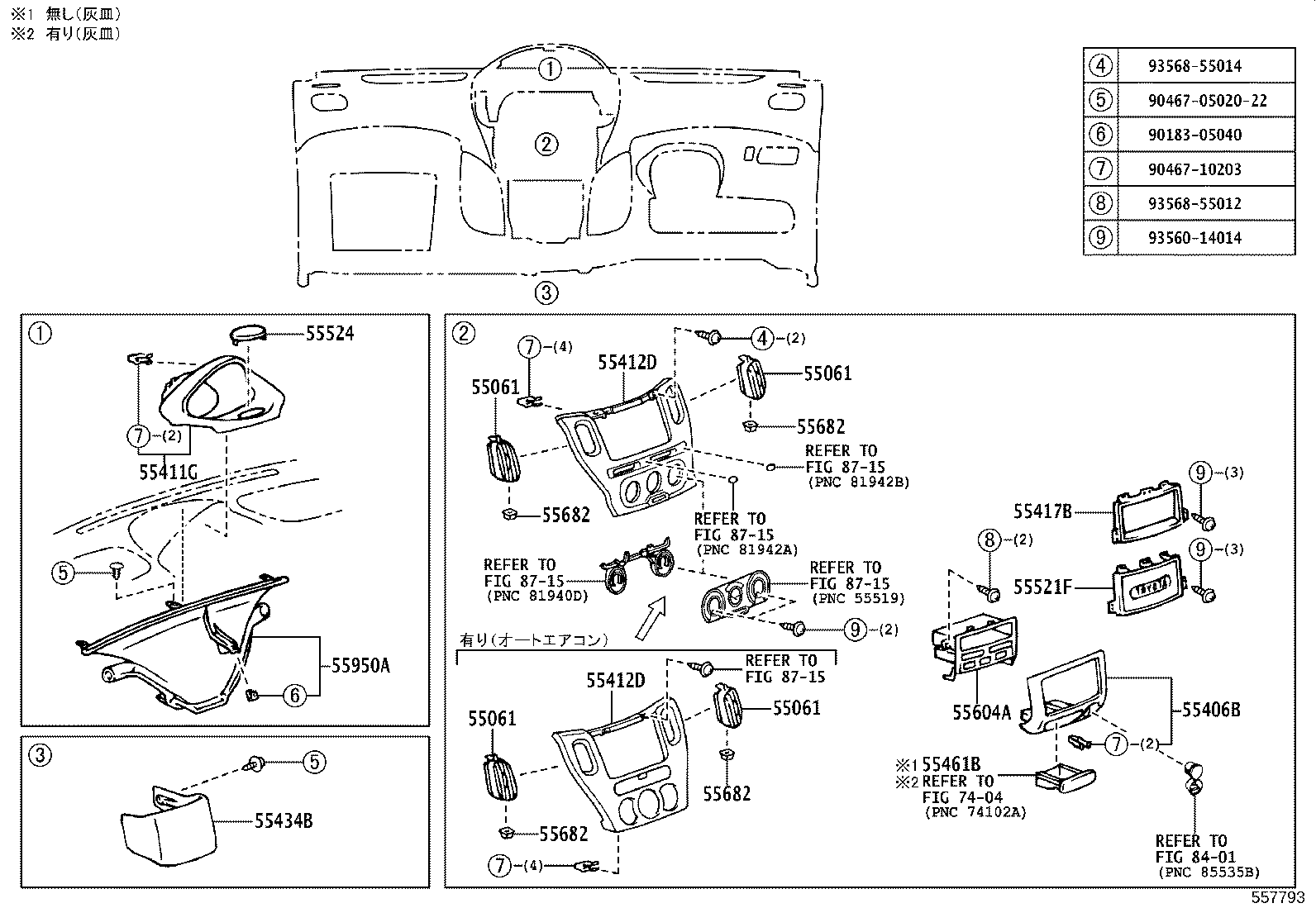

36 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55417B | Retainer, Radio Tuner Finish |
| 55431B | Panel, Instrument Panel Finish, Upper |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55440D | Box Assy, Instrument Panel |
| 55441 | Box, Instrument Panel |
| 55444A | Spring, Instrument Panel Box |
| 55451C | Box, Instrument Panel, NO.1 |
| 55452A | Box, Instrument Panel, NO.2 |
| 55461B | Box, Instrument Panel, Center |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55510 | Door Assy, Glove Compartment |
| 55511 | Door, Glove Compartment |
| 55521F | Cover, Stereo Opening, NO.2 |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55682 | Spring, Instrument Panel Register Support |
| 55950A | Nozzle Assy, Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 89279J | Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
