Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

5 part groups · 2 illustrations

Illustrations

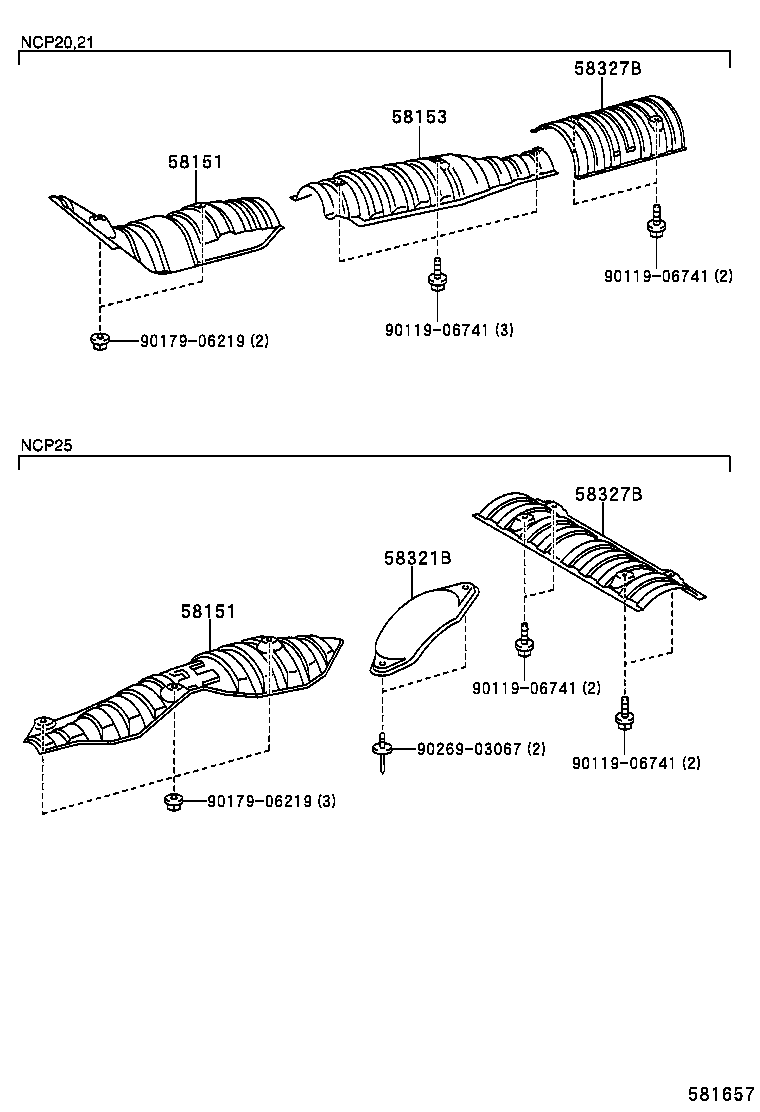

Figure 581058C 581058C 1999-08 → 2002-08 Figure 581657 581657 2002-08 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58179D Bracket, Clamp Floor
58321B Insulator, Rear Floor Heat, NO.1
58327B Insulator, Main Muffler Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
