Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

24 part groups · 2 illustrations

Illustrations

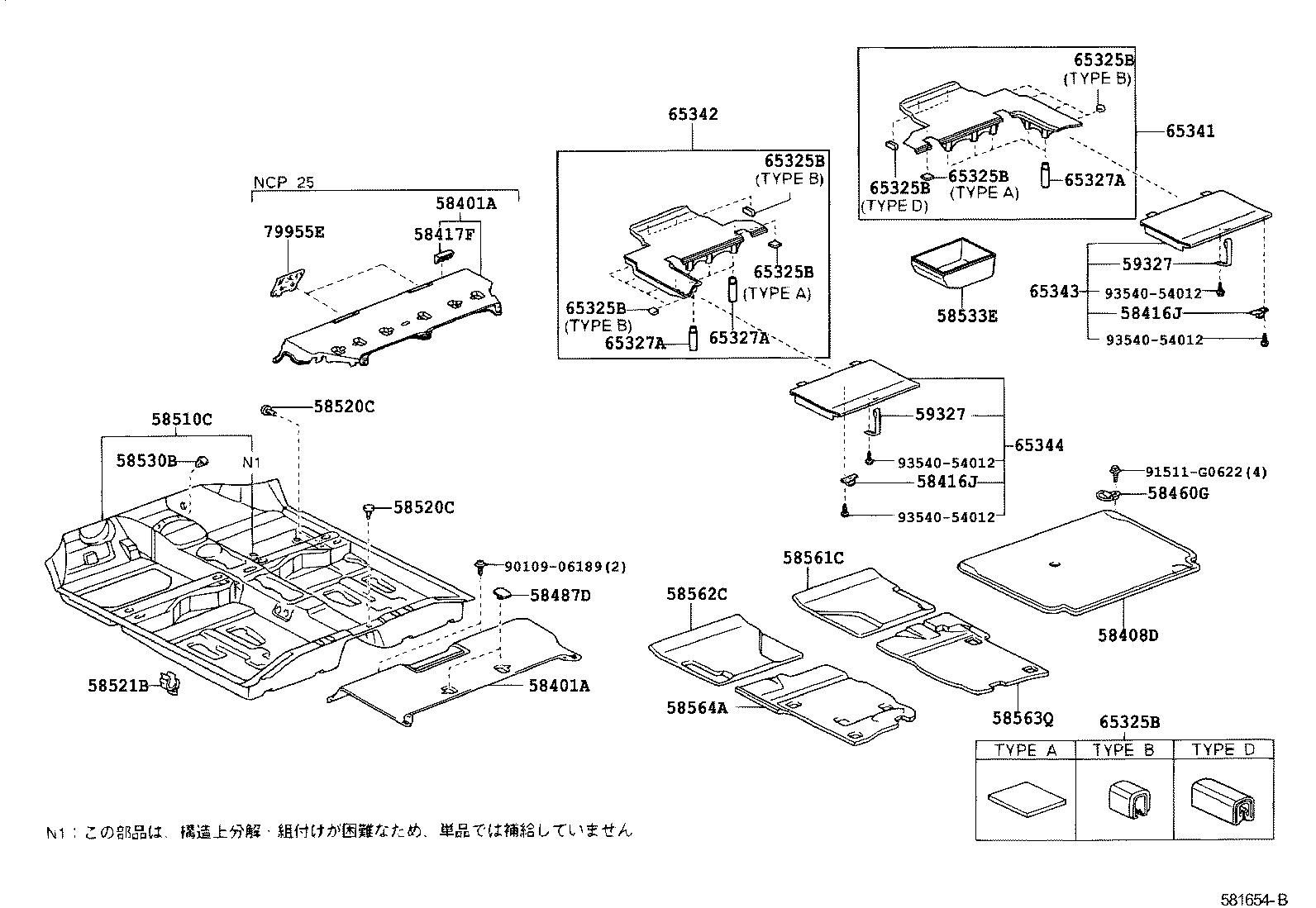

Figure 581080D 581080D 1999-08 → — Figure 581654B 581654B 2002-08 → —

Part groups

PNCDescription
58401A Board Sub-assy, Deck, NO.1
58408D Board Sub-assy, Deck, NO.2
58416J Bracket, Deck Board, NO.1
58417F Bracket, Deck Board
58460G Striker Assy, Luggage Hold Belt
58487D Cap, Deck Board Service Hole
58510C Carpet Assy, Front Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58533E Board, Front Floor Mat, Center NO.1 RH
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
59327 Belt, Floor Cover
65325B Plate, Floor Board, Front
65327A Plate, Front Floor End
65341 Board, Floor, NO.1
65342 Board, Floor, NO.2
65343 Board, Floor, NO.3
65344 Board, Floor, NO.4
65357A Cover, Floor Board
79955E Cover, Rear Seat Front Bracket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
