Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

42 part groups · 11 illustrations

Illustrations

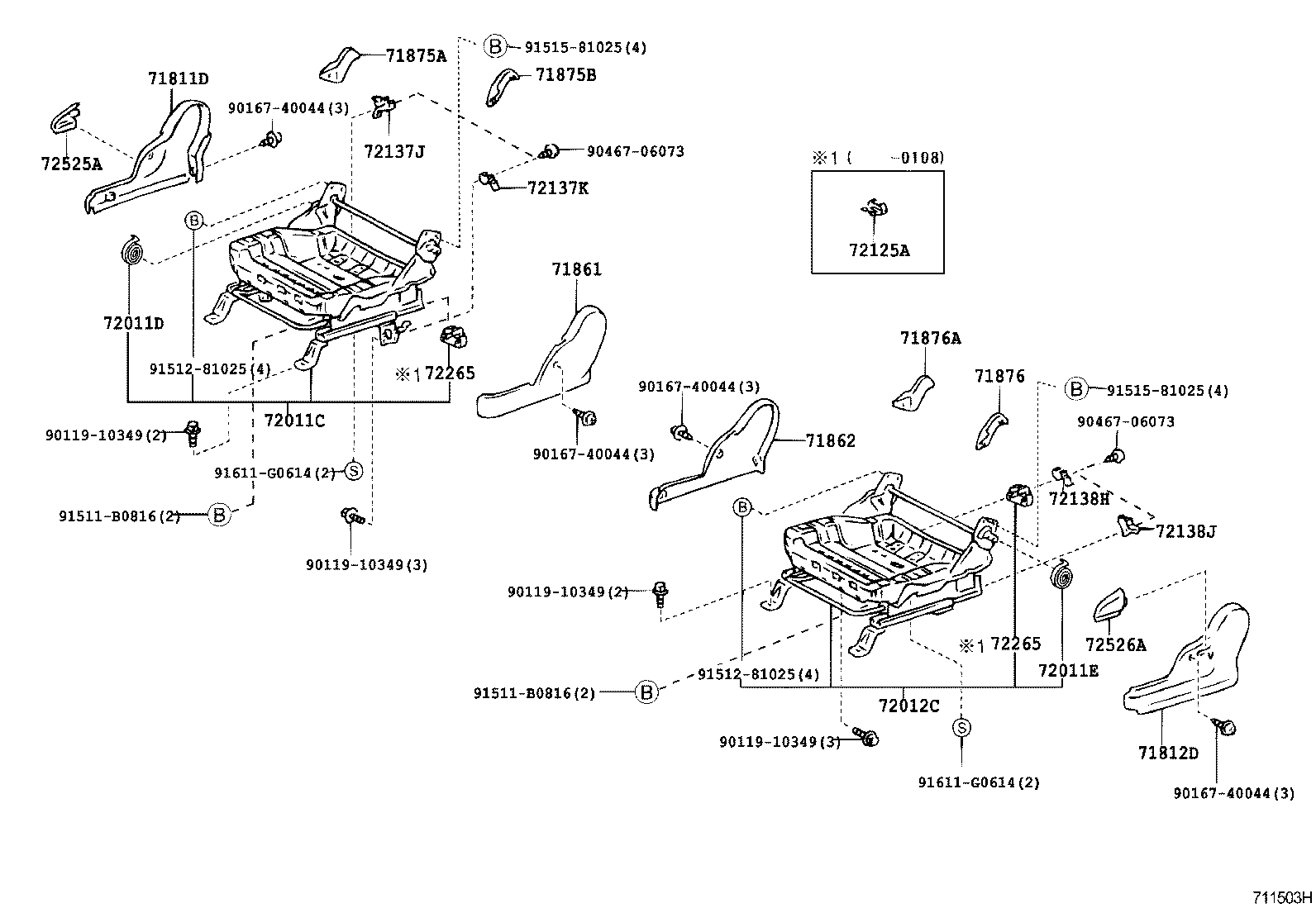

711503H 1999-08 → 2002-08

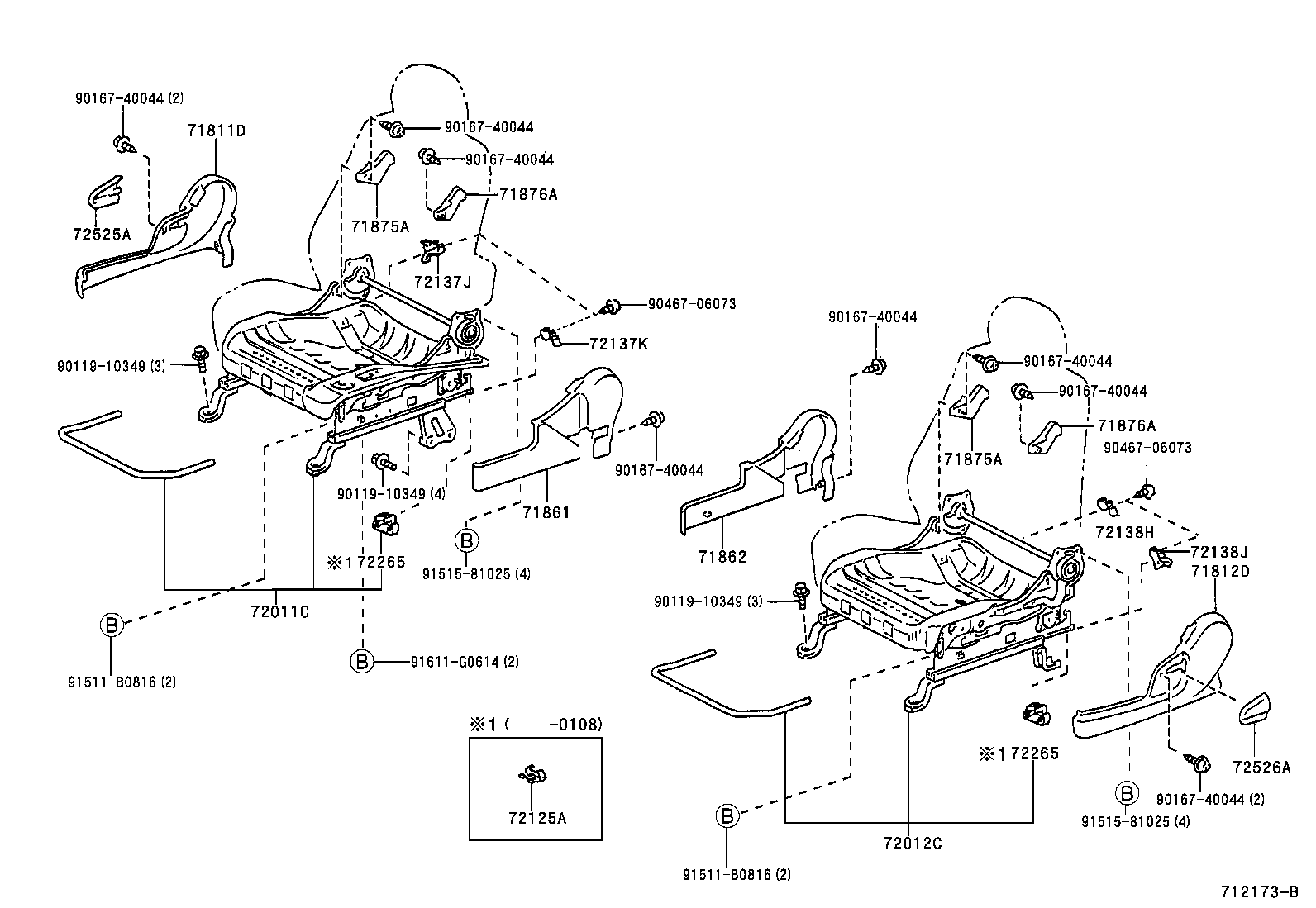

712173B 2001-09 → 2002-08

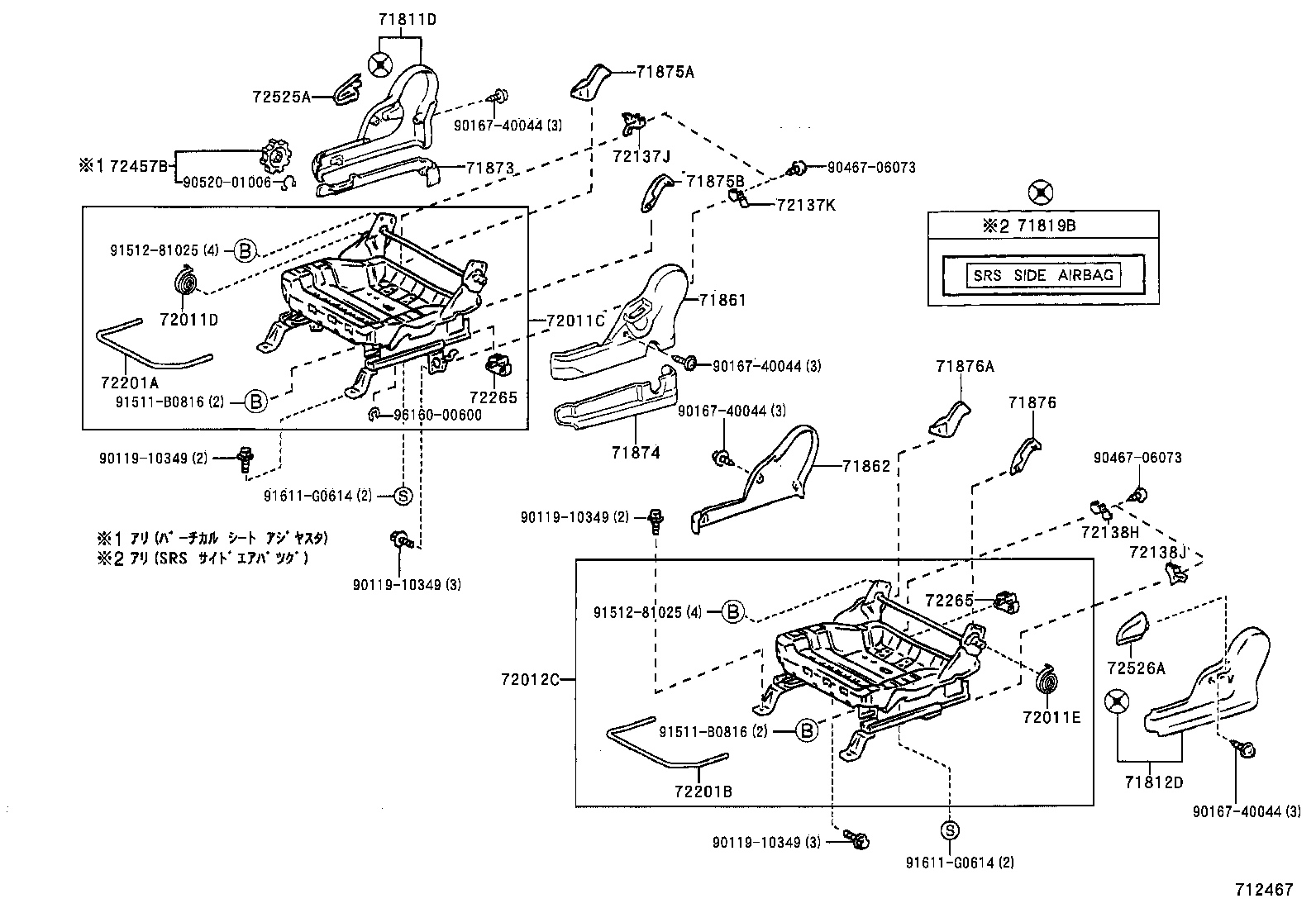

712467 2002-08 → —

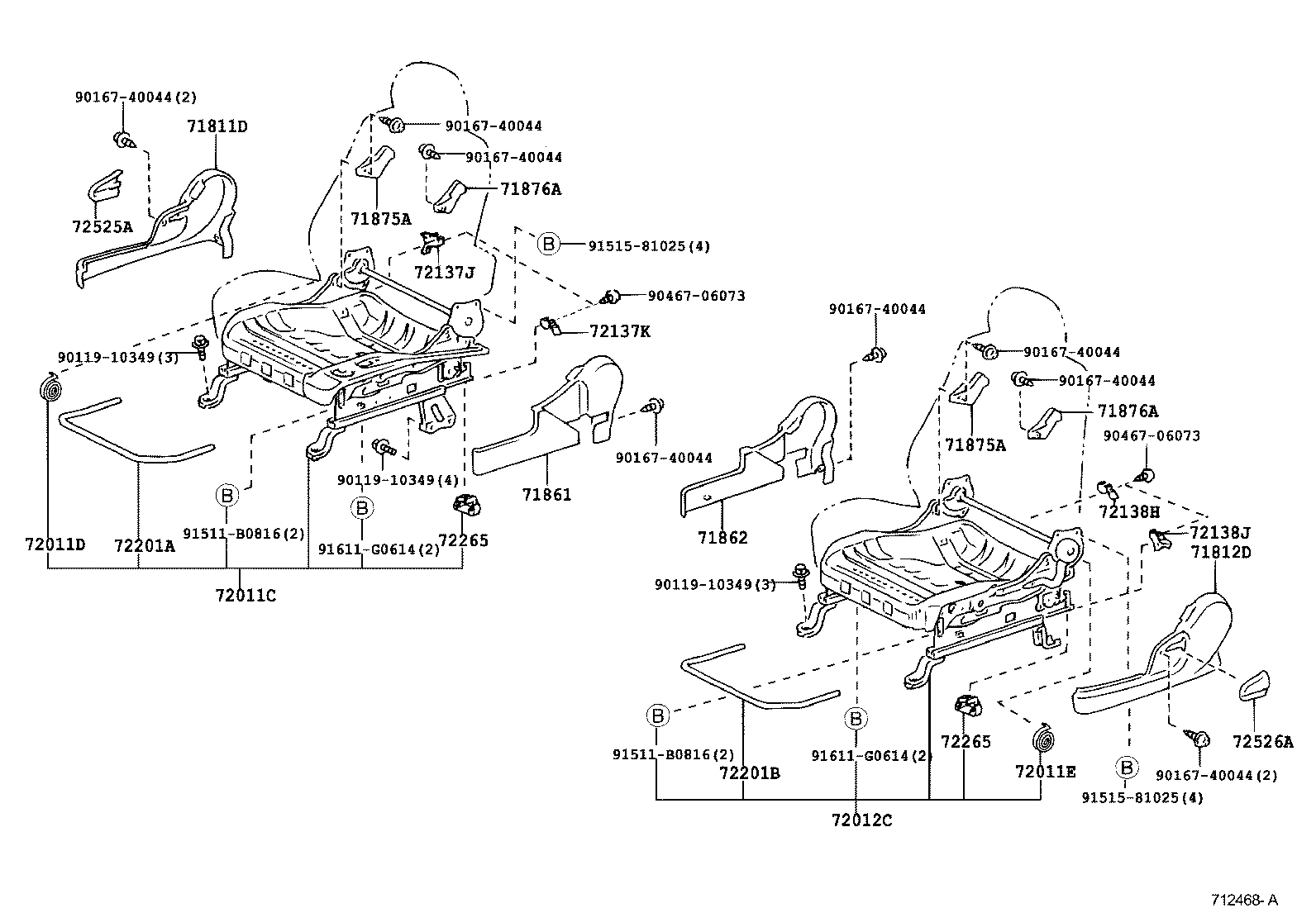

712468A 2002-08 → —

671786 1999-08 → 2002-08

672867 2002-08 → —

718165A 1999-08 → —

Part groups

PNC	Description
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71518B	Pad, Front Seat Cushion W/Cover, RH
71528	Pad, Front Seat Cushion W/Cover, LH
71558B	Pad, Front Seatback W/Cover, RH
71568A	Pad, Front Seatback W/Cover, LH
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71759B	Hook, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71819B	Label, Side Airbag Name
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71873	Shield, Front Seat Cushion, Lower RH
71874	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
72011C	Adjuster Sub-assy, Front Seat, RH
72011D	Spring, Tension, RH(FOR FRONT SEAT ADJUSTER OUTER)
72011E	Spring, Tension, LH(FOR FRONT SEAT ADJUSTER OUTER)
72012C	Adjuster Sub-assy, Front Seat, LH
72125A	Cover, Seat Track, Upper Rear
72137J	Cover, Front Seat Track, RH Rear Outer
72137K	Cover, Front Seat Track, RH Rear Inner
72138H	Cover, Front Seat Track, LH Rear Inner
72138J	Cover, Front Seat Track, LH Rear Outer
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72265	Cover, Seat Track Upper Rail, RH
72457B	Knob, Vertical Seat Adjuster, RH
72525A	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72810C	Armrest Assy, Front Seat, Center
72849	Cap, Seat Armrest, NO.2
72877C	Cover, Seat Armrest
72880	Armrest Assy, Seat, C RH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
