Toyota Fun Cargo
1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan
Discontinued model
Data version 2006-04

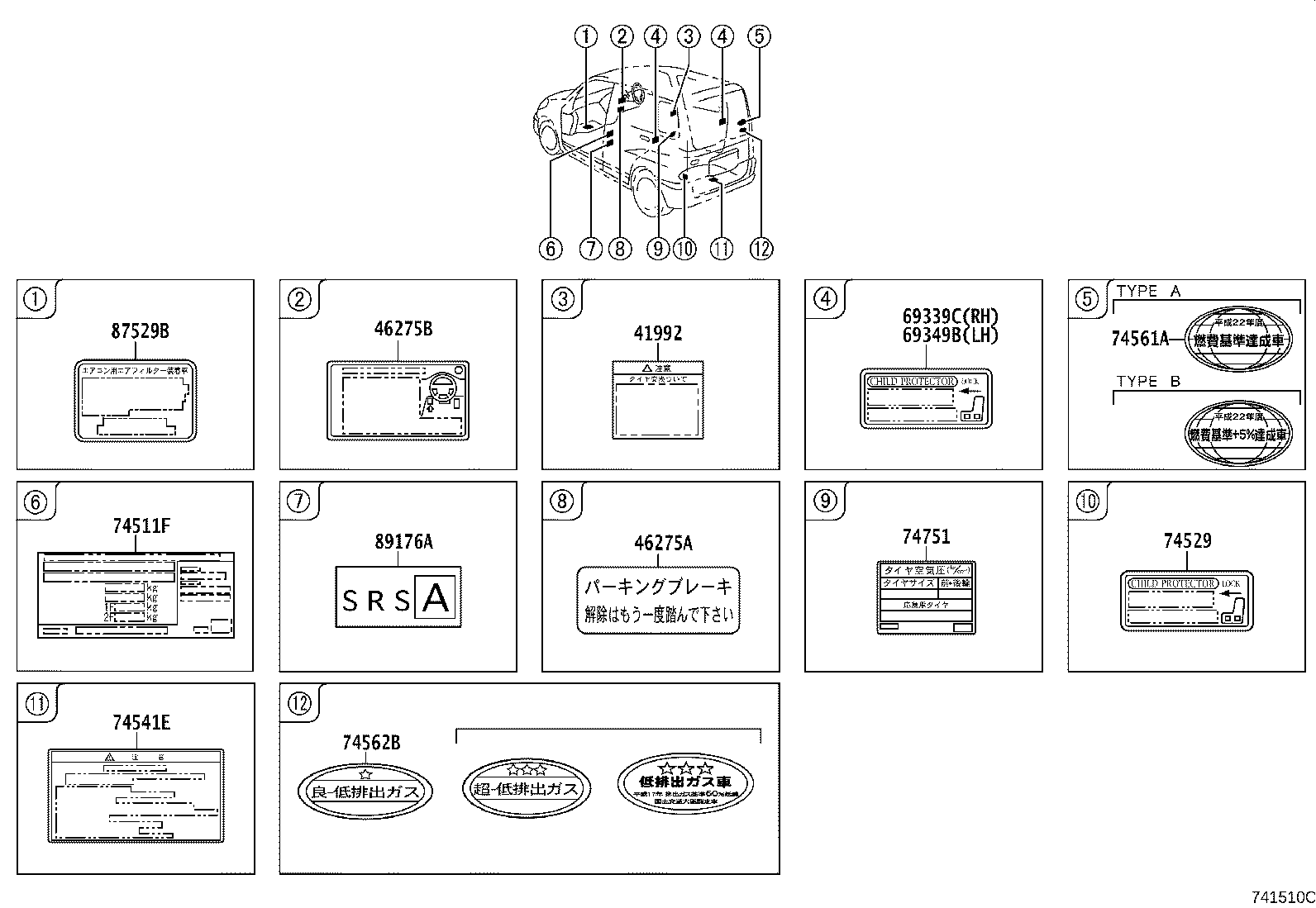

Caution Plate (EXTERIOR & INTERIOR)
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 46275A | Label, Parking Brake Release Information, NO.1 |
| 46275B | Label, Parking Brake Release Information, NO.2 |
| 69339C | Label, Child Protector Information |
| 69349B | Label, Child Protector Information, LH |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74751 | Label, Tire Pressure Information |
| 75341C | Plate, Hood Name |
| 87529B | Label, A/C Filter Information |
| 88723J | Label, Cooler Service Caution, NO.2 |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
