Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 3 illustrations

Illustrations

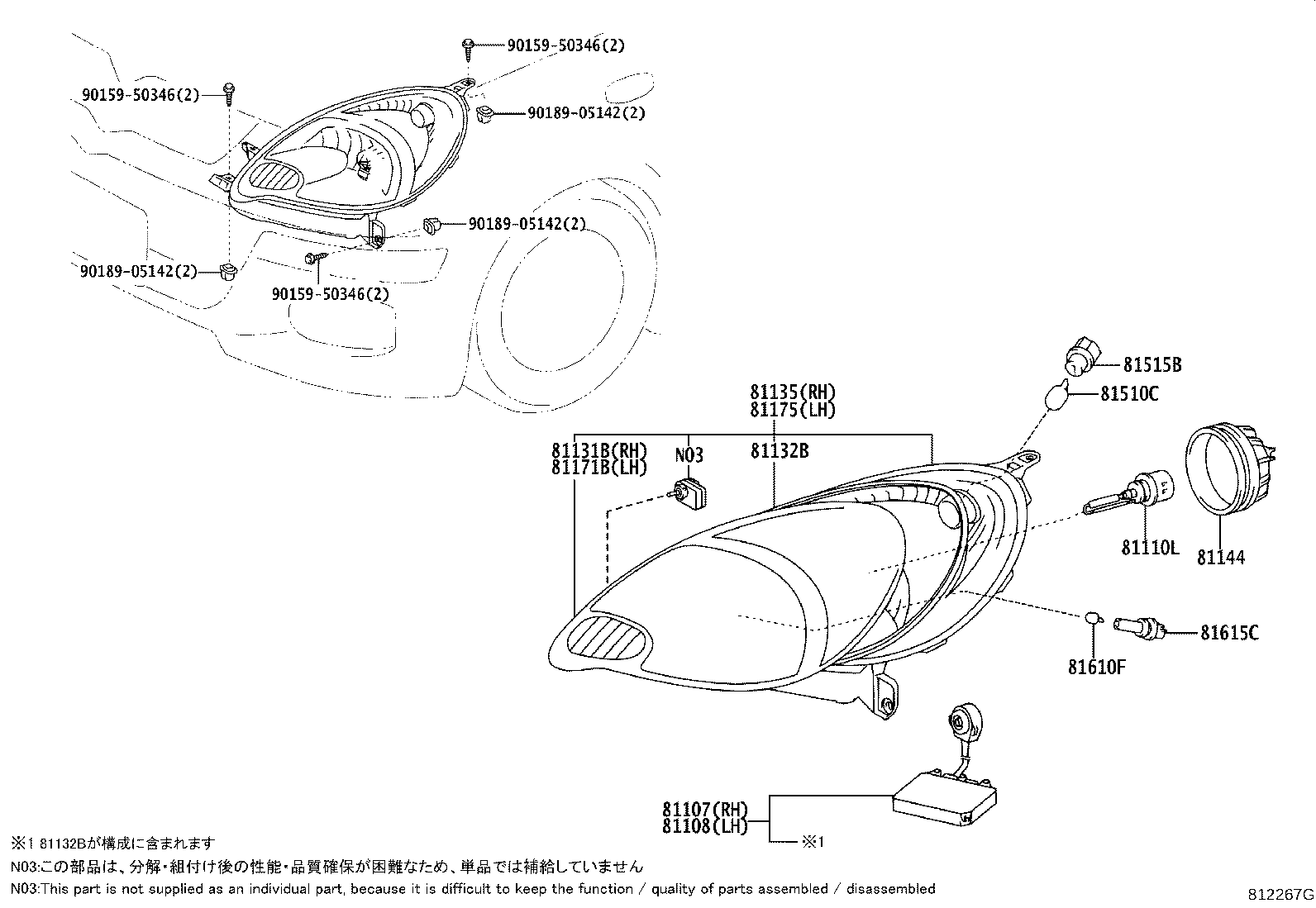

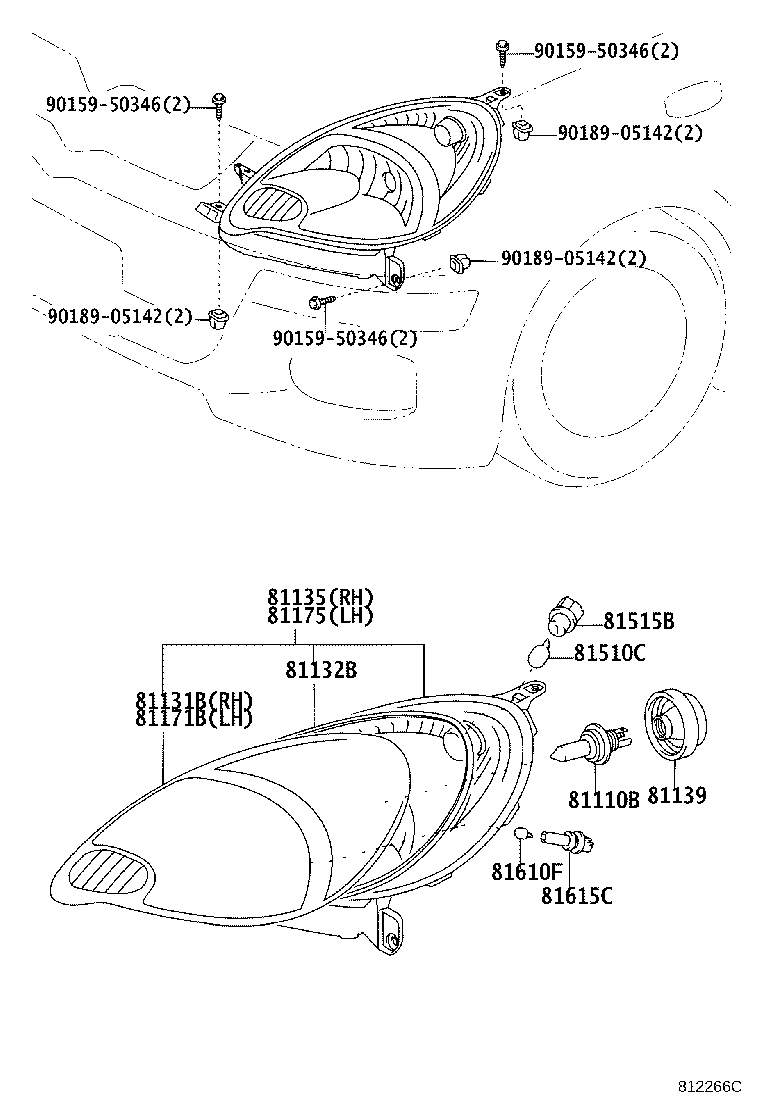

Figure 811260J 811260J 1999-08 → 2002-08 Figure 812266C 812266C 2002-08 → 2005-09 Figure 812267G 812267G 2002-08 → 2005-09

Part groups

PNCDescription
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81131B Head Lamp Lens, RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81171B Head Lamp Lens, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615C Socket & Wire, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
