Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 7 illustrations

Illustrations

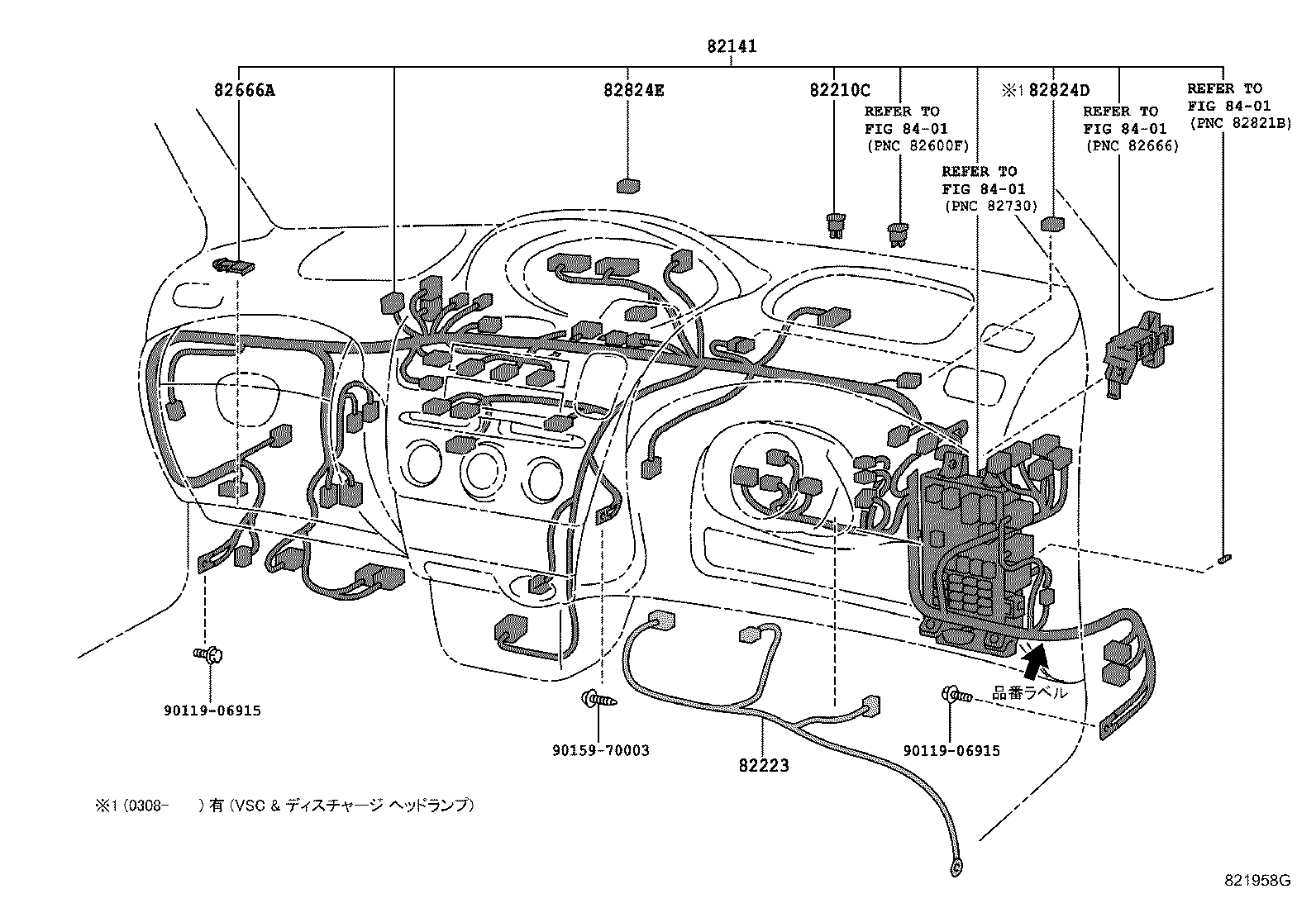

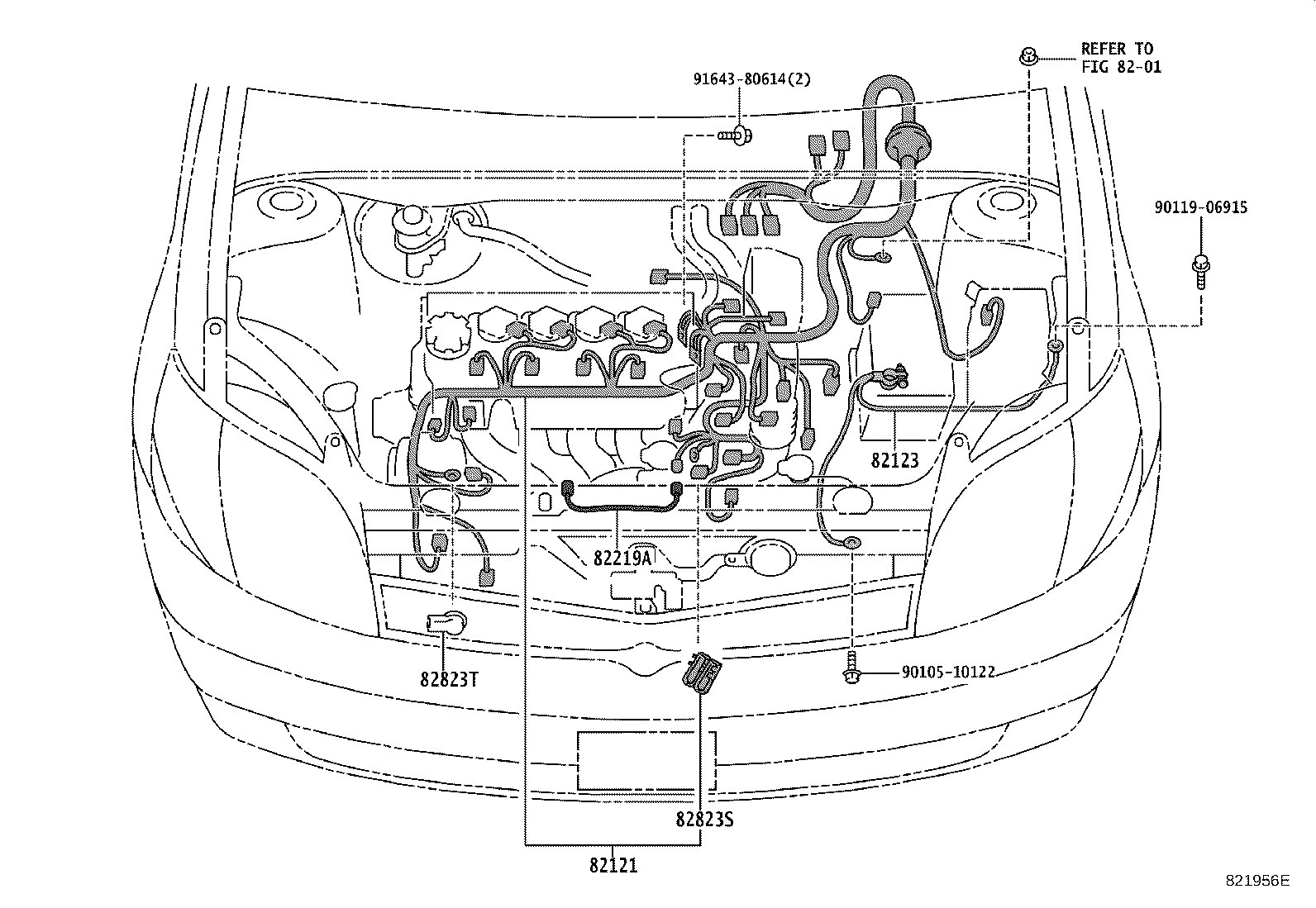

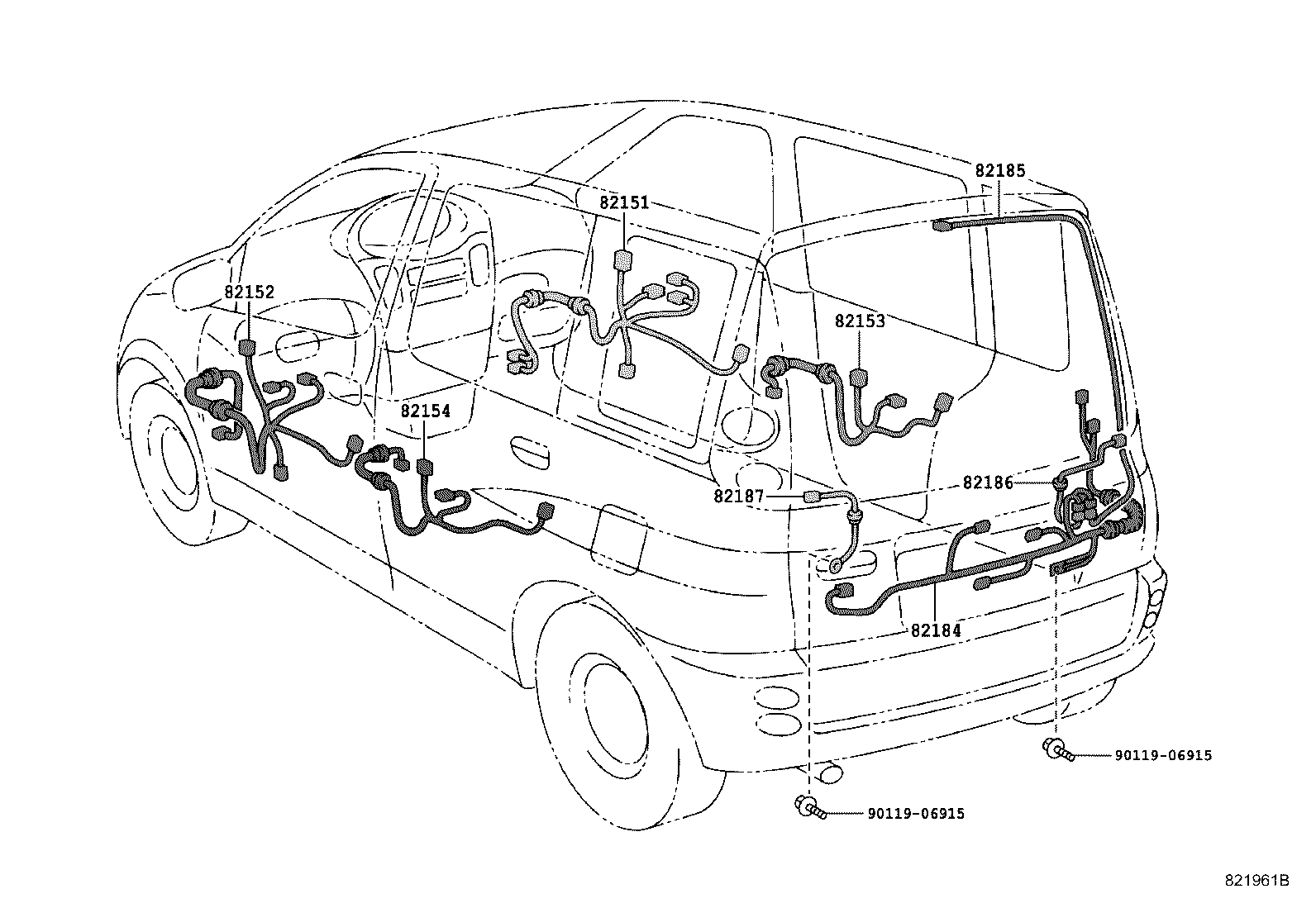

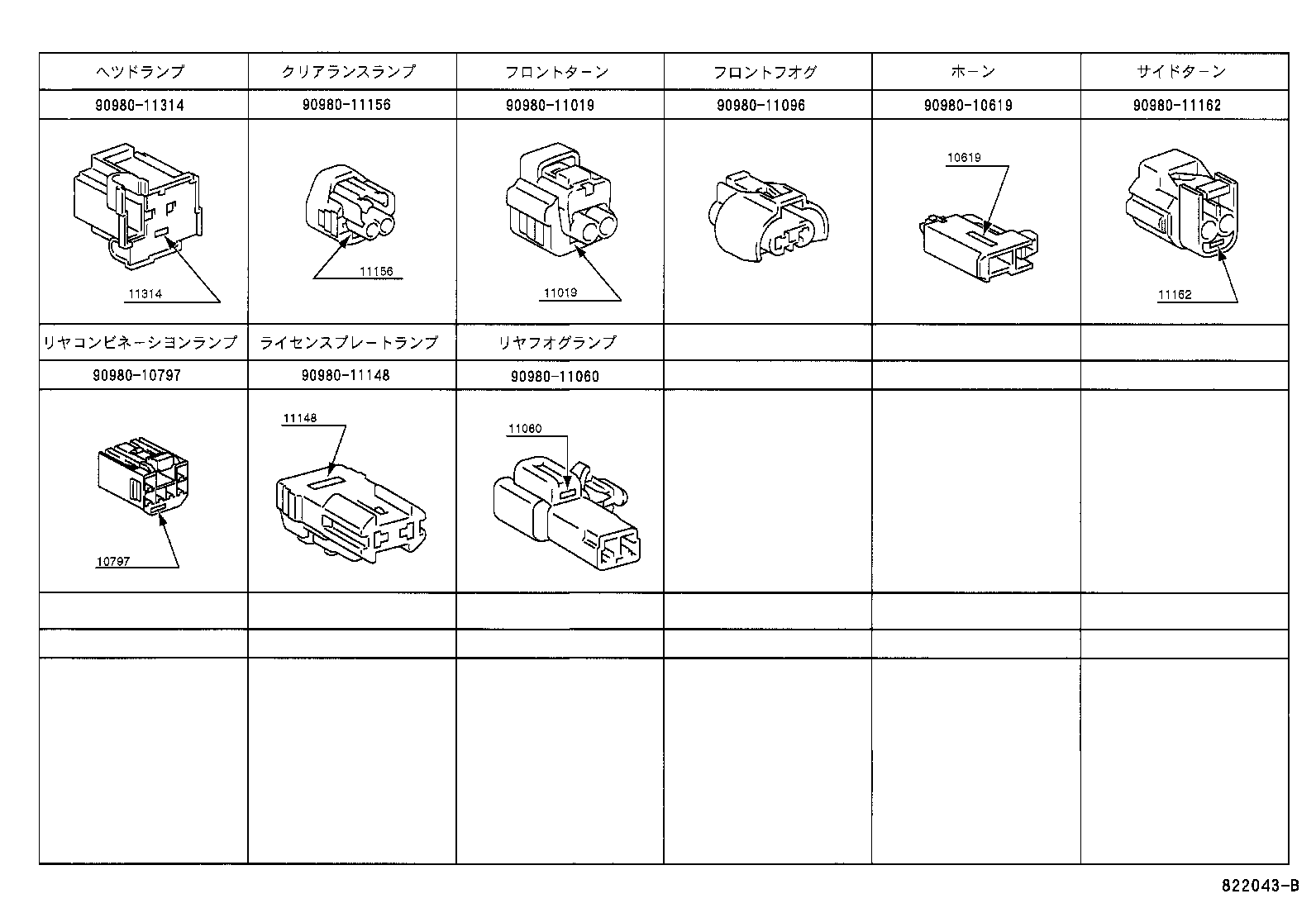

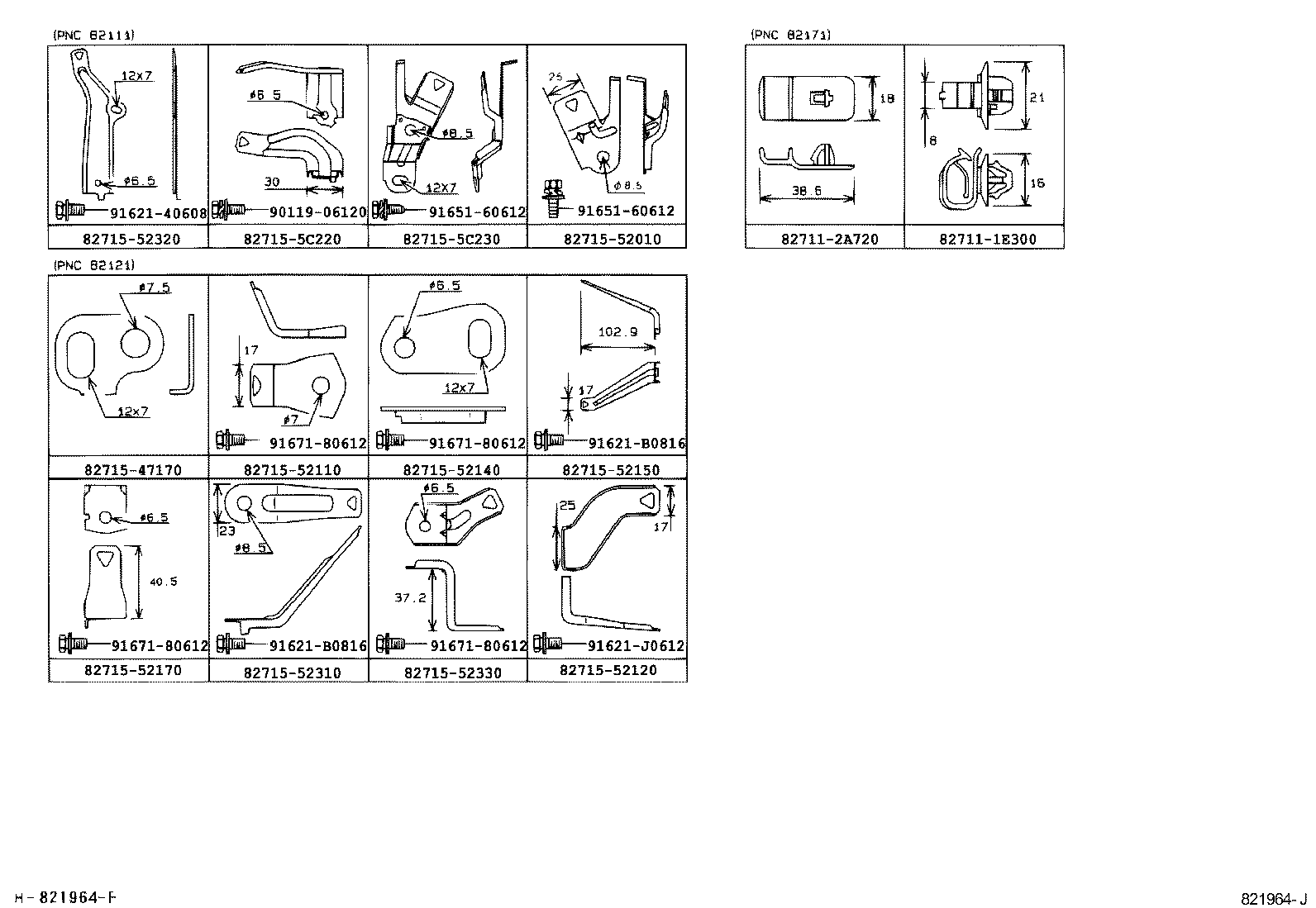

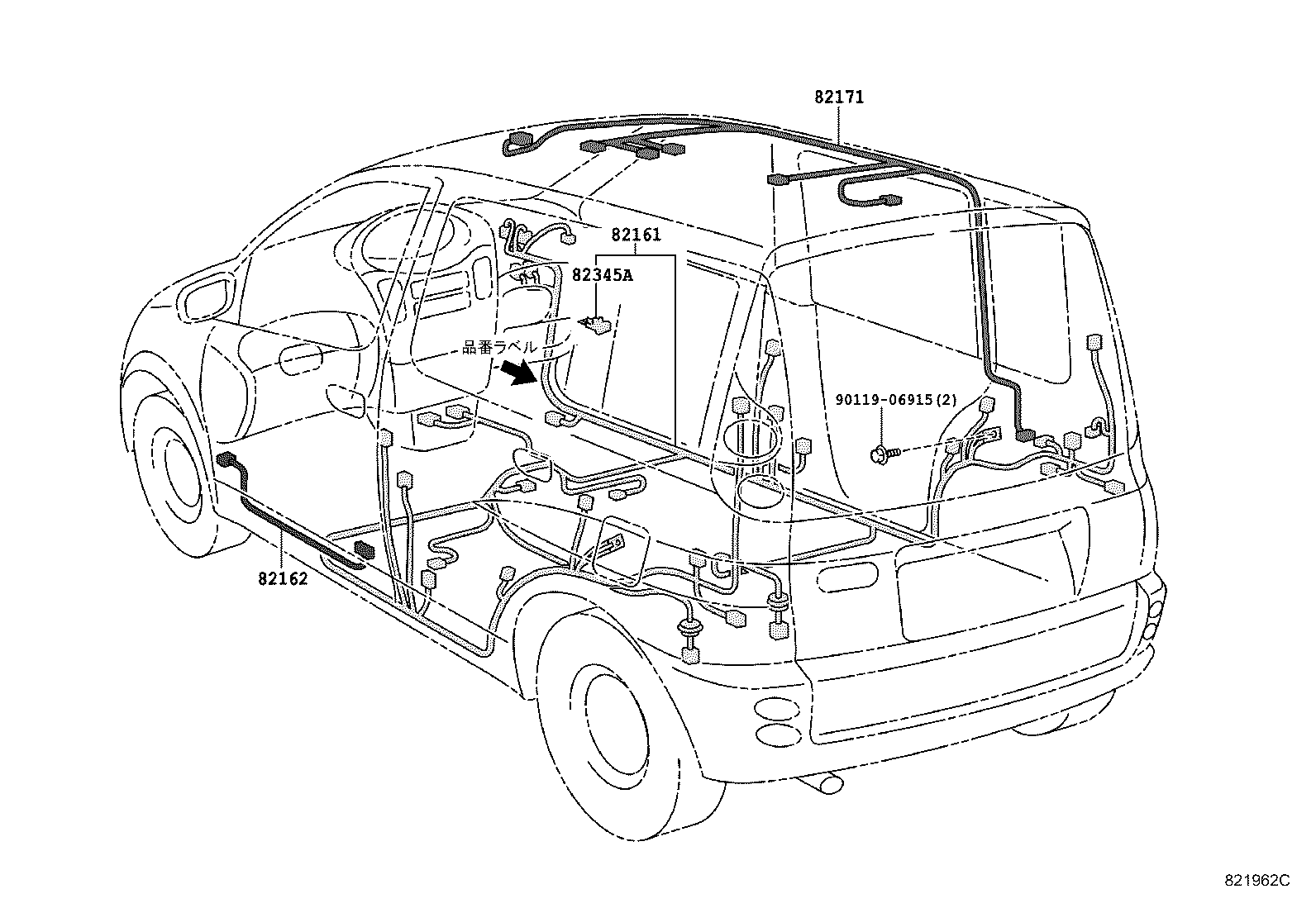

Figure 821954I 821954I 1999-08 → — Figure 821956E 821956E 1999-08 → — Figure 821958G 821958G 1999-08 → — Figure 821961B 821961B 1999-08 → — Figure 821962C 821962C 1999-08 → — Figure 821964J 821964J 1999-08 → — Figure 822043B 822043B 1999-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82219C Wire, Sensor
82223 Wire, Switch
82345A Diode
82666A Holder, Connector NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
