Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

13 part groups · 8 illustrations

Illustrations

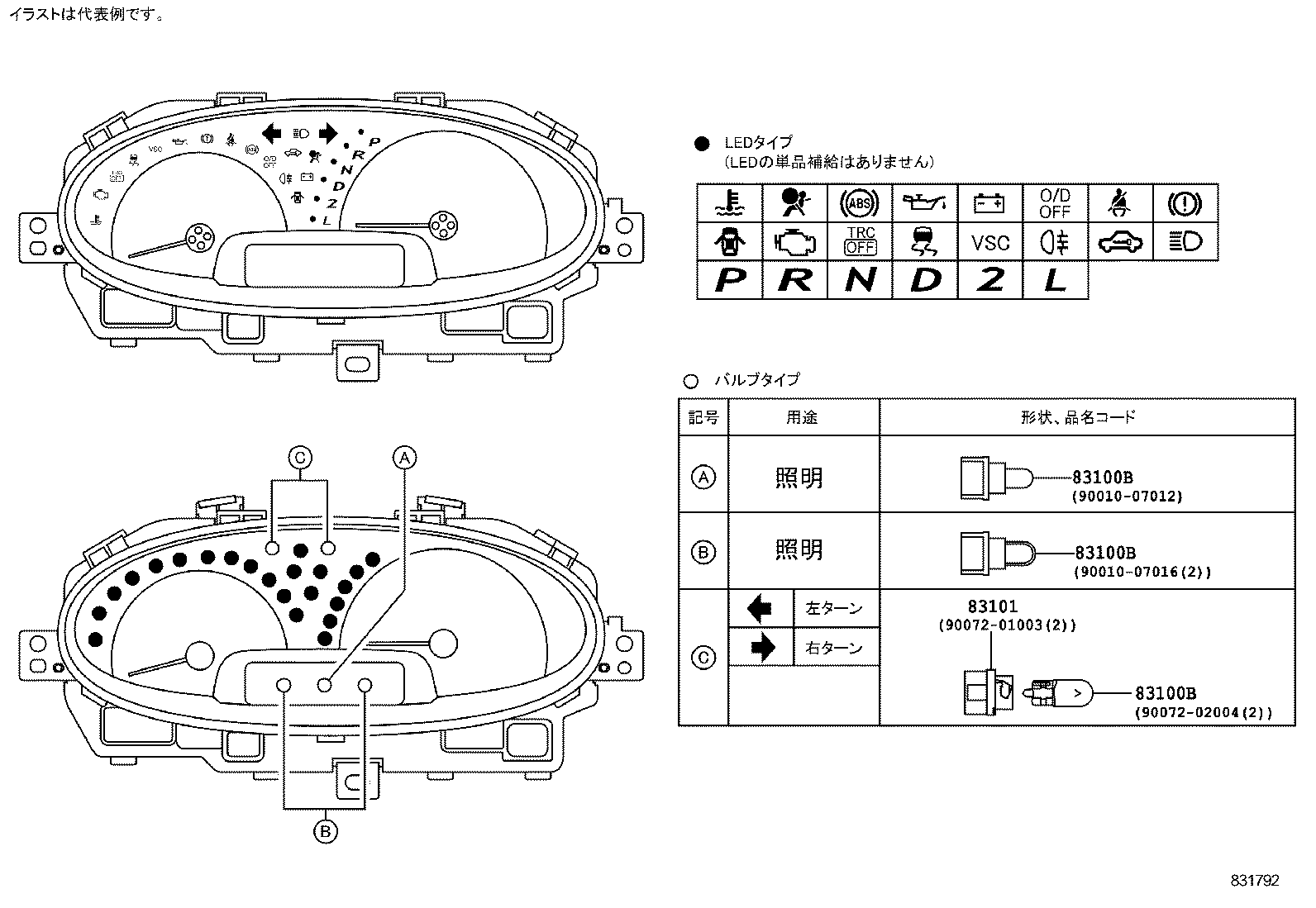

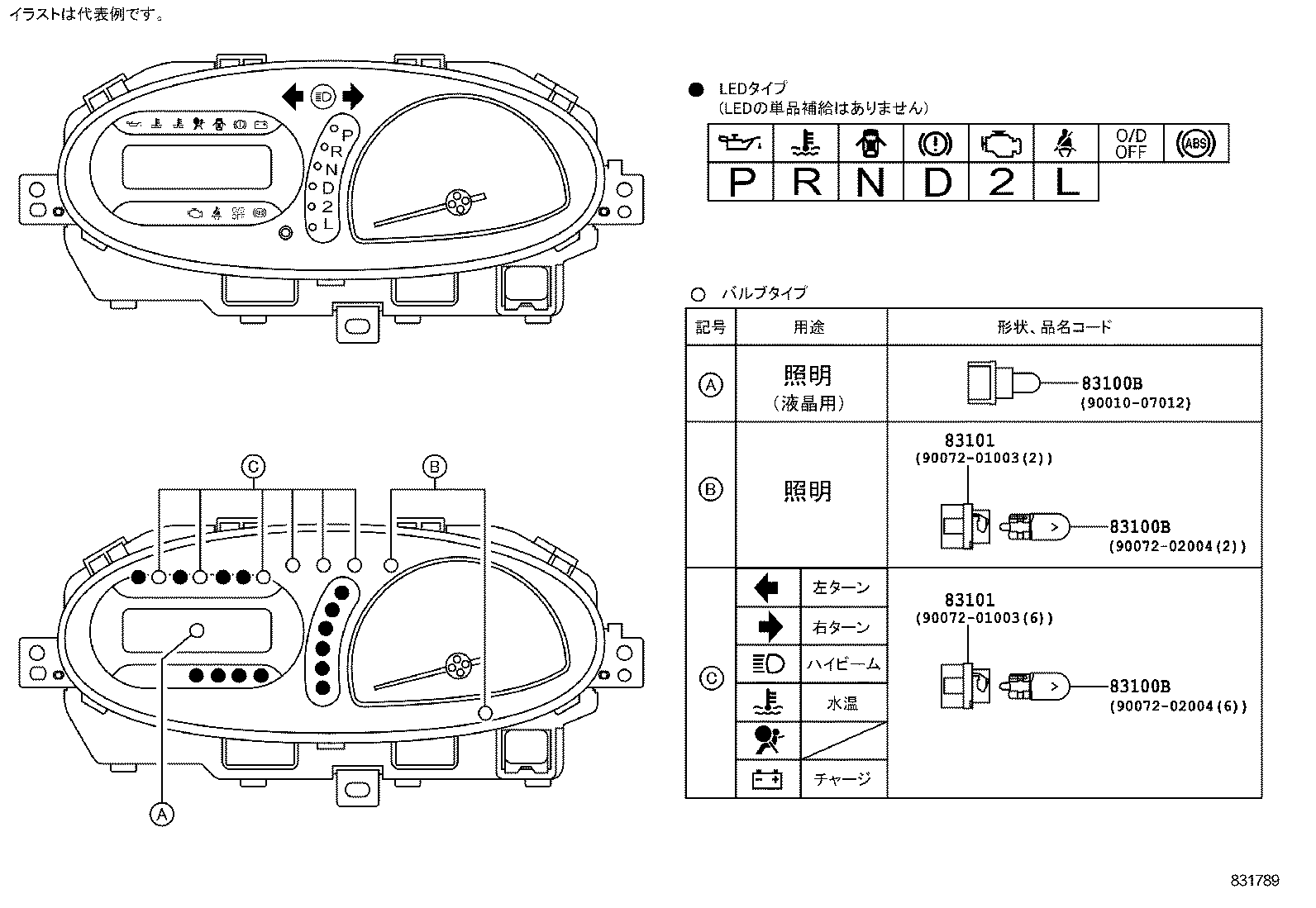

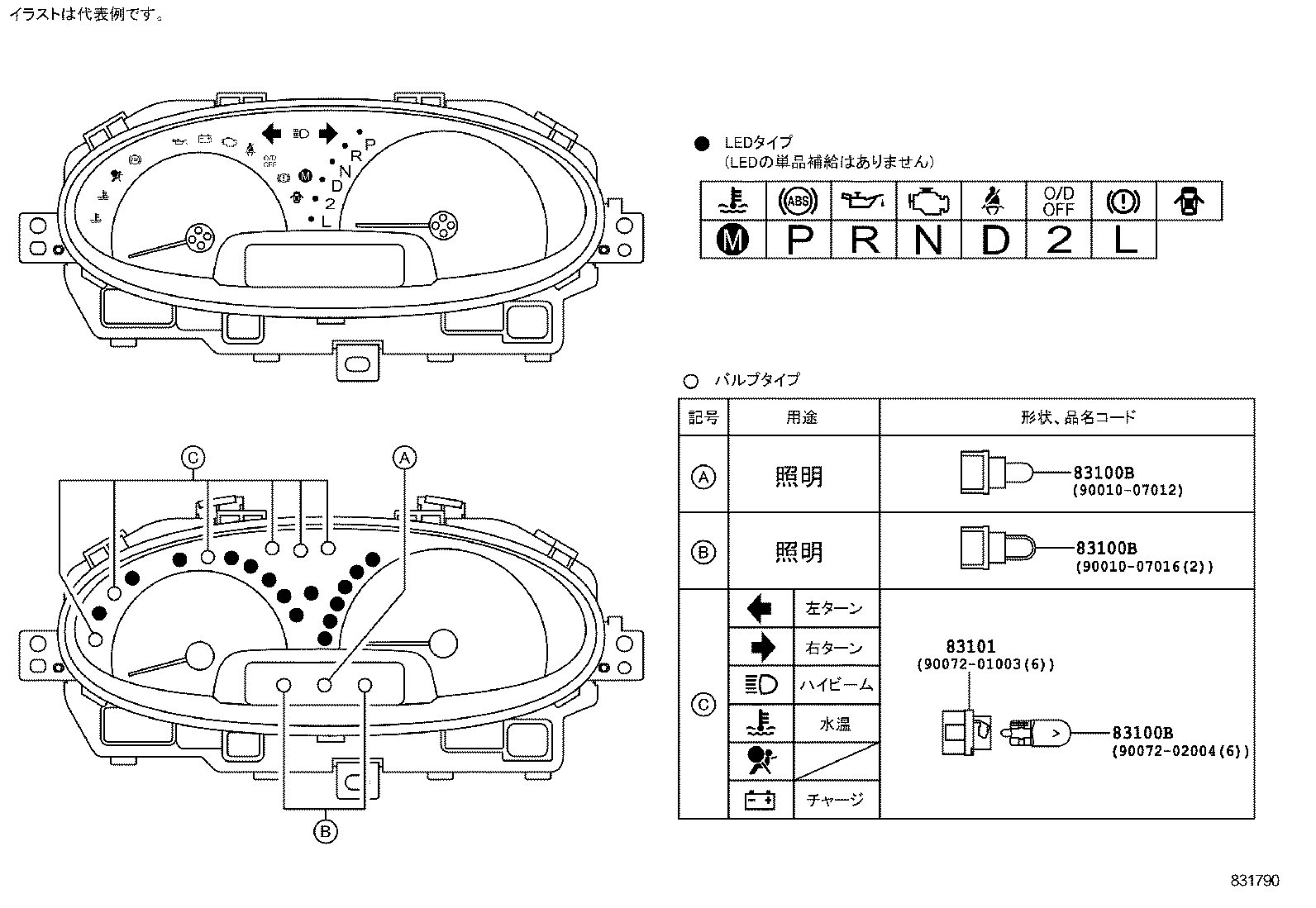

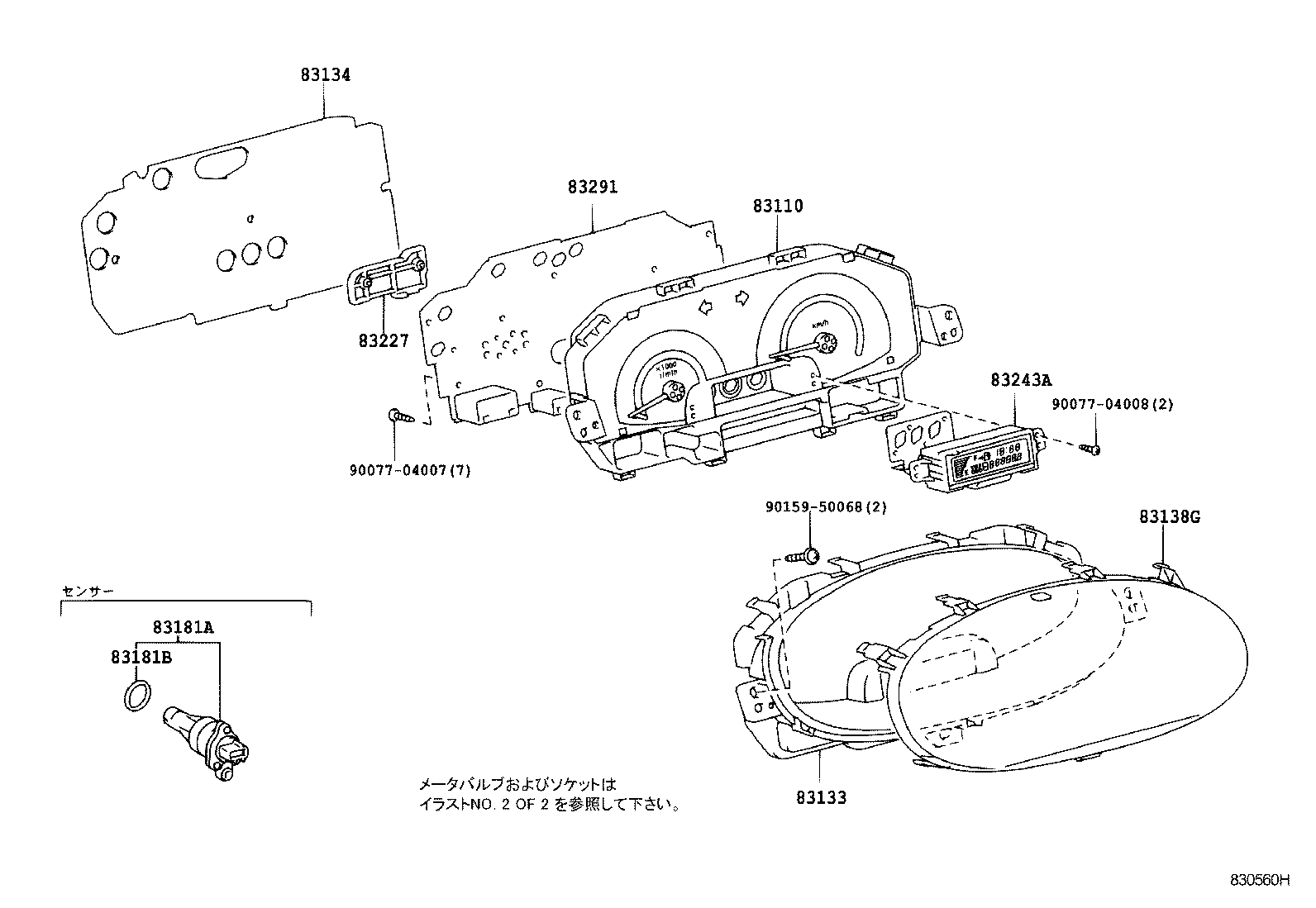

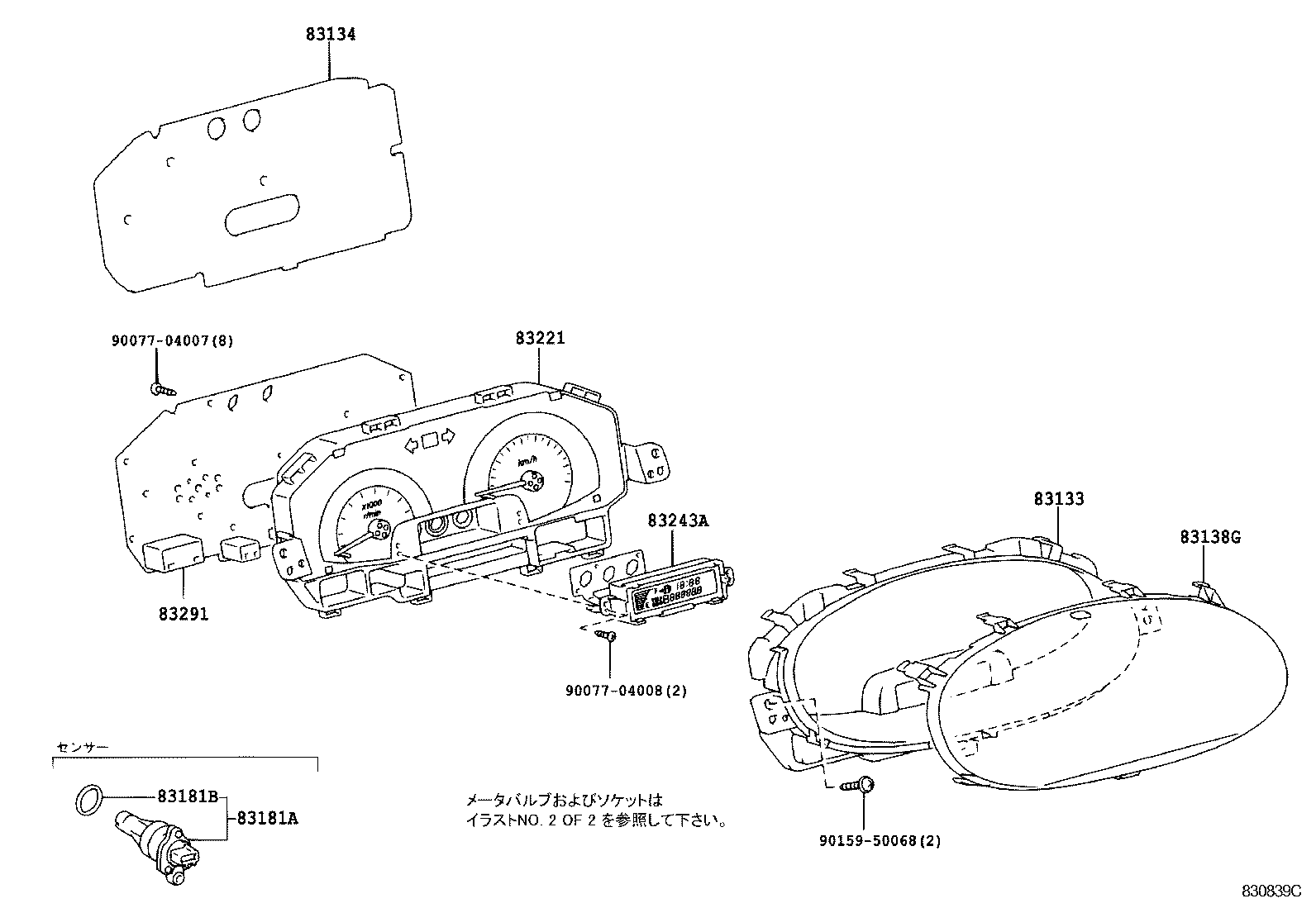

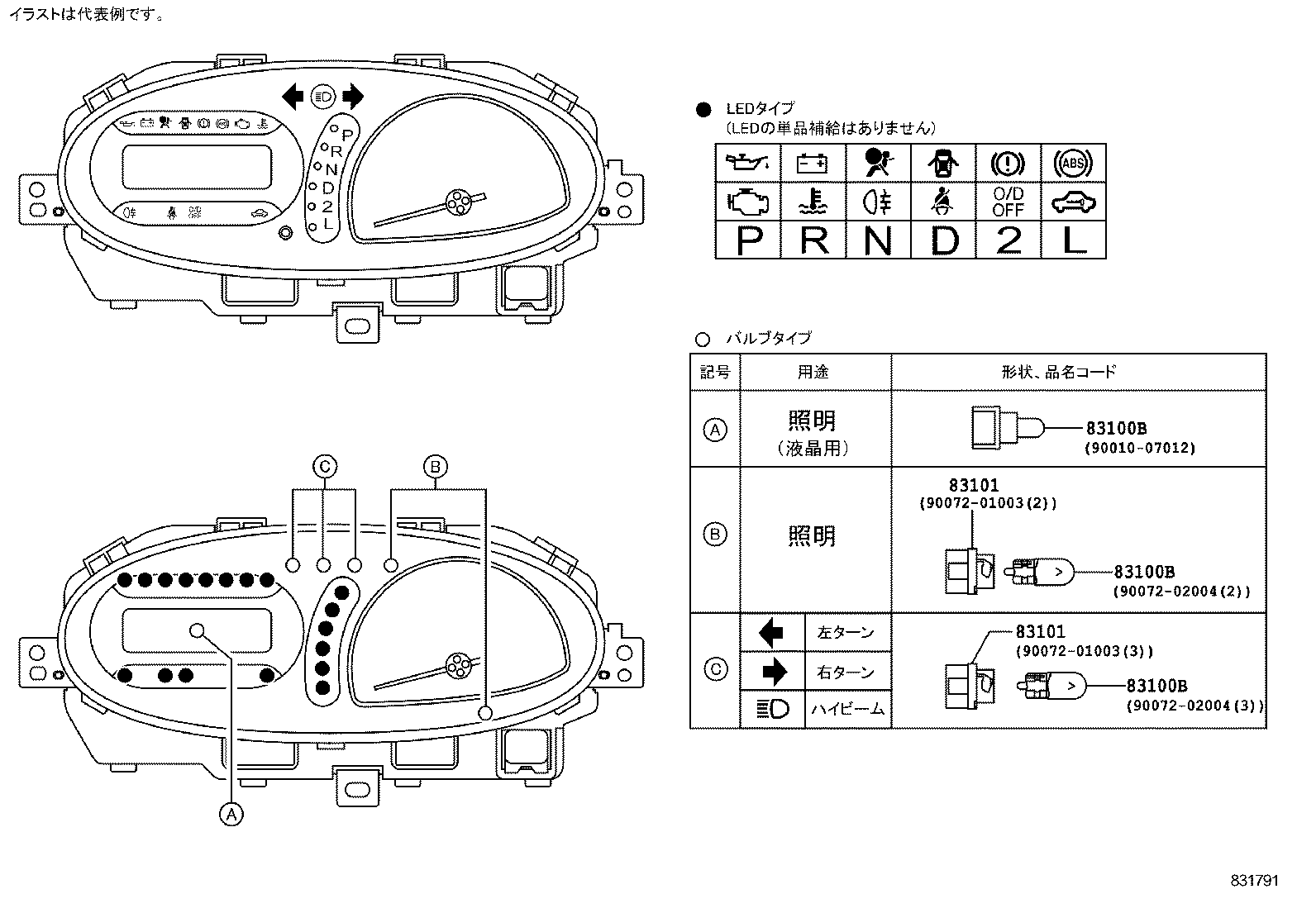

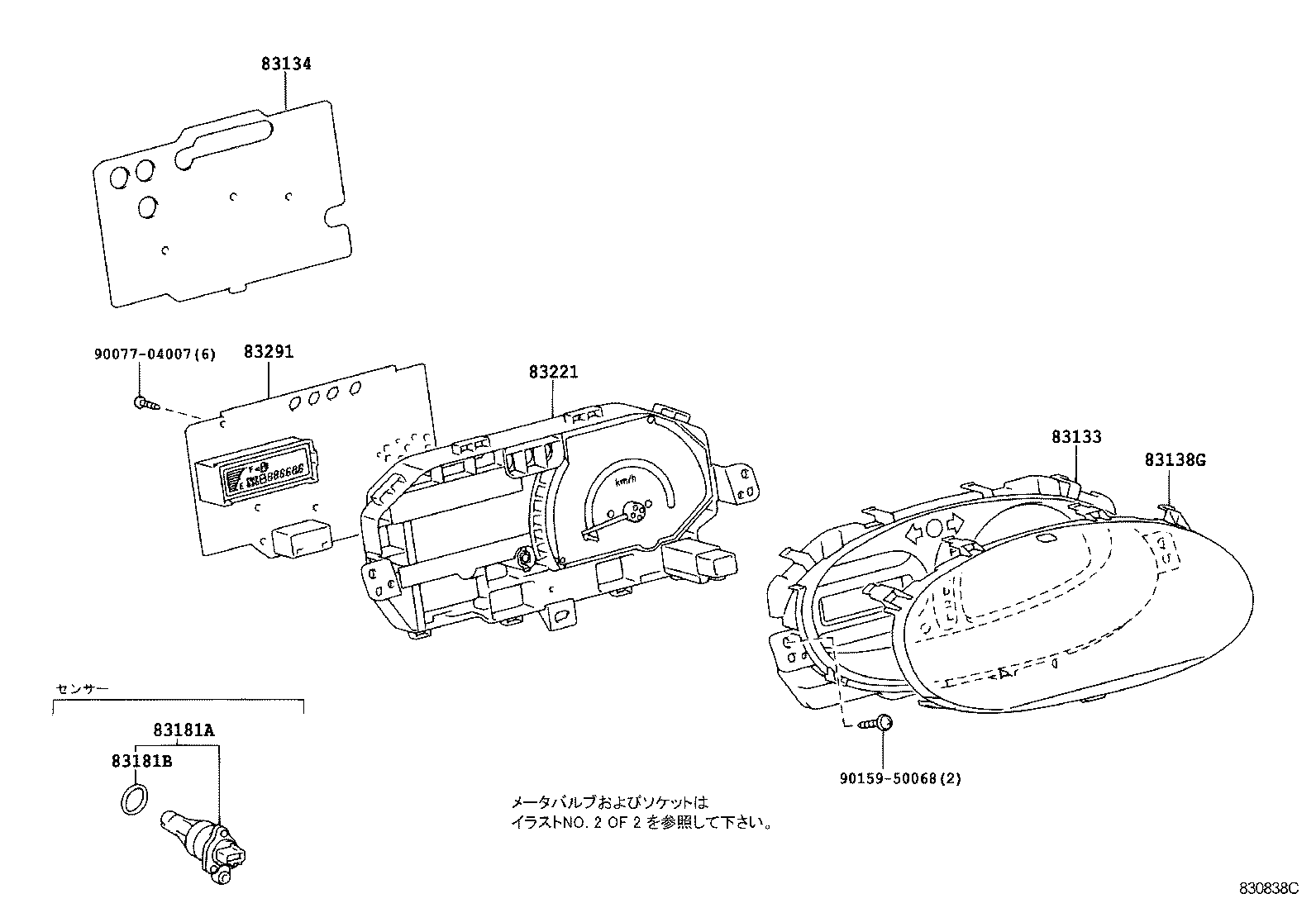

Figure 830559E 830559E 1999-08 → 2002-08 Figure 830560H 830560H 1999-08 → 2002-08 Figure 830838C 830838C 2002-08 → 2005-09 Figure 830839C 830839C 2002-08 → 2005-09 Figure 831789 831789 1999-08 → 2002-08 Figure 831790 831790 1999-08 → 2002-08 Figure 831791 831791 2002-08 → 2005-09 Figure 831792 831792 2002-08 → 2005-09

Part groups

PNCDescription
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83110 Speedometer Assy
83128 Knob, Trip Counter
83133 Plate, Combination Meter, NO.1
83134 Cover, Combination Meter, NO.1
83138G Glass, Combination Meter
83181A Sensor, Speedometer
83181B Ring, O (FOR SPEEDOMETER SENSOR)
83221 Meter, Speed
83227 Bracket, Speedometer
83243A Gauge Sub-assy, Fuel Receiver
83291 Computer, Combination Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
