Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

10 part groups · 3 illustrations

Illustrations

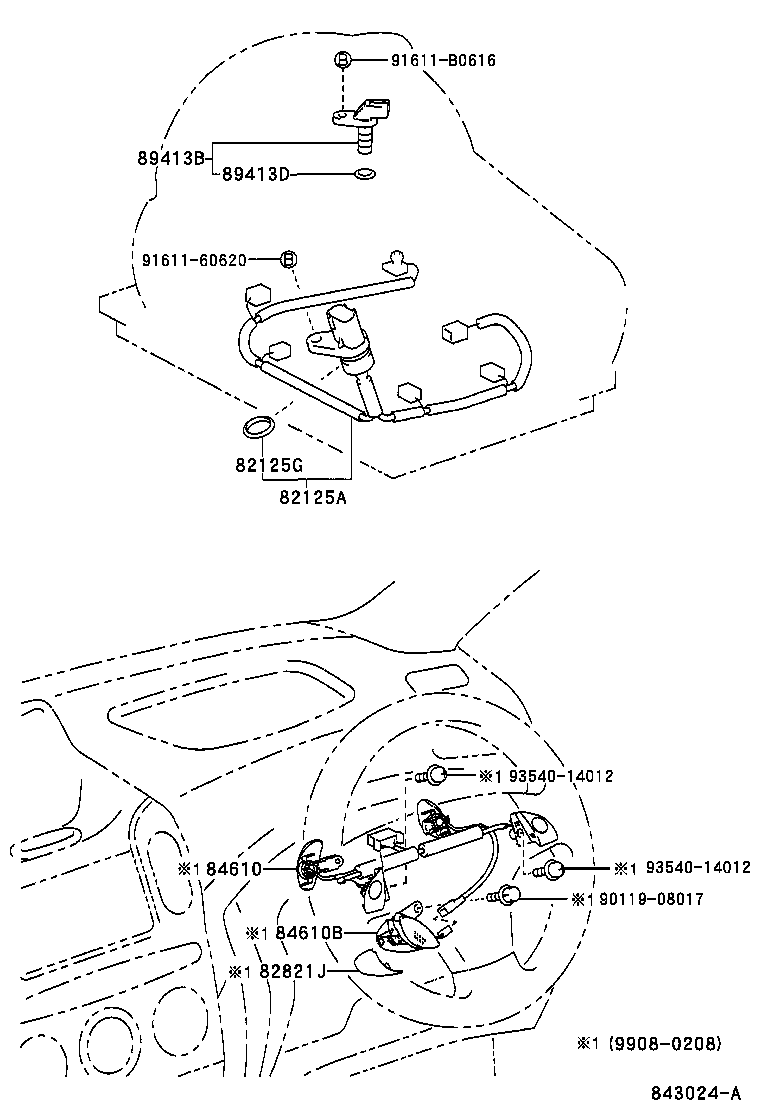

Figure 843023A 843023A 1999-08 → 2002-08 Figure 843024A 843024A 1999-08 → 2005-09 Figure 844960A 844960A 2002-08 → 2005-09

Part groups

PNCDescription
82125A Wire, Transmission
82125G Ring, O(FOR TRANSMISSION WIRE)
82821J Cover, Connector(FOR SHIFT CONTOROL SWITCH)
84610 Switch Assy, Transmission Shift
84610B Switch Assy, Transmission Shift, Main
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
