Toyota Fun Cargo

1999-08 → 2005-09 · chassis NCP2# · catalogue 114110 · Japan

Discontinued model Data version 2006-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 4 illustrations

Illustrations

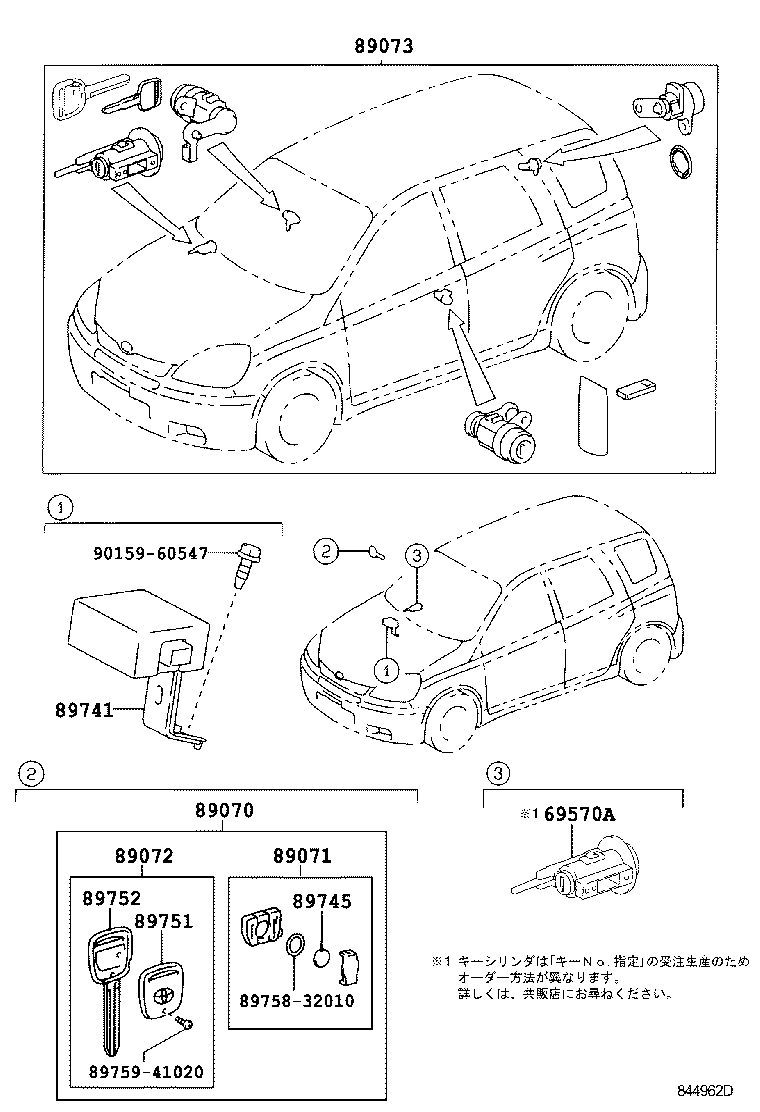

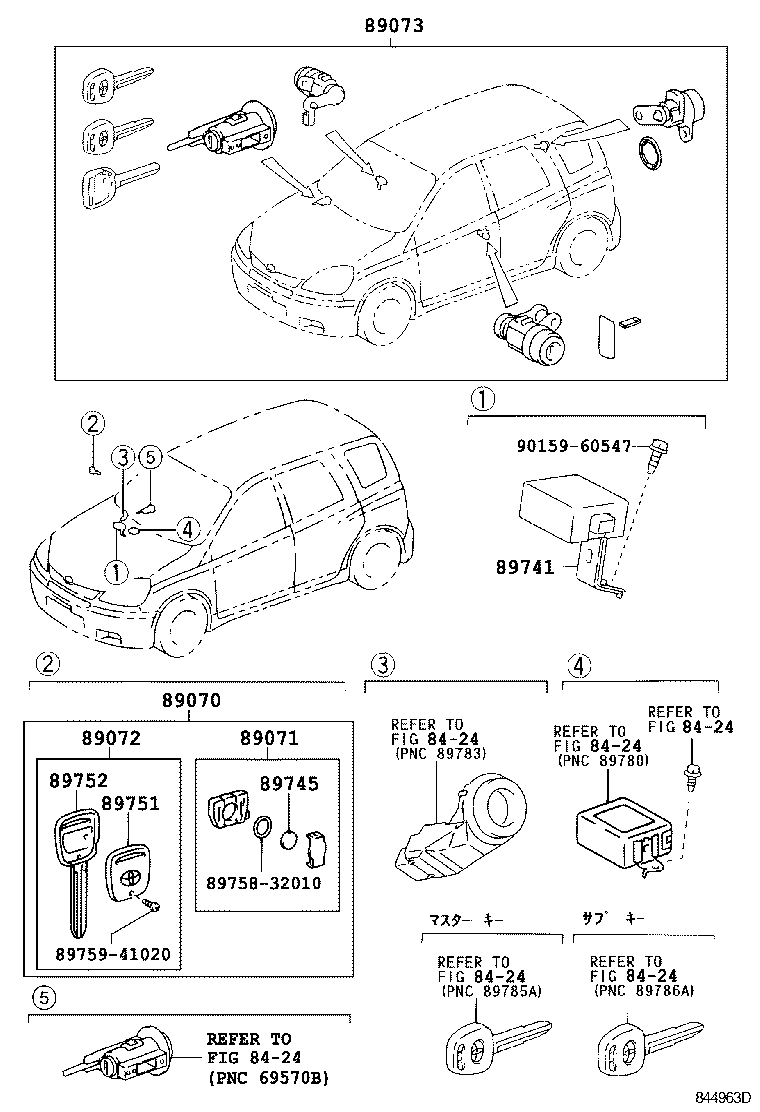

Figure 843030H 843030H 1999-08 → 2002-08 Figure 844962D 844962D 2002-08 → 2003-08 Figure 844962D 844962D 2003-08 → 2005-09 Figure 844963D 844963D 2002-08 → 2005-09

Part groups

PNCDescription
69570A Cylinder Assy, Ignition Switch Lock
89070 Transmitter Assy, Door Control
89071 Module Set, Transmitter Sub-assy, Door Control
89072 Housing Set, Door Control Transmitter
89073 Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89741 Receiver, Door Control
89745 Battery, Transmitter
89751 Cover, Transmitter Housing
89752 Case, Transmitter Housing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
