Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

30 part groups · 3 illustrations

Illustrations

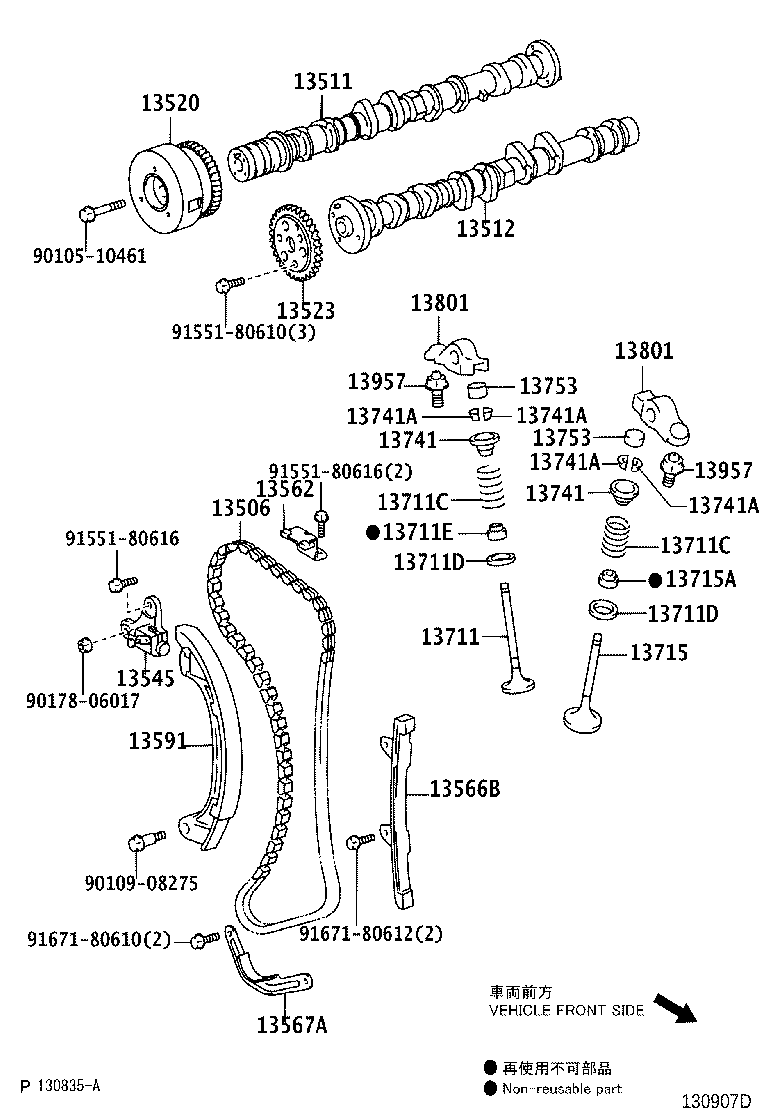

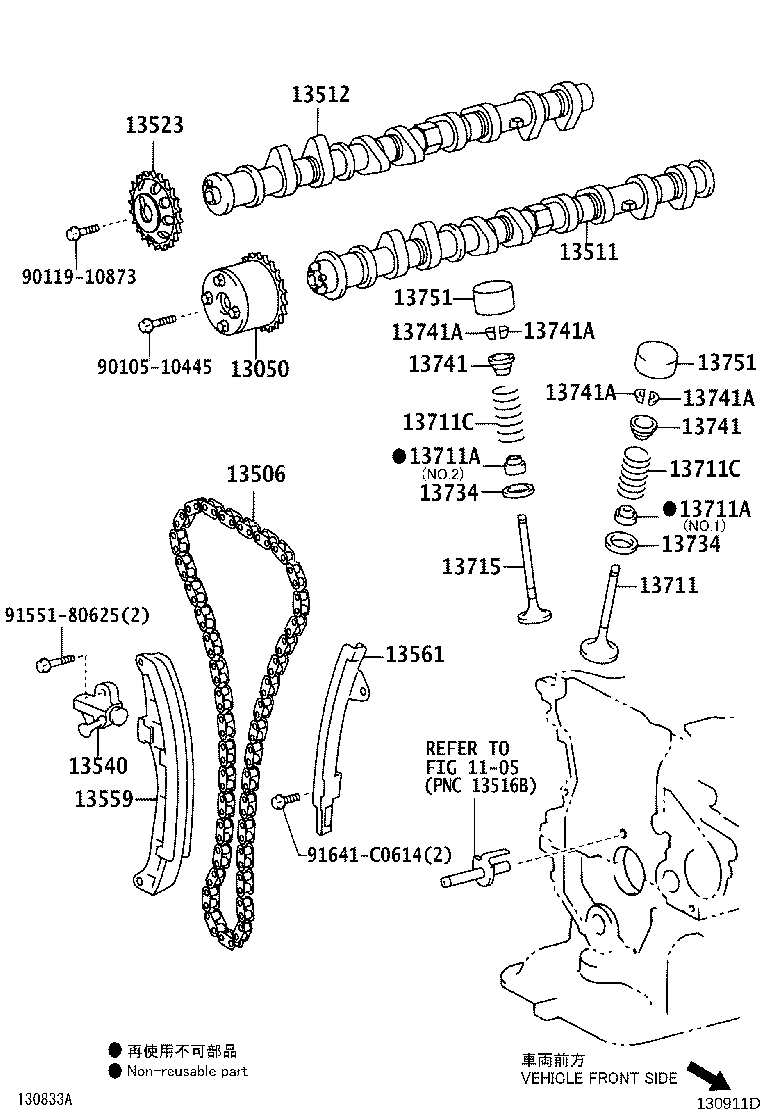

Figure 130910C 130910C 2005-09 → — Figure 130911D 130911D 2005-09 → — Figure 130907D 130907D 2005-09 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13520 Sprocket Assy, Camshaft Timing
13523 Gear OR Sprocket, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13545 Plunger, Chain Tensioner
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13562 Damper, Chain Vibration, NO.2
13566B Guide, Timing Chain
13567A Guide, Timing Chain, NO.2
13591 Arm, Timing Chain Tension
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711C Spring, Compression(FOR OUTER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13716 Cap, Valve Stem
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13801 Arm Sub-assy, Valve Rocker, NO.1
13957 Pivot, Valve Rocker Arm
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
