Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

16 part groups · 2 illustrations

Illustrations

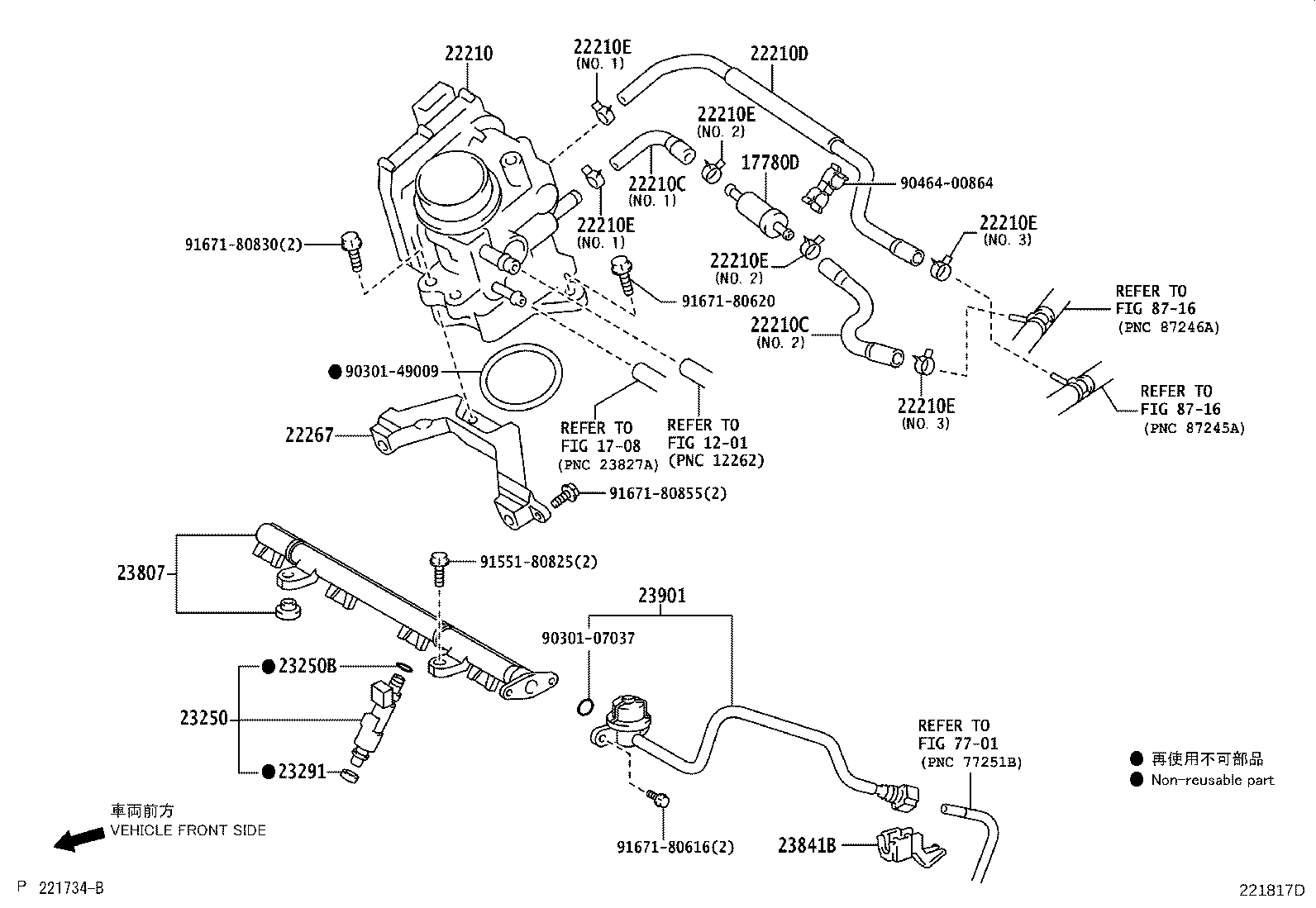

Figure 221819C 221819C 2005-09 → — Figure 221817D 221817D 2005-09 → —

Part groups

PNCDescription
17780D Valve Assy, Thermostat
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22267 Bracket, Throttle Body
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
