Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

6 part groups · 2 illustrations

Illustrations

Figure 250282D

250282D 2005-09 → —

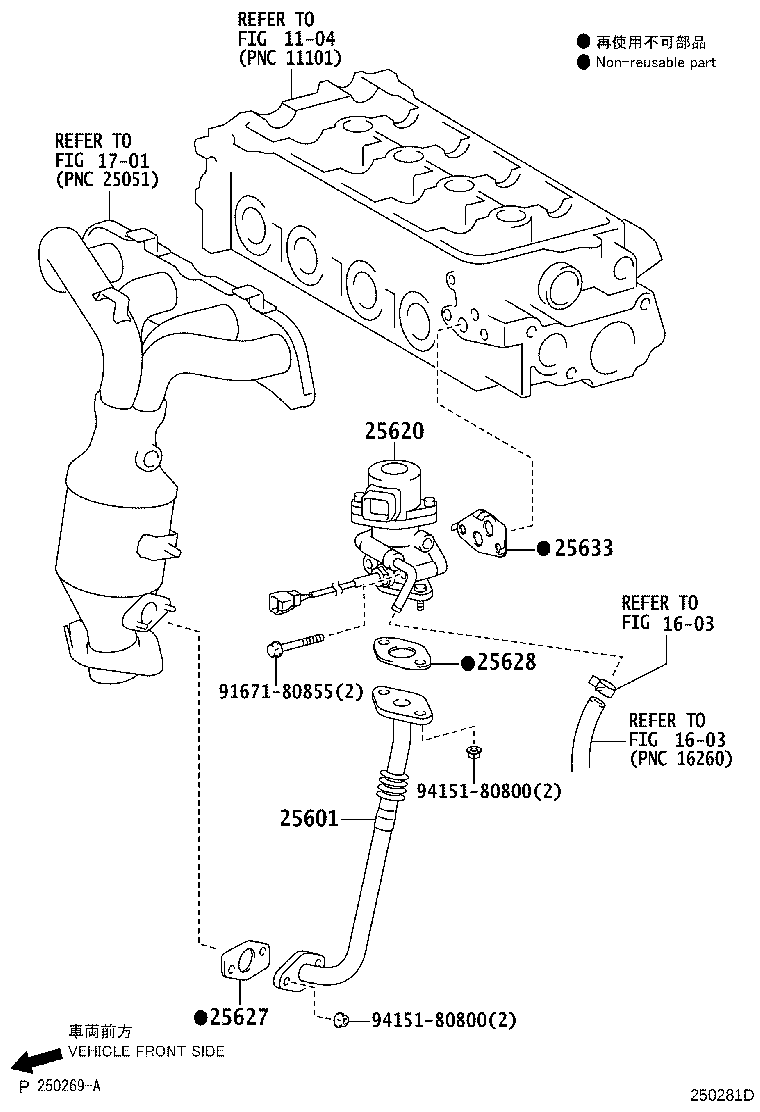

Figure 250281D

250281D 2005-09 → —

Part groups

PNC	Description
25601	Pipe Sub-assy, Egr, NO.1
25620	Valve Assy, Egr
25627	Gasket, Egr Valve
25628	Gasket, Egr Inlet
25633	Gasket, Egr Valve
25638	Chamber, Egr Delivery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
