Toyota Ractis
2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan
Supported model
Data version 2011-01

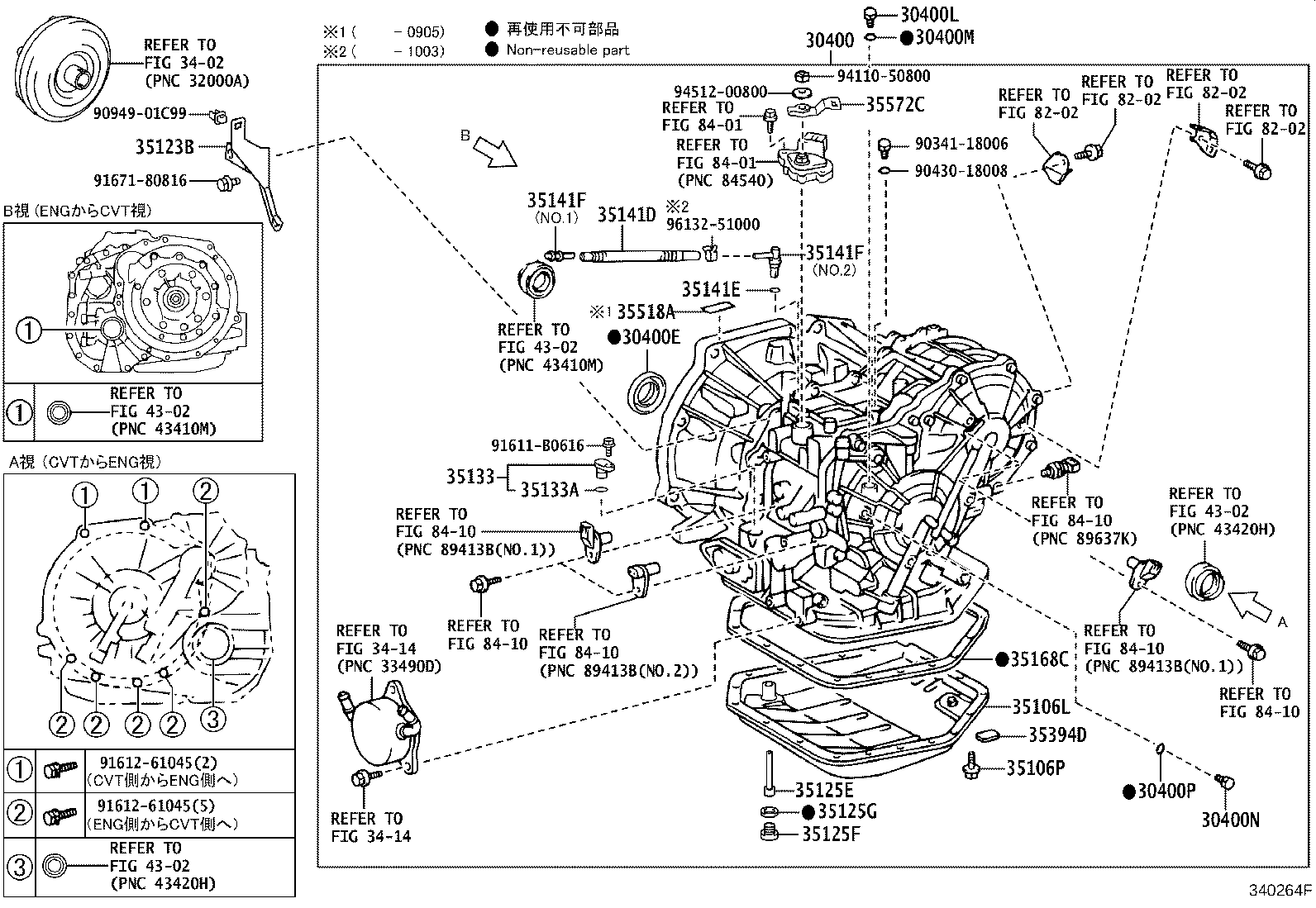

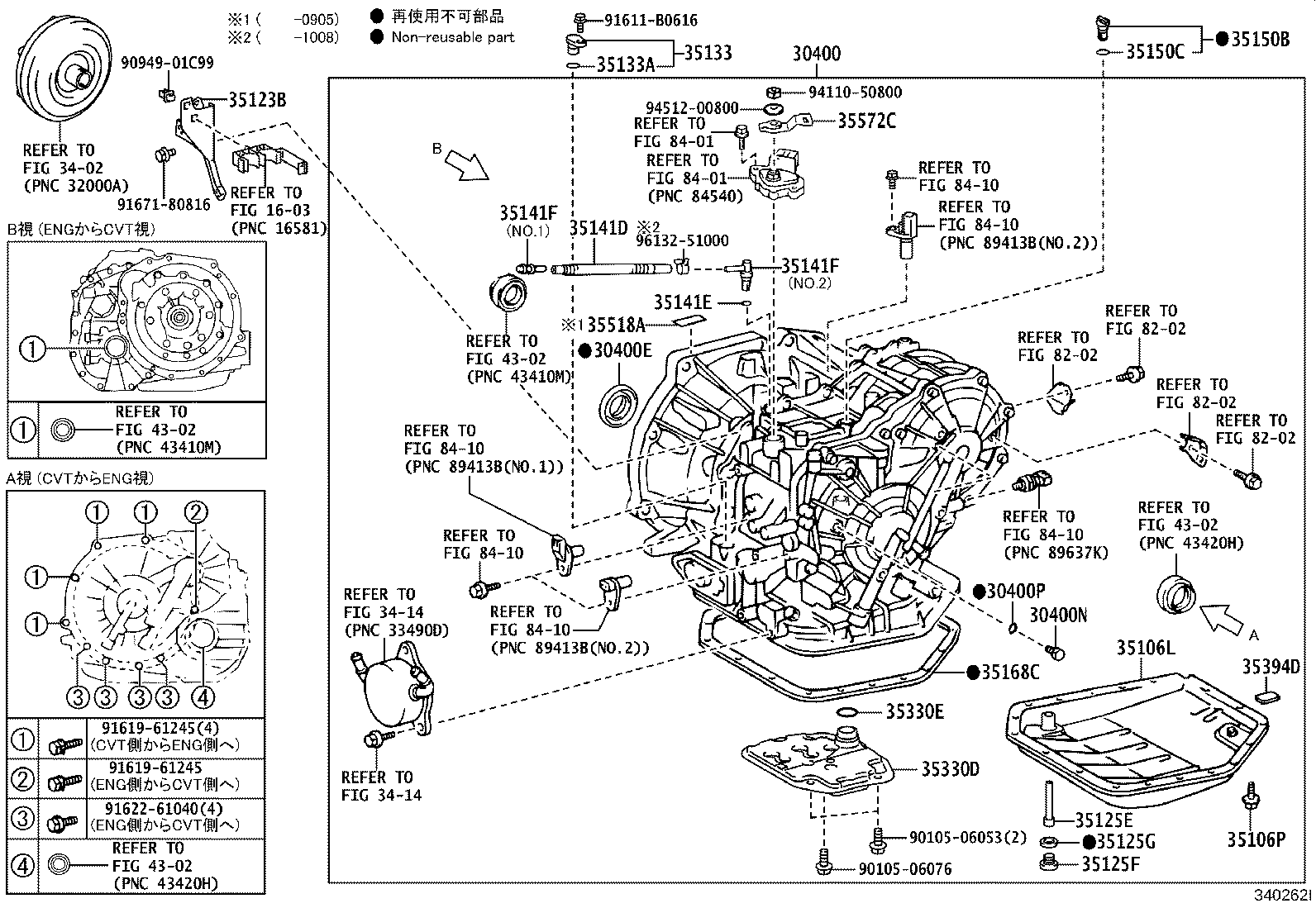

Transaxle Assy(CVT)
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 30140 | Transaxle Assy, Cvt, Rebuilt(W/O TORQUE CONVERTER) |
| 30400 | Transaxle Assy, Continuously Variable |
| 30400E | Seal, Type T Oil(FOR CVT OIL PUMP) |
| 30400L | Plug , Filler(CVT) |
| 30400M | Gasket, Filler Plug(CVT) |
| 30400N | Plug, Refill(CVT) |
| 30400P | Gasket, Refill Plug(CVT) |
| 35106L | Pan Sub-assy, Transaxle Oil(CVT) |
| 35106P | Bolt(FOR TRANSAXLE OIL PAN) |
| 35123B | Skirt,Transmission Breather |
| 35125E | Tube, Overflow(CVT) |
| 35125F | Plug, Overflow(CVT) |
| 35125G | Gasket, Overflow Plug(CVT) |
| 35133 | Plug, Transmission Oil Filler |
| 35133A | Ring, O (FOR TRANSMISSION OIL FILLER PLUG) |
| 35141D | Hose(FOR BREATHER PLUG) |
| 35141E | Ring, O(FOR BREATHER PLUG) |
| 35141F | Plug, Breather, NO.1(CVT) |
| 35150B | Plug Assy, Transmission Case |
| 35150C | Ring, O (FOR TRANSMISSION CASE PLUG) |
| 35168C | Gasket, Transaxle Oil Pan(CVT) |
| 35330D | Strainer Assy, Oil |
| 35330E | Ring, O (FOR OIL STRAINER) |
| 35394D | Magnet, Oil Cleaner(CVT) |
| 35518A | Label, Automatic Transaxle Information, NO.2 |
| 35572C | Lever, Transmission Control Shaft |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
