Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

14 part groups · 2 illustrations

Illustrations

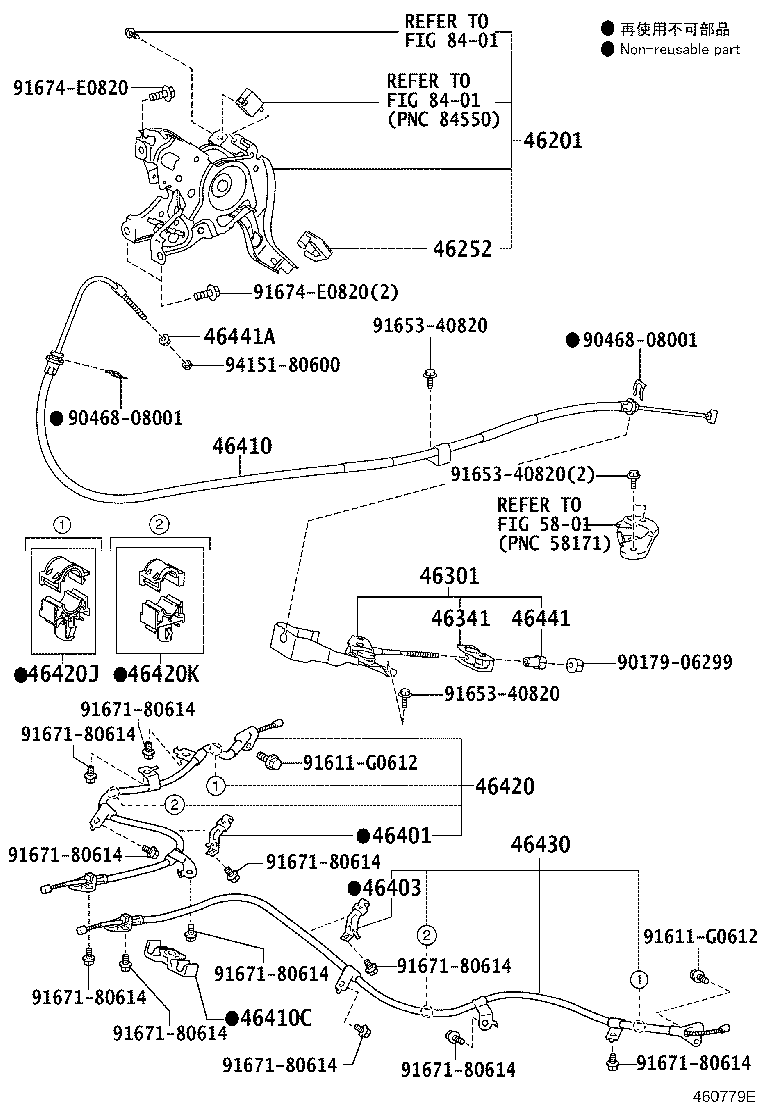

Figure 460775E 460775E 2005-09 → — Figure 460779E 460779E 2005-09 → —

Part groups

PNCDescription
46201 Pedal Sub-assy, Parking Brake
46252 Pad, Parking Pedal
46301 Lever Sub-assy, Parking Brake Intermediate
46341 Equalizer, Parking Brake
46401 Bracket Sub-assy, Cable Support
46403 Bracket Sub-assy, Cable Support, LH
46410 Cable Assy, Parking Brake, NO.1
46410C Clamp(FOR PARKING BRAKE FRONT CABLE)
46420 Cable Assy, Parking Brake, NO.2
46420J Clamp, NO.3(FOR PARKING BRAKE CABLE)
46420K Clamp, NO.4(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
