Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

9 part groups · 3 illustrations

Illustrations

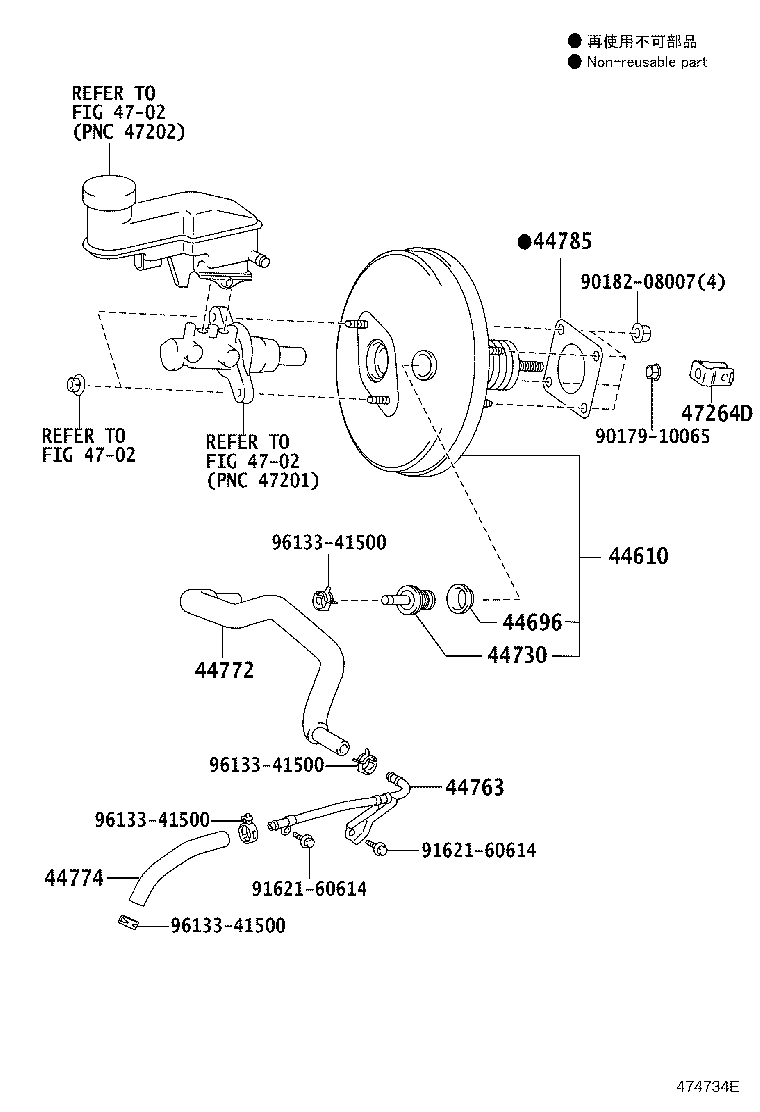

Figure 474733E 474733E 2005-09 → — Figure 474734E 474734E 2005-09 → — Figure 474735E 474735E 2005-09 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763 Tube, Booster Vacuum
44772 Hose, Check Valve TO Connector Tube
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
