Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

24 part groups · 3 illustrations

Illustrations

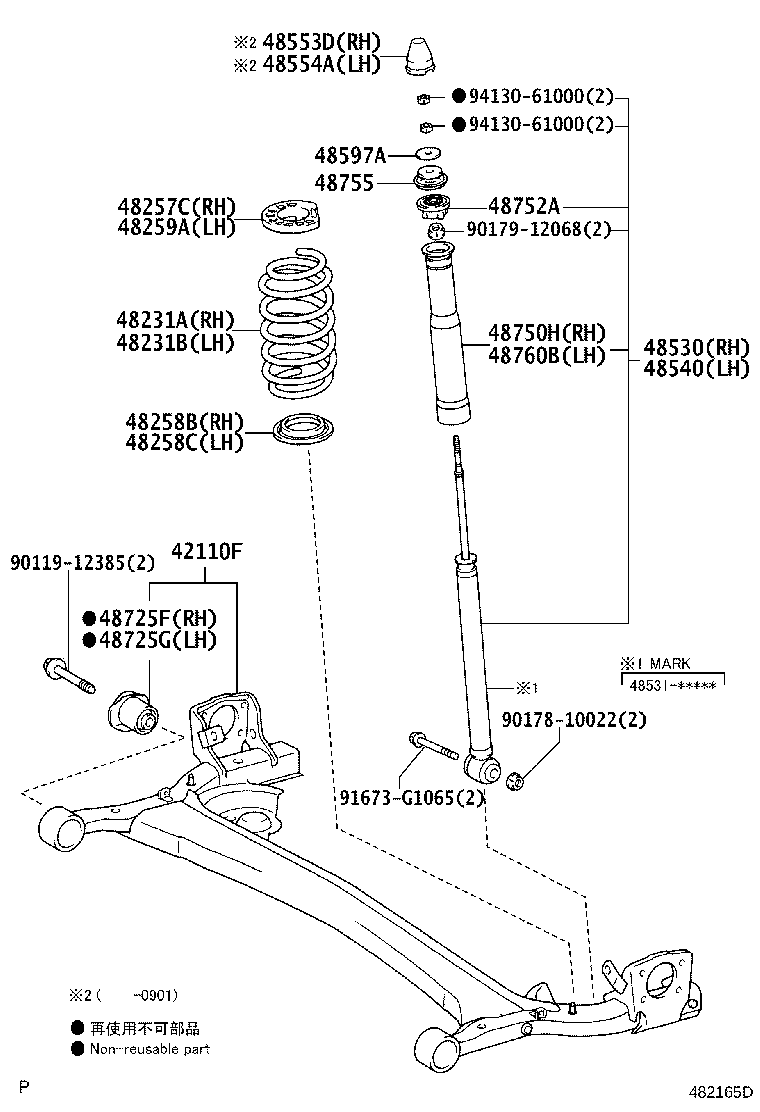

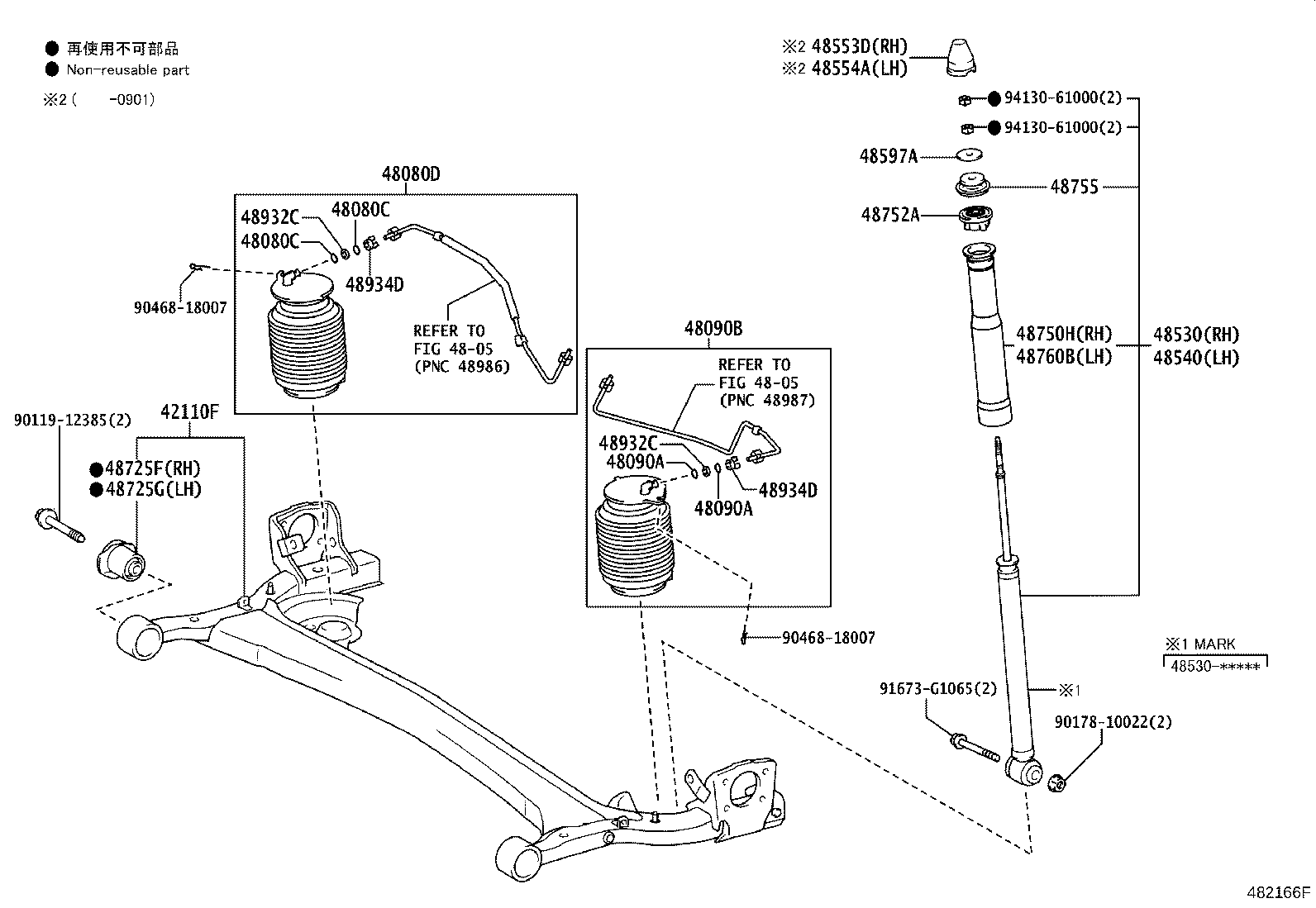

Figure 482991C 482991C 2005-09 → — Figure 482165D 482165D 2005-09 → — Figure 482166F 482166F 2005-11 → —

Part groups

PNCDescription
42110F Beam Assy, Rear Axle
48080C Ring, O(FOR REAR PNEUMATIC CYLINDER RH)
48080D Cylinder Assy, Pneumatic, Rear RH
48090A Ring, O(FOR REAR PNEUMATIC CYLINDER LH)
48090B Cylinder Assy, Pneumatic, Rear LH
48231A Spring, Coil, Rear RH
48231B Spring, Coil, Rear LH
48257C Insulator, Rear Coil Spring, Upper RH
48258B Insulator, Rear Coil Spring, Lower RH
48258C Insulator, Rear Coil Spring, Lower LH
48259A Insulator, Rear Coil Spring, Upper LH
48530 Absorber Assy, Shock, Rear RH
48540 Absorber Assy, Shock, Rear LH
48553D Cap, Rear Shock Absorber, RH
48554A Cap, Rear Shock Absorber, LH
48597A Retainer, Rear Shock Absorber Cushion
48725F Bush, Rear Axle Carrier, RH
48725G Bush, Rear Axle Carrier, LH
48750H Support Assy, Rear Suspension, RH
48752A Stopper, Rear Suspension Support
48755 Support, Rear Suspension
48760B Support Assy Rear Suspension, LH
48932C Plate, Height Control Tube
48934D Connector, Height Control Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
