Toyota Ractis
2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan
Supported model
Data version 2011-01

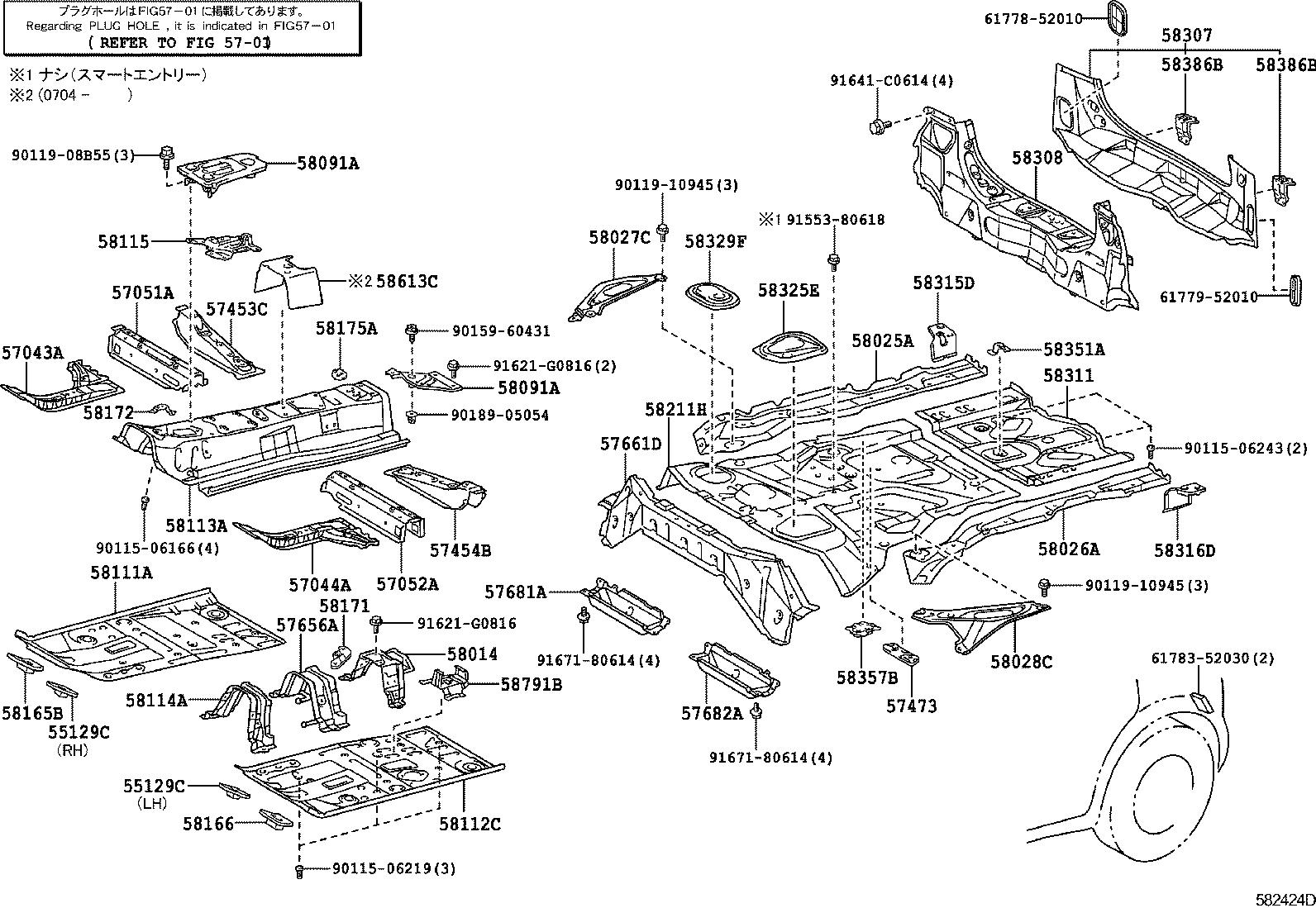

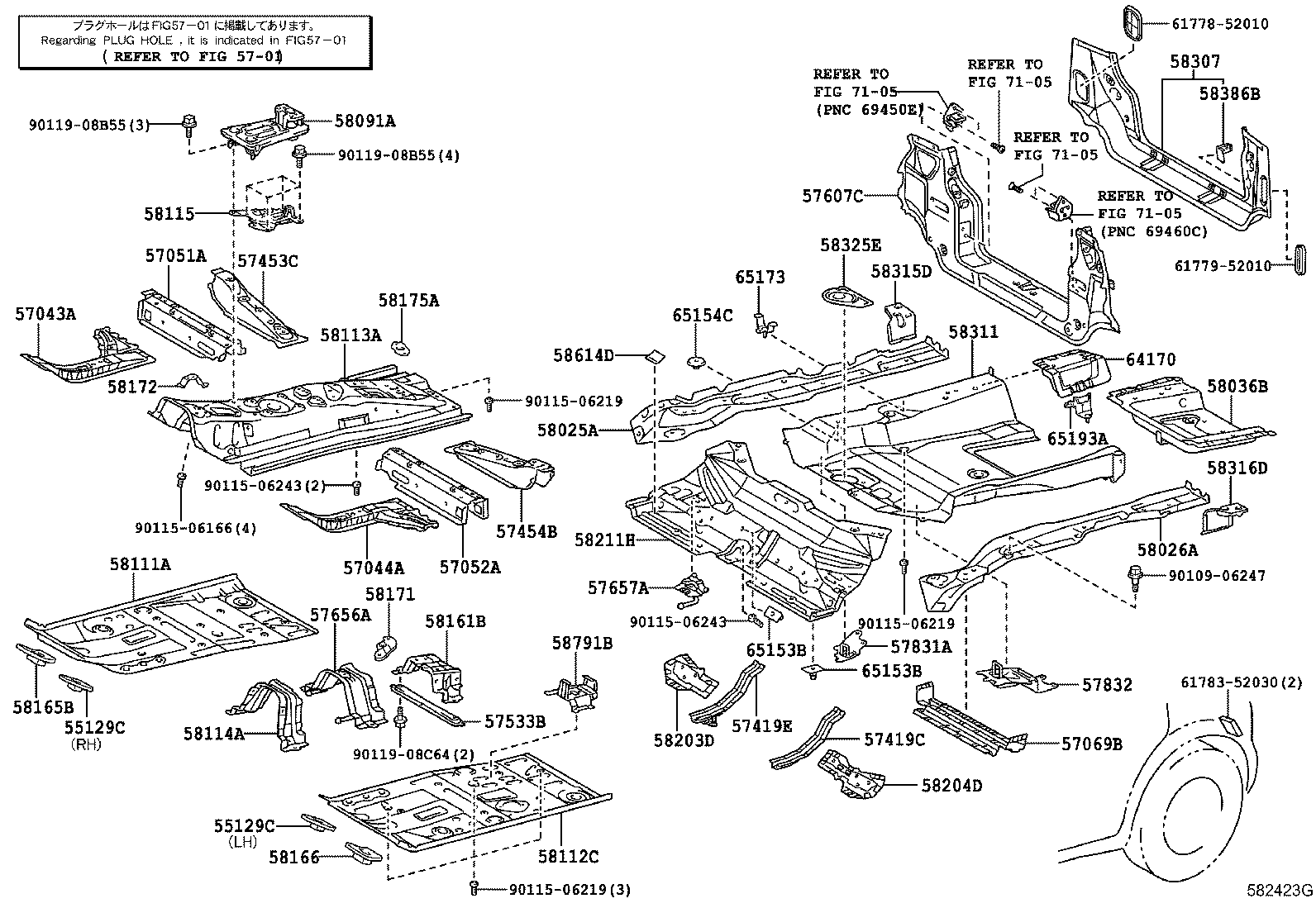

Floor Pan & Lower Back Panel
61 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55129C | Cover, Dash Panel Hole |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57069B | Member Sub-assy, Rear Floor Cross, Center |
| 57419C | Reinforcement, Front Floor Under, LH NO.2 |
| 57419E | Reinforcement, Front Floor Under, RH NO.2 |
| 57453C | Member, Front Floor Cross Side, RH |
| 57454B | Member, Front Floor Cross Side, LH |
| 57473 | Reinforcement, Rear Seatback Hinge |
| 57533B | Brace, Front Floor, Center |
| 57607C | Member Sub-assy, Rear Floor Cross, NO.3 |
| 57656A | Bracket, Exhaust Pipe Mounting, NO.1 |
| 57657A | Bracket, Exhaust Pipe Mounting, NO.2 |
| 57661D | Member, Rear Floor Cross, Front |
| 57681A | Brace, Rear Floor NO.2 Crossmember, Outer |
| 57682A | Brace, Rear Floor NO.2 Crossmember, Outer LH |
| 57831A | Reinforcement, Rear NO.1 Seat Leg, Front NO.1 |
| 57832 | Reinforcement, Rear NO.1 Seat Leg, Front NO.2 |
| 58014 | Panel Sub-assy, Front Floor, Rear Lower |
| 58025A | Panel Sub-assy, Floor Side Rail, FR RH |
| 58026A | Panel Sub-assy, Floor Side Rail, FR LH |
| 58027C | Panel Sub-assy, Center Floor Side, RH |
| 58028C | Panel Sub-assy, Center Floor Side, LH |
| 58036B | Extension Sub-assy, Rear Floor Side Panel, LH |
| 58091A | Reinforcement Set, Body Fitting |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58114A | Reinforcement, Front Floor Panel |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58171 | Reinforcement, Parking Brake Base |
| 58172 | Bracket, Computer Mounting, NO.3 |
| 58175A | Reinforcement, Parking Brake Base, NO.1 |
| 58203D | Bracket Sub-assy, Rear Seat Hinge, Outer RH |
| 58204D | Bracket Sub-assy, Rear Seat Hinge, Outer LH |
| 58211H | Pan, Center Floor |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58315D | Extension, Rear Floor Pan, RH |
| 58316D | Extension, Rear Floor Pan, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58351A | Bracket, Spare Wheel Carrier |
| 58357B | Bracket, Actuator Cover, NO.3 RH |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58613C | Sheet, Front Floor Silencer, Center |
| 58614D | Sheet, Center Floor Silencer, RH |
| 58791B | Carrier, Jack |
| 64170 | Bracket Assy, Rear Mounting, RH |
| 65153B | Bracket, Mounting, NO.1 RH |
| 65154C | Bracket, Mounting, NO.1 |
| 65173 | Bracket, Mounting, NO.3 |
| 65193A | Bracket, Mounting, NO.5 RH |
| 72691C | Striker, RR Seat Cushion Lock, NO.1 |
| 72692A | Striker, RR Seat Cushion Lock, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
