Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

26 part groups · 3 illustrations

Illustrations

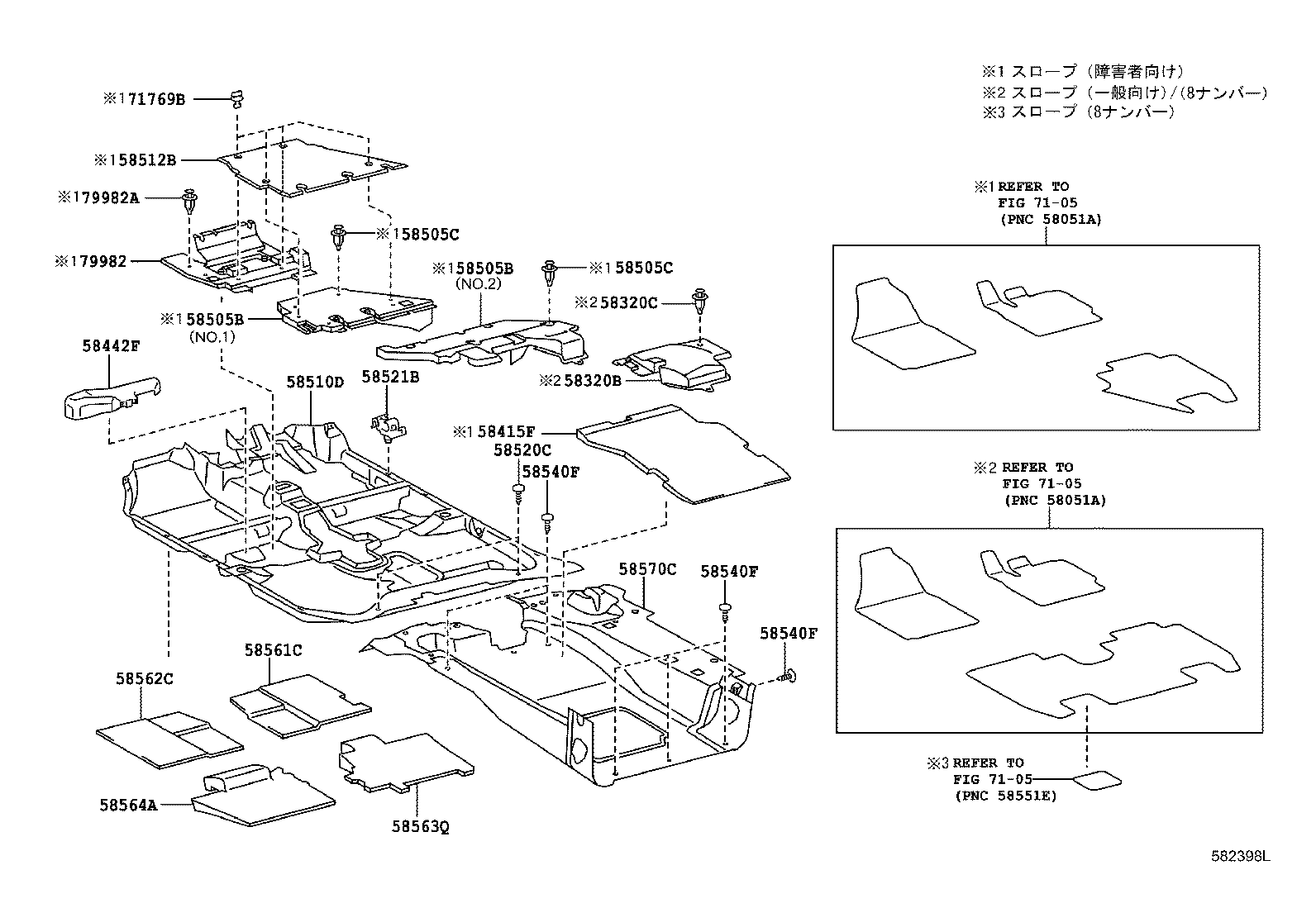

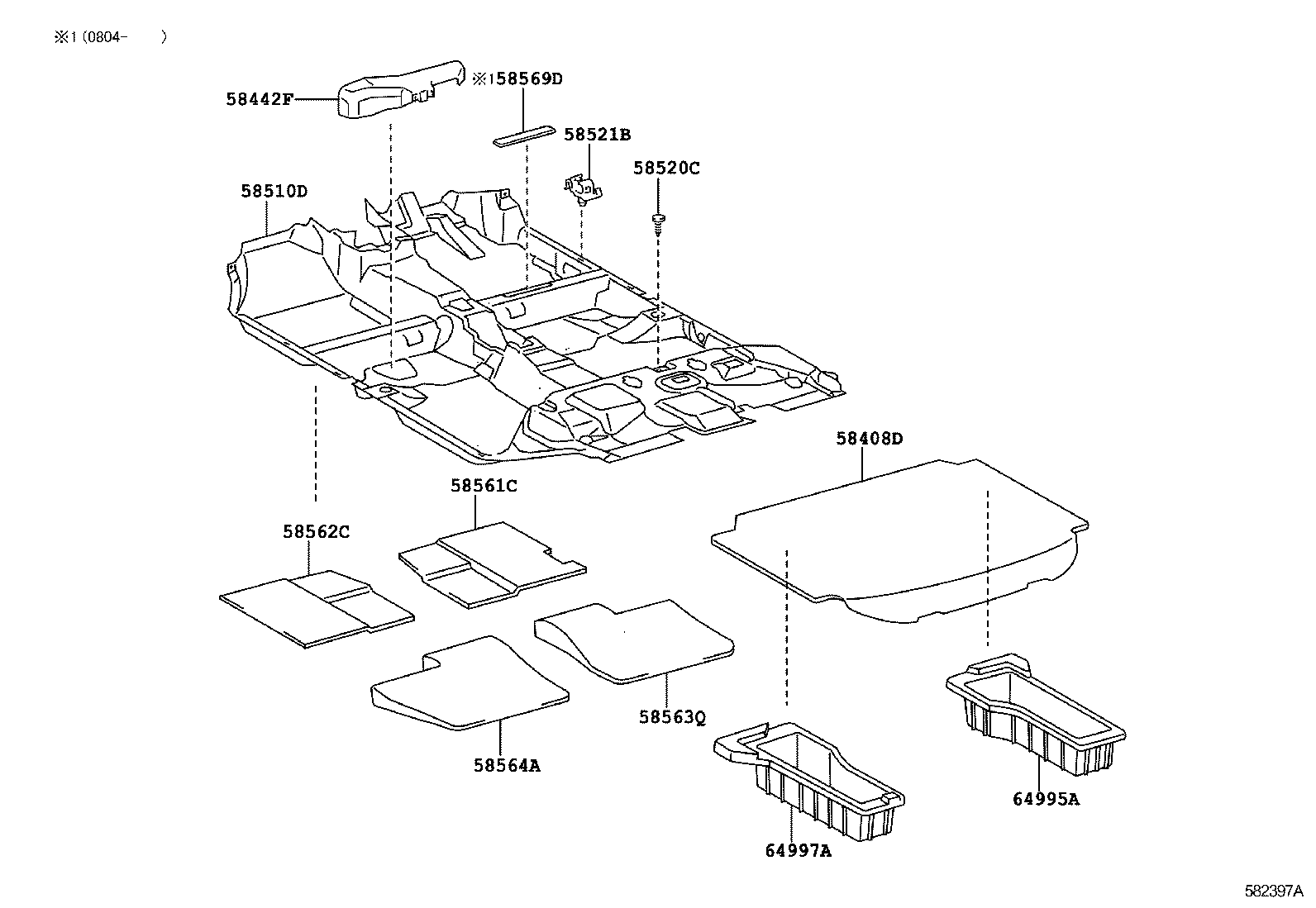

Figure 582396A 582396A 2005-09 → — Figure 582397A 582397A 2005-09 → — Figure 582398L 582398L 2005-11 → —

Part groups

PNCDescription
58320B Cover Assy, Rear Floor Service Hole
58320C Clip(FOR REAR FLOOR SERVICE HOLE COVER)
58401A Board Sub-assy, Deck, NO.1
58408D Board Sub-assy, Deck, NO.2
58415F Board, Rear Floor, NO.1
58442F Cover, Jack
58460G Striker Assy, Luggage Hold Belt
58505B Board Sub-assy, Front Floor, Rear
58505C Clip(FOR FRONT FLOOR BOARD)
58510D Carpet Assy, Floor, Front
58511E Clip(FOR FRONT FLOOR MAT)
58512B Mat, Floor, Front LH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58540F Clip(FOR REAR FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58569D Cover, Front Floor Caution Plate
58570C Carpet Assy, Rear Floor
64995A Box, Deck Floor, RH
64997A Box, Deck Floor, LH
71769B Clip, Seatback Board
79982 Cover, Seat Leg Box Panel, NO.2
79982A Clip (FOR SEAT LEG BOX PANEL COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
