Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

19 part groups · 2 illustrations

Illustrations

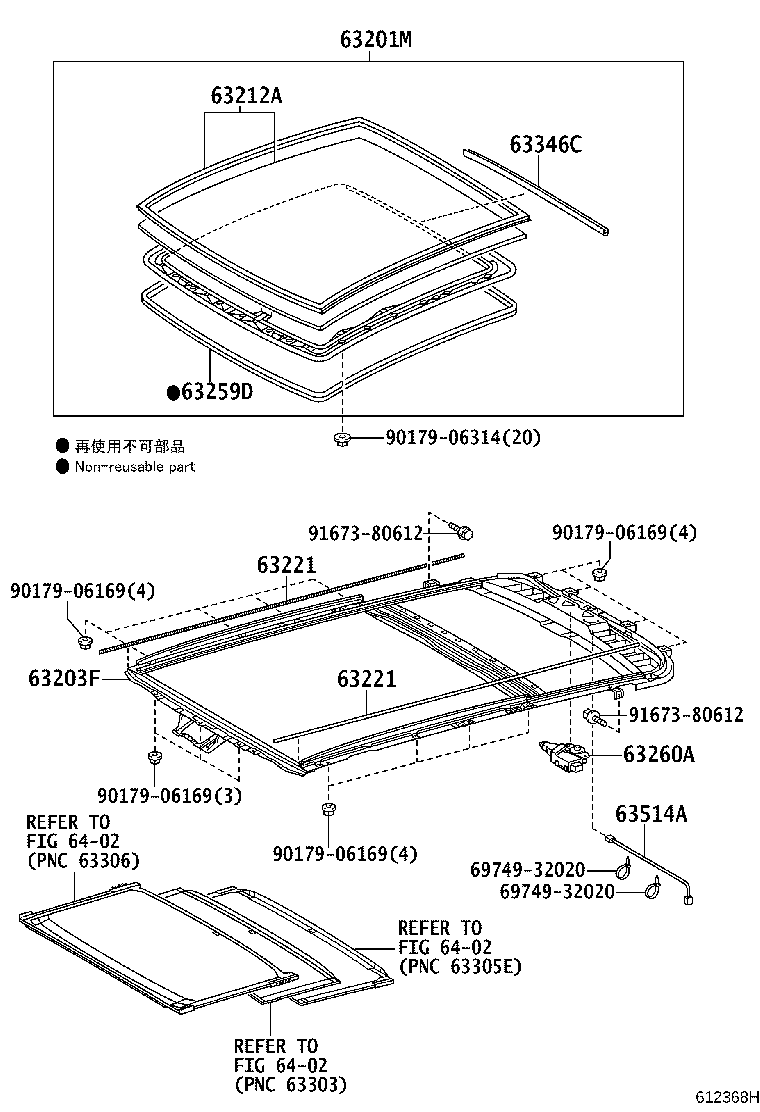

Figure 612367A 612367A 2005-09 → — Figure 612368H 612368H 2005-09 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105D Frame Sub-assy, Back Window, Upper
63111 Panel, Roof
63112B Panel, Roof, Rear
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63147F Bracket, Roof Panel Reinforcement, RH
63148E Bracket, Roof Panel Reinforcement, LH
63201M Glass Sub-assy, Roof Window, NO.1
63203F Housing Sub-assy, Sliding Roof
63212A Glass, Roof Window
63221 Casing, Sliding Roof Cable Guide
63259D Seal, Sliding Roof, NO.2
63260A Gear Sub-assy, Sliding Roof Drive
63346C Protector, Sunshade Trim, NO.6
63514A Wire, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
