Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 5 illustrations

Illustrations

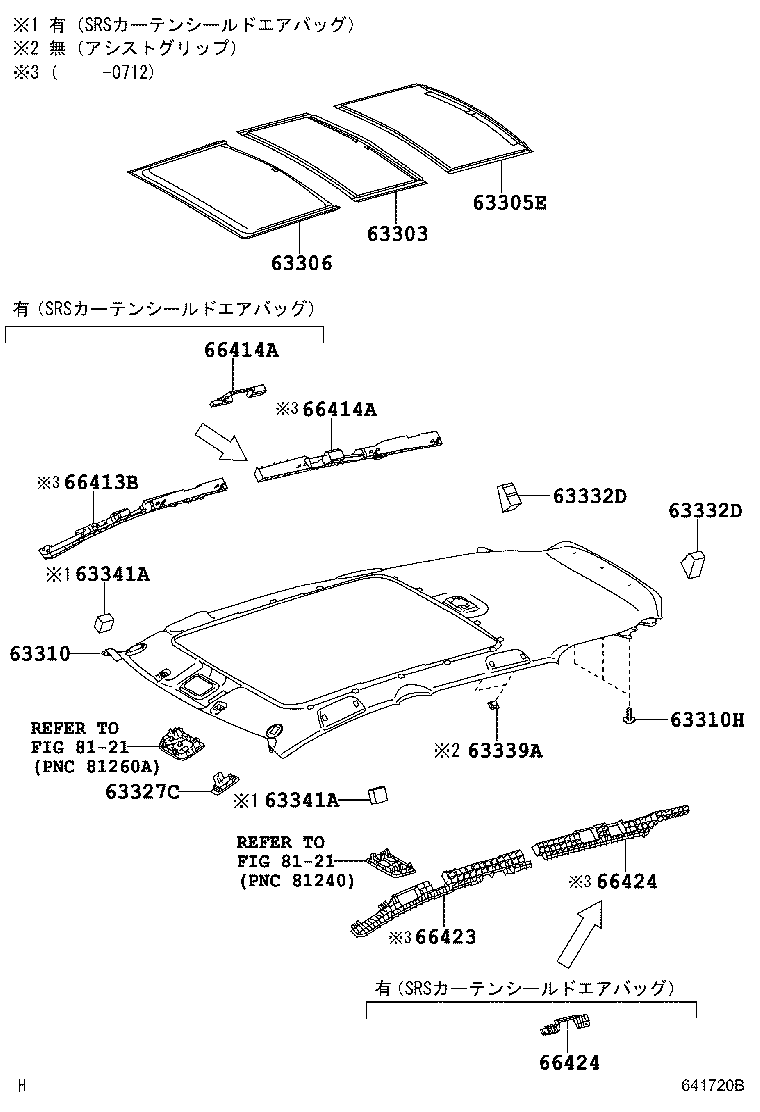

Figure 641719D 641719D 2005-09 → 2007-12 Figure 642571A 642571A 2005-09 → 2010-01 Figure 641720B 641720B 2005-09 → 2010-01 Figure 642634B 642634B 2010-01 → — Figure 642635A 642635A 2010-01 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63305E Trim Sub-assy, Sunshade, NO.3
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63327C Garnish, Sun Roof Switch
63332D Pad, Sun Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341A Silencer, Roof, NO.1
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
