Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

28 part groups · 3 illustrations

Illustrations

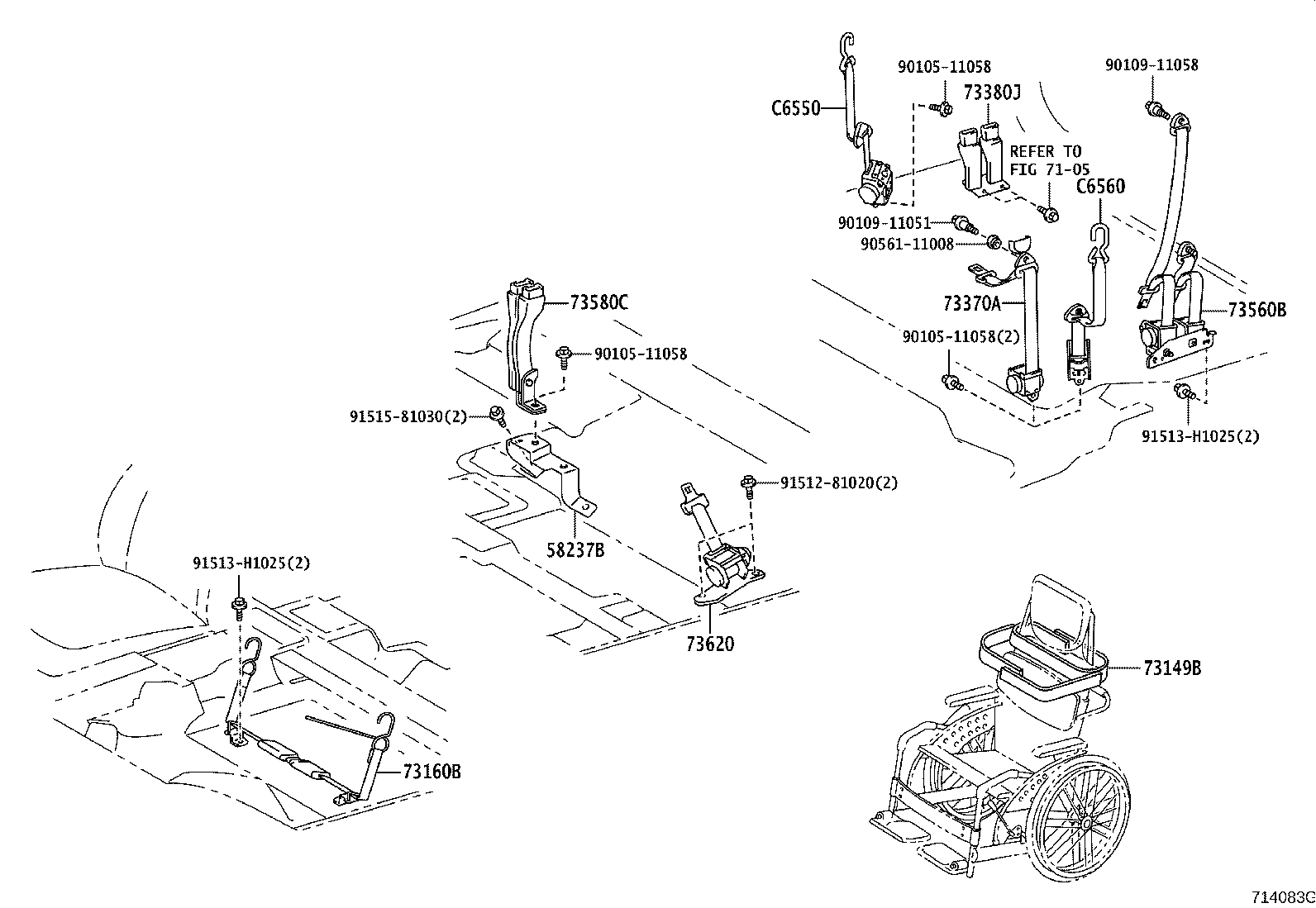

Figure 714081A 714081A 2005-09 → — Figure 714082 714082 2005-09 → — Figure 714083G 714083G 2005-11 → —

Part groups

PNCDescription
58237B Bracket, Front Seat
73135 Cover, Shoulder Belt Anchorage Plate
73143 Seal, Seat Belt Hole
73149B Belt, Chest Support
73160B Belt Assy, Wheel Chair Front Center Seat, RH
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370A Belt Assy, Wheel Chair Rear Seat, Outer LH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371A Hanger Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73380J Belt Assy, Wheel Chair NO.1 Seat, Inner
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
73560B Belt Assy, Wheel Chair Rear NO.2 Seat, Outer
73580C Belt Assy, Wheel Chair NO.2 Seat, Inner
73620 Retractor Assy, Wheel Chair NO.2 Lap Belt, LH
C6550 Belt Assy, Wheel Chair Set, NO.1
C6560 Belt Assy, Wheel Chair Set, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
