Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

24 part groups · 3 illustrations

Illustrations

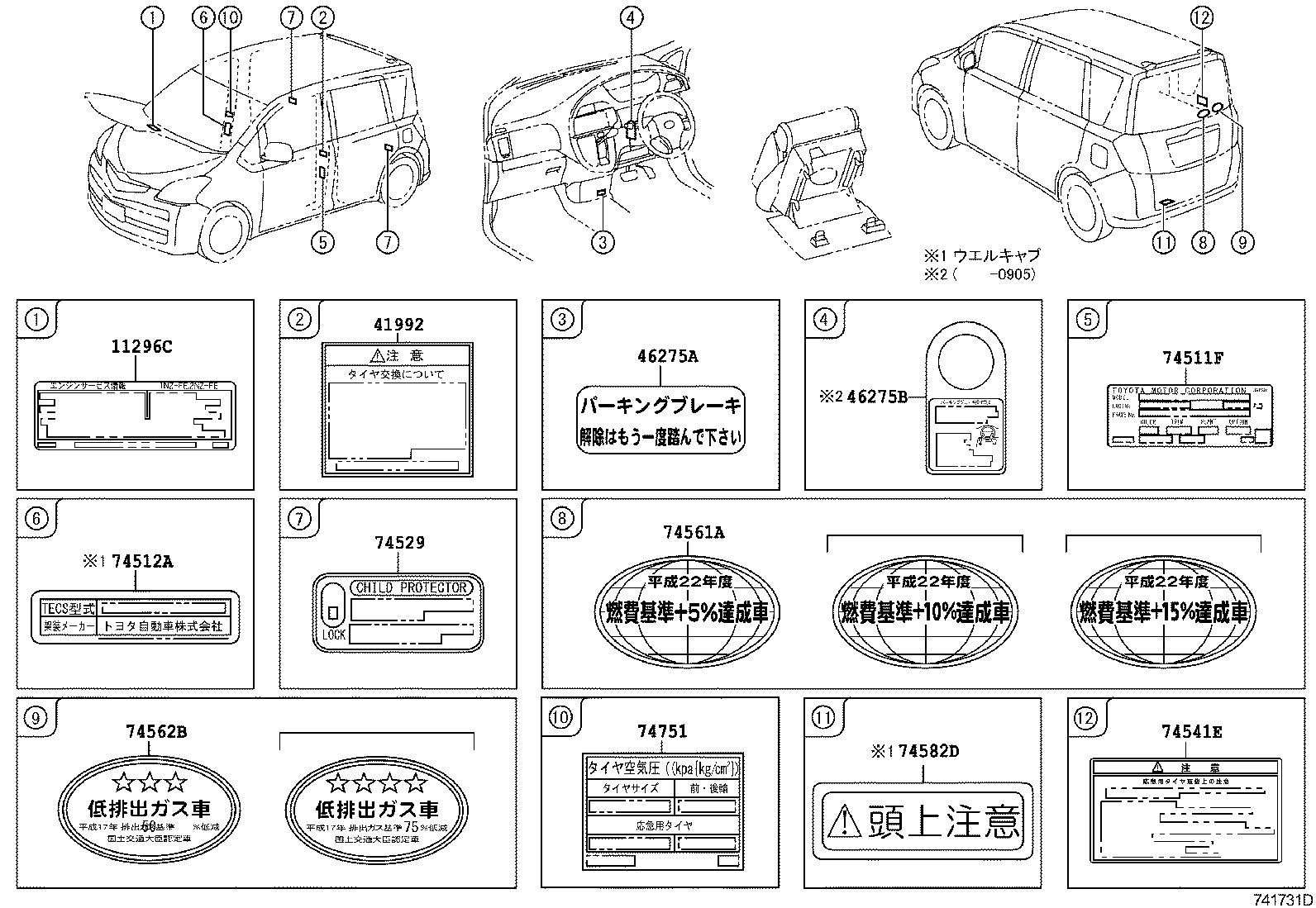

Figure 745429 745429 2005-09 → — Figure 741731D 741731D 2005-09 → — Figure 741732E 741732E 2005-09 → —

Part groups

PNCDescription
11289B Label, Spark Plug Notice
11296C Label, Engine Service Information
41992 Label, Differential Notice
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
74511F Label, Name (IDENTIFICATION LASER LABEL)
74512A Plate, Identification Number
74529 Plate, Child Proof OR Child Protector Lock Caution
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74582D Label, Safety Caution
74751 Label, Tire Pressure Information
86793B Label, Television Camera Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
C6111 Plate, Safety Caution
C6181 Plate, Wheel Chair Belt Caution
C6182 Plate, Wheel Chair Holder Caution, NO.1
C6184A Plate, Wheel Chair Holder Caution, NO.3
C6221 Plate, User Mark
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
