Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

17 part groups · 2 illustrations

Illustrations

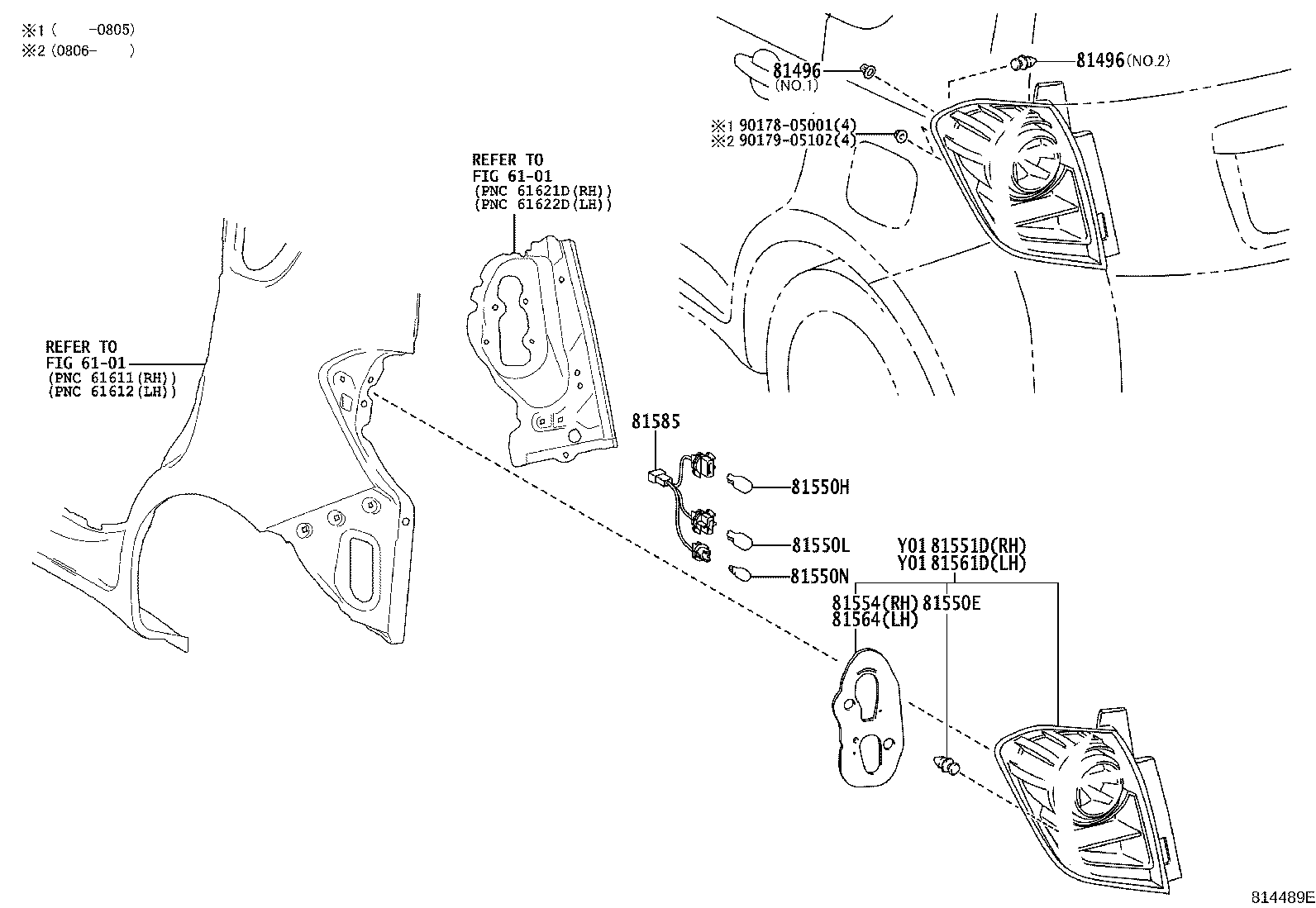

Figure 813388E 813388E 2005-09 → 2007-12 Figure 814489E 814489E 2007-12 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550 Lamp Assy, Rear Combination, RH
81550E Clip(FOR REAR COMBINATION LAMP)
81550H Bulb, Tail & Stop Lamp
81550J Socket, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550M Socket, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550P Socket, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81560 Lamp Assy, Rear Combination, LH
81561D Lens & Body, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81585 Socket & Wire, Rear Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
