Toyota Ractis

2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan

Supported model Data version 2011-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

38 part groups · 9 illustrations

Illustrations

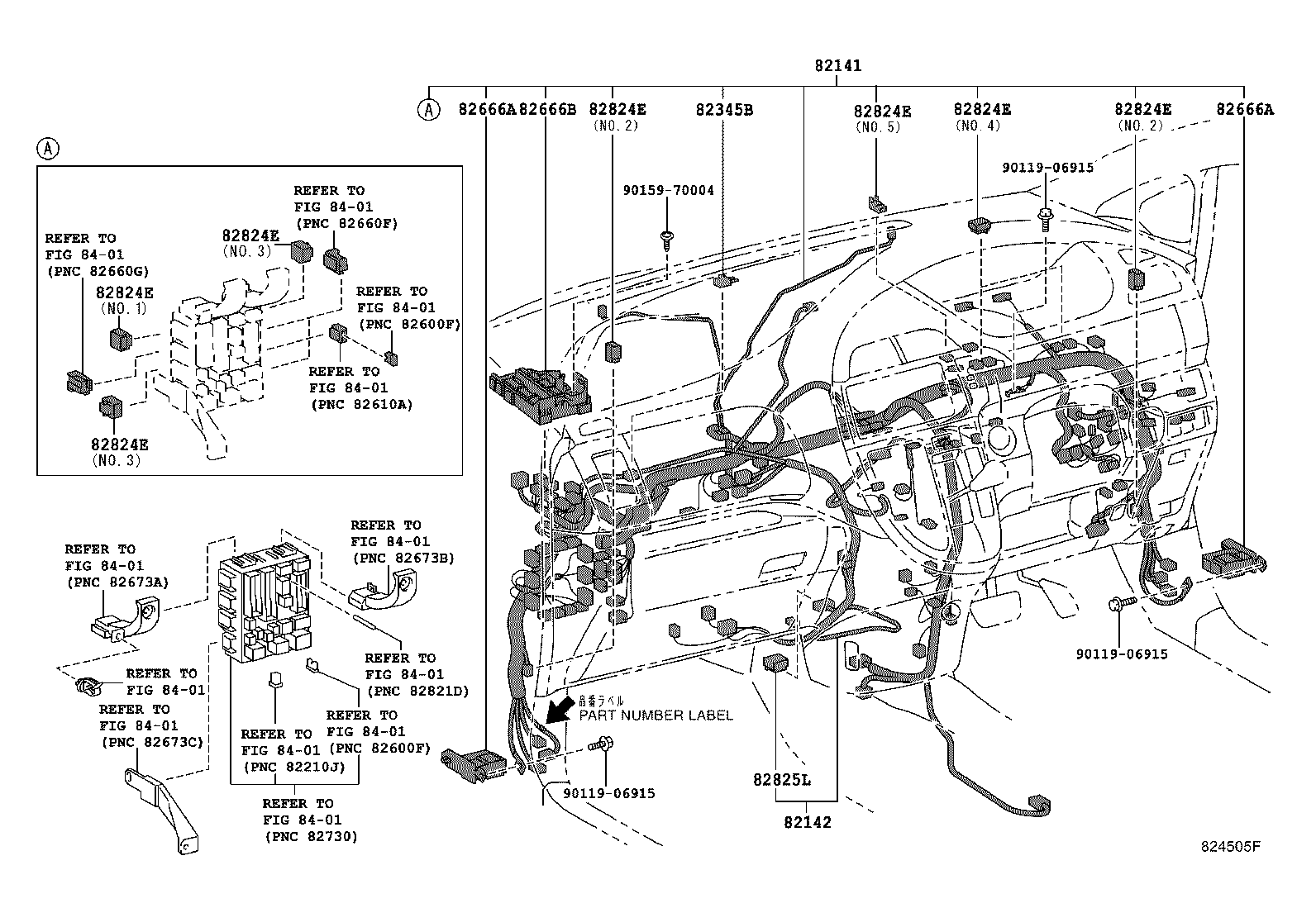

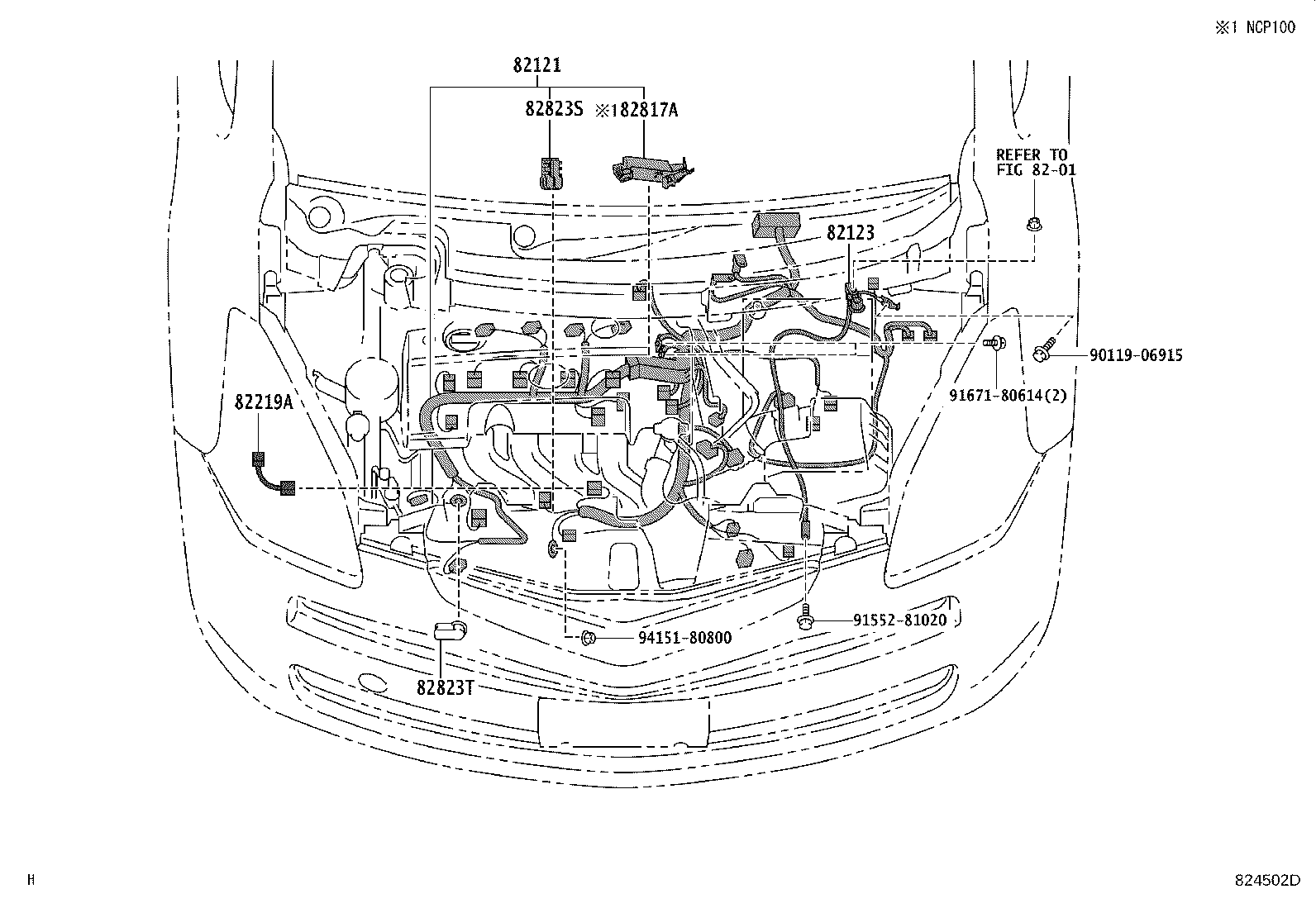

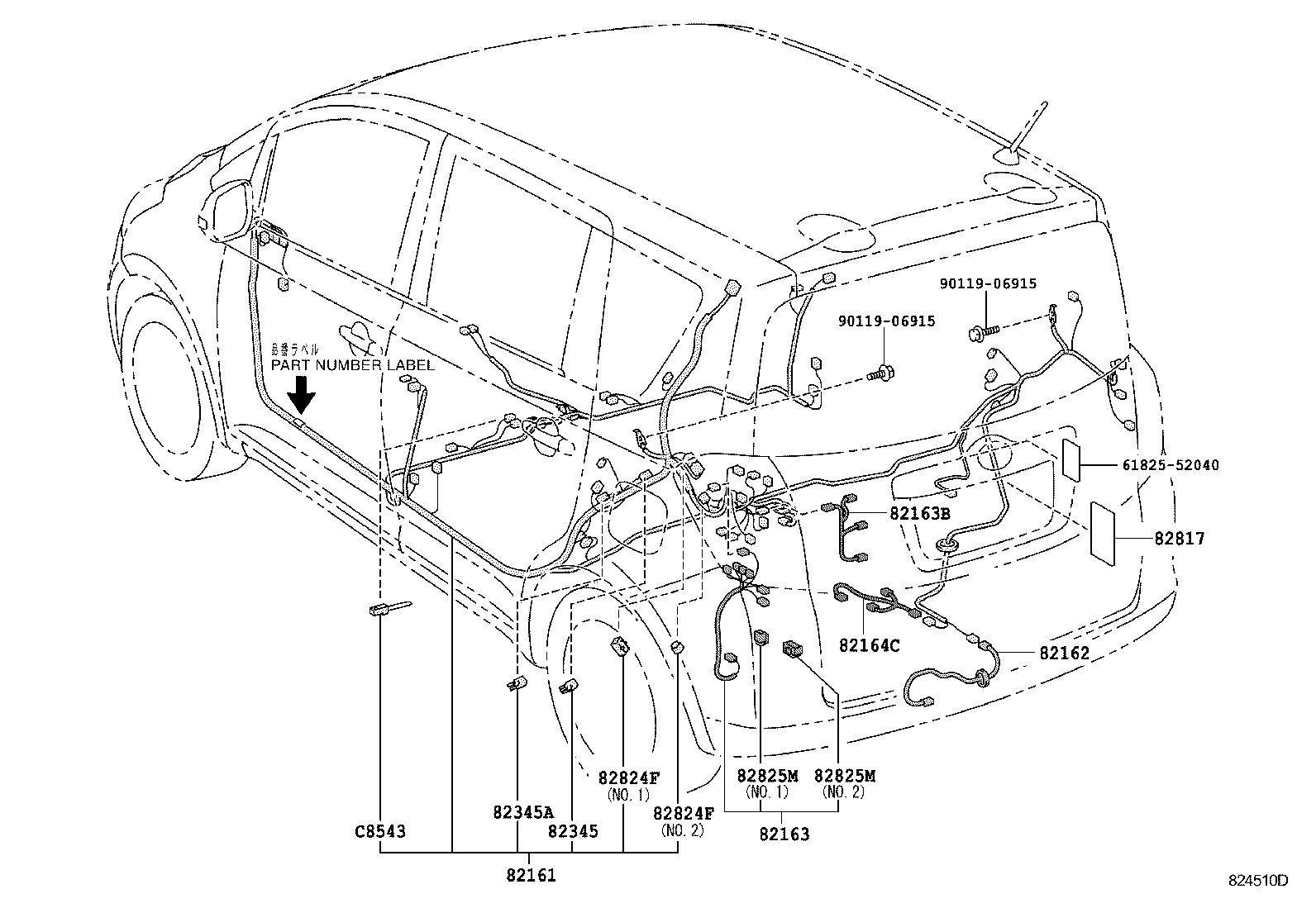

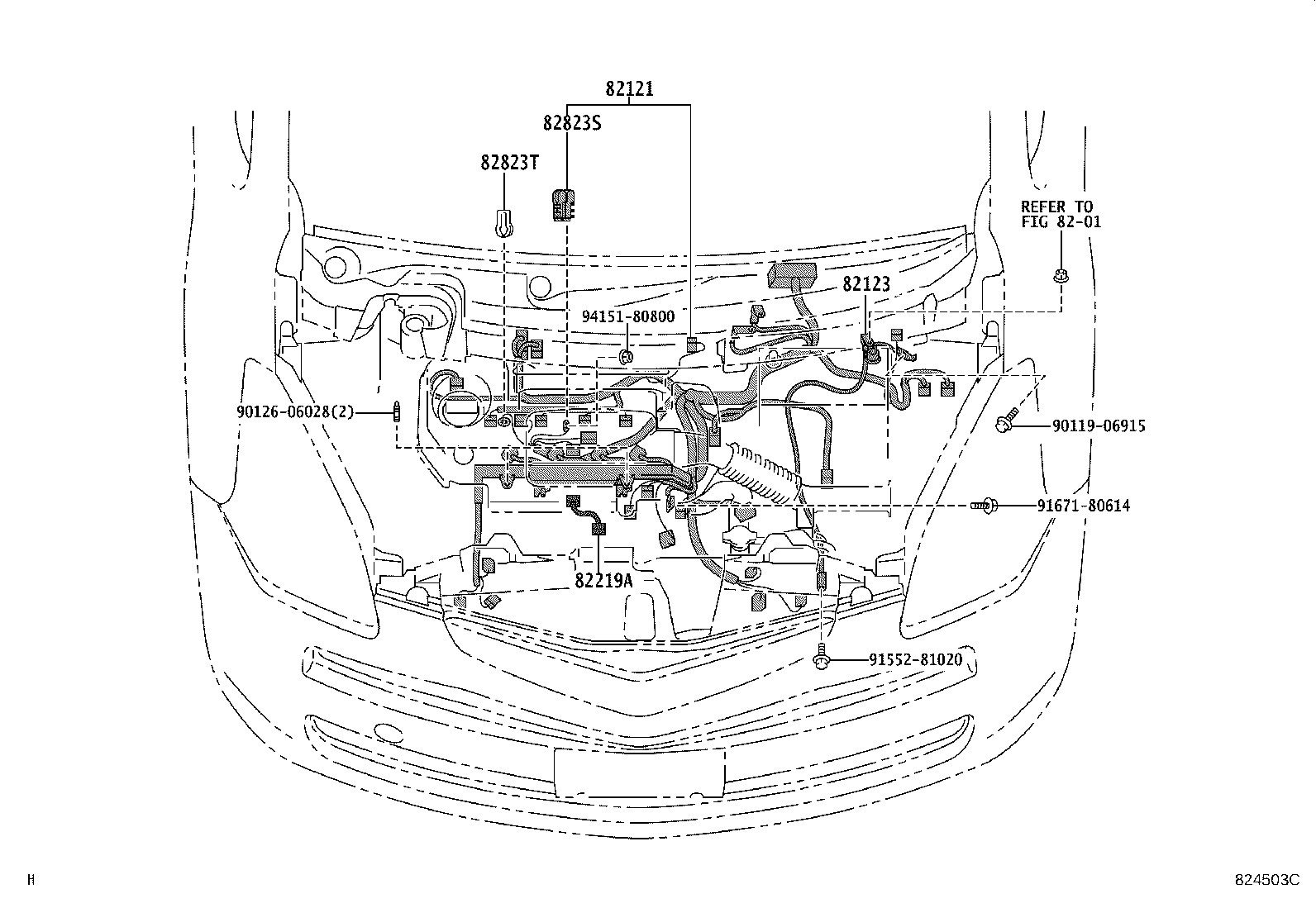

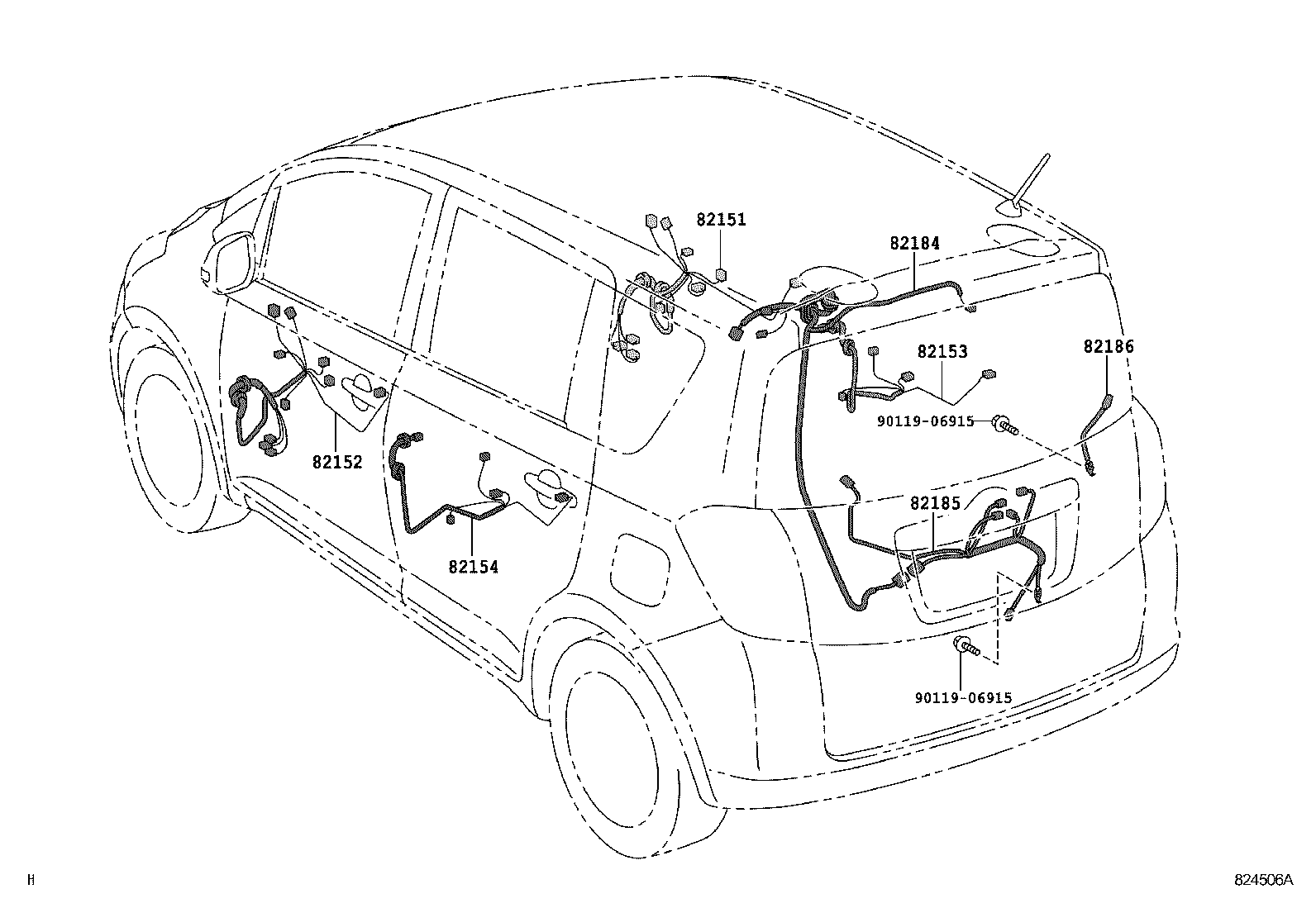

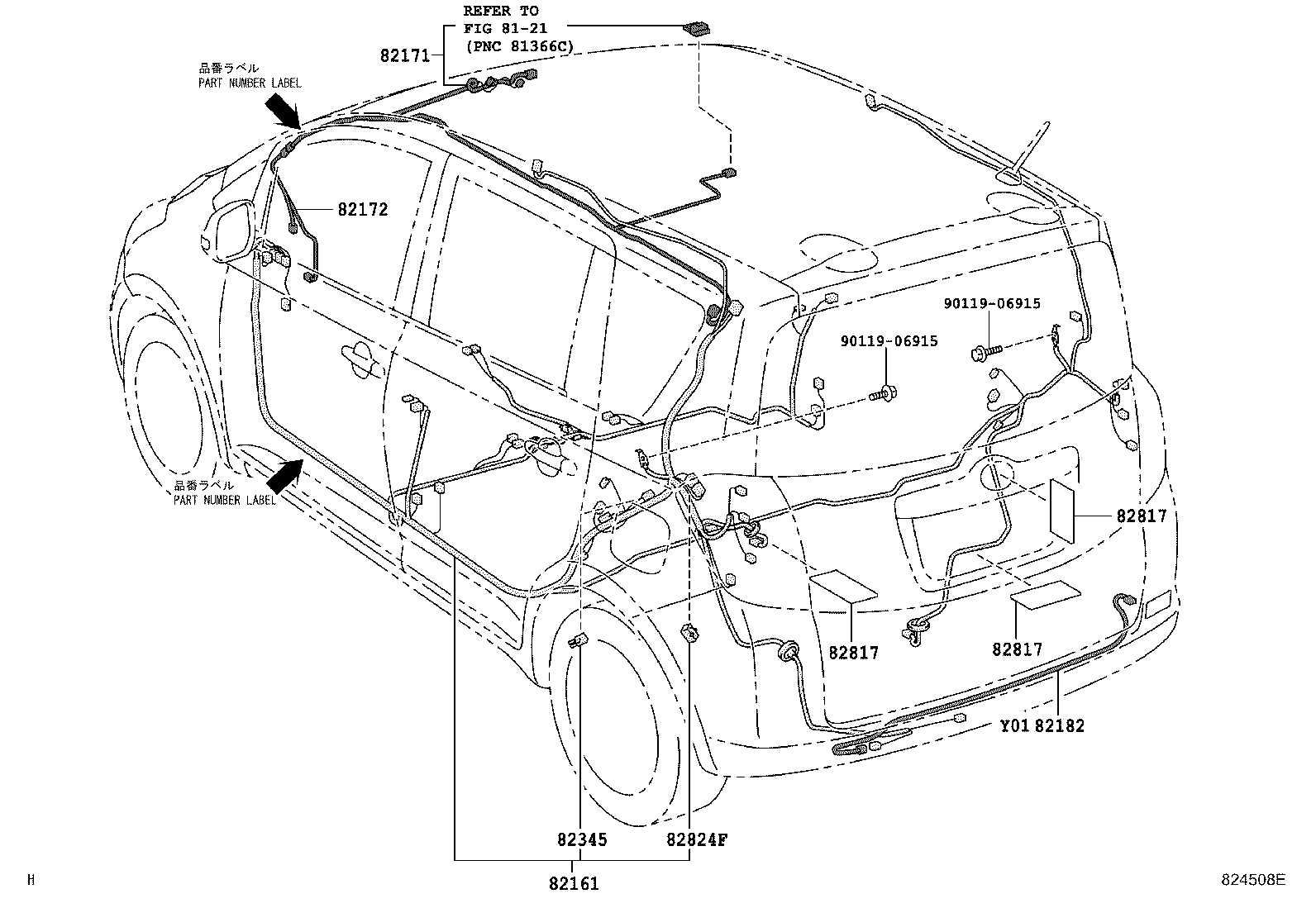

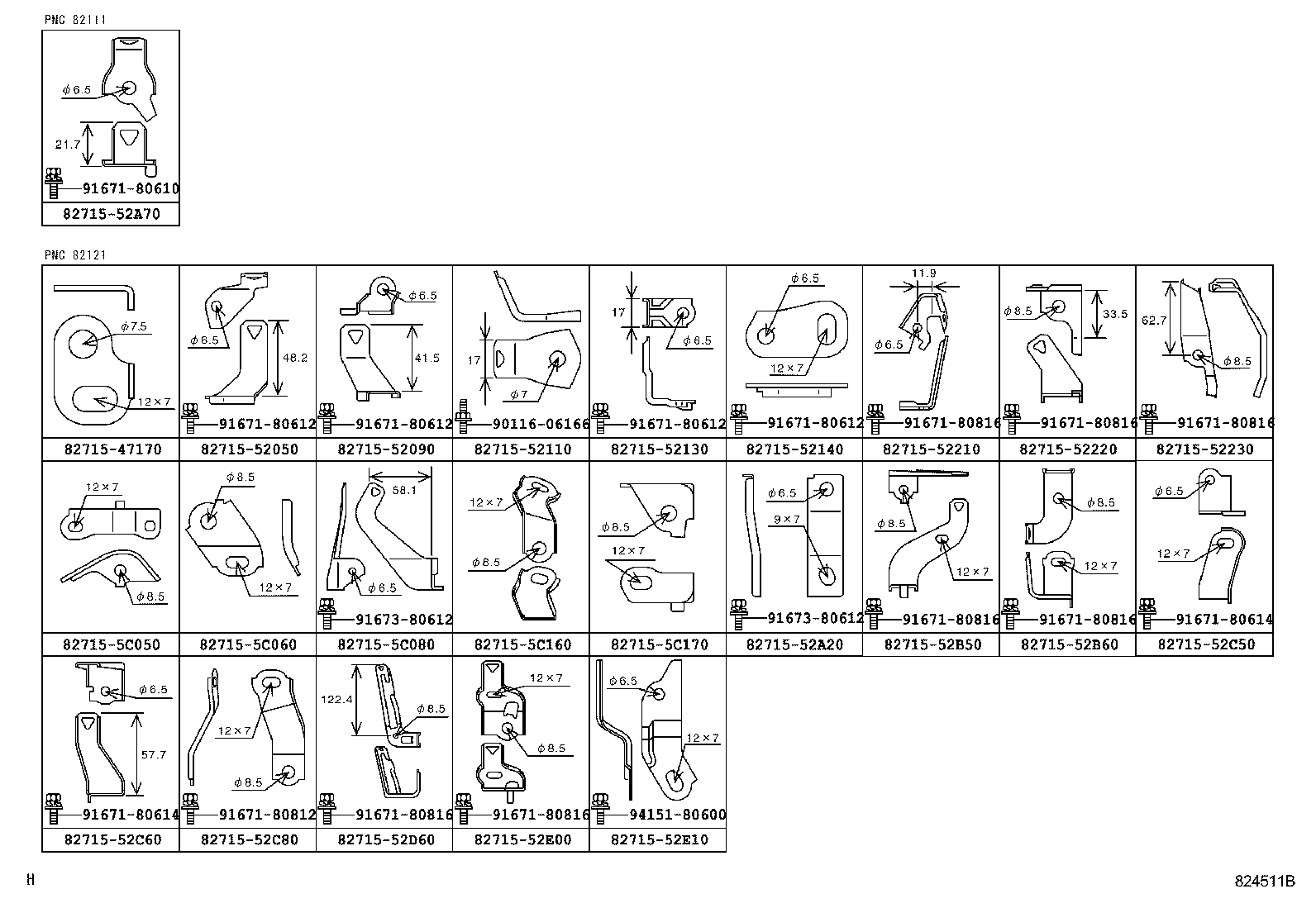

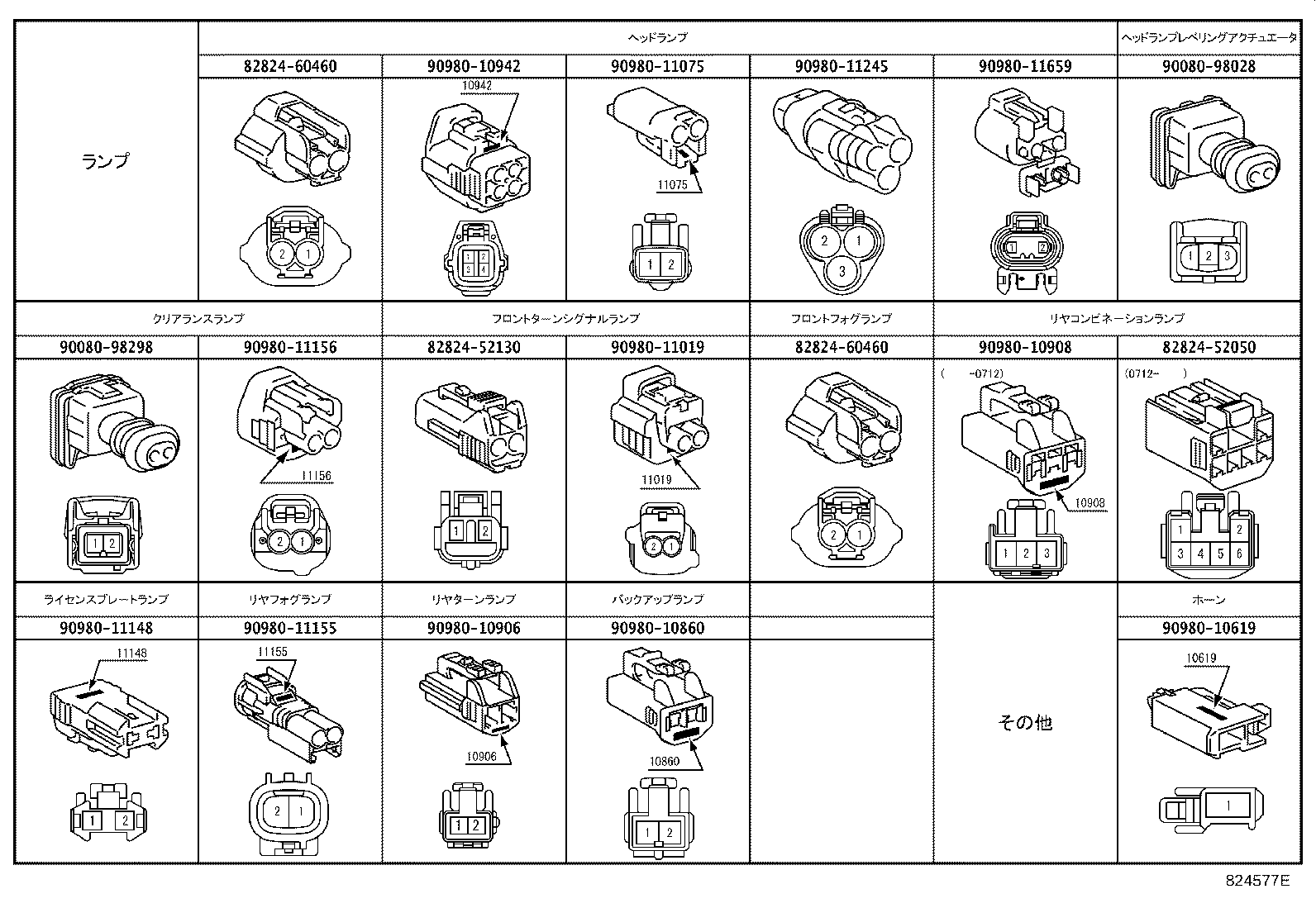

Figure 824501F 824501F 2005-09 → — Figure 824502D 824502D 2005-09 → — Figure 824503C 824503C 2005-09 → — Figure 824505F 824505F 2005-09 → — Figure 824506A 824506A 2005-09 → — Figure 824508E 824508E 2005-09 → — Figure 824510D 824510D 2005-11 → — Figure 824511B 824511B 2005-09 → — Figure 824577E 824577E 2005-09 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164C Wire, Floor, NO.4
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82219A Wire, Sensor
82225A Wire, Lamp, NO.2
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82825L Connector, Wiring Harness
82825M Connector, Wiring Harness
C8543 Resistor, Emergency
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
