Toyota Ractis
2005-09 → 2010-08 · chassis NCP10#,SCP100 · catalogue 114120 · Japan
Supported model
Data version 2011-01
Heating & Air Conditioning - Cooler Piping

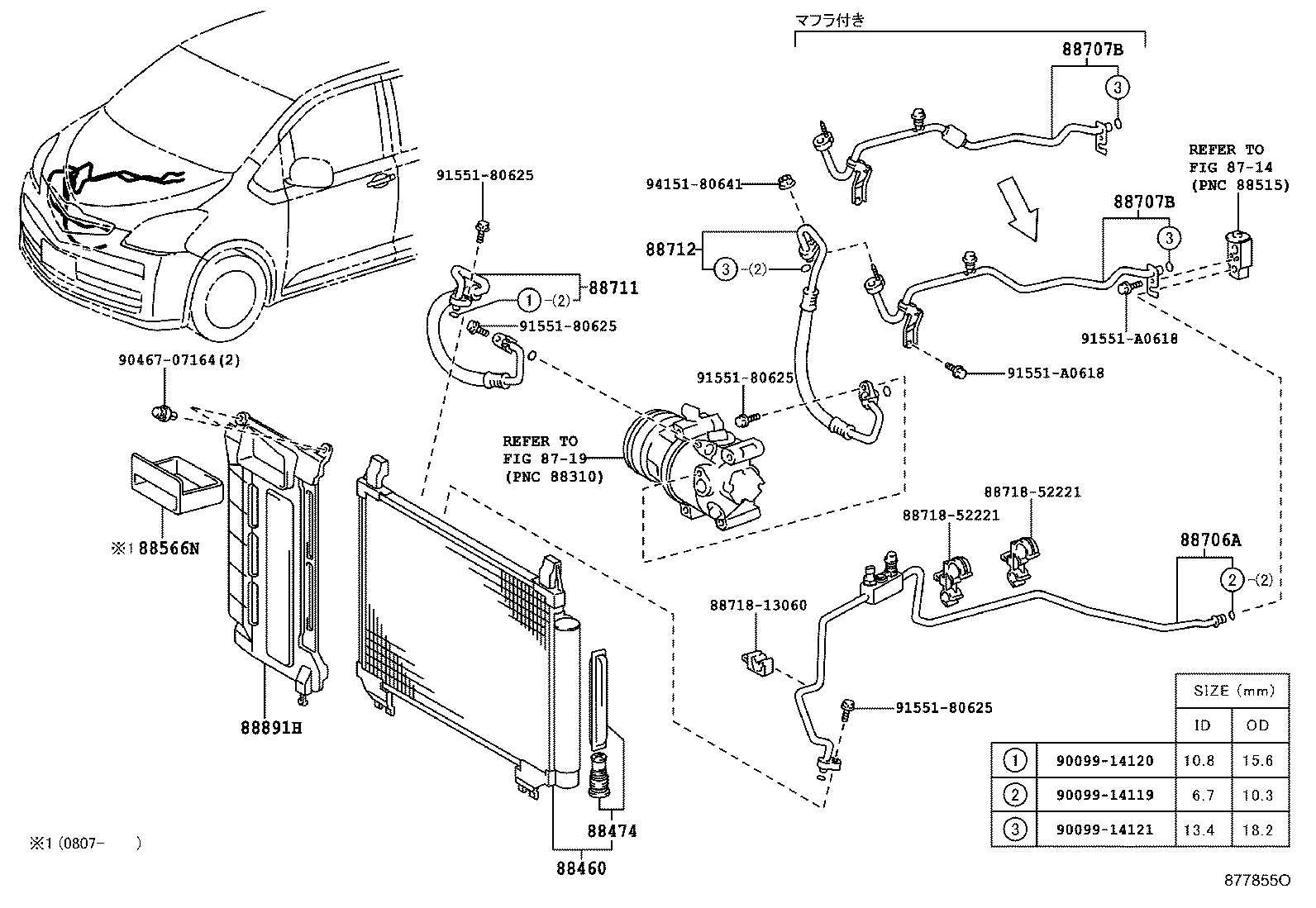

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88460 | Condenser Assy, Cooler |
| 88474 | Dryer, Cooler |
| 88566N | Duct, Cooler Air, NO.1 |
| 88706A | Tube Sub-assy, Liquid, A |
| 88707B | Tube Sub-assy, Suction, B |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88891H | Cover, Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
