Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 7 illustrations

Illustrations

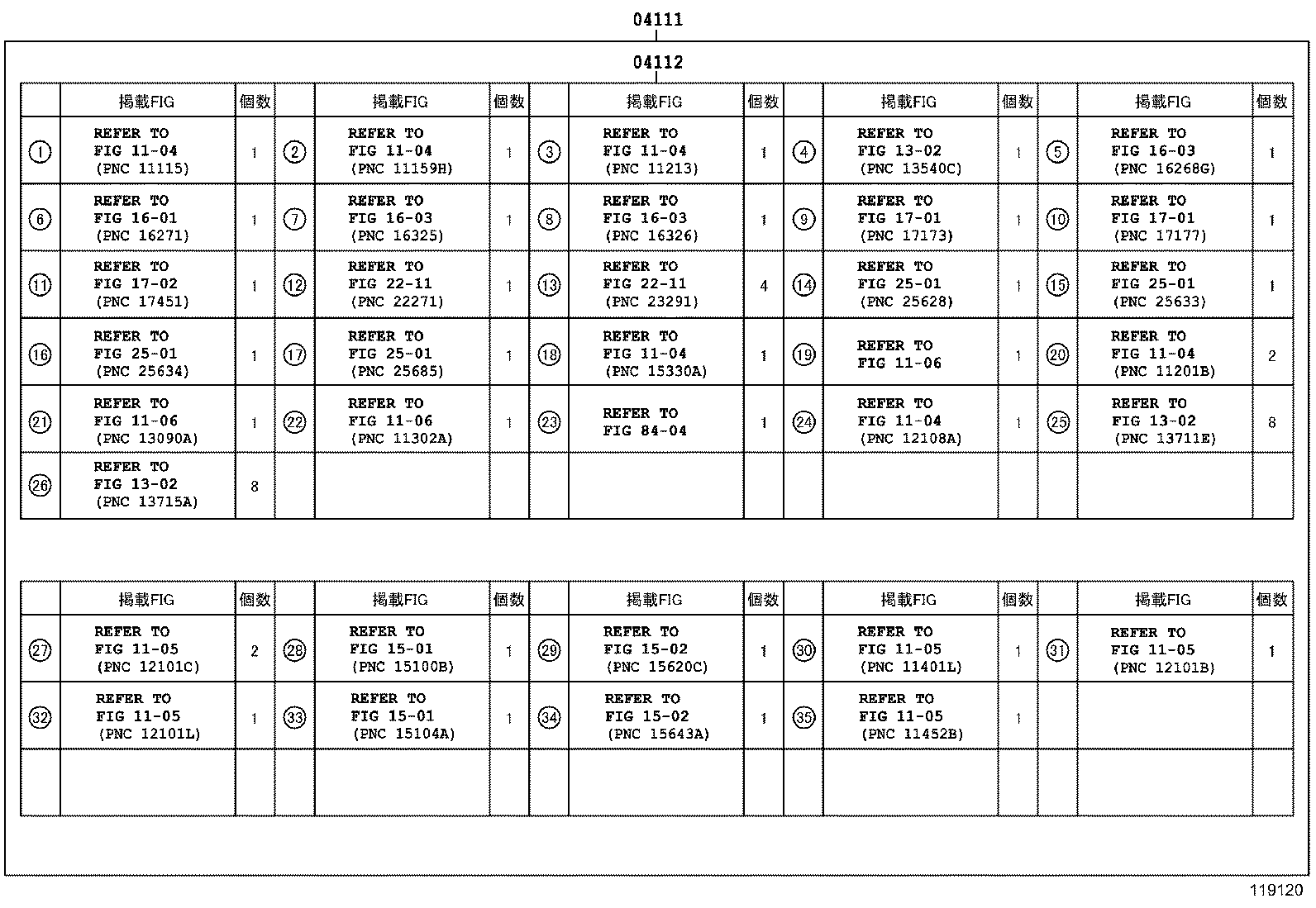

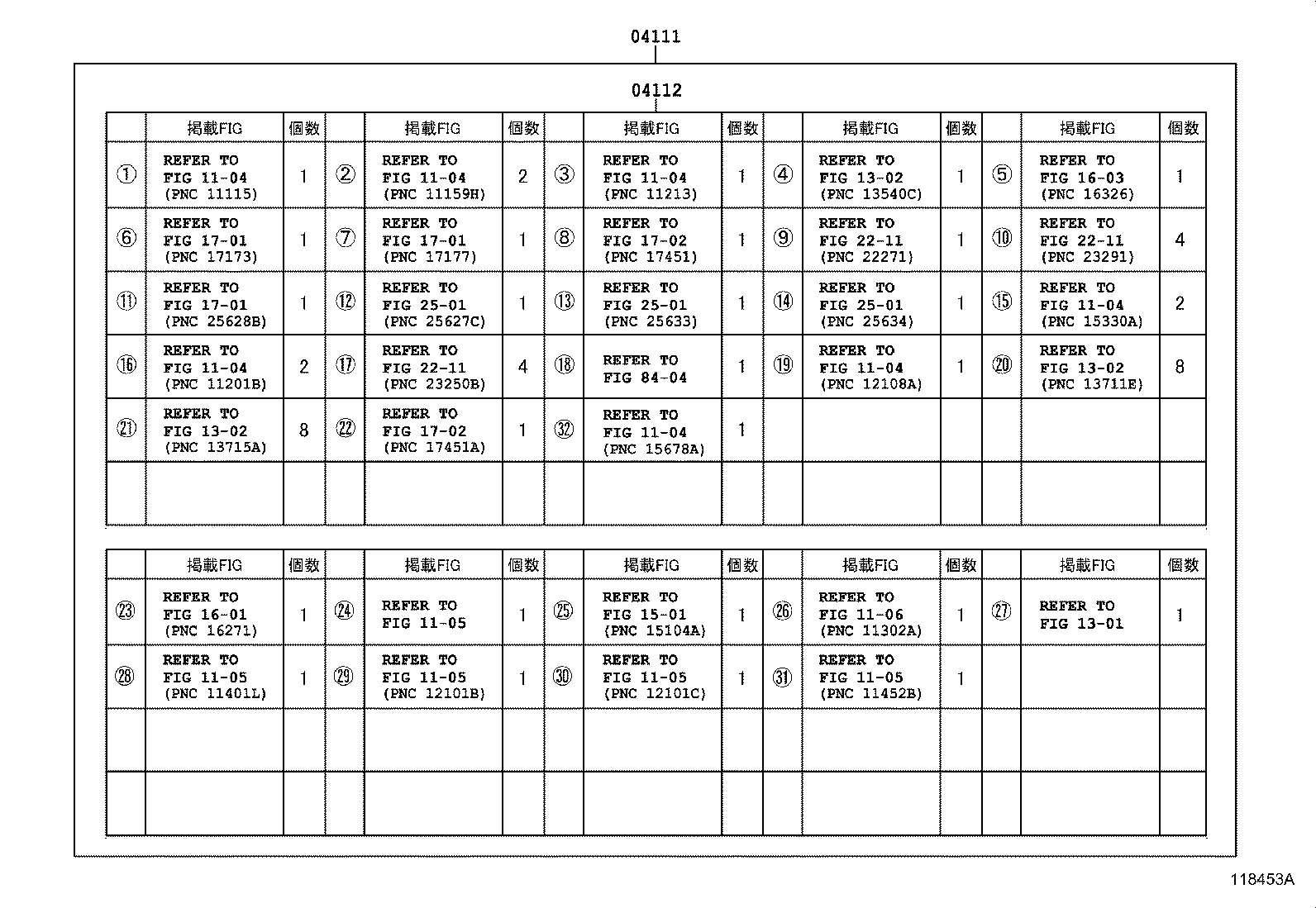

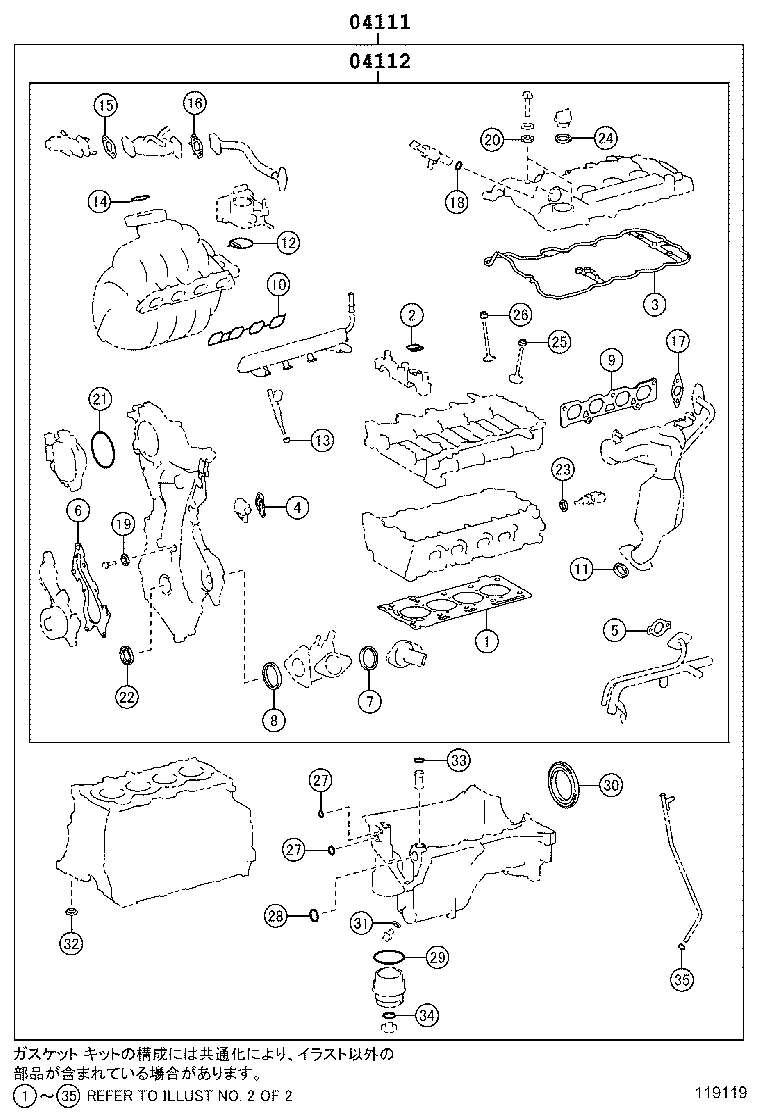

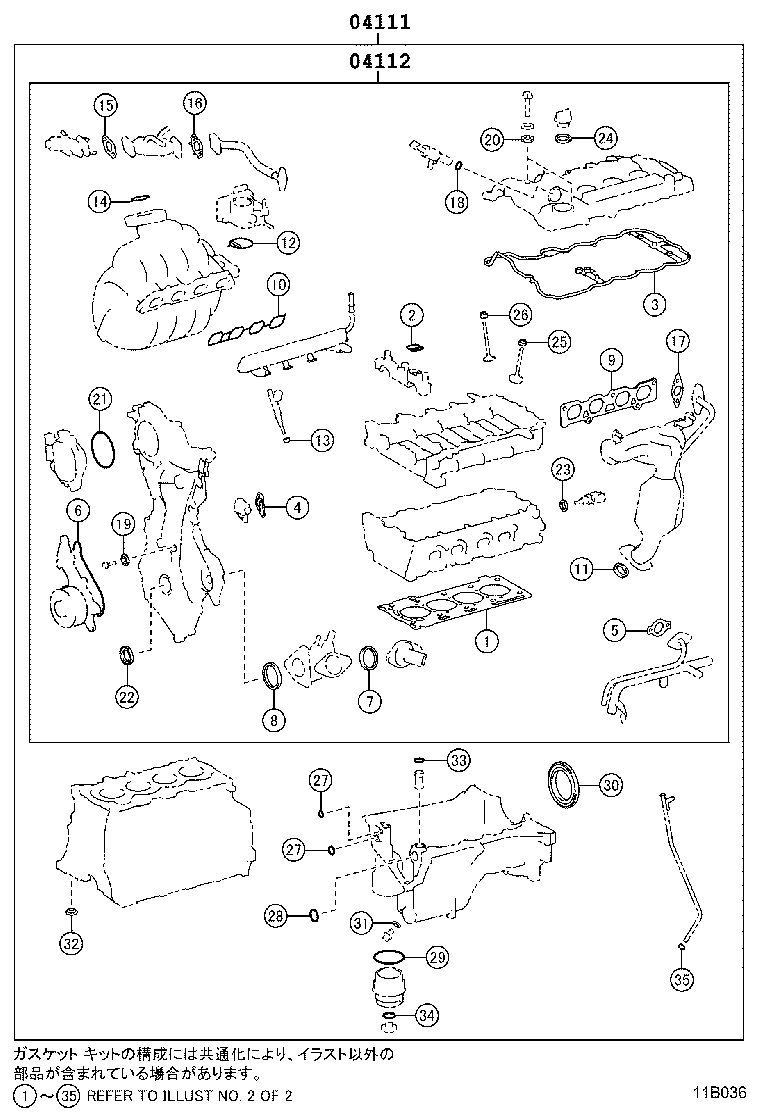

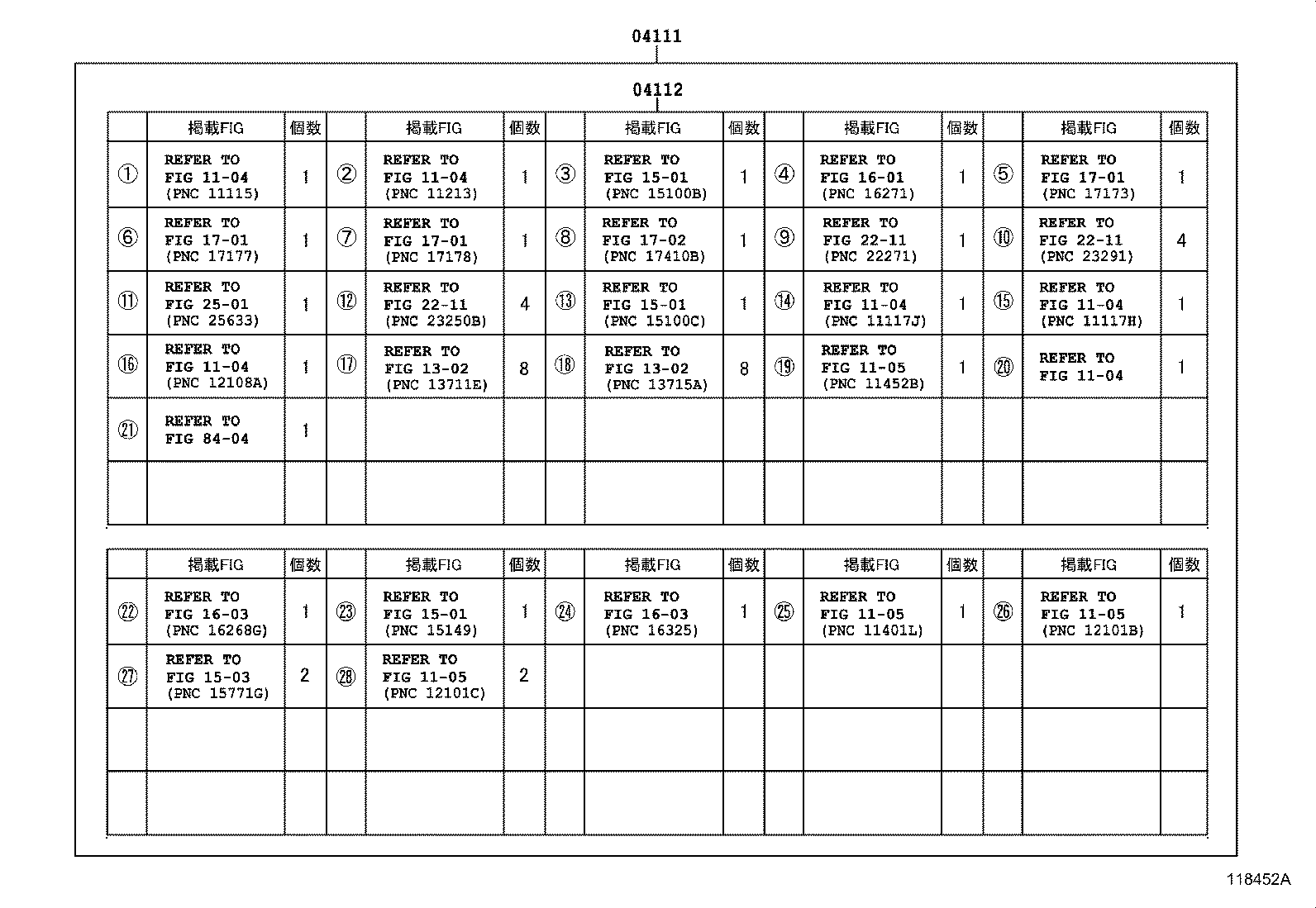

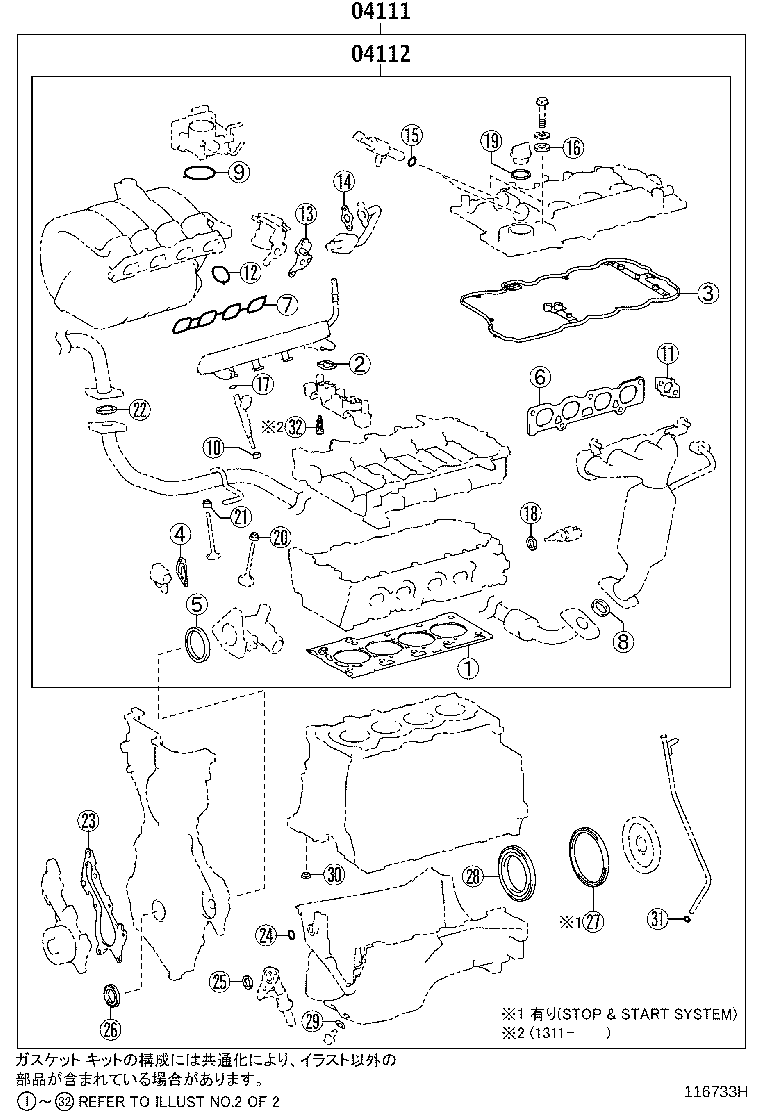

Figure 118451A 118451A 2010-11 → — Figure 118452A 118452A 2010-11 → — Figure 116733H 116733H 2010-11 → 2014-05 Figure 118453A 118453A 2010-11 → 2014-05 Figure 119119 119119 2014-05 → 2015-03 Figure 11B036 11B036 2015-03 → — Figure 119120 119120 2014-05 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
