Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

3 part groups · 3 illustrations

Illustrations

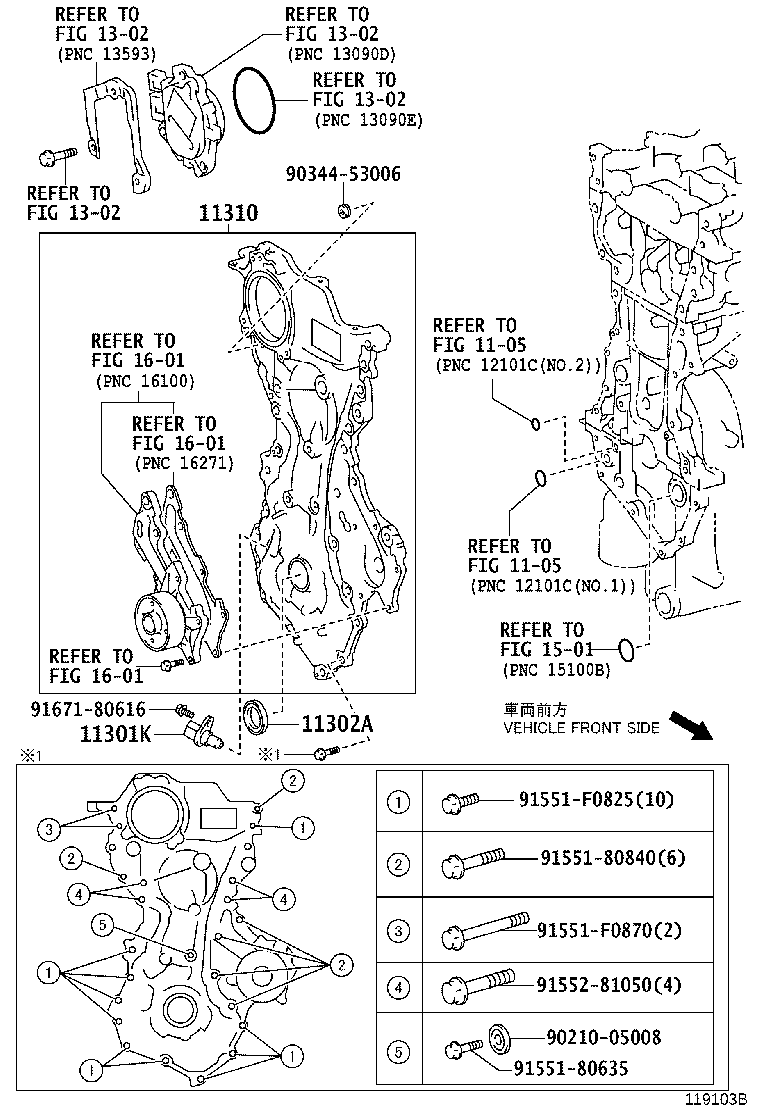

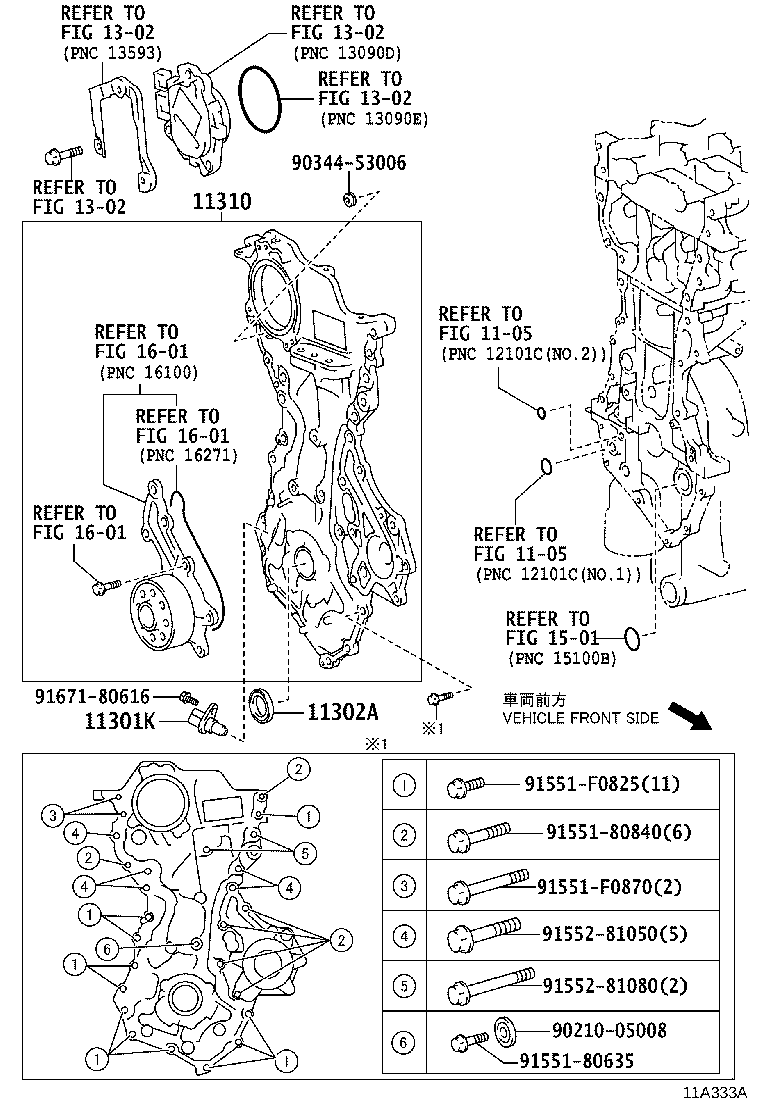

Figure 116713E 116713E 2010-11 → 2014-05 Figure 119103B 119103B 2014-05 → 2015-03 Figure 11A333A 11A333A 2015-03 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310 Cover Assy, Timing Chain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
