Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01

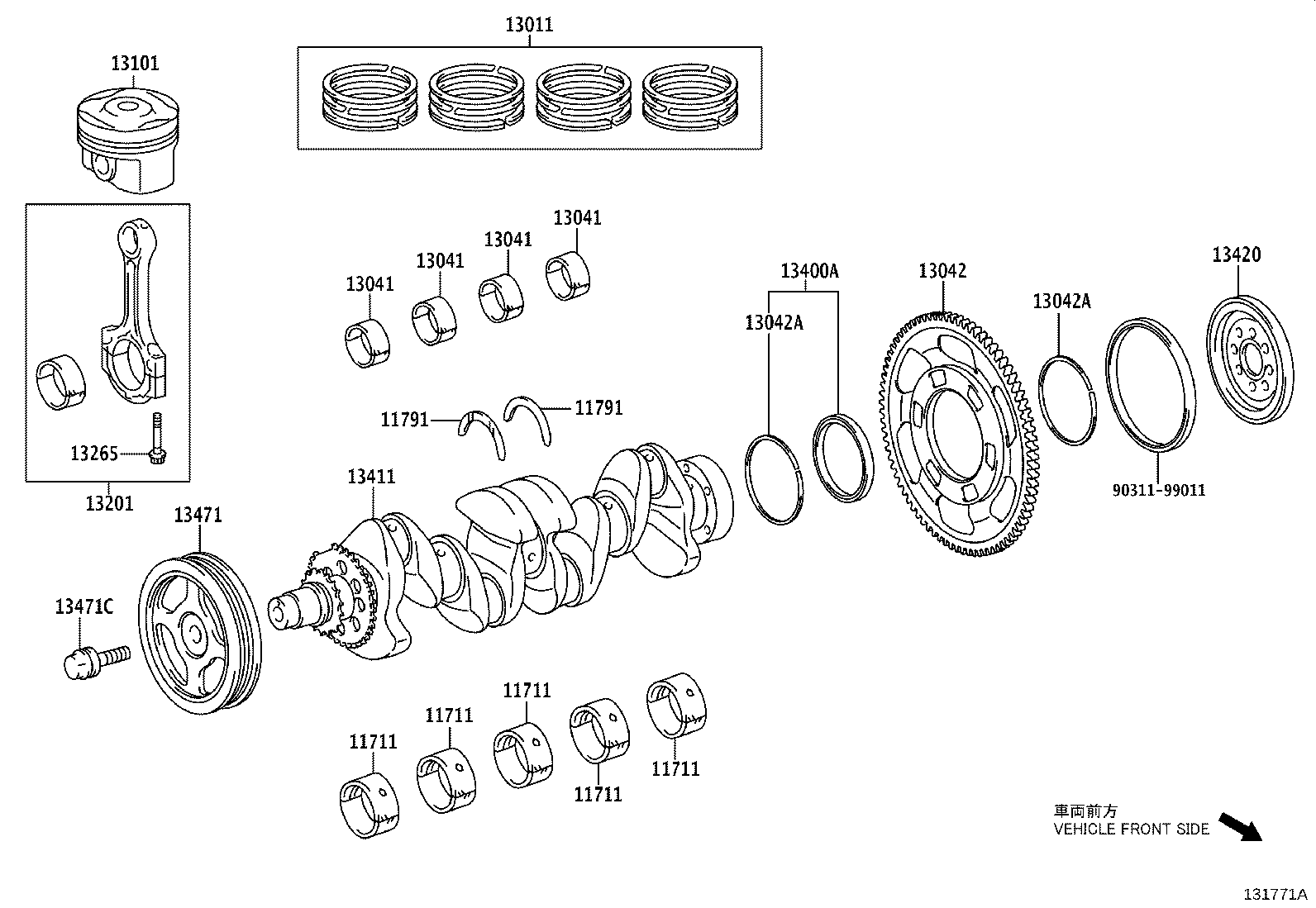

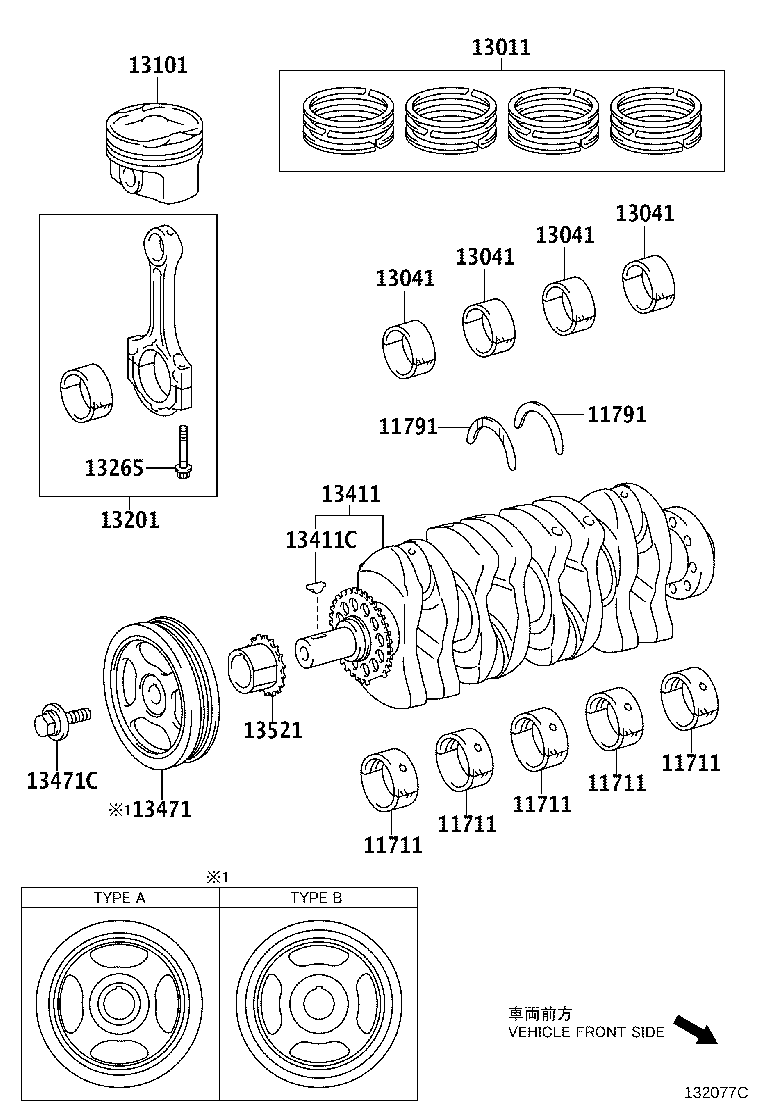

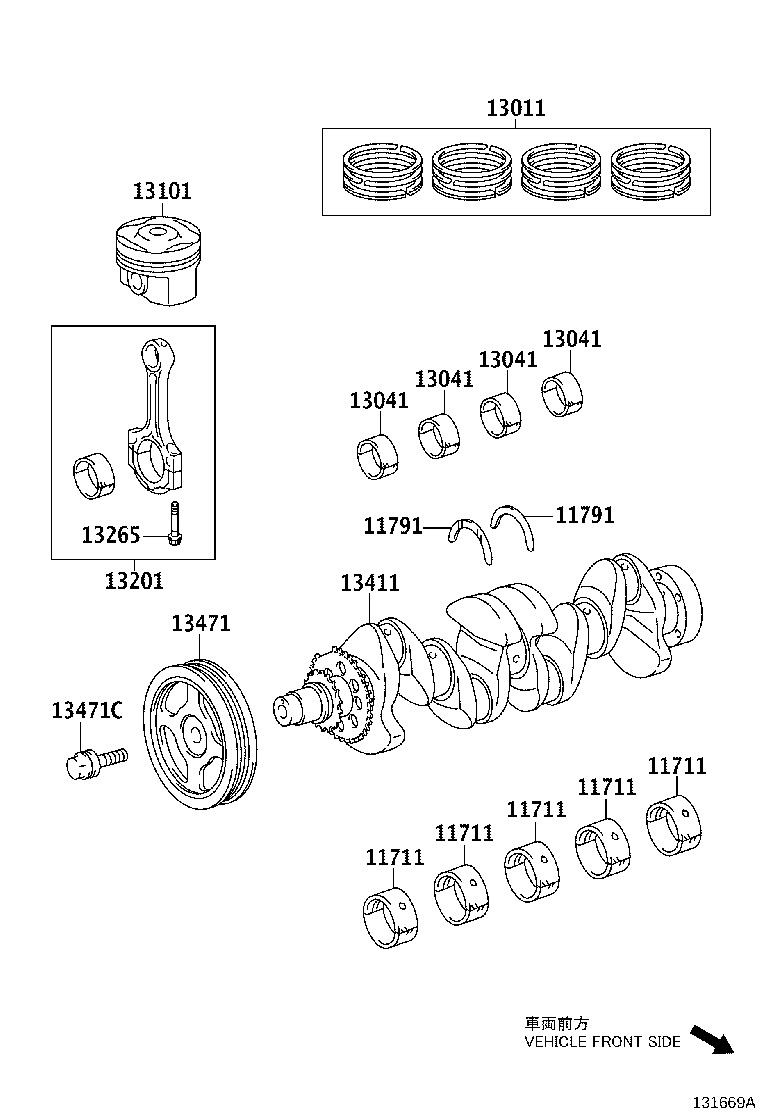

Crankshaft & Piston
19 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11702 | Bearing Set, Crankshaft |
| 11711 | Bearing, Crankshaft |
| 11791 | Washer, Crankshaft Thrust, Upper |
| 13011 | Ring Set, Piston |
| 13041 | Bearing, Connecting Rod |
| 13042 | Gear Sub-assy, Ers Ring |
| 13042A | Ring, Snap(FOR RING GEAR) |
| 13101 | Piston Sub-assy, W/Pin |
| 13201 | Rod Sub-assy, Connecting |
| 13202 | Bearing Set, Connecting Rod |
| 13265 | Bolt, Connecting Rod |
| 13400A | Bearing(FOR CRANKSHAFT) |
| 13407 | Damper Sub-assy, Crankshaft |
| 13411 | Crankshaft |
| 13411C | Pin, Straight(FOR CRANKSHAFT) |
| 13420 | Cluch Assy, Ers 1Way |
| 13471 | Pulley, Crankshaft |
| 13471C | Bolt(FOR CRANKSHAFT PULLEY SET) |
| 13521 | Gear OR Sprocket, Crankshaft Timing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
