Toyota Ractis
2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan
Supported model
Data version 2017-01

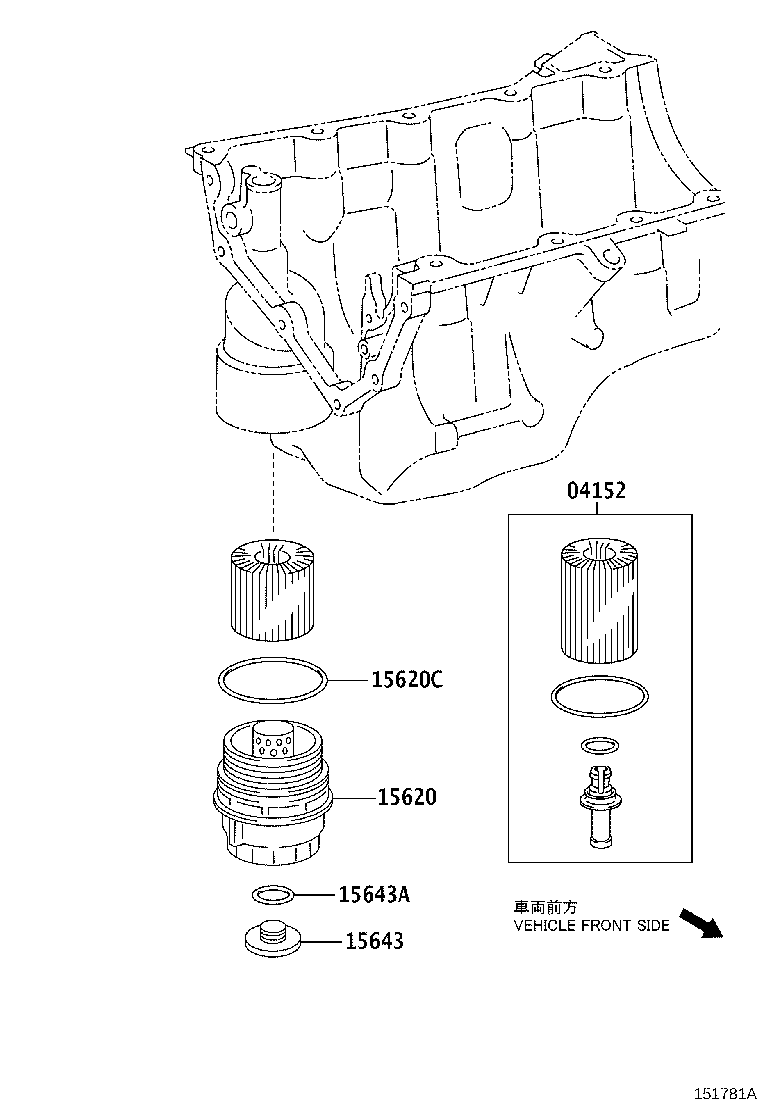

Oil Filter
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04152 | Element Kit, Oil Filter |
| 15600A | Union(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15620 | Cap Assy, Oil Filter |
| 15620C | Gasket(FOR OIL FILTER CAP) |
| 15643 | Plug, Oil Filter Drain |
| 15643A | Ring, O(FOR OIL FILTER DRAIN PLUG) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
