Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

4 part groups · 4 illustrations

Illustrations

Figure 164335C

164335C 2010-11 → —

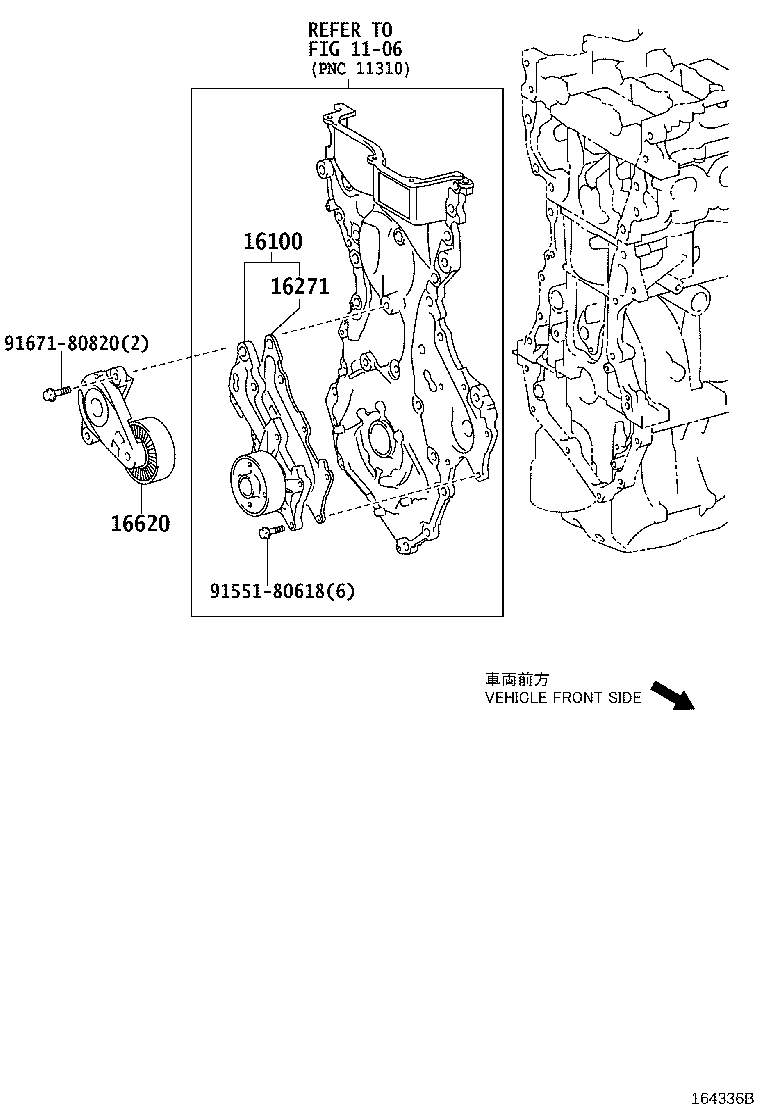

Figure 164336B

164336B 2010-11 → 2014-05

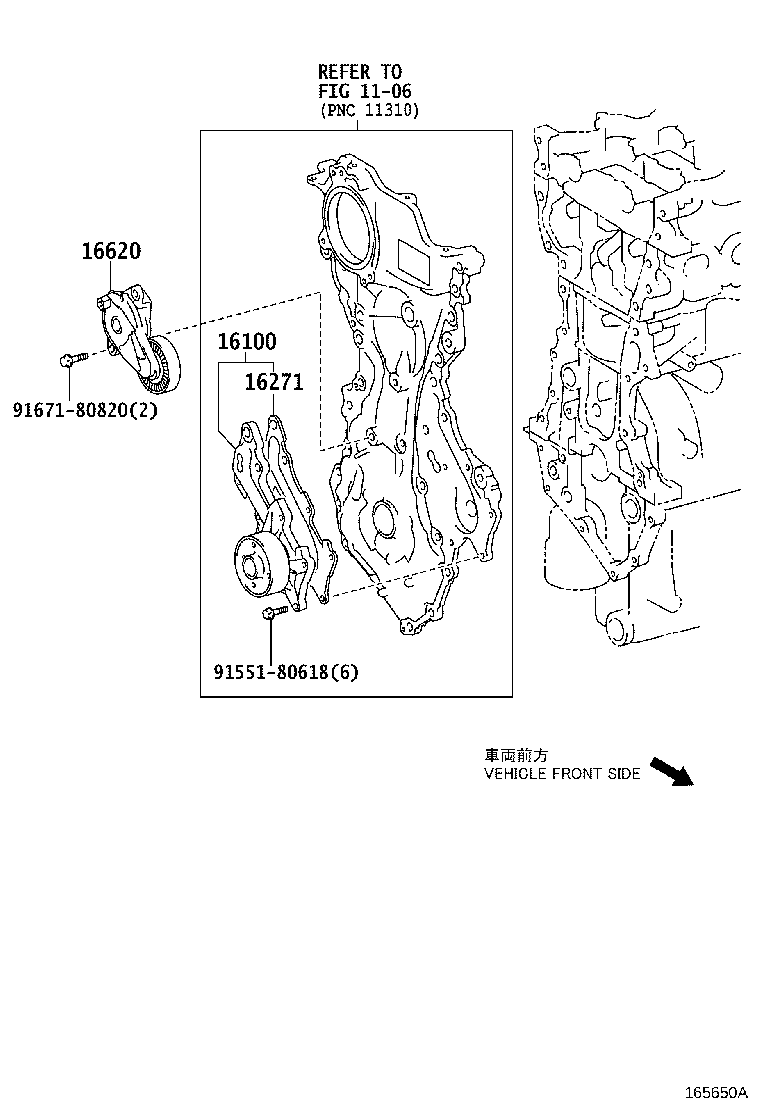

Figure 165650A

165650A 2014-05 → 2015-03

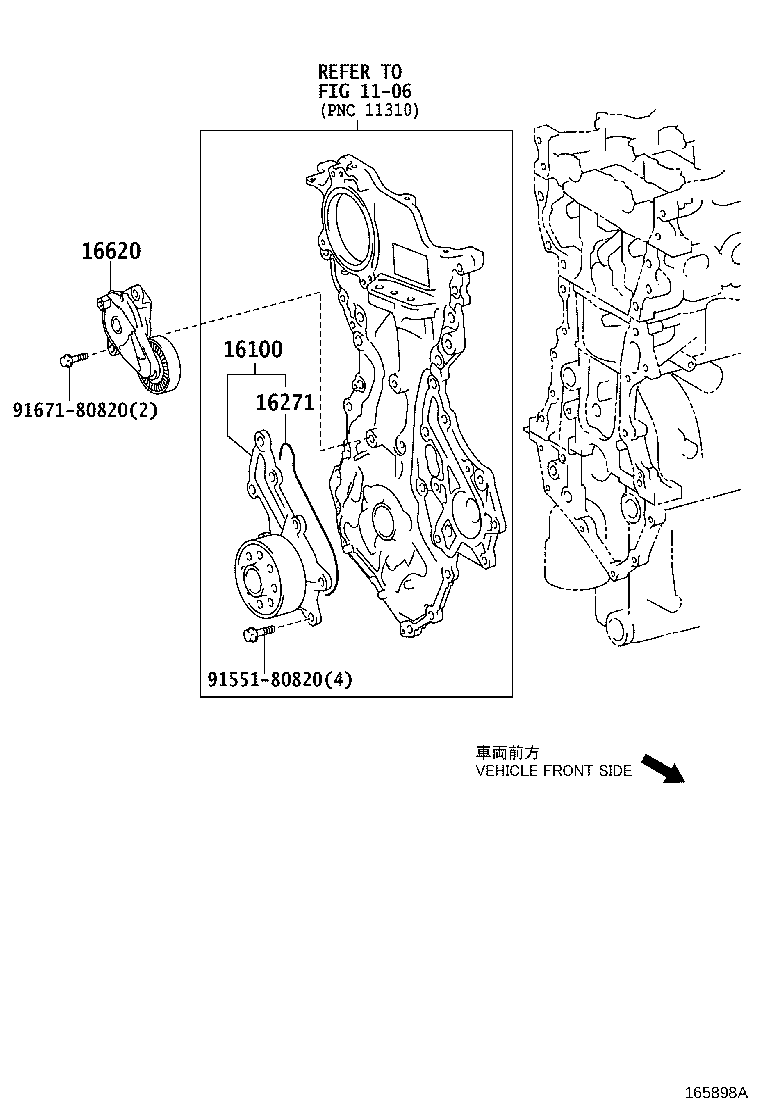

Figure 165898A

165898A 2015-03 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
