Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

67 part groups · 9 illustrations

Illustrations

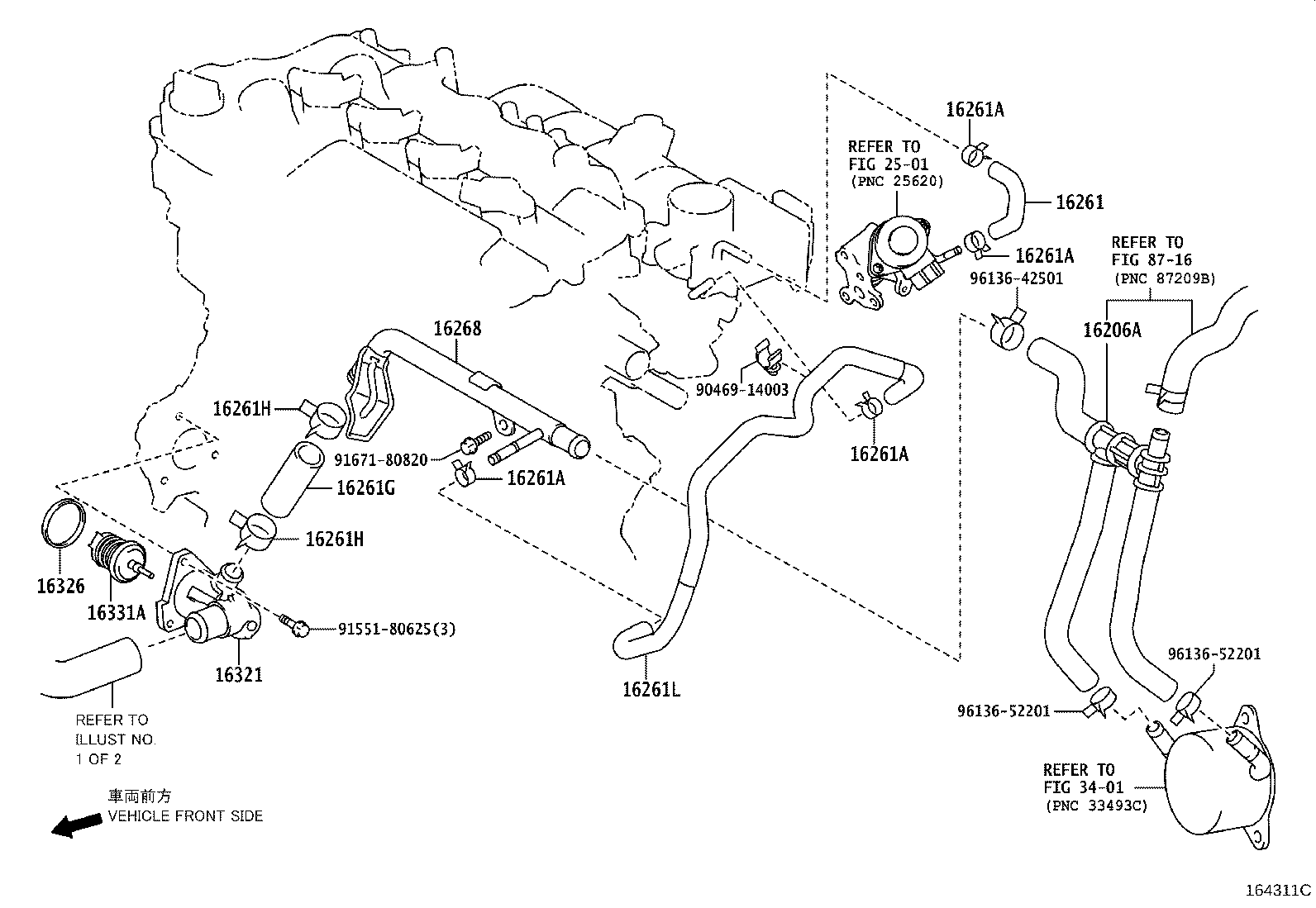

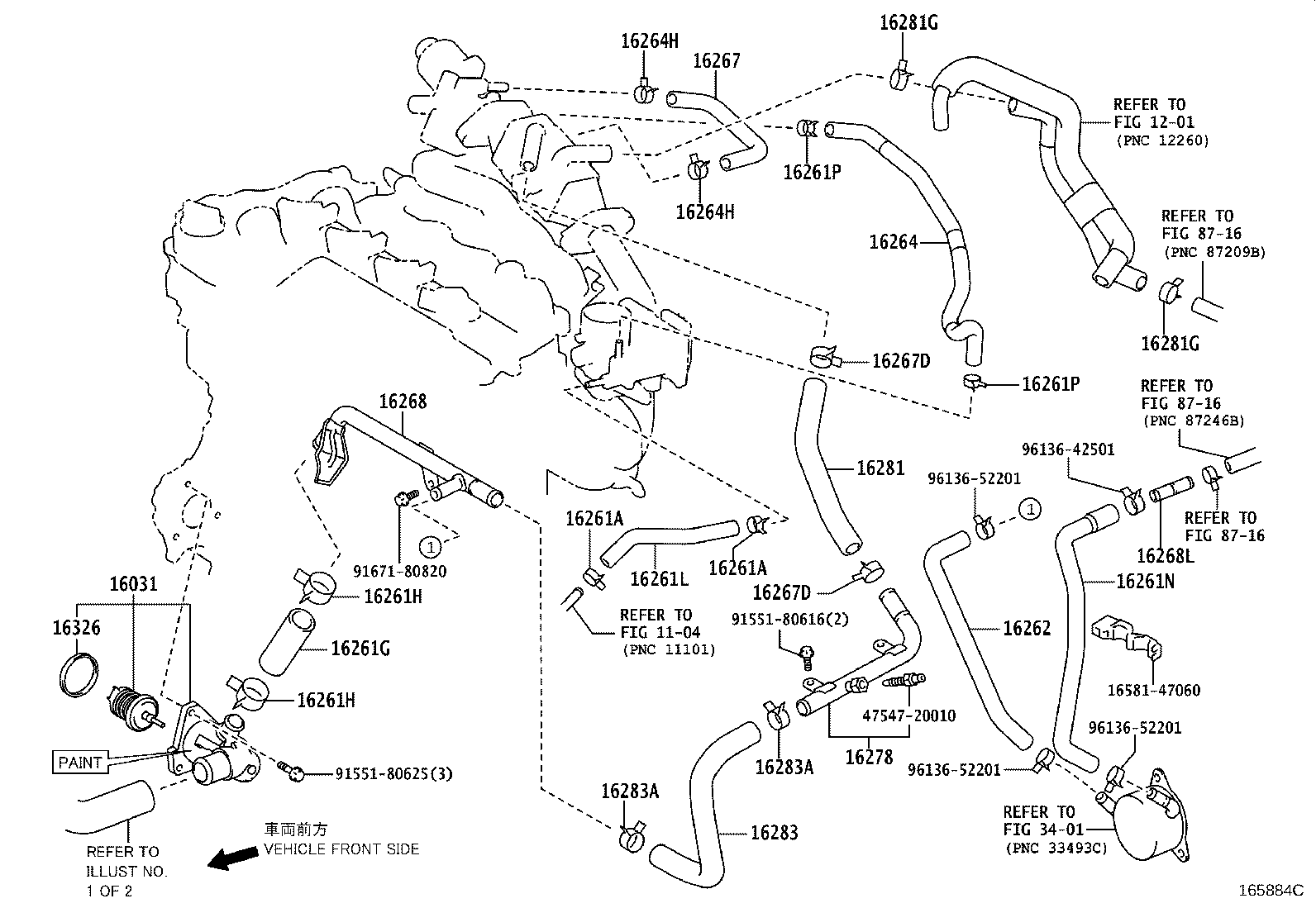

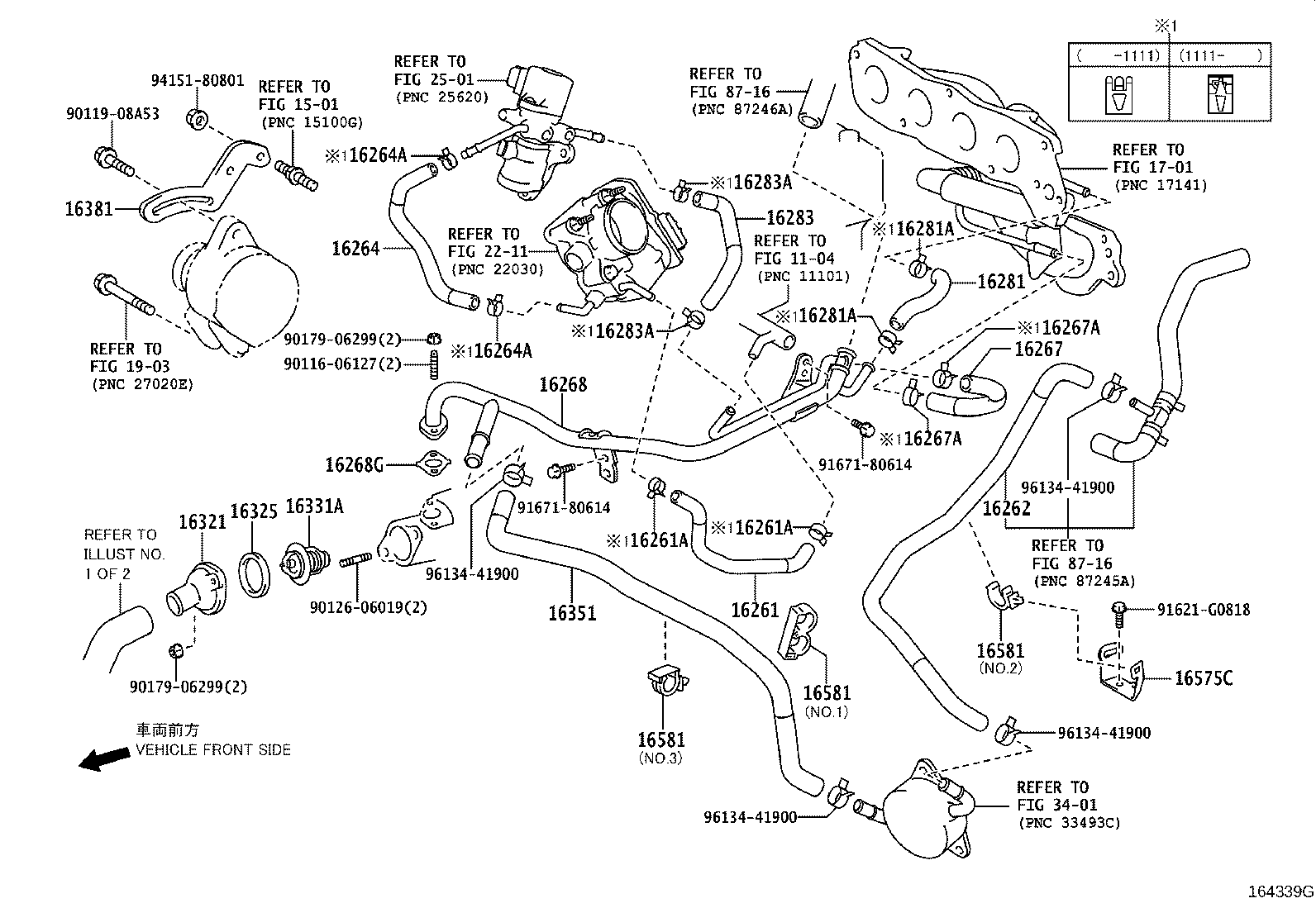

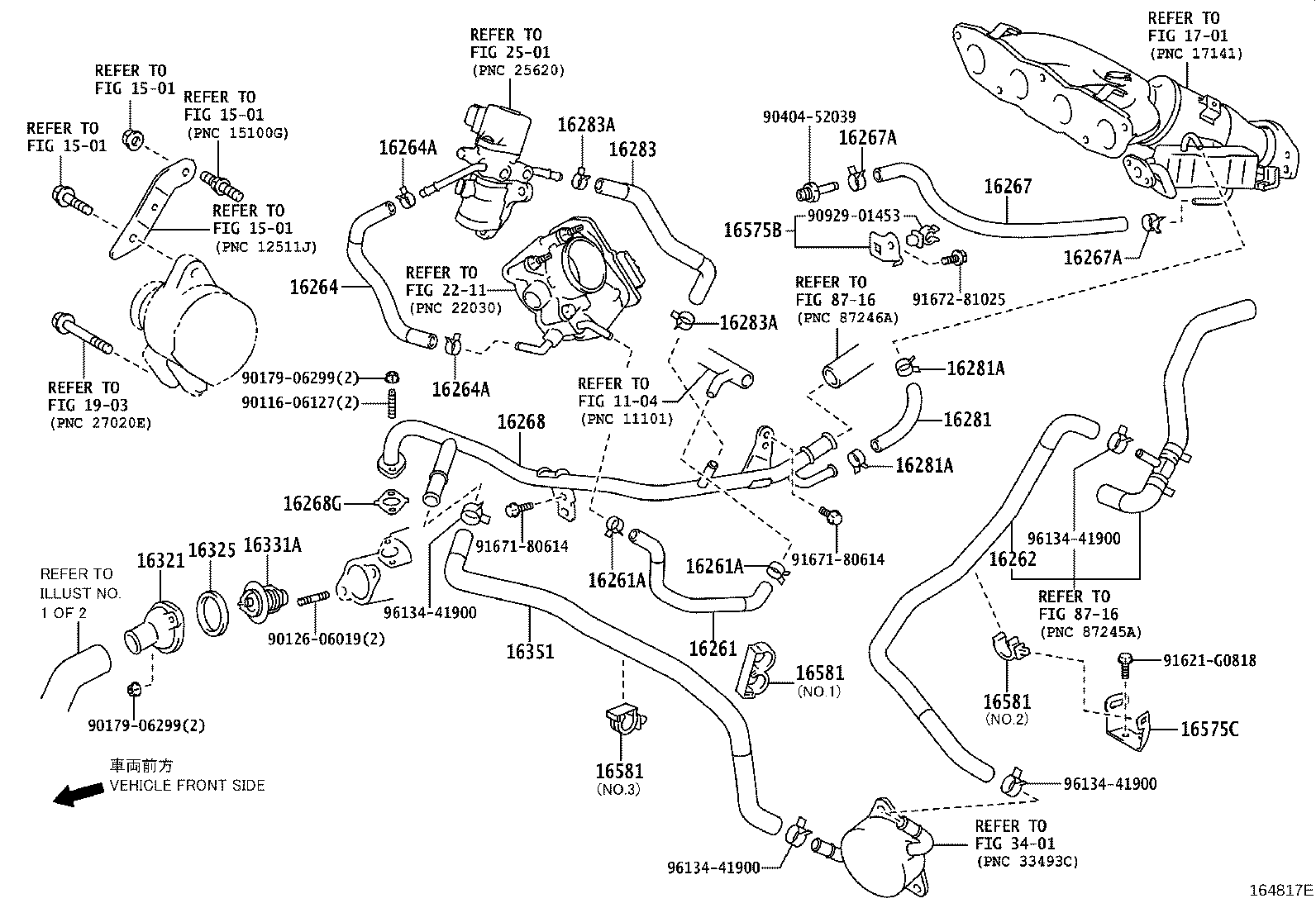

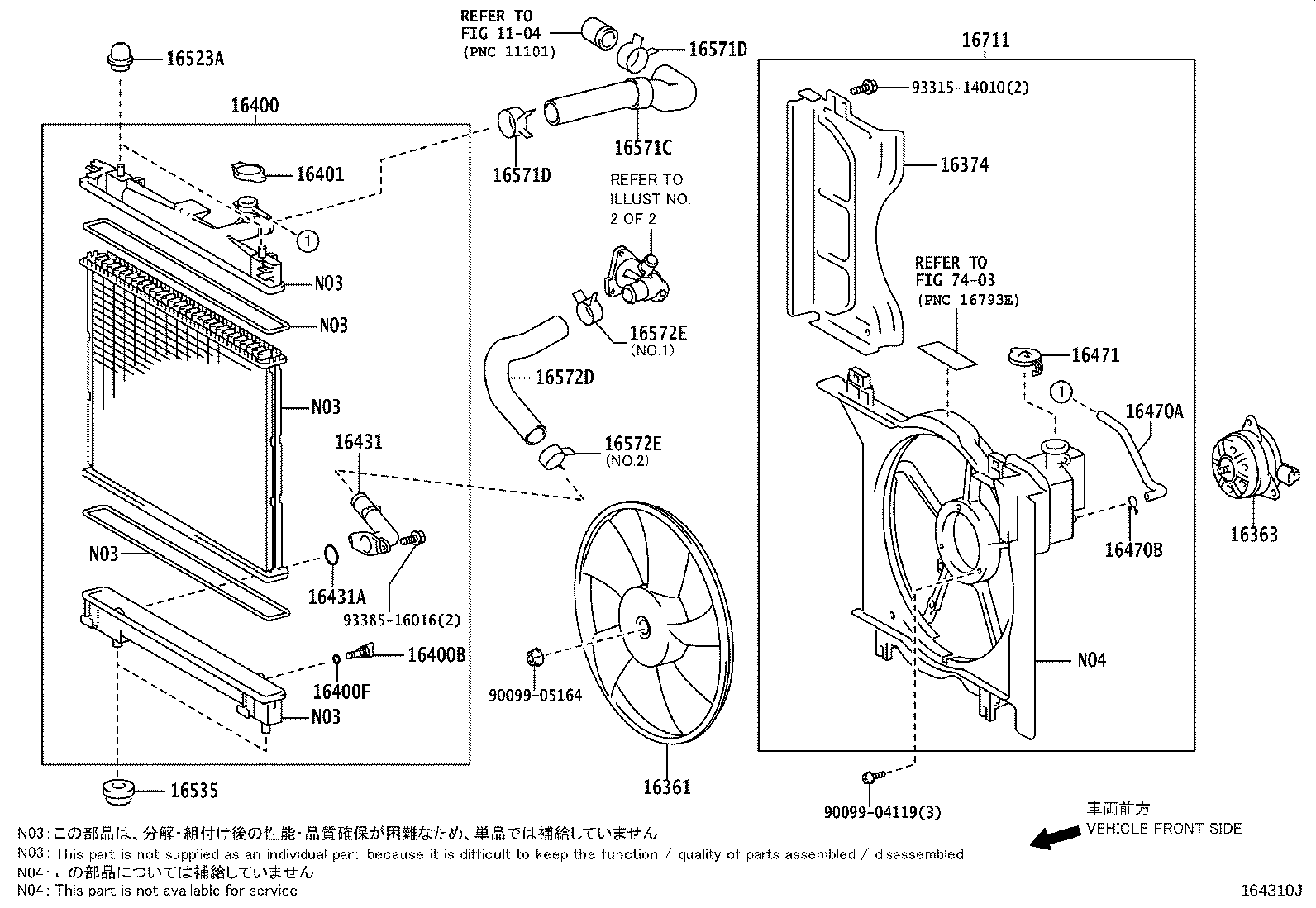

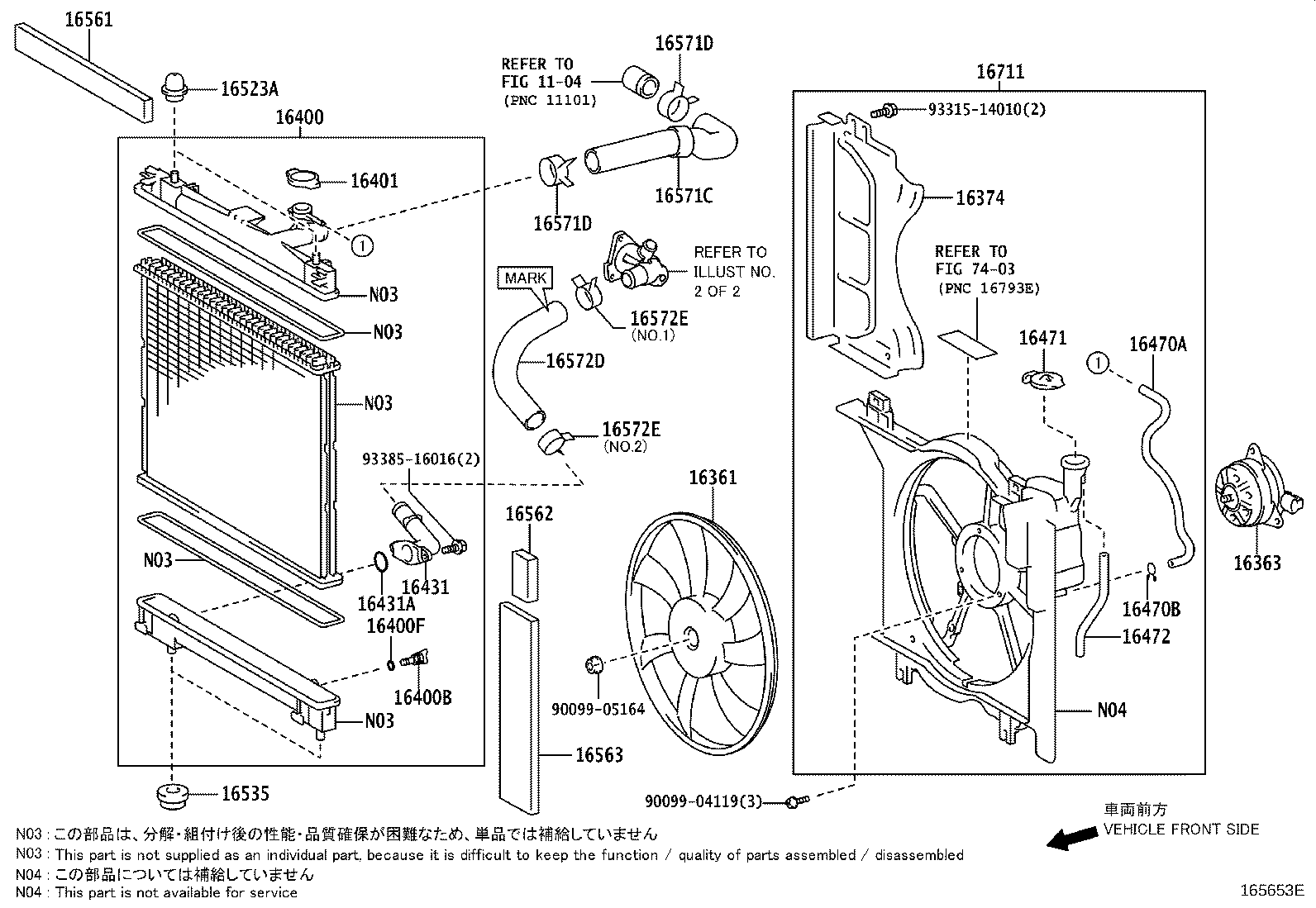

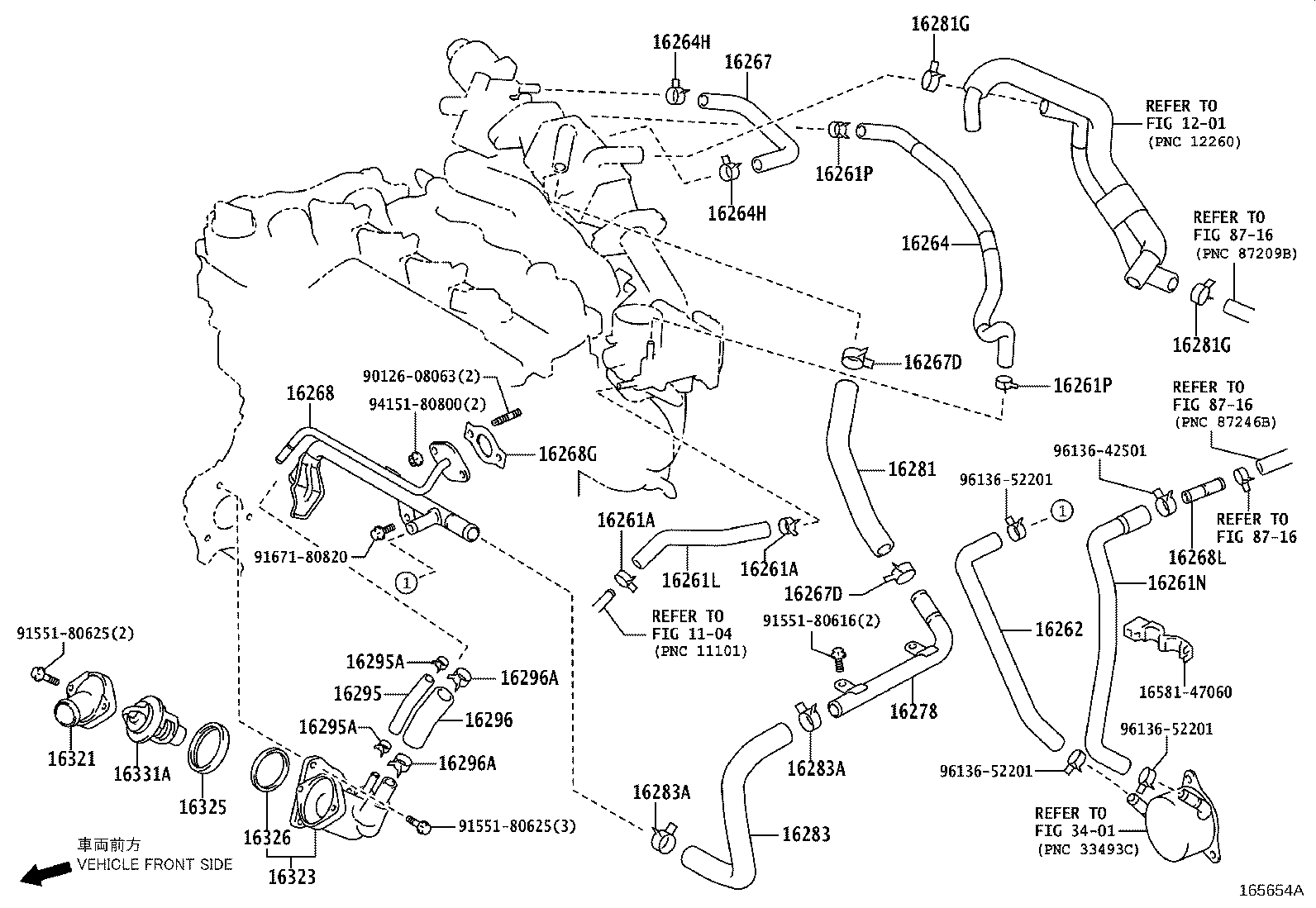

Figure 164340J 164340J 2010-11 → — Figure 164339G 164339G 2010-11 → 2012-08 Figure 164339G 164339G 2012-08 → — Figure 164817E 164817E 2012-08 → — Figure 164310J 164310J 2010-11 → 2014-05 Figure 164311C 164311C 2010-11 → 2014-05 Figure 165653E 165653E 2014-05 → — Figure 165654A 165654A 2014-05 → 2014-12 Figure 165884C 165884C 2014-12 → —

Part groups

PNCDescription
16031 Water Inlet Sub-assy, W/Thermostat
16206A Pipe Sub-assy, Water By-pass, NO.2
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261L Hose, Water By-pass
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16262 Hose, Water Inlet
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264H Clip(FOR WATER BY-PASS HOSE NO.3)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16268L Pipe, Water By-pass
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16351 Outlet, Water By-pass
16361 Fan
16363 Motor, Cooling Fan
16374 Insulator, Cooling Fan Motor
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16431 Inlet, Radiator Water
16431A Ring, O(FOR RADIATOR WATER INLET)
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16502 Filler Sub-assy, Water
16520A Cap Sub-assy, Water Filler
16522 Bracket, Water Filler
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16563 Seal, Radiator TO Support, NO.3
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16575B Bracket, Water Hose Clamp, NO.2
16575C Bracket, Water Hose Clamp, NO.1
16581 Clamp, Hose(FOR WATER HOSE)
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
