Toyota Ractis

2010-11 → 2016-07 · chassis NCP12#,NSP12# · catalogue 114130 · Japan

Supported model Data version 2017-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 5 illustrations

Illustrations

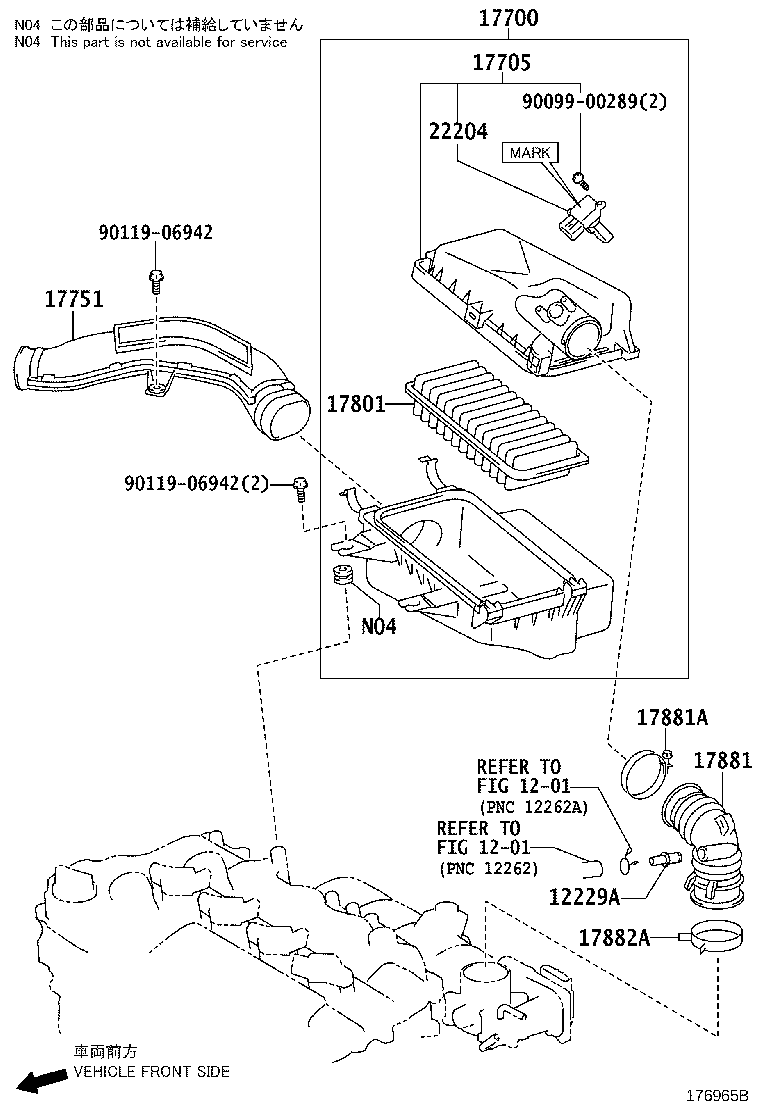

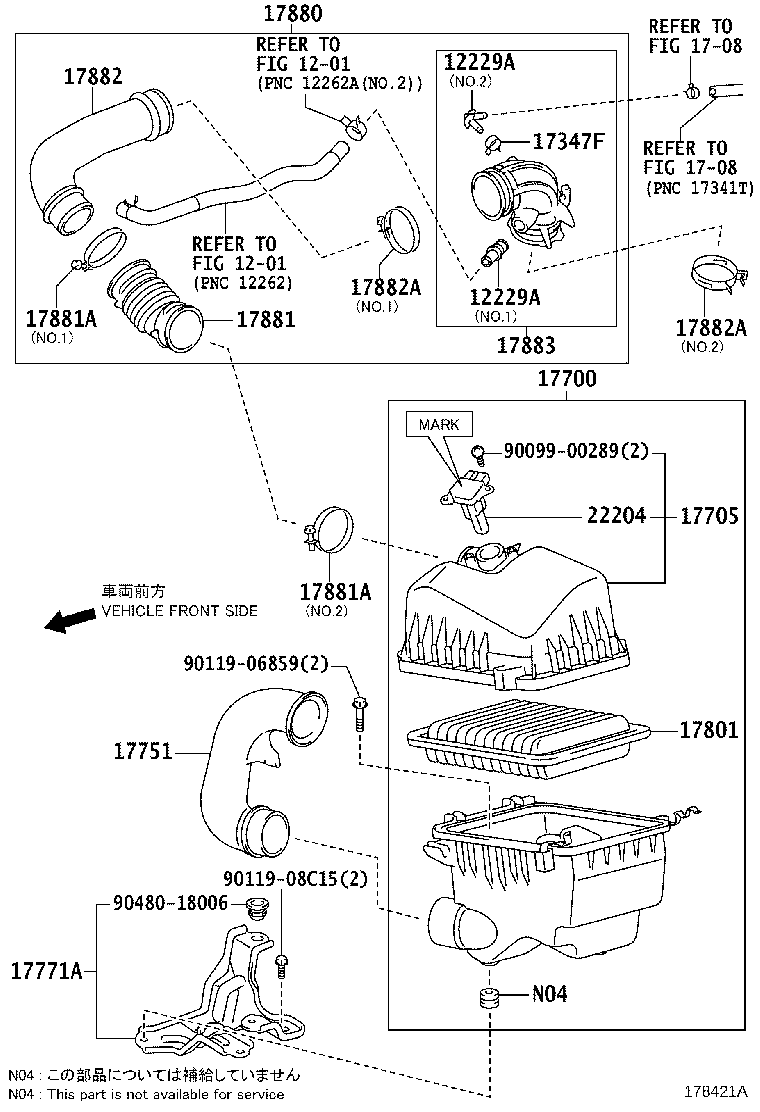

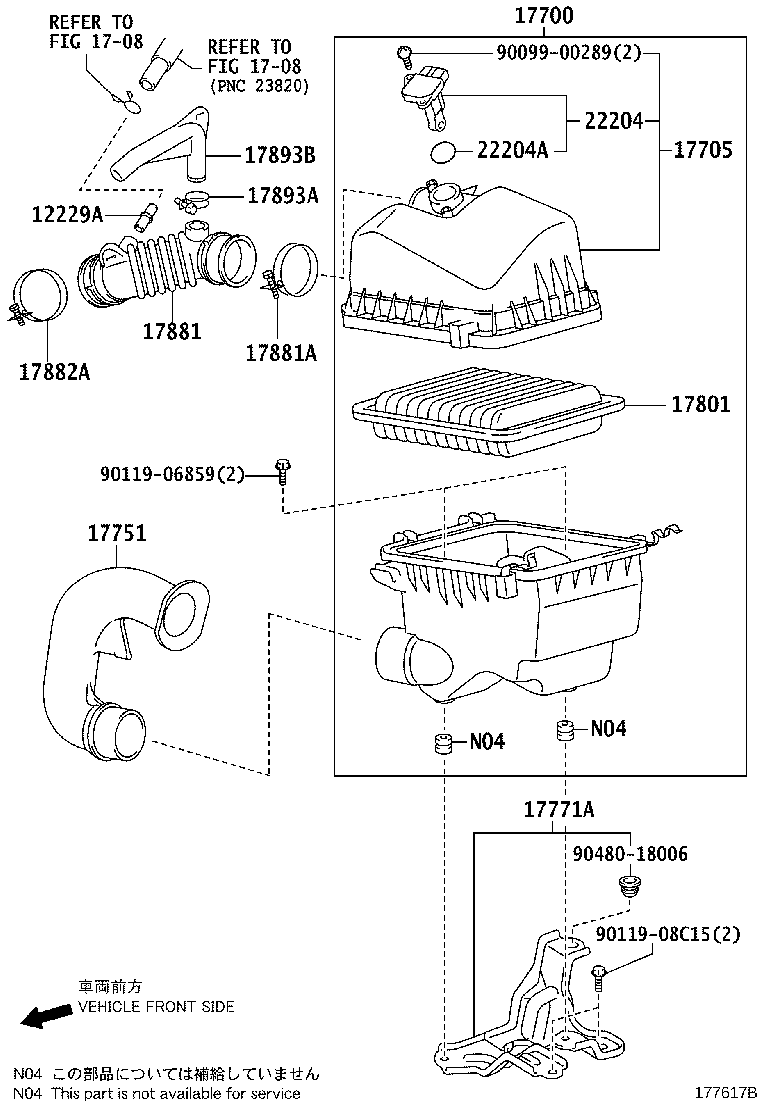

Figure 176964B 176964B 2010-11 → 2012-08 Figure 176964B 176964B 2012-08 → — Figure 177617B 177617B 2012-08 → — Figure 176965B 176965B 2010-11 → 2014-05 Figure 178421A 178421A 2014-05 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17347F Clamp OR Clip(FOR AIR HOSE)
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771A Bracket, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17880 Hose Assy, Air Cleaner
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17893A Clamp, Hose
17893B Resonator, Intake Air, NO.2
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
